Automatic Feeding Concrete Mixer Truck Price,
Production Characteristic
- Italy leading design,automatic feeding mixing system
- Simple and convenient operation
- High efficiency output, save time and labor, save cost
- The perfect combination of mixing truck and loading car
Technology Parameter
| Specifications | |
| Actual stirring capacity | 1.2m³ |
| Rotary drum capacity | 1.4m³ |
| Degree of bias | 16° |
| Rotational speed | 0-14r/min |
| Direction of rotation | Feed:clockwise output:counter clockwise |
| Mixing drum blade | Two sets of spiral and four sets of auxiliary blades |
| Slump of concrete | 70-260mm |
| Hydraulic Power Transmission System | |
| Pump model | CBGV-4025 |
| Hydraulic motor model | BMSS-250 |
| Reducer ratio | 01:10 |
| Water Supply | |
| Tank capacity/water supply form | 540/automatic timing water supply mechanism with automatic timing |
| The main performance parameters of the chassis and the main performance parameters of the engine | |
| Engine type/displacement | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| Model | Straight injection type four stroke water cooled supercharged diesel engine |
| Rated power | 55kw/2400 78kw/2400 kw/r/min |
| Max torque | 255/1500-1800 380/1500-1800 N.m/r/min |
| Max running speed | 24kw/h |
| Min steering radius | 5000mm |
| Climbing capacity | 26 |
| Tire | 23.5/70-16 |
| Driving way | 4*4 |
| Weight | 4580kg |
| Maximum load capacity | 2800kg |
| Whole machinery weight | 7380kg |
| Overall size | 6100*1850*3000mm(L*W*H) |

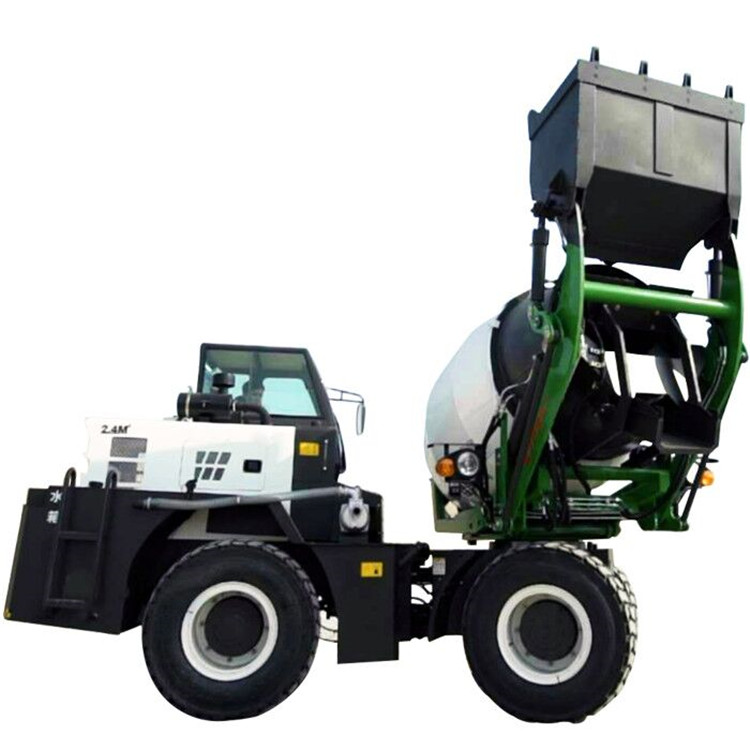

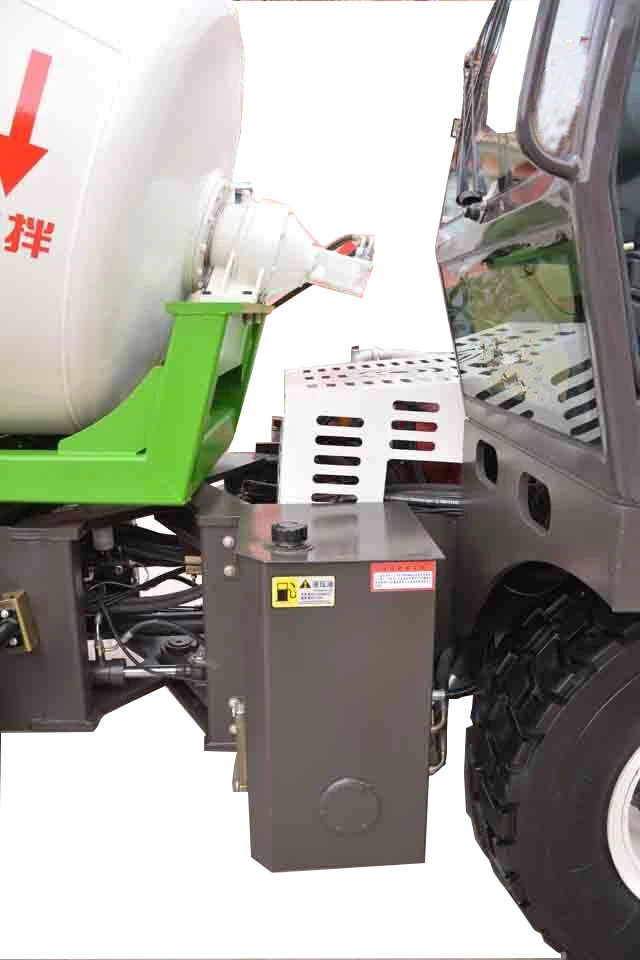

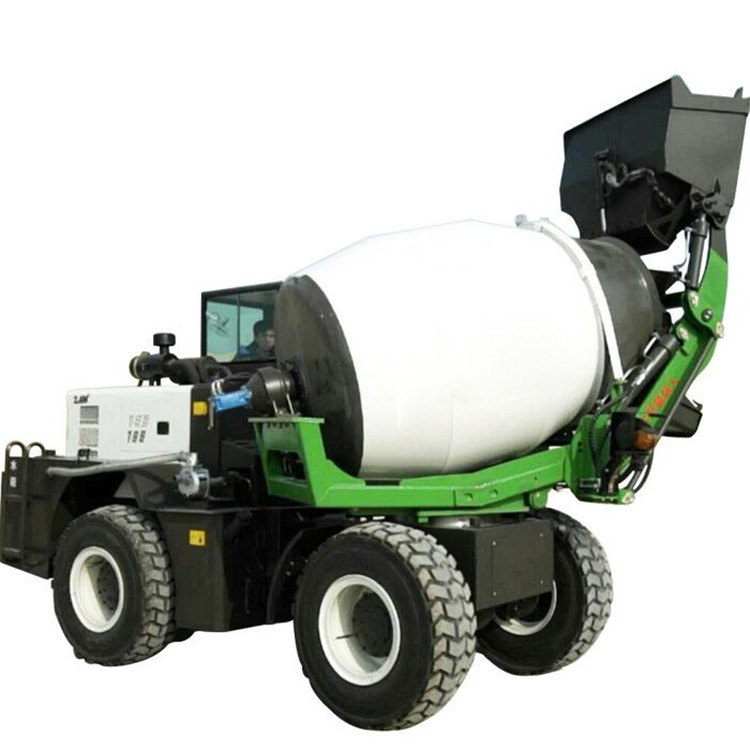

Product Real Phot
Our Company
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader,
backhoe loader, forklift and all kinds of attachments, around10 years of experiences, professional
and constantly innovation, professional producing line, every serious careful assembly workers,
we ensure every wheel loader that we produce has very reliable quality and stability.
Sincerely looking forward to provide you with the most comprehensive field solutions and the
most perfect products and services in the most crucial time.
