Product Description

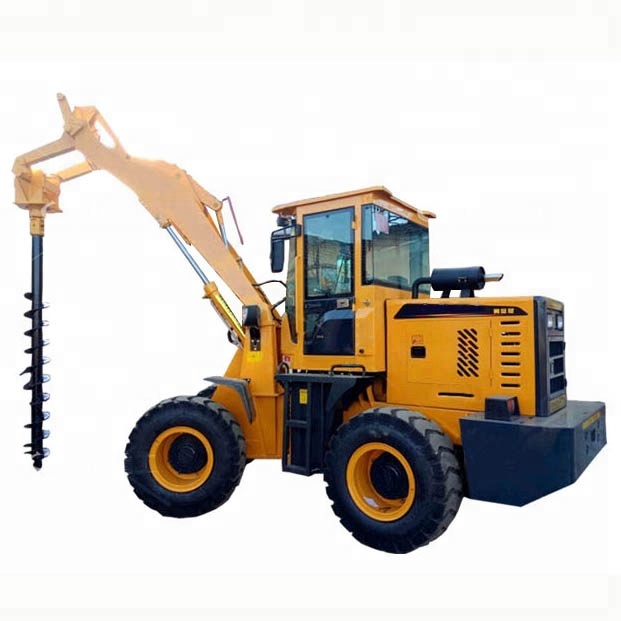

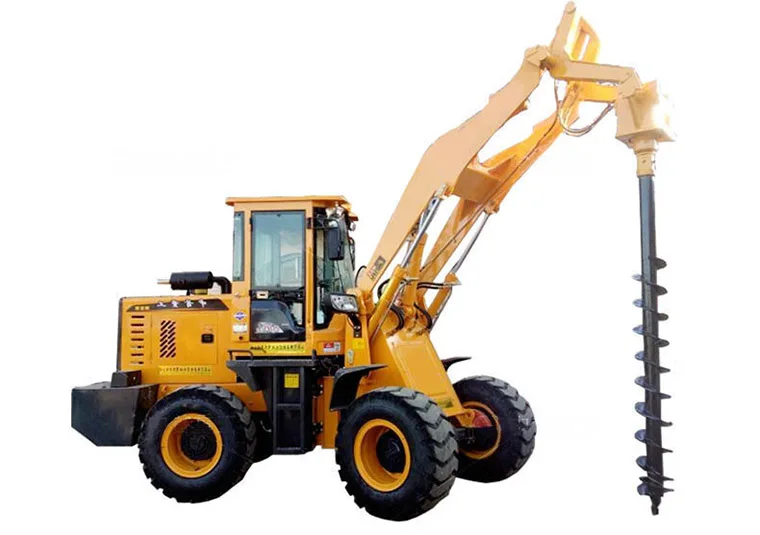

It is one of the functions of the multifunctional loader in our factory that the loader refit the drilling machine.
1. For the construction of pile driving, real estate foundation pile.
2. Solar photovoltaic pile, pile driving.
3. Highway guardrail installation, pile driving, drilling.
4. The fruit trees of agriculture are planted and dig holes.
Product Parameter
| Specification For Loader Modified Hole Digger Machine | |
Model | HD200 |
Borehole depth | 460cm |
The Max borehole diameter | 40mm |
| Dimension | 6000*2000*2900mm |
Wheel base | 2400mm |
Tread | 1440mm |
Max. breakout force | 48.87 KN |
Operating weight | 6000kg |
|
|
Engine |
|
Model | WC38 |
Pattern | Inline, water-cooled, 4-stroke, direct injection |
Rated power/Speed | 38KW/2400 rpm |
|
|
Torque converter and transmission system |
|
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Axle | Hualu |
Main reducer pattern | Arc taper gear, model ration of first grade |
Pattern of wheelside moderation | Planet gear moderation of single |
|
|
Tire |
|
Tire size | 16/70-24 |
|
|
Steering system |
|
Pattern | Articulated and hydraulic steering |
Min. turning radius(outside of bucket) | 6000mm |
Max. turning angle | 35°±1 |
|
|
Implement hydraulic system |
|
Implement pump | CB2063 |
System working pressure | 20MPa |
|
|
Brake system |
|
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control, outside bunch drum type |
