Product Description

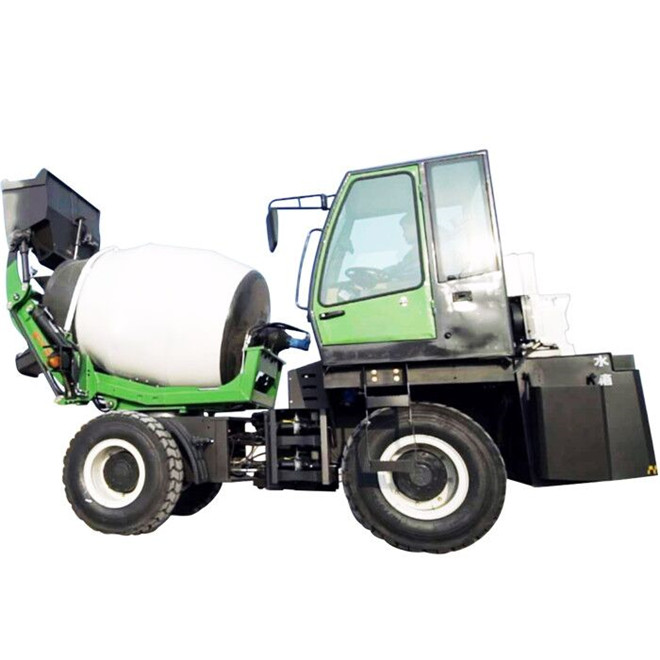

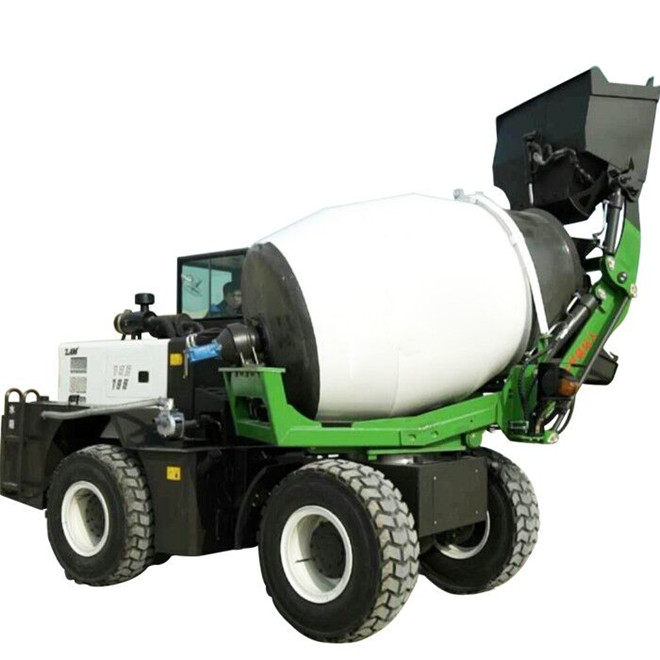

HW brand concrete mixer machine mobile self loading concrete mixer truck price
- Italy leading design,automatic feeding mixing system
- Simple and convenient operation
- High efficiency output, save time and labor, save cost
- The perfect combination of mixing truck and loading car
- 180 degrees with a rotary stirring tank,two-way unloading
Specification | ||||||||
Actual stirring capacity | 2.4m³ | |||||||
Rotary drum capacity | 2.3m³ | |||||||
Degree of bias | 16° | |||||||
Rotational speed | 10-20r/min | |||||||
Direction of rotation | Feed:clockwise output:counter clockwise | |||||||
Mixing drum blade | Two sets of spiral and four sets of auxiliary blades | |||||||
Slump of concrete | 70-260mm | |||||||
Hydraulic Power Transmission System | ||||||||
Pump model | CBGV-4025 | |||||||
Hydraulic motor model | BMSS-250 | |||||||
Reducer ratio | 01:24 | |||||||
Water Supply | ||||||||
Tank capacity/water supply form | 540/automatic timing water supply mechanism with automatic timing | |||||||
The main performance parameters of the chassis and the engine | ||||||||
Engine type/displacement | CF4B68G-Z-13B2/CF4C100T-Z-13B2 | |||||||
Model | Straight injection type four stroke water cooled supercharged diesel engine | |||||||
Rated power | 78kw/2400 kw/r/min | |||||||
Max torque | 380/1500-1800 N.m/r/min | |||||||
Max running speed | 24kw/h | |||||||
Min steering radius | 4500mm | |||||||
Climbing capacity | 26 | |||||||
Tire | 16/70-20 | |||||||
Driving way | 4*4 | |||||||
Weight | 5550kg | |||||||
Maximum load capacity | 5600kg | |||||||
Whole machinery weight | 11150kg | |||||||
Overall size | 6350*2510*2850mm(L*W*H) | |||||||
The wheelbase | 2300mm | |||||||
Bucket capacity | 0.5m³ | |||||||

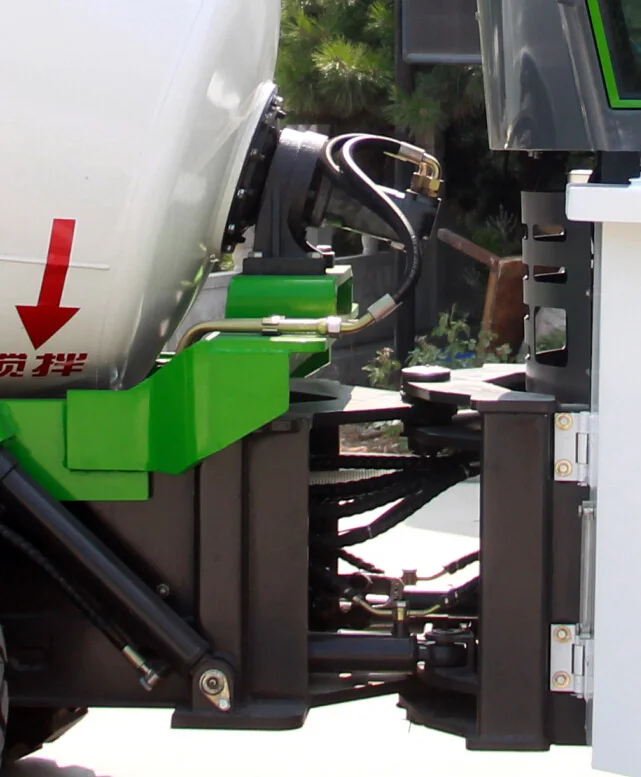

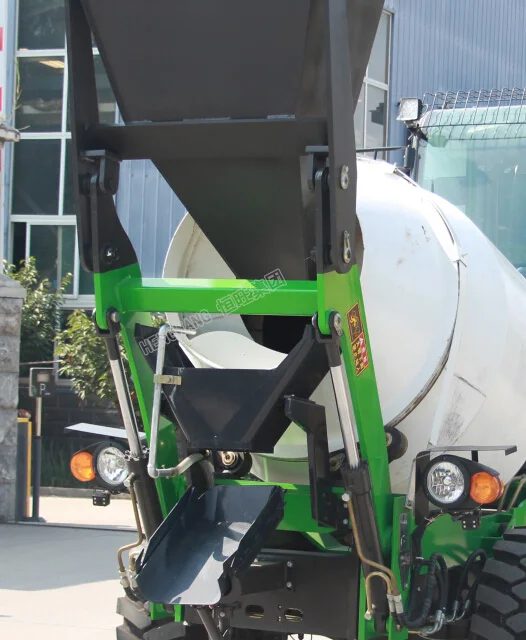

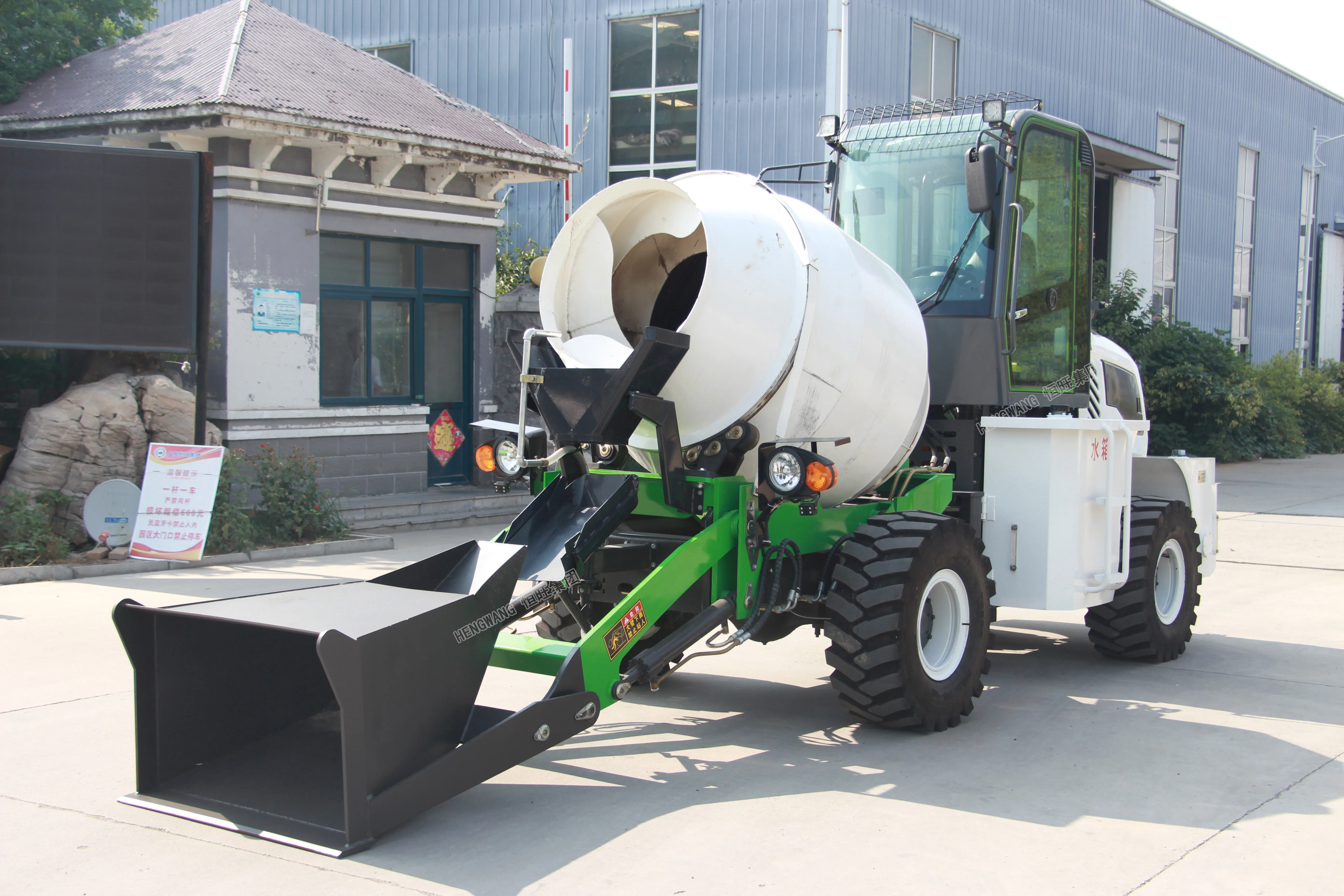

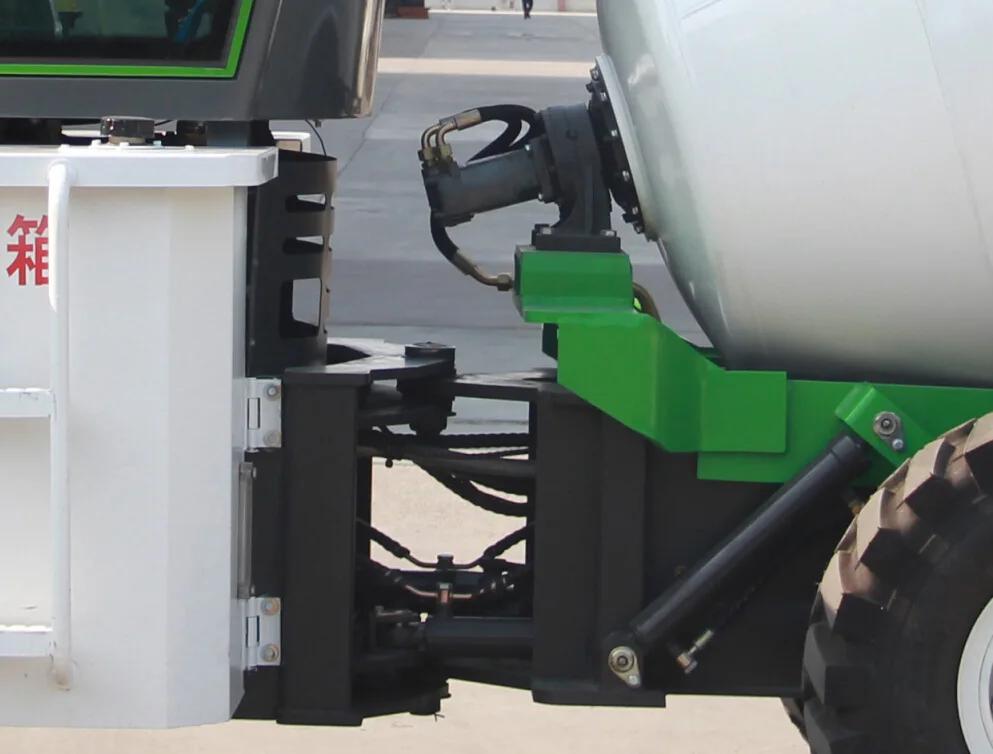

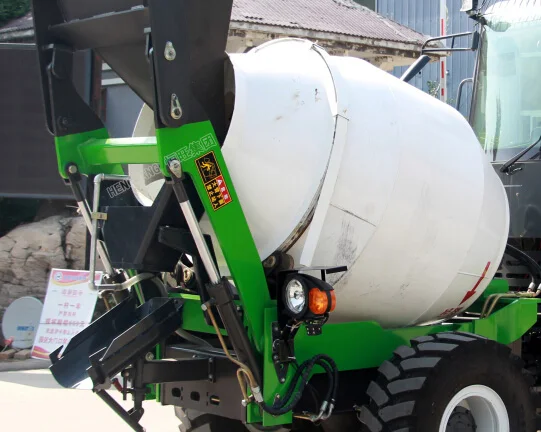

Detailed Images
Related Products
Packing&Shipping
After Sales Service
Warranty
1. we machine offer one year warranty;
