Home > Products > Mini used skid steer loader for sale
Mini used skid steer loader for sale
Click on the image to view the original image
Product： views：3Mini used skid steer loader for sale
Branch： HW
Type： Skid Steer Loader
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:44
  Negotiated
Product Details
Overview
Quick Details
Dimension(Long * Breadth * High):
2200*800*1302mm
Condition:
New
Brand Name:
HW
Place of Origin:
Shandong, China
Type:
Skid Steer Loader
Moving Type:
Wheel Loader
Rated Load:
165kg
Certification:
CE ISO
Model Number:
HW-280
Moving type:
wheel loader/crawler loader
Tipping load:
165kg
Bucket capacity(m3):
0.12
Wheel base:
652mm
Working time:
3.31s
Operationg weight(kg):
794
Max. travel speed(km/h):
0-5.5
Front turning radius:
1440mm
System pressure:
17Mpa
Width of bucket:
820mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package or as your requirement ,for New Mini skid steer loader
Port
Qingdao Dalian Shanghai Tianjin
Video Description
Product Description
1.Product  Description

The micro skid steer loader HW280 is a multi-functional building engineering equipment. Its fuselage is small and easy to operate. It can easily and quickly connect various functional attachments to realize various work. It is widely used in other industrial fields, such as garden, manufacturing, construction, recycling, garden, road, building, farm and other industrial fields.

2.Product Characteristic

(1).Micro skid steer loader HW280 is easy to operate.The double handle completes walking, lifting and turning.Stationary piston motor.Four wheel drive adapts to various environments.Various forms of pedals make the operation safer and more convenient.Two operating modes of servo and standard.
(2).Easy maintenance of micro skid steer loader HW280
It is easy to replace air filter, oil, filter and spark plug in the outside of the car.The rear guard plate is easy to take down.

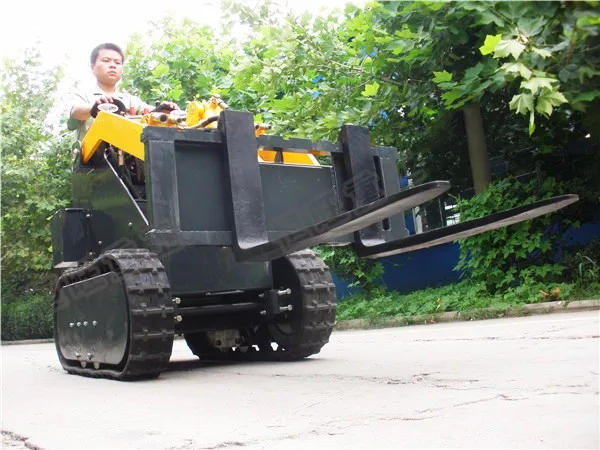

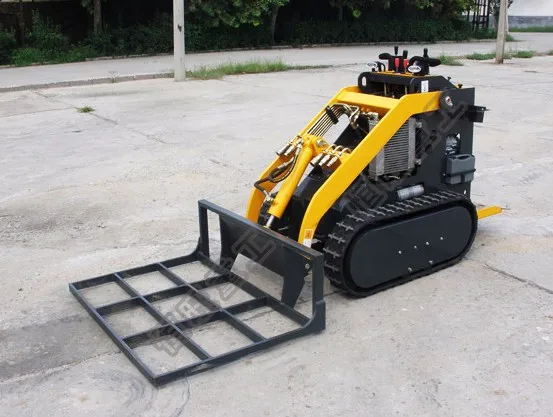

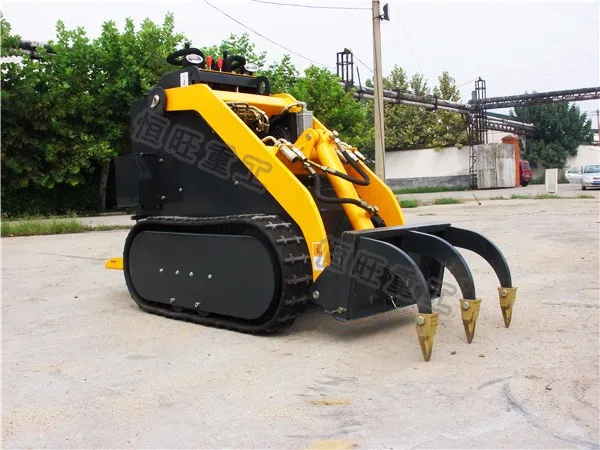

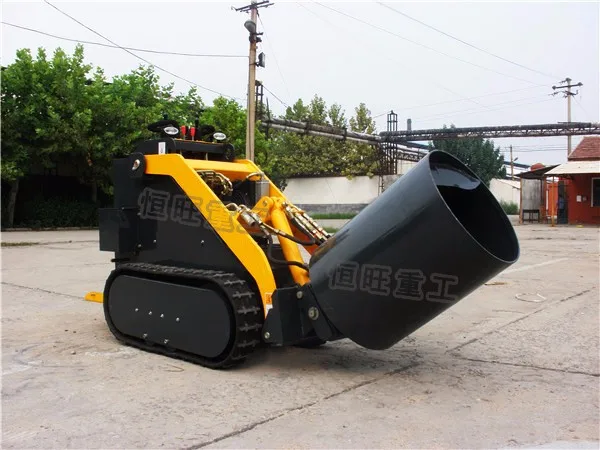

(3).The microskid loader HW280 can be equipped with a variety of attachments, and there are interchangeable attachments among all the models. At present, there are about 40 kinds of sea pine.
(4).Internationally famous brand engine, stable and reliable, three guarantees warranty.
(5).Micro skid steer loader HW280 multiple tire and crawler mode to choose from, stronger adaptability.
(6).HW280 Micro skid steer loader fuselage is narrower, only 800mm wide. It can pass through the long and narrow strip, and has large fuel tank and lift force.
(7).The micro skid steer loading mechanism can greatly simplify manual labor and improve efficiency.


SPECIFICATIONS FOR WHEEL LOADER
Model
HW-280
Ground height
143mm
Max. working height
2363mm
Wheelbase
652mm
Max.hinge pin height
1800mm
Total width
800mm
Max. unloading height
1412mm
Total length
2200mm
Max. discharge distance
533mm
Rated power
15.435kw(21HP)
Max.discharge angle
29o
Calibrated speed
3600rpm
Put bucket angle
36o
Rated loading quality
165kg
Depature angle
13o
Capacity of bucket
0.12m3
Total height
1302mm
Max. lift force
375kg
Travel speed
0-5.5km/h
Operating weight
794kg
