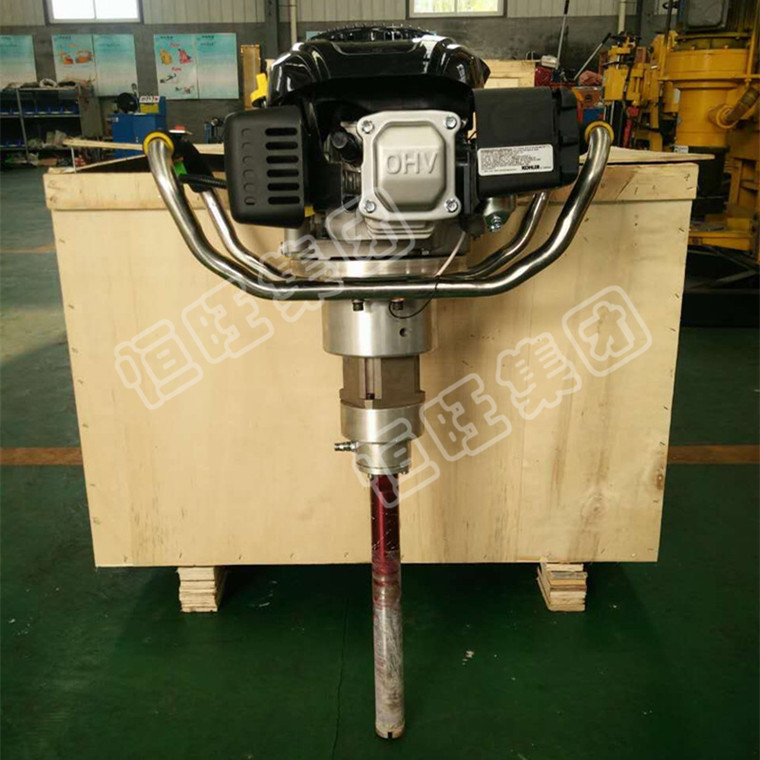

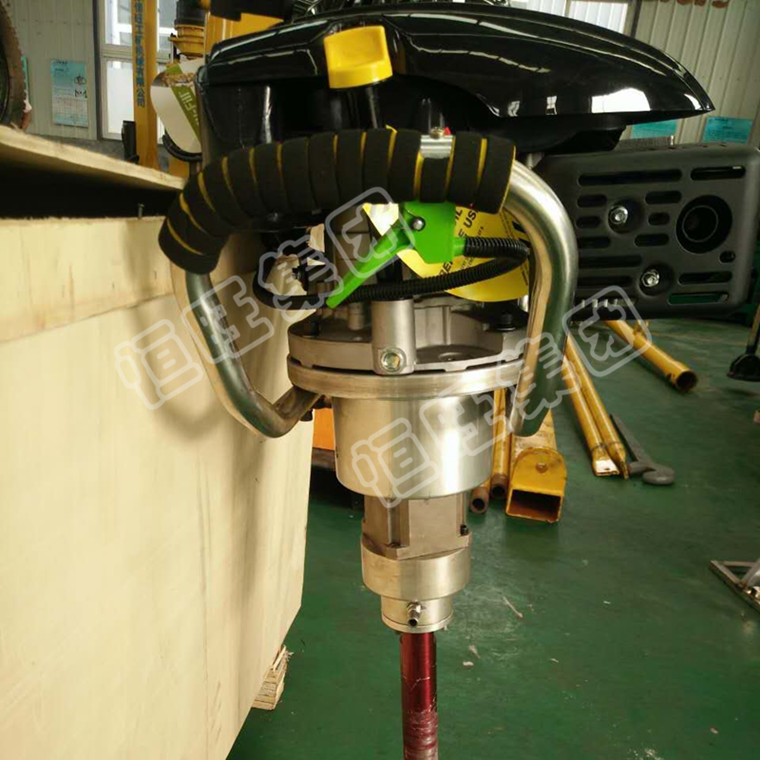

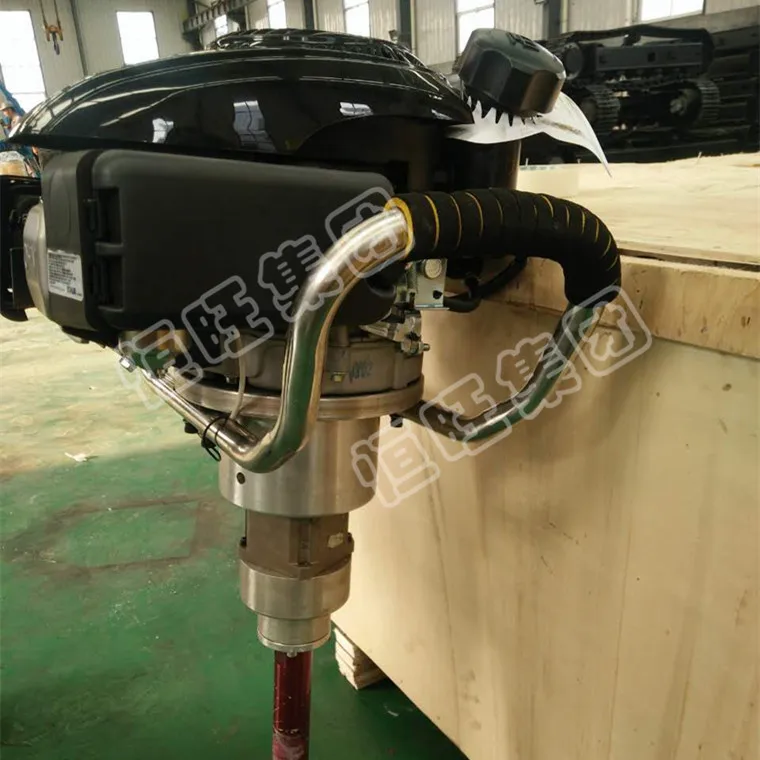

HW-B30 Portable Drill core sampling
This portable core sampling rig for my plant long-term practical experience developed out of the experiment and after several field sampling several improvements made an efficient new portable core sampling rig.
The drilling rig has a fast, deep sampling, simple operation, portability and other characteristics, we can cope with complex geology, increase labor efficiency, reduce labor costs, suitable for field and inaccessible location of geological exploration, oil exploration, mineral inspection, building sampling, blasting and drilling work. It can effectively replace medium core drilling of shallow core sampling exploration work.
Parameter
Model :HW-B30
Drilling diameter:φ32-108mm
Drilling depth:30m
Adaptation Geological: soil, loose cover, all kinds of rock
Consumption:about 0.3L / min
Drill diameter :φ32mm
Drill length:750mm (with joints)
Drill pipe material :titanium
Drill pipe weight: about 1.1kg

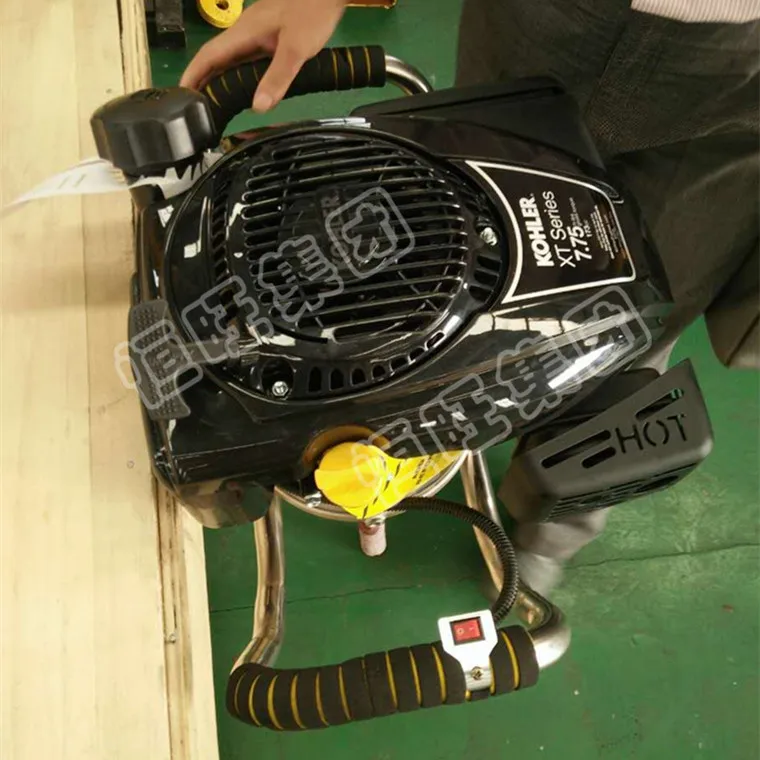

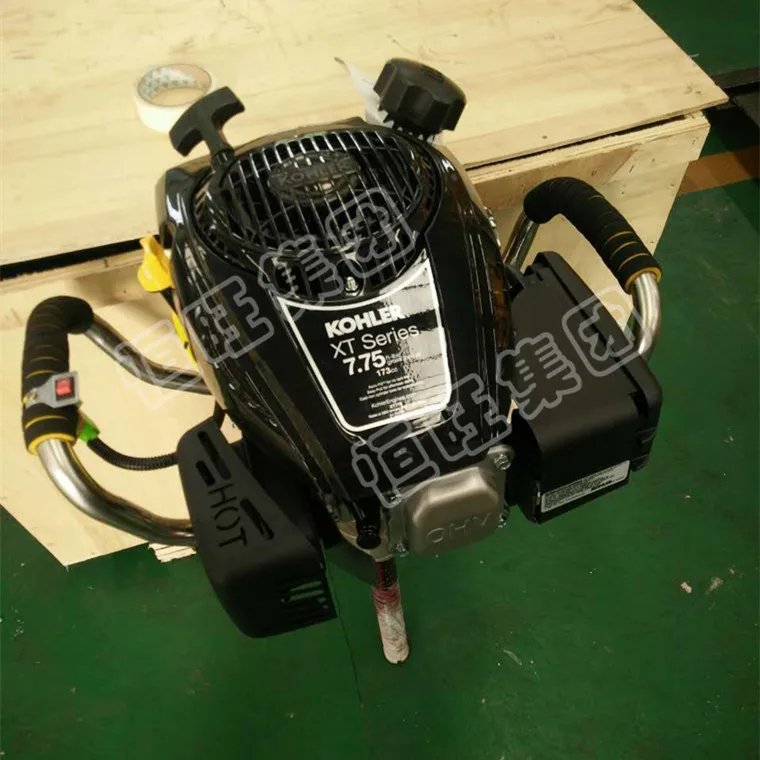

Gasoline brand: KOHLER
Gasoline models : XT Series 775
Gasoline engine power :7.75HP
Rated speed: 2800rpm
Machine weight: about 25kg
