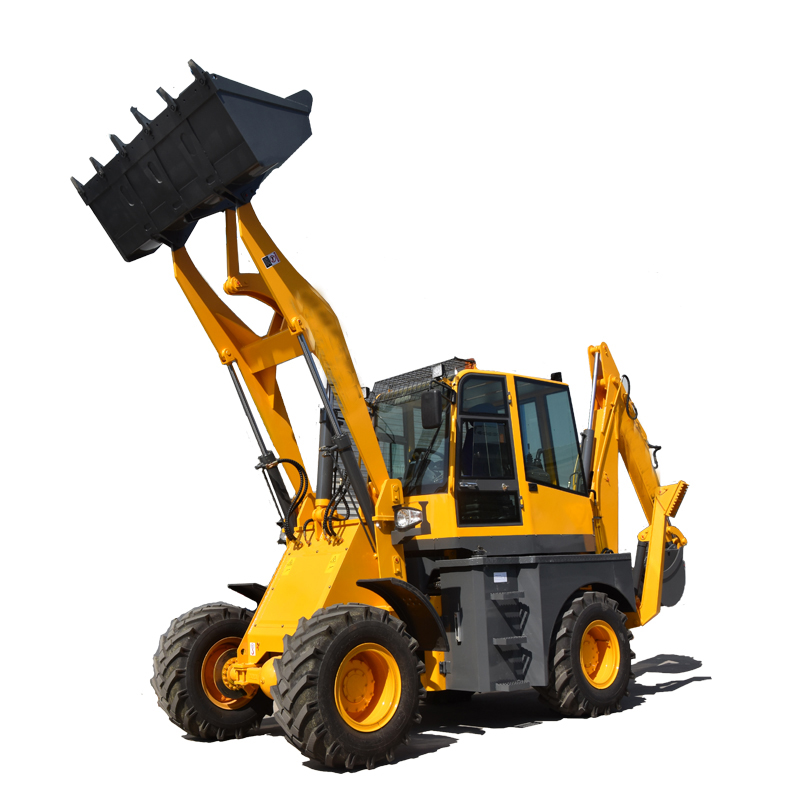

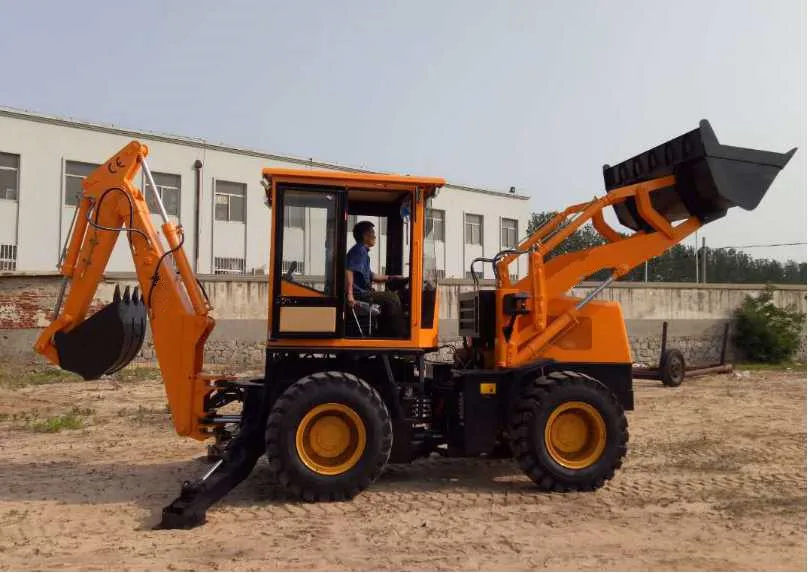

CE certified hydraulic 4 wheel tractor backhoe loader
1,Enlarged operator cabin, with secure glass, is capacious and bright some. Luxury and adjustable shock-absorbing seat,convenient and comfortable to use.
2, hinged frame, small turning radius, continuously variable, full hydraulic steering, easy operation
3, the excavation part is a pilot operation, easy to operate, accurate positioning.
4. Mid-mounted excavation device and wing-type outrigger, more stability than other shapes excavation device when broken rock and depth excavation

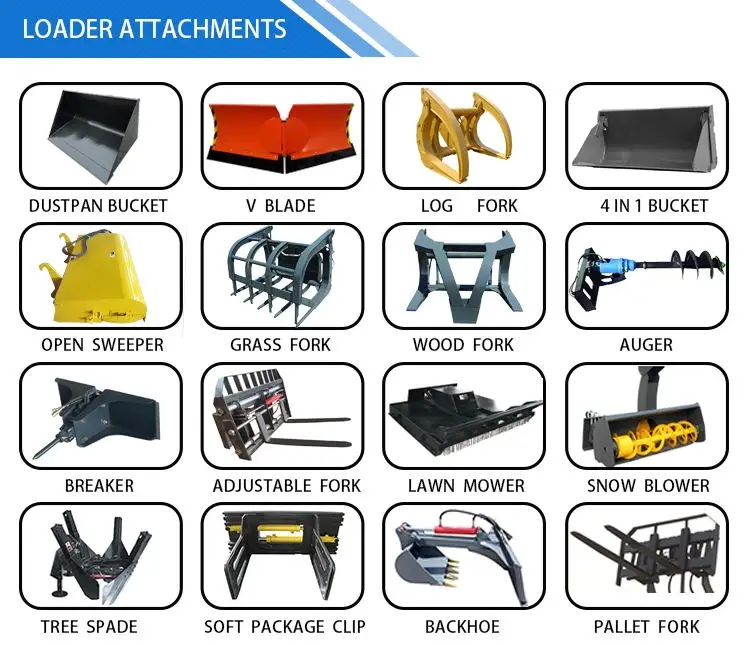

5, equipped with multi-function pipeline, With which many kinds of optional components can be matched to meet requirements of different users.
6. Working table, water temperature, oil temperature, current, work timing are all in sight.
7. Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading and dumping can change freely.

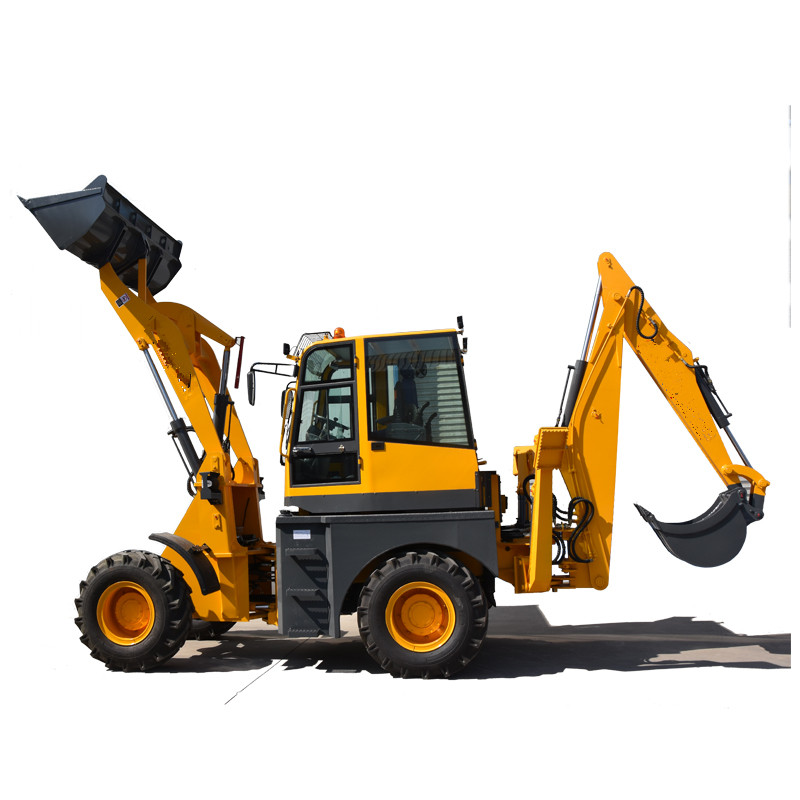

CE certified hydraulic 4 wheel tractor backhoe loader
Loader Performance
| Loading bucket capacity | 1.2m3 |
| Rated load capacity | 2500kg |
| Dumping height | 2600mm |
| Dumping reach when at max. dumping height | 880mm |
| Max. breakout force | 49KN |
Backhoe Performance
| Capacity of excavator bucket | 0.3m3 |
| Max. excavating depth | 3800mm |
| Max. excavating radius | 5000mm |
| Revolute angle of movable arm | 180° |
Tyre
| tyre | 16/70-20 |
Front and Rear Axles
| Grade ability | 45% |
| Max. Traction | 38kn |
| Max. steering angle | 35° |
Hydraulic System
| Min. turning radius (front wheel center) | 4190mm |
| Loading pressure | 21.5MPA |
| Digging Pressure | 21.5MPA |
| steering Pressure | 14MPA |
Engine
| Engine | WEICHAI 4108 |
| Rated power | 110HP |
| Rated speed | 2400r/min |
Transmission System
| Forward I gear shift | 0-11km/h |
| Forward II gear shift | 0-27km/h |
| Reverse I gear shift | 0-10km/h |
| Reverse II gear shift | 0-26km/h |
FIGURE
| Drive type | 4WD |
| Operation weight | 6800kg |
| Size(L*W*H) | 7300mm*2100mm*3000mm |

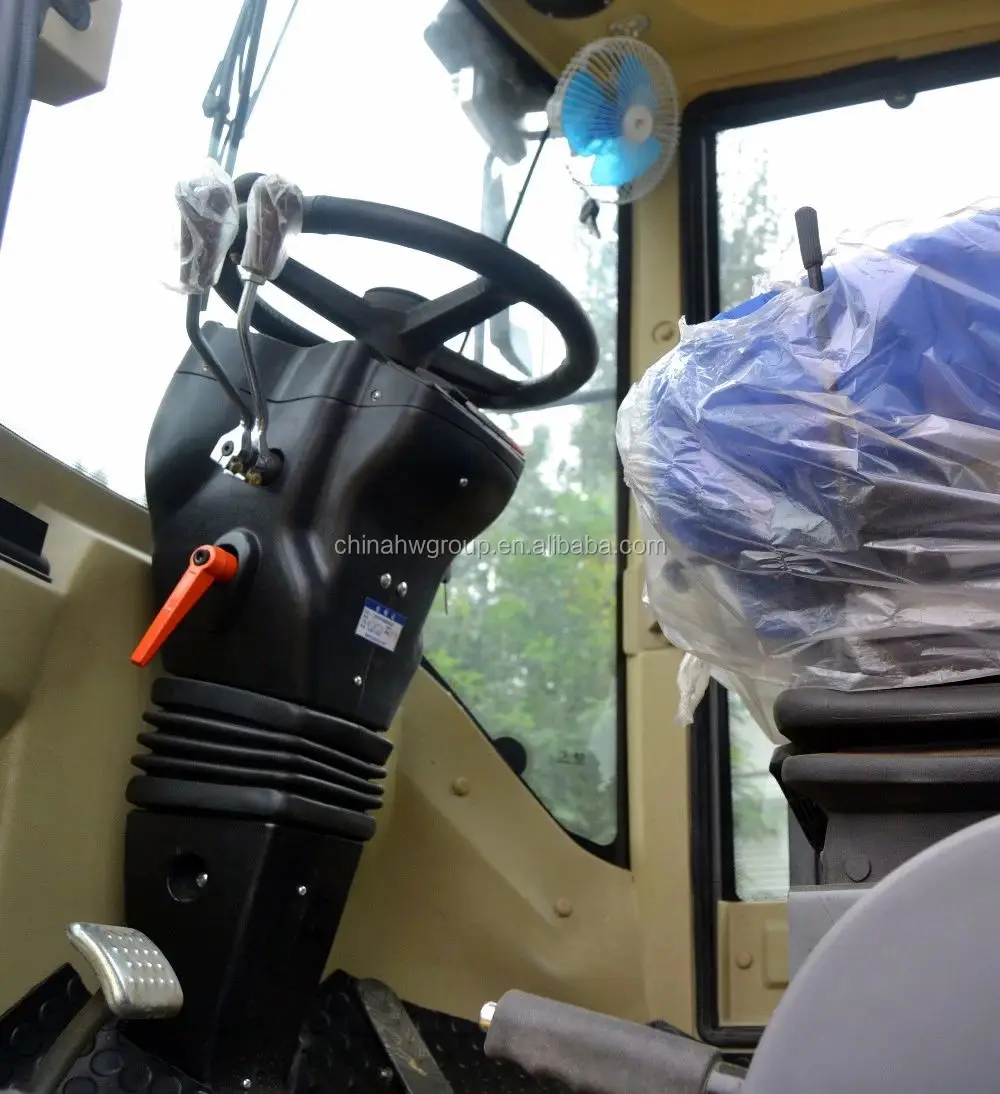

Hydraulic Joystick easy to control.

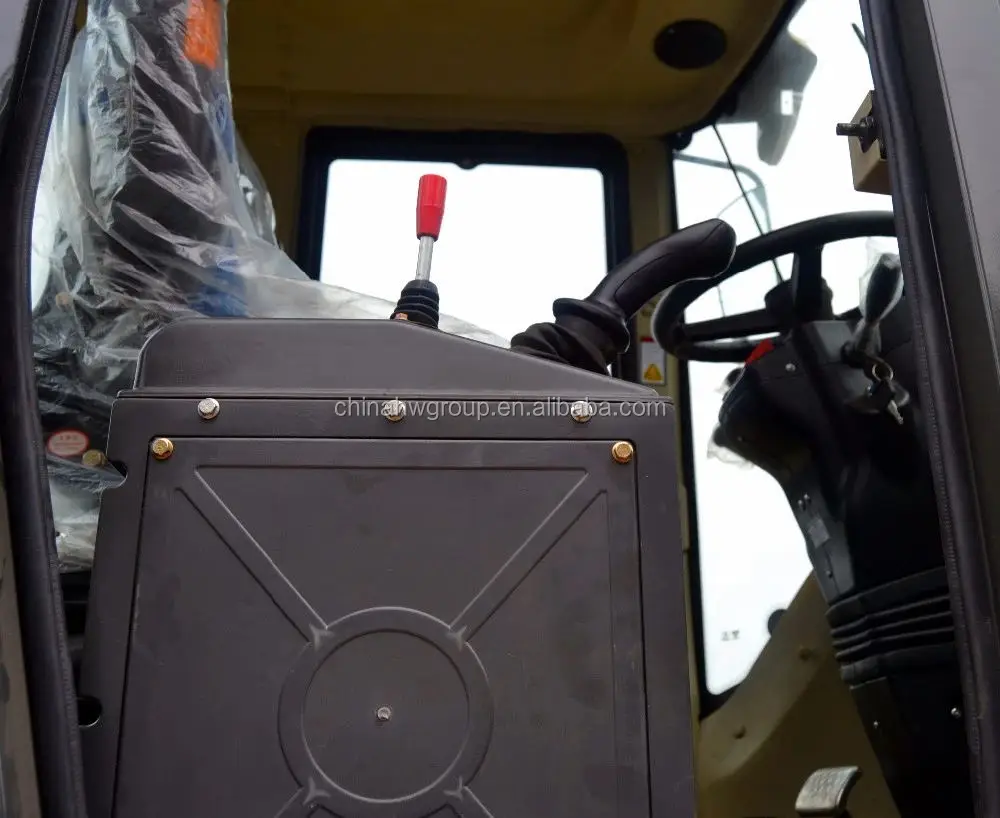

Comfortable operation environment.
Comfortable steering wheel,high quality seat and suitable joystick control,make a very comfortable operation environment for driver.

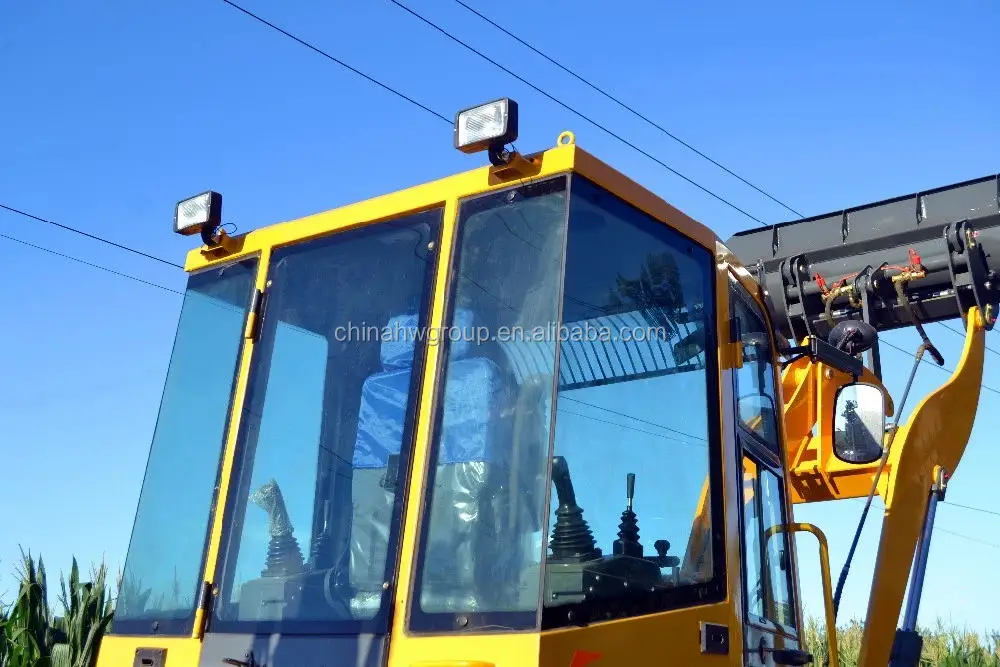

Luxury Cabin
Good design and have the broad field of vision,comfortable operation environment and safty drive.
Luxury Cabin
Cabin can open easily to service the engine.
