Overview
Quick Details
- Bucket capacity:
- 0.045m3
- Operating Weight:
- 1520kg
- Rated Speed:
- 10kw
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Model Number:
- HW16
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 3275mm
- Maximum Digging Depth:
- 2150mm
- Machine Weight:
- 1520kgs
- Max Digging Radius:
- 3470mm
- Certification:
- CE ISO
- Color:
- Yellow and black
- Brand name:
- HengWang
- Length of crawler:
- 1670mm
- Digging up capacity:
- 0.045m3
- Engine:
- YANMAR 3TNV70
- Rated power:
- 10KW
- Crawler height:
- 410mm
- Machine height:
- 2400mm
- Chassis width:
- 1050mm
- Product name:
- Mini Excavator
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 50 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- Mini crawler packing withinfoot container
- Port
- Qingdao Shanghai Dalian Tianjin
Product Description

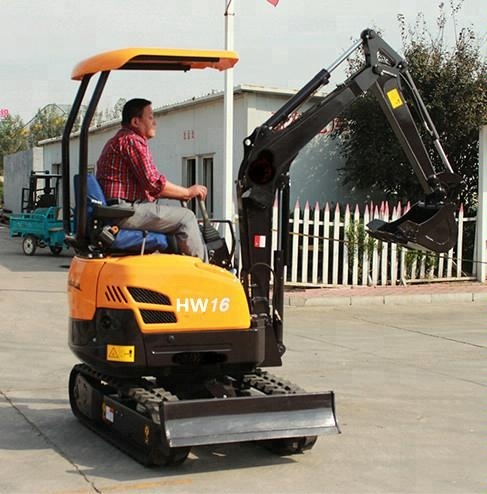

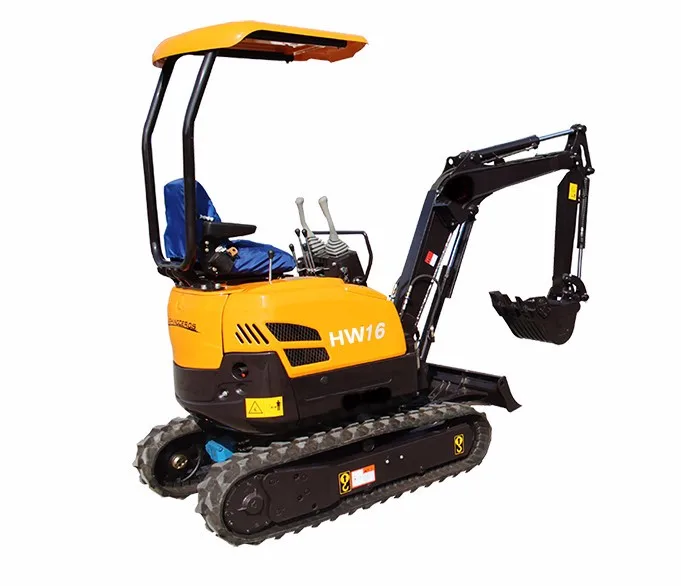

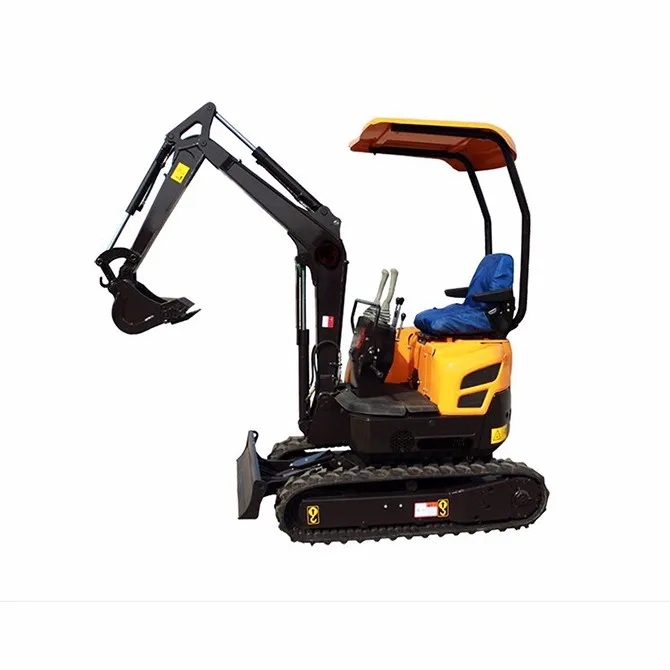

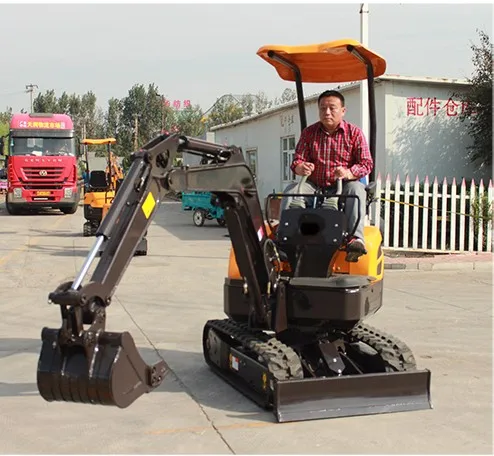

HW16 MINI CRAWLER EXCAVATOR MACHINE
The product is designed independently, beautiful in appearance, high in configuration, Yanmar power, import system, excellent performance, low fuel consumption and wide range of operation. It is suitable for the loose land in the vegetable greenhouse, the garden greening of the municipal departments, the pit planting in the orchard nursery, the broken concrete pavement, the mixing of sand and stone, and the narrow space construction work. The use of quick change joint, optional rotary digging drill, broken hammer, loader, grab and other kinds of equipment, reduce maintenance and operation cost, emancipate the labor force, improve the degree of mechanization, low investment, high return.
SPECIFICATIONS FOR CRAWLER EXCAVATOR | |||
MODELS | HW16 | Platform ground clearance | 437mm |
Total Operating weight | 1500kg | Platform back turning radius | 740mm |
Digging bucket capacity | 0.045cbm/200kg | Chassis width | 1040mm |
Digging bucket width | 420mm, can add narrow bucket is 200mm | Track width | 180mm |
Engine | YANMAR 3TNV70 | Chassis ground clearance | 132mm |
Rated power | 10kw/2200/r/min | Track height | 320mm |
Displacement | 0.854L | Max.Digging depth | 2150mm |
Bore stroke | three cylinder, water cool | Max.Vertical digging depth | 1740mm |
Main pump | KDK | Max. Digging height | 3275mm |
Valve | PERMCO | Max. Dumping height | 2310mm |
Displacement | 6.8ml/r | Max.Digging radius on ground | 3470mm |
Swing motor | EATON | Min.Rotation radius | 1440mm |
Traveling motor | KOREA DONGHYUN | Max.Upgrade height of bulldozer blade | 262mm |
Overall dimension(LxWxH) | 3160x1040x2377mm | Max.Digging depth of bulldozer blade | 192mm |
Total length of track on land | 1450mm |


Detailed Images






Our company

Certifications

Our Customer







Our Team

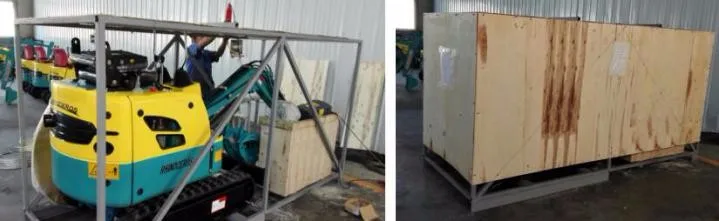

Packing&shipping
