- Power(W):
- 78kw
- Weight:
- 4580kg
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Model Number:
- HF
- Dimension(L*W*H):
- 6100*1850*3000mm
- Certification:
- ISO
- Product name:
- mixer truck, mixer machine price concrete mixer,
- Engine:
- CF4B68G-Z-13B2
- Pump model:
- CBGV-4025
- Actul stirring capacity:
- 1.2m3
- Max torque:
- 380/1500-1800N.m/r/min
- Max running speed:
- 24km/h
- Max load capacity:
- 2800kg
- Whole machinery weight:
- 7380kg
- Rotational speed:
- 0-14r/min
- Slump of concrete:
- 70-260mm
- After-sales Service Provided:
- No overseas service provided
- Warranty:
- 1 Year
- Supply Ability:
- 500 Set/Sets per Month mixer truck
- Packaging Details
- Standard package or according to the client's request for mixer truck
- Port
- Qindao

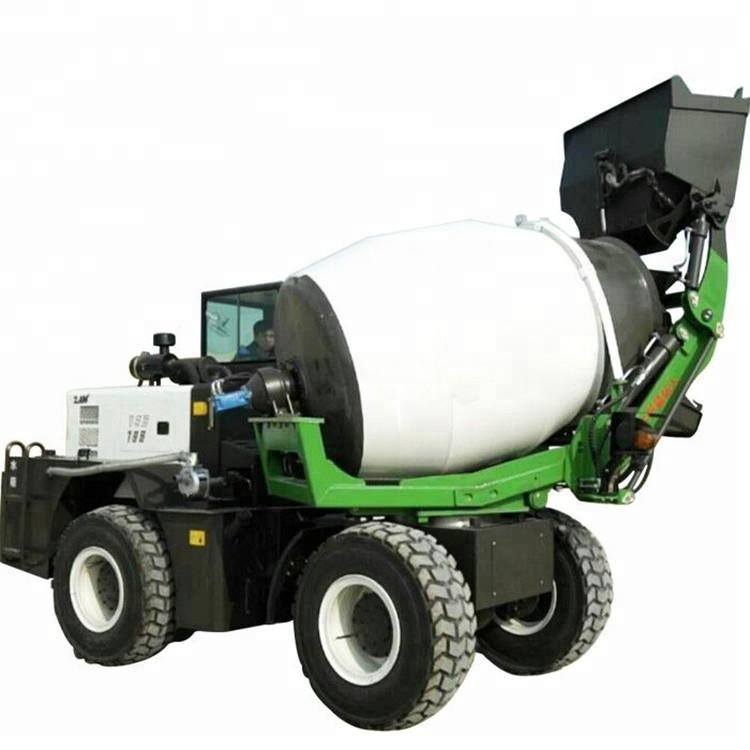

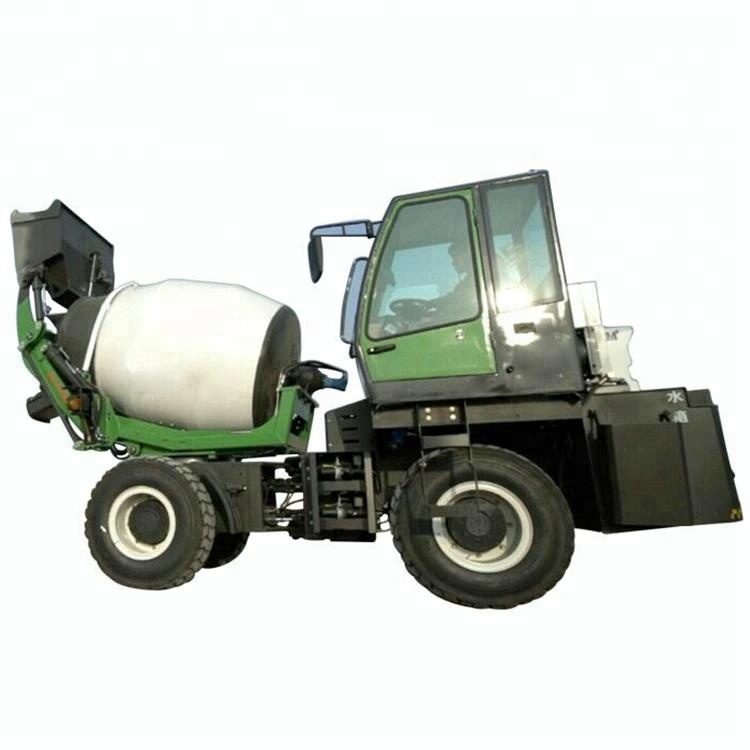

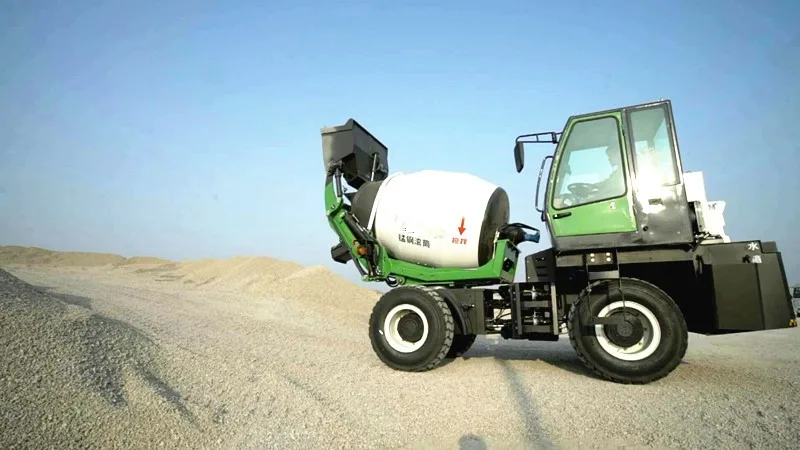

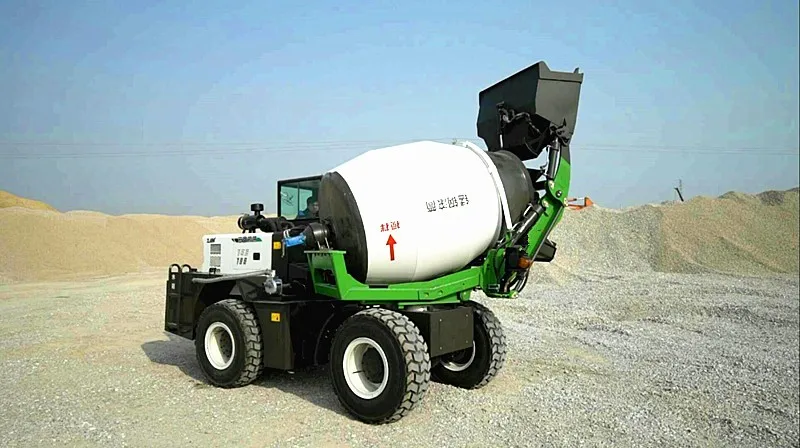

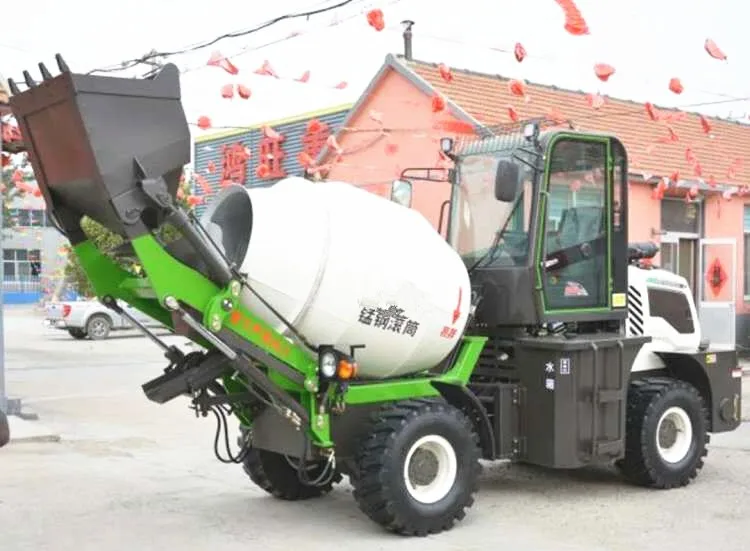

Product Application

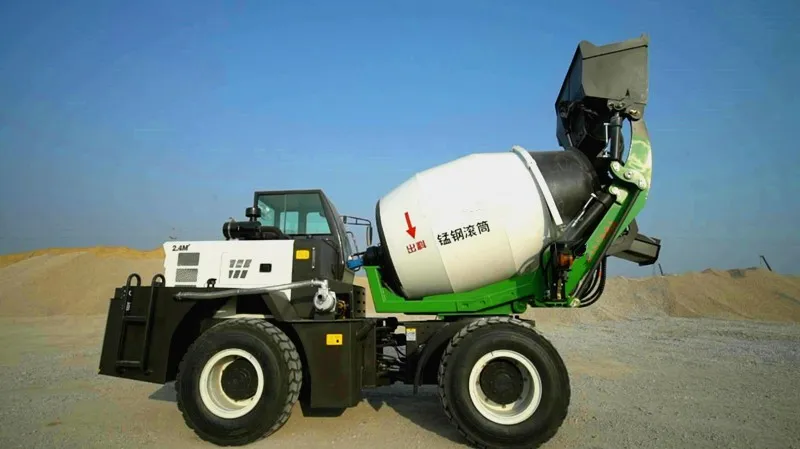

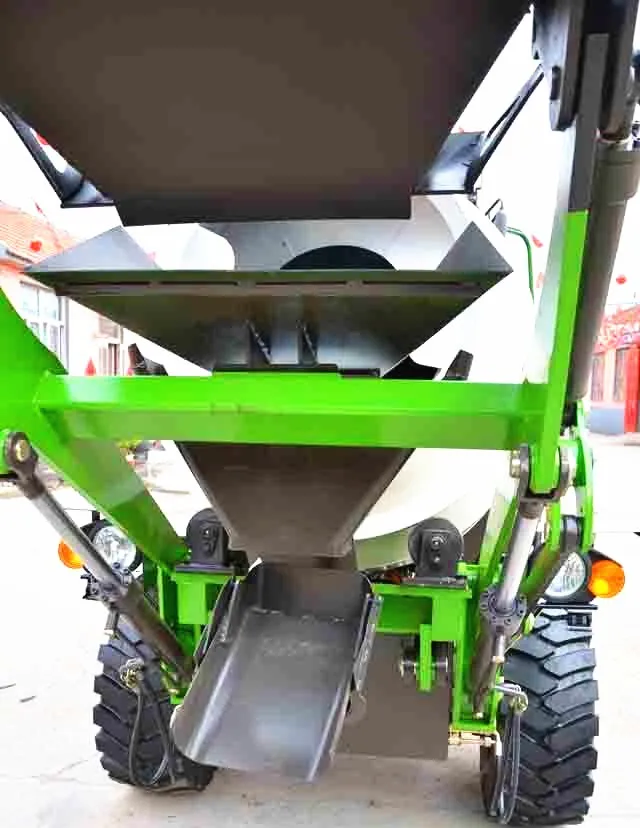

This product is equipped with hydraulic electronic scales. When feeding, it can accurately measure stones and sand, automatically quantify the water, and make concrete ratio more standard. This product integrates concrete transportation and agitation and can be realized without an external power supply. Automatic feeding, metering, stirring and unloading.
This product is divided into 1.2 square capacity, 1.8 square capacity, and 2.4 square capacity and other various models, 1.2 square capacity tank, stirring 10 squares per hour, 1.8 square capacity tank, stirring 16 squares per hour, 2.4 square capacity tank Body, stirring 20 squares per hour, minimum turning radius of 4 meters.

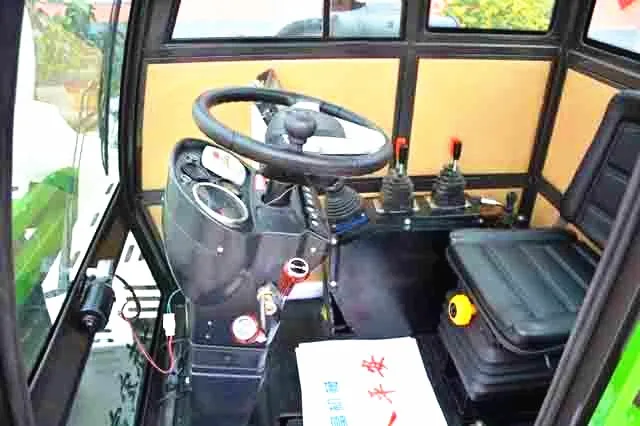

Electronic shift, 180-degree rotation of the vehicle body, electronic weighing, construction image of the entire vehicle, speed 30 kilometers per hour,It saves manpower and material resources, improves engineering efficiency, and shortens working hours.
This product has the advantages of compact structure, flexible operation, convenient maintenance, etc. It is the ideal choice for your business success!
Specifications | |
Actual stirring capacity | 2.4m³ |
Rotary drum capacity | 2.3m³ |
Degree of bias | 16° |
Rotational speed | 10-20r/min |
Direction of rotation | Feed:clockwise output:counter clockwise |
Mixing drum blade | Two sets of spiral and four sets of auxiliary blades |
Slump of concrete | 70-260mm |
Hydraulic Power Transmission System | |
Pump model | CBGV-4025 |
Hydraulic motor model | BMSS-250 |
Reducer ratio | 01:24 |

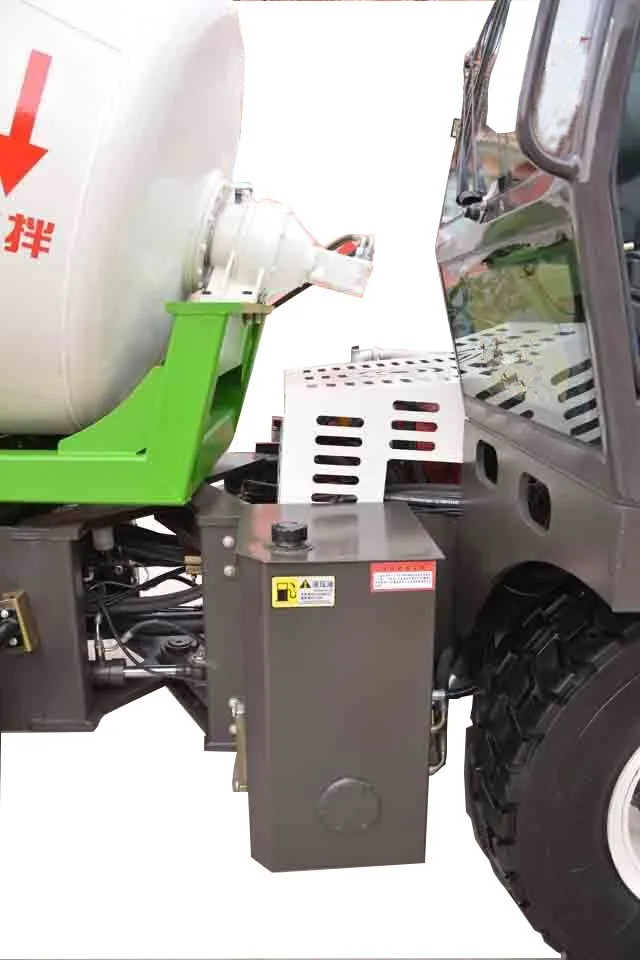

Water Supply | |
Tank capacity/water supply form | 540/automatic timing water supply mechanism with automatic timing |
The main performance parameters of the chassis and the main performance parameters of the engine | |
Engine type/displacement | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
Model | Straight injection type four stroke water cooled supercharged diesel engine |
Rated power | 78kw/2400 kw/r/min |
Max torque | 380/1500-1800 N.m/r/min |
Max running speed | 24kw/h |
Min steering radius | 4500mm |
Climbing capacity | 26 |
Tire | 16/70-20 |
Driving way | 4*4 |
Weight | 5550kg |
Maximum load capacity | 5600kg |
Whole machinery weight | 11150kg |
Overall size | 6350*2510*2850mm(L*W*H) |
The wheelbase | 2300mm |

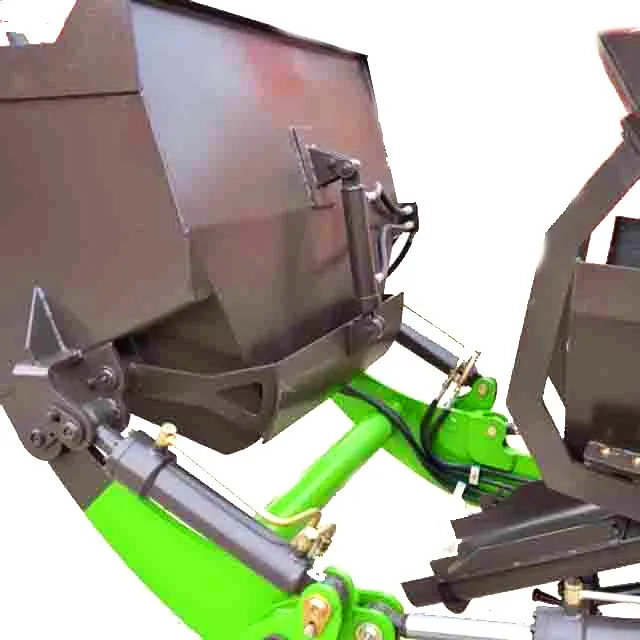

Bucket capacity | 0.5m³ |
















Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
