Product Description
1.2m3 cheap price self mini loading concrete mixer truck machine is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.
Product Advantage
- Automatic feeding
- Electronic weighing
- Self-stirring
- Walkable
- Without mixing station
- Four-wheel drive
- 1200L capacity
- Customizable and export-oriented
- We have 1200L to 2400L mixed capacity for your choose
Product Parameter
MODEL | HW-C120 Automatic feeding mixers |
Mixing system | 1200L, discharge opening height 1.8 meters |
The engine | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
The transmission way | Full hydraulic pressure drive, 4 wheel drive and two wheel steering, domestic axle
|
Walking speed | 9 km/hour at low speed, high speed 10-24 km/hour |
The cab
| Driving on the left, turn, prevent falling object type bridge, side before loading shovel |
The hydraulic system | Domestic hydraulic system, closed loop, used in hydraulic transmission and cylinder rotate |
A joystick | Four hydraulic electric joystick |
Bucket | 1200 litres, hydraulic valve |
Chute | Hydraulic adjustment point of view, to increase the length of the discharge |
Water supply system | 2 * 400 litres, hydraulic drive self-priming pump water, washing vehicles with high pressure water pump |
The brake | Expired brake brake, the double independent circuits |
Tire | Tire construction machinery tires 20.5-16 |
The power system | 24 v
|
The fuel tank | 200 litres, hydraulic tank: 200 liters |
The weight | 5000 kg
|
Overall dimensions | 5.6 meters wide, 5.6 meters high, 3.4 meters |
measurement | Electronic weighing, water meter, recipe is controlled |

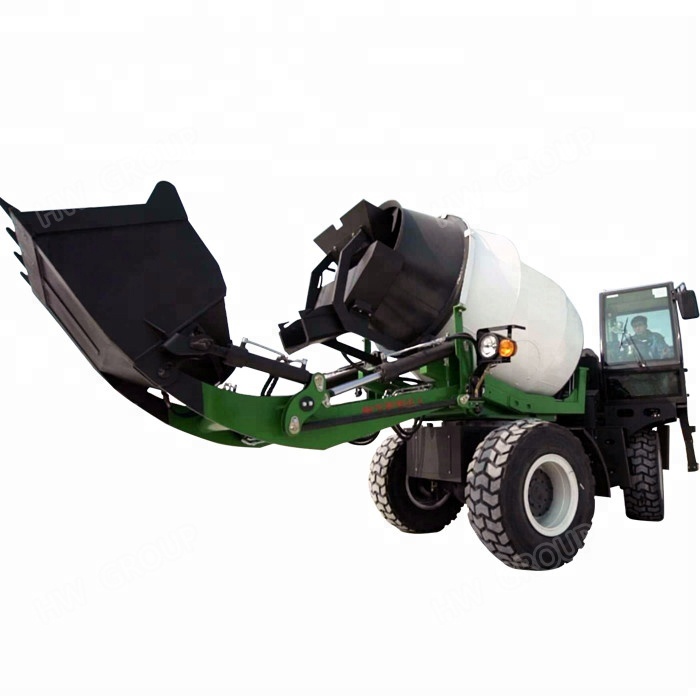

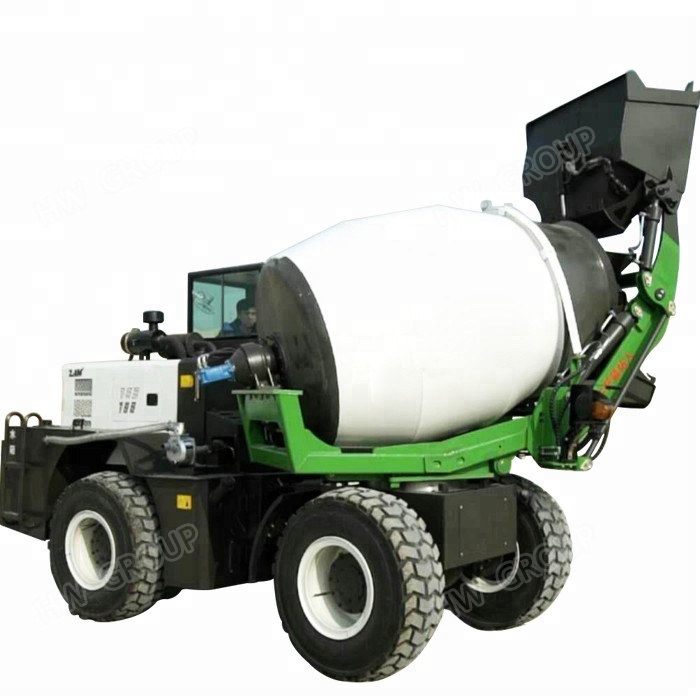

Product Images
| |
| |
