Product Description

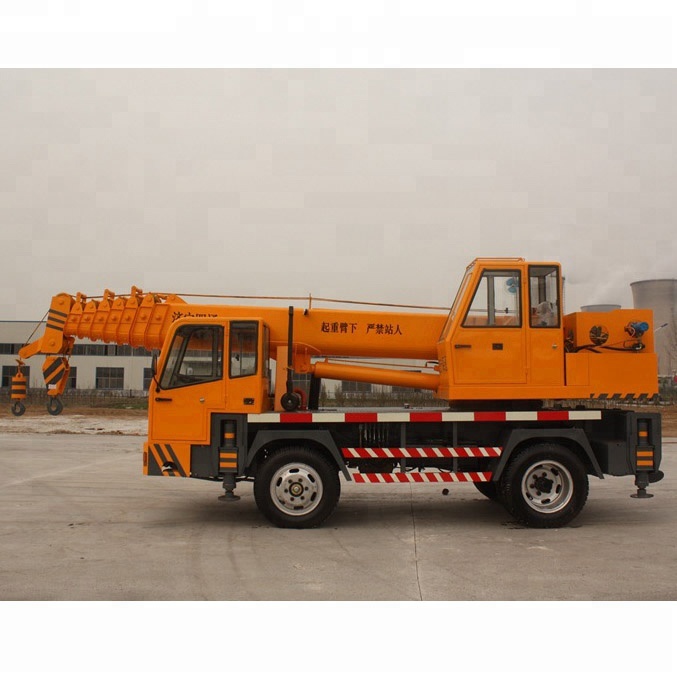

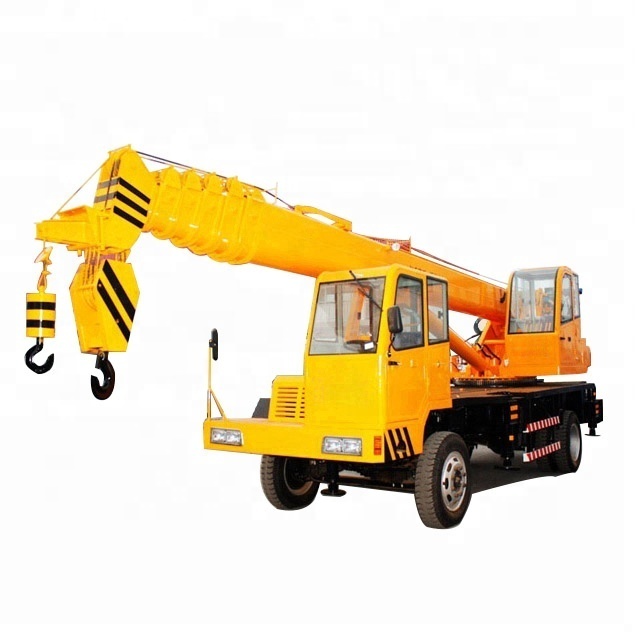

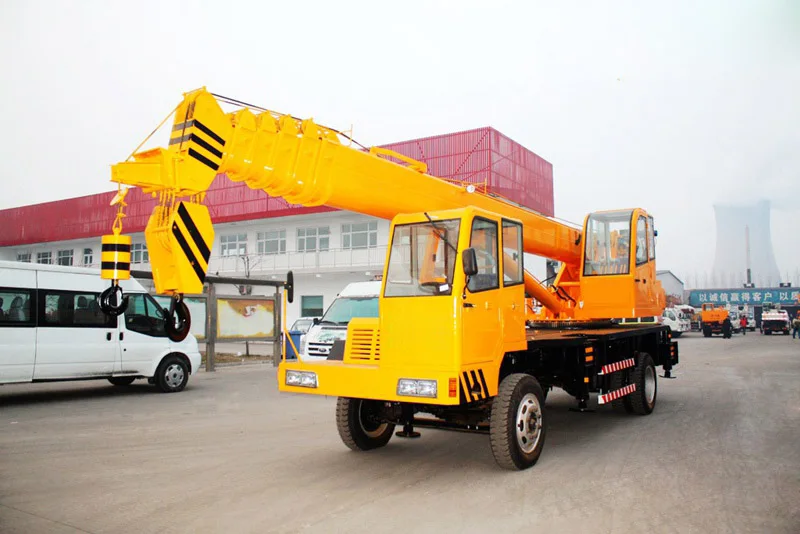

Truck mounted crane lifting machine is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is autocrane, crawler crane and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue.
Product Parameter
Model | HW-CZ-12 | Max.lifting weight
| 12000Kg |
Lift speed | 80m/min (Main hook) 60m/min (Accessory) | Max.lifting height | 33m |
Lifting arm | 6 m *6 section | Gyration speed | 0-3r/min |
Outrigger span transverse*lengthwise
| 4.75*5.15m Double Outrigger | Engine model | 4102# |
Power of motor | 15kw | Power | 70kw |
Travel speed | 75Km/h | Dimention | 10.52*2.35*3.15m |
Wheelbase | 3.3m | Tire model | 825-20 |
1. The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
2. Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
3. Full hydraulic pressure drive, electrical and oil dual-purpose, safe and reliable work, high efficiency, low labor intensity;
4. Every hydraulic system equipped with balancing valve and hydraulic lock, safe and reliable performance
5. Crane jib and important components are made of high strength steel plate to reduce weight of crane and improve crane performance
The classic boom telescopic technology
1,Carefully build the most complete safety device system in the industry to ensure safe and reliable lifting operations.
2,Fully upgraded brake system, dual-circuit air pressure design, multiple systems to ensure the safety of the vehicle while driving.
3,The high rigidity of the turntable and frame structure is completely coordinated with the strength and rigidity.
4,The perfect combination of design and structural process manufacturing, complete automation of welding and higher reliability.
