Product Description
1. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine.
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful
Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.
Product Parameter
Engine | ||
Model | Kubota V2607 42.4KW/2000rpm | |
Type | Direct injection, water cooled, supercharge | |
No. of cylinder | 4 | |
Main Performance | ||
Swing Speed | r/min | 0-11 |
Traveling Speed | km/H | 2.5~4.2 |
Grade ability | % | 70(35°) |
Traveling Tracking Force | kN | 30.8 |
Bucket Digging Force | kN | 48 |
Arm Digging Force | kN | 35 |
Hydraulic System | ||
Hydraulic system working pressure | Mpa | 28 |
Hydraulic Pump |
| Rexroth |
Swing Motor |
| Sunjin |
Main Valve |
| Sunjin |
Fuel Tank Capacity | L | 105 |
Hydraulic Tank Capacity | L | 90 |
Overall Dimensions | ||
Overall Length | mm | 5940 |
Overall Width | mm | 1880 |
Overall Height | mm | 2570 |
Ground clearance | mm | 700 |
Track length | mm | 2580 |
Track width | mm | 400 |
Undercarriage width | mm | 1880 |
Undercarriage ground clearance | mm | 353 |
Dozer Blade | mm | 1880×350 |
Operation parameters | ||
Operation Weight | kg | 6500 |
Bucket Capacity | m3 | 0.21 |

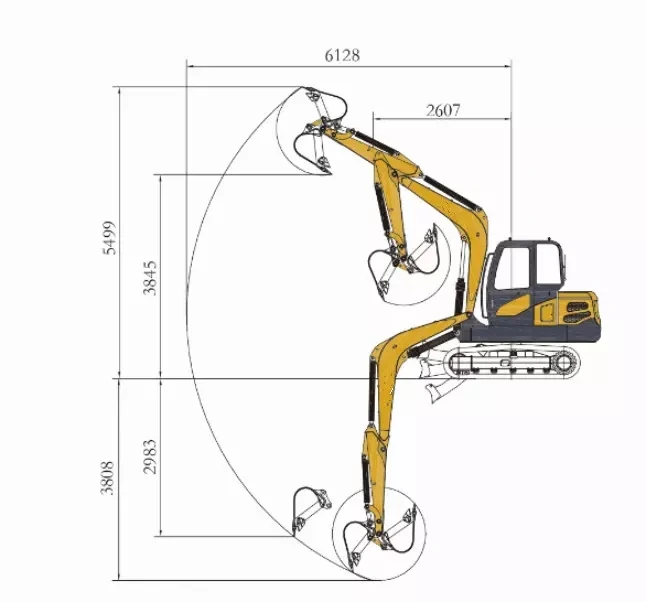

Max. Digging Radius | mm | 6128 |
Max. Digging Depth | mm | 3808 |
Max. Digging Height | mm | 5499 |
Max. Dumping Height | mm | 3854 |
Max. Dozer Cutting | mm | 474 |
Max. Dozer Lifting | mm | 376 |
Tail Swing Radius | mm | 1689 |
Sprocket to Idler | mm | 1990 |
Suitable for the municipal department of landscaping, orchard nursery trees digging, crushing of concrete pavement, sand and gravel mixing, the use of quick replacement joints, optional rotary drilling, hammer, Loading bucket, grab and other accessories, reduce maintenance and operating costs, improve the degree of mechanization, small investment and high return. Machine flexible and practical, economical environmental protection and energy saving, is a good helper for garden municipal and construction workers.
- 1. Full imported hydraulic system ensure the stable quality.
- 2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
- 3. Original Kubota engine,high efficiency low noise.
- 4. equipped with double fuel filter to guarantee fuel purity to protect engine
- 5. extend hydraulic line for various attachments.
- 6. Full sealed cabin with A/C and comfort seat make operator easy to work.
- 7. Intelligent control electric system.
- 8. Open covering parts makes the maintenance easy to proceed.
