Home > Products > 12 ton mini hydraulic loading truck crane for sale

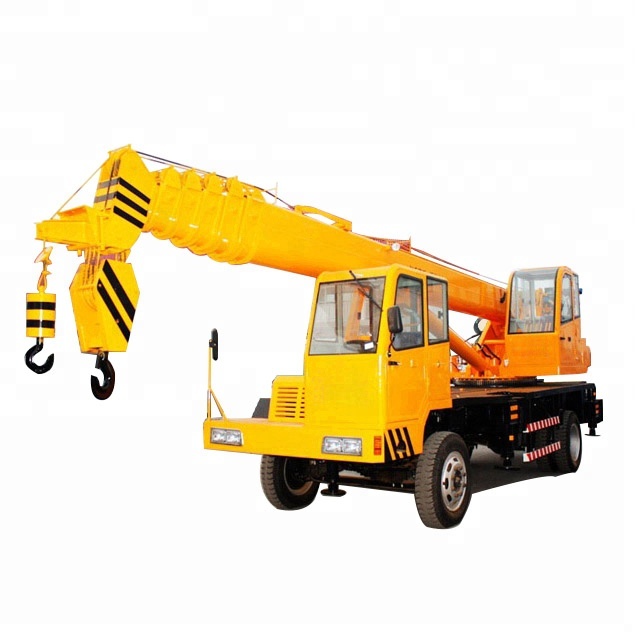

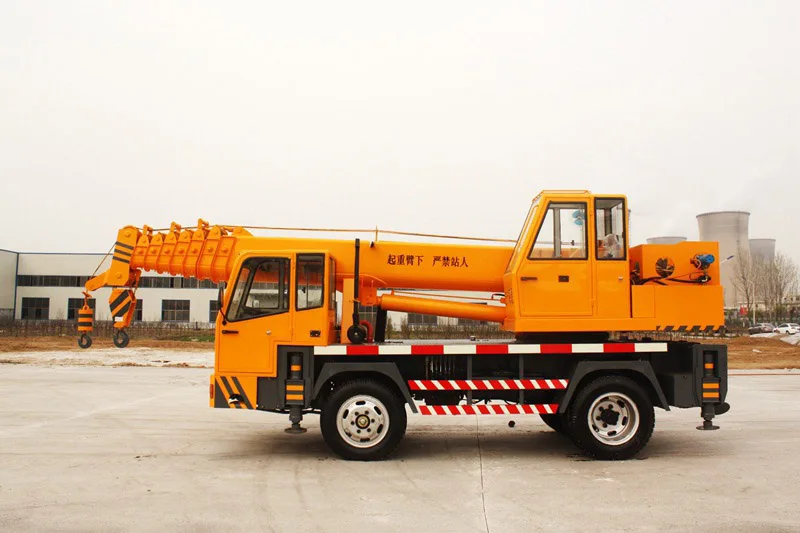

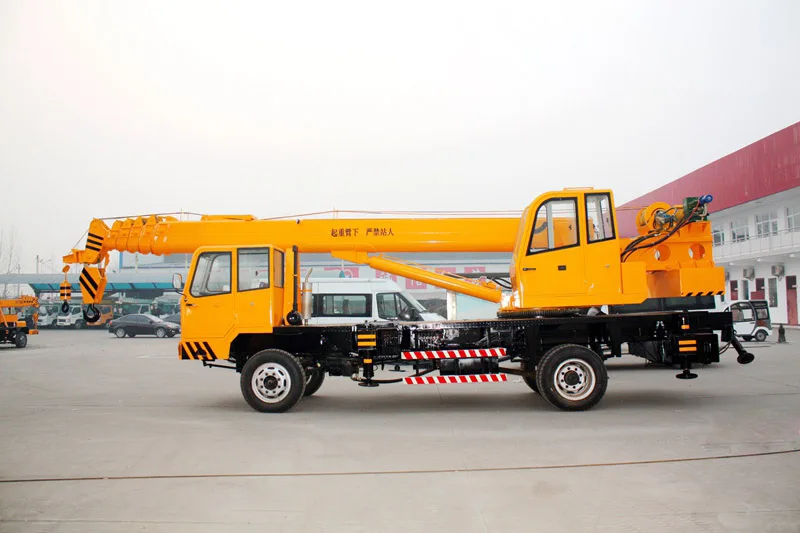

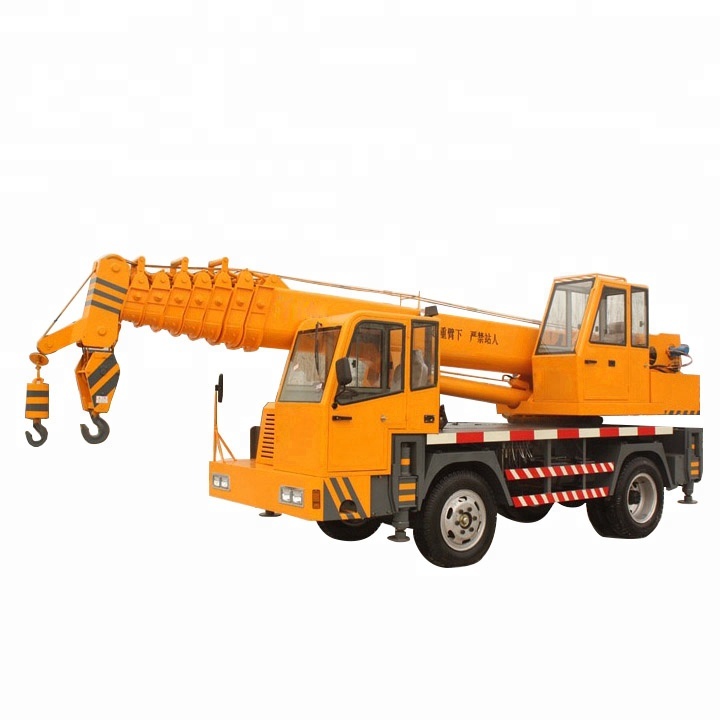

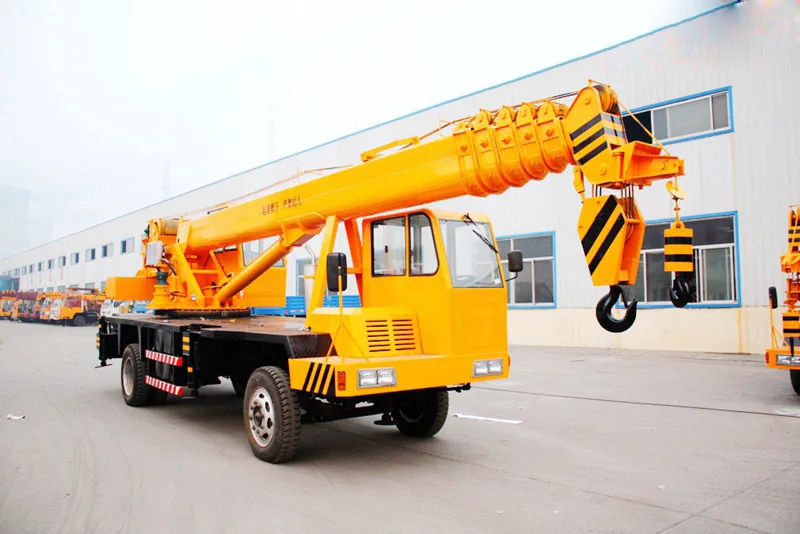

12 ton mini hydraulic loading truck crane for sale
Click on the image to view the original image
Product： views：312 ton mini hydraulic loading truck crane for sale
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:45
  Negotiated
Product Details
Overview
Quick Details
Max. Lifting Height:
33m
Warranty:
1 Year
Feature:
Truck Crane
Condition:
New
Application:
Construction
Rated Loading Capacity:
4~16TON
Rated Lifting Moment:
2400kN.m
Max. Lifting Load:
12 Ton
Span:
6.5*6.1m
Place of Origin:
Shandong, China
Brand Name:
HW
Certification:
ISO
Product name:
12 ton mini hydraulic loading truck crane
Lifting arm:
6 m *6 section
Maximum lifting height:
33m
Maximum lifting weight:
12 ton
Power of motor:
15kw
Speed of lifting:
80(60)m/min
Gyration speed:
3r/min
Engine:
4102# /70kw
Walking speed:
75km/h
Outline dimension:
1052*2..35*3.15m
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month 12 ton mini hydraulic loading truck crane
Packaging & Delivery
Packaging Details
Wooden Case
Port
Qingdao, Tianjin, Shanghai Port
Lead Time:
Quantity(Sets)1 - 12 - 1011 - 50 >50
Est. Time(days)5730To be negotiated





Product Description

*     12 ton mini hydraulic loading truck crane is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is autocrane, crawler crane and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue.



Product Parameter



Model

HW-CZ-12

Max.lifting weight



12000Kg

Lift speed

80m/min (Main hook)

60m/min (Accessory)

Max.lifting height

33m

Lifting arm

6 m  *6 section

Gyration speed

0-3r/min

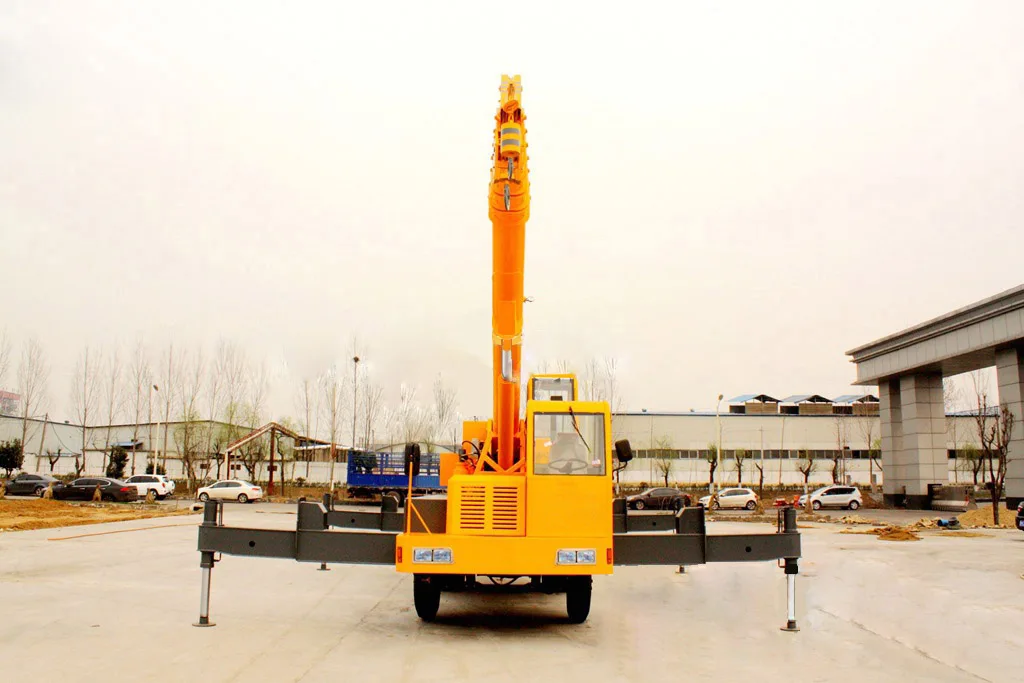

Outrigger span

transverse*lengthwise



4.75*5.15m

Double Outrigger

Engine model

4102#

Power of motor

15kw

Power

70kw

Travel speed

75Km/h

Dimention

10.52*2.35*3.15m

Wheelbase

3.3m

Tire model

825-20



Image Details
