- Machine Weight:
- 18300 kg
- Dimension(Long * Breadth * High):
- 5256*4153*3072 mm
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler move
- Engine power(kw):
- 131/1850 Kw/rpm
- Engine model:
- Weichai WP10G178E355
- Mini ground clearance(mm):
- 492 mm
- Grounding pressure (Mpa):
- 0.026 Mpa
- Climbing ability(°):
- 30
- Crawler center distance (mm):
- 2300 mm
- Blade width(mm):
- 4145 mm
- Blade height(mm):
- 1090mm
- Max cutting depth(mm):
- 590mm
- Max blade tilt(mm):
- 400mm
- After-sales Service Provided:
- Engineers available to service machinery overseas
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 3X2X2 cm
- Single gross weight:
- 2000.0 kg
- Package Type:
- Wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 5 To be negotiated
Product Description

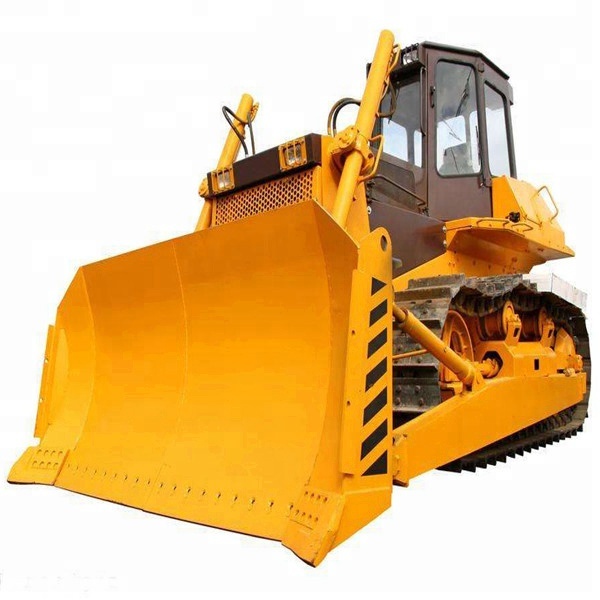

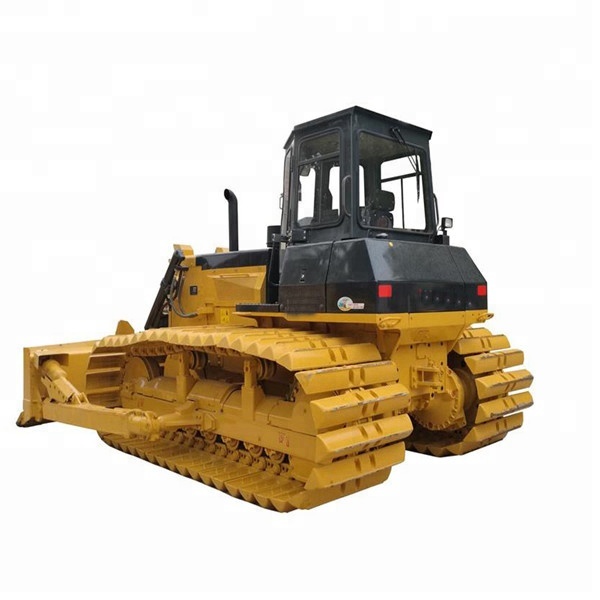

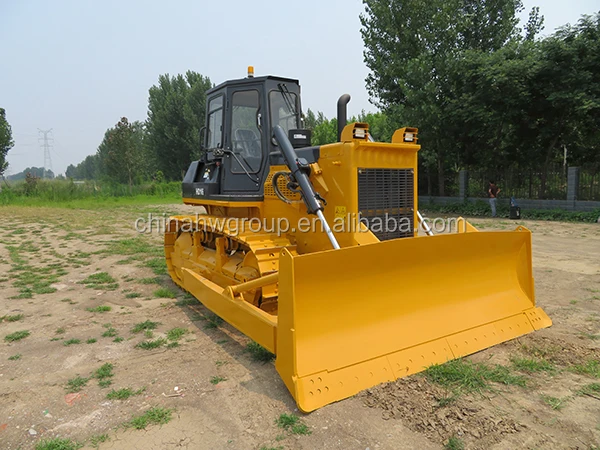

HD16MS Hydraulic Construction Crawler Bulldozer is configured with Weichai engine,it is developed in response to the operation demands of swamp and wetland conditions, and the special design ensures higher operating efficiency.
1.The appearance of the vehicle is based on optimization design.

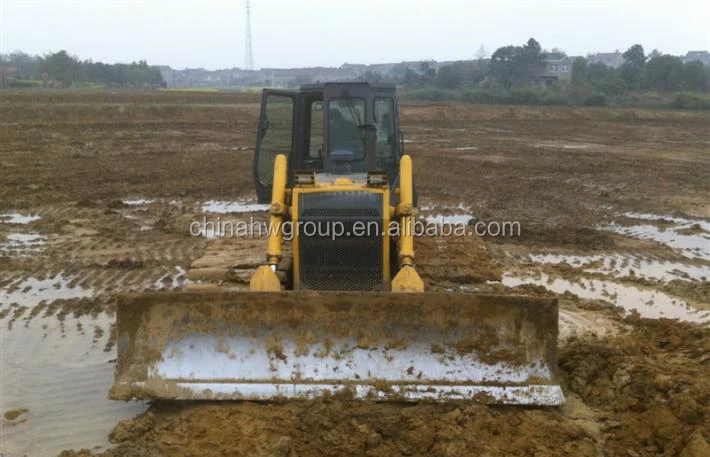

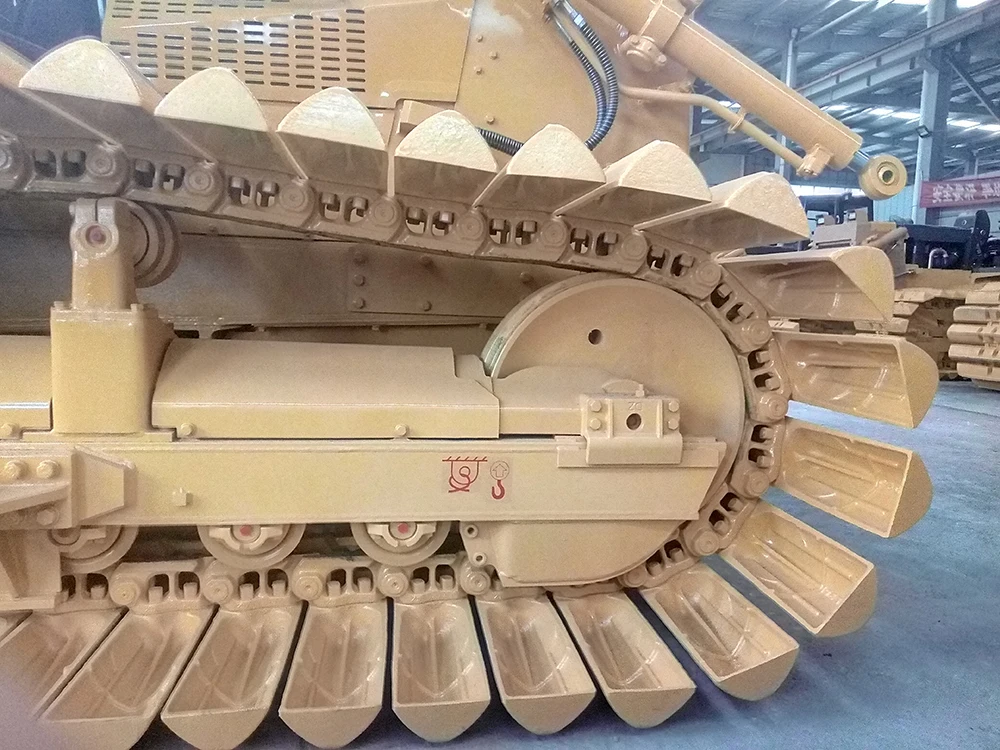

2.The super-wide triangular tracks take advantage of lower ground pressure and can prevent the entrapment of machine during operations in soft material sites,such as soft soil, wetland, and swamp.
3.High engine power reserve with strong torque output and low fuel consumption, reliable controls

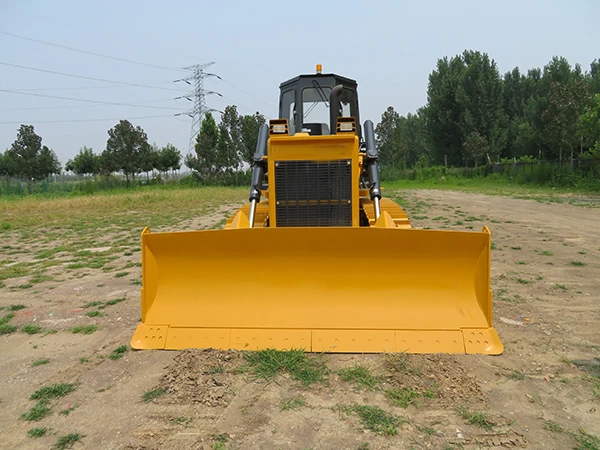

4.The standard straight tilting blade features powerful cutting force ,high working efficiency and super-strong penetrating force.

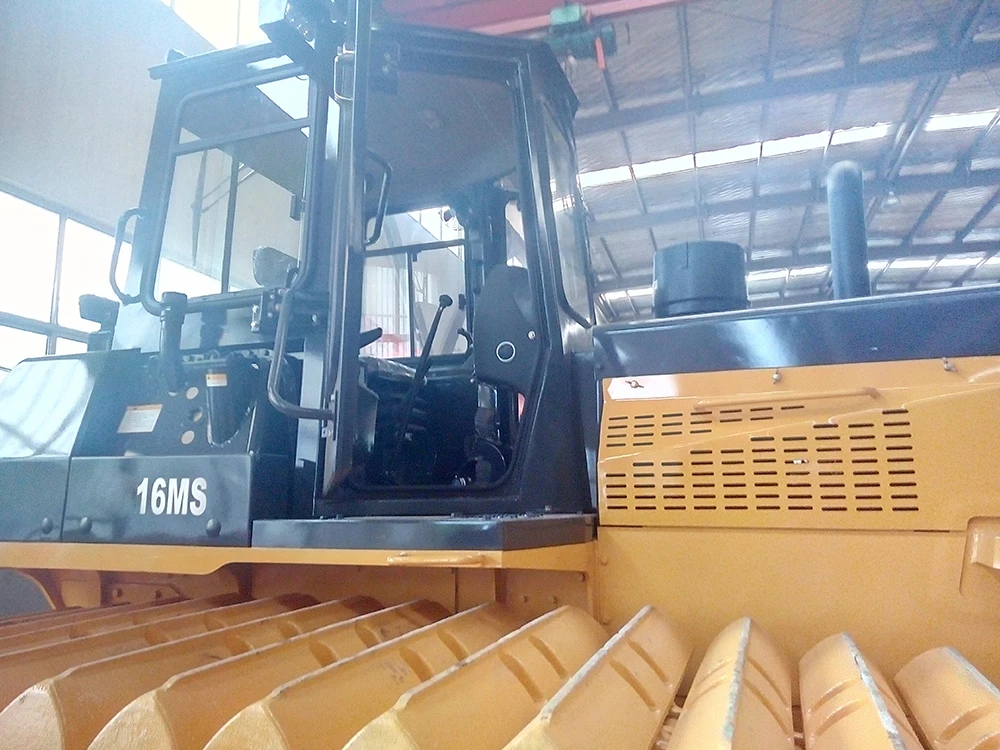

5.The updated hexahedral cab features outstanding visibility and good tightness.
Product Parameter
Items | HD16MS |
Main Specifications | |
Operating Weight | 18300 kg |
Overall Dimenssions | 5256×4153×3072 mm |
Blade type | Straight-tilt |
Dozing capacity | 3.85 m³ |
Blade width | 4145 mm |
Blade height | 962 mm |
Blade max.drop below ground | 488 mm |
Blade max.tilt adjustment | 730mm |
Grade ability | 30° |
Engine | |
Model | Weichai WP10G178E355 |
Rated Power | 131/1850 Kw/rpm |
Cylinder number-bore×stroke | 6-126×130mm |
Piston displacement | 9.726L |
Mini fule consumption | 214g/kw.h |
Max torque | 830/1000-1200 N.m/rpm |
Cooling Type | Water |
Power transmitting system | |
Main clutch type | wet,multi-disc,inertia,brake,hand operate,hydraulic booster |
Transmission | Forced lubrication, hand operate |
Main drive | Spiral bevel gear, single stage speed reduction,splash lubrication |
Steering clutch | Wet multi-disc,spring loaded, hand hydraulically seperated, inter-linking with steering brake |
Steering brake | Wet banding structure, footbrake, hydraulic booster |
Final drive | Two-stage reduction of spur gear,splash lubrication |
Travel speed | |
Forward(km/h) | 2.67/3.76/5.41/7.62/11.13 km/h |
Reverse(km/h) | 3.48/4.9/7.05/9.92 km/h |
Undercarriage system | |
Number of carrier rollers | 2 each side |
Number of track rollers | 7 each side |
Width of track shoes | 1100mm |
Min.ground clearance | 492 mm |
Ground pressure | 0.026 Mpa |
Track gauge | 2300 mm |
Number of track shoes | 44 |
Pitch | 203.2mm |
Hydraulic system | |
Max.pressure | 14MPa |
Pump type | gear pump |
Discharge | 227L/min |
Working cylinder×number | 110mm×2 |

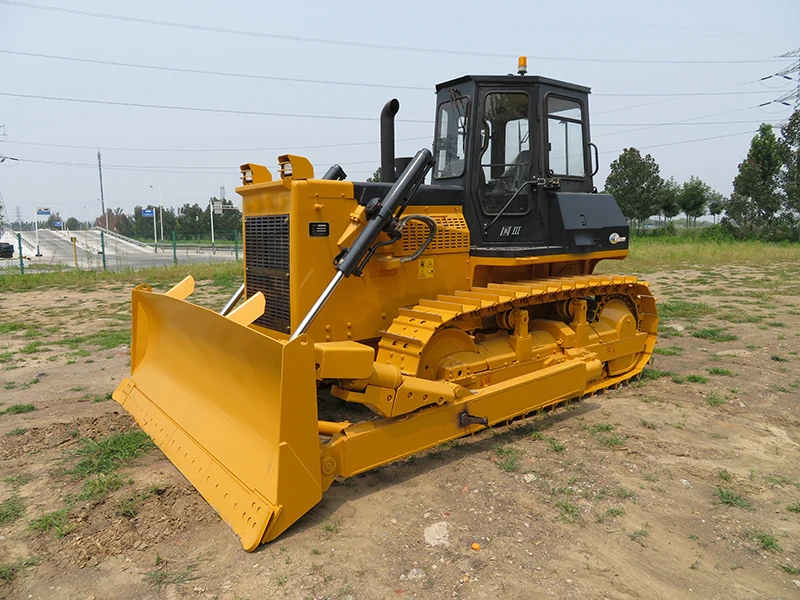

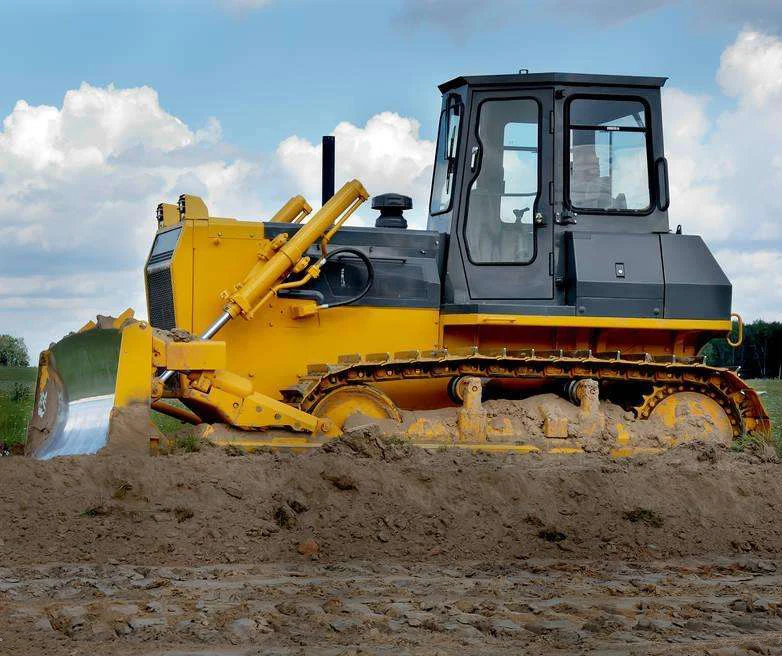

Product Images
| |
