- Bucket capacity:
- 0.025cbm/100kg
- Operating Weight:
- 940kg
- Rated Speed:
- 1.5km/h
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 2610 mm
- Maximum Digging Depth:
- 1650 mm
- Machine Weight:
- 940kg
- Max Digging Radius:
- 2850 mm
- Certification:
- CE ISO
- Product name::
- New mini hydraulic pump excavator price in india
- Application::
- BuildingAgriculture
- Capacity of digger bucket::
- 0.025cbm/100kg
- Maximum unload height::
- 1750mm
- Platform ground clearance::
- 380 mm
- System working pressure ::
- 20mpa
- Engine::
- 8.6 kw/3600r/min
- Min. Rotation radius::
- 1330 mm
- Traveling motor::
- KERSEN (OMS-2450)
- Swing motor::
- SJ-TECH (MP-1-160)
- After-sales Service Provided:
- Engineers available to service machinery overseas
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 2.5X1X1.8 cm
- Single gross weight:
- 1000.0 kg
- Package Type:
- EXPORT WOODEN BOX IF LCL 6 UNITS/20f CONTAINER
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 5 To be negotiated

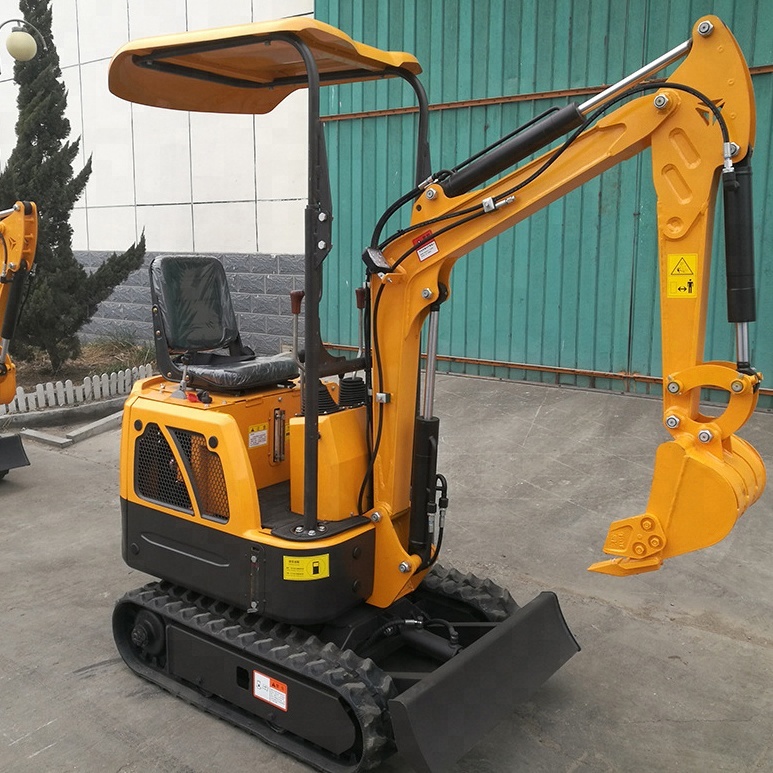

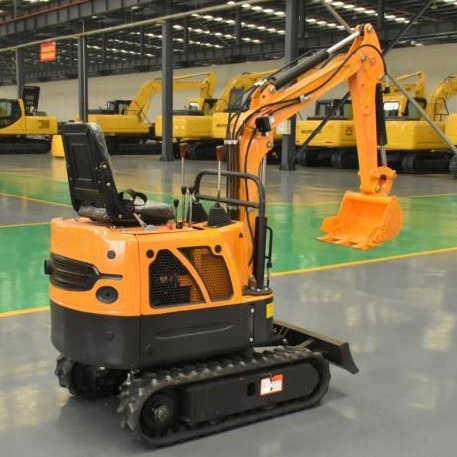

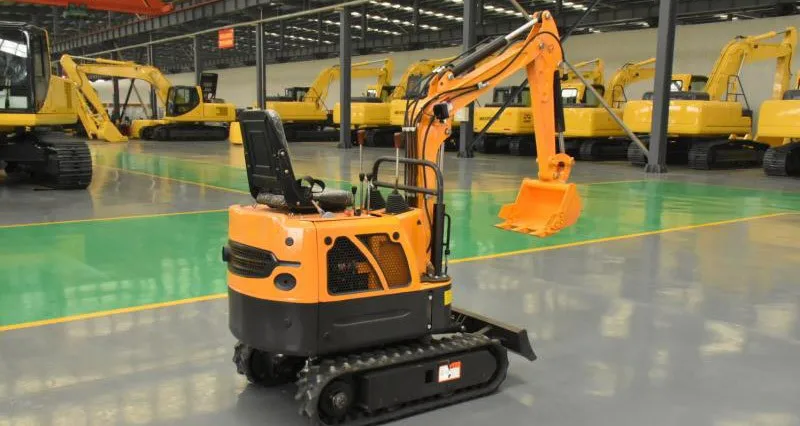

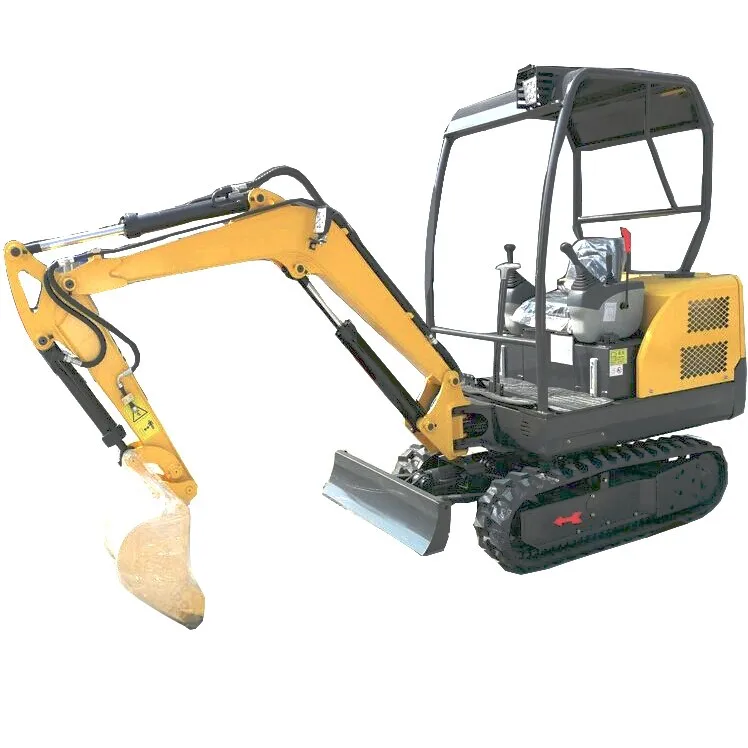

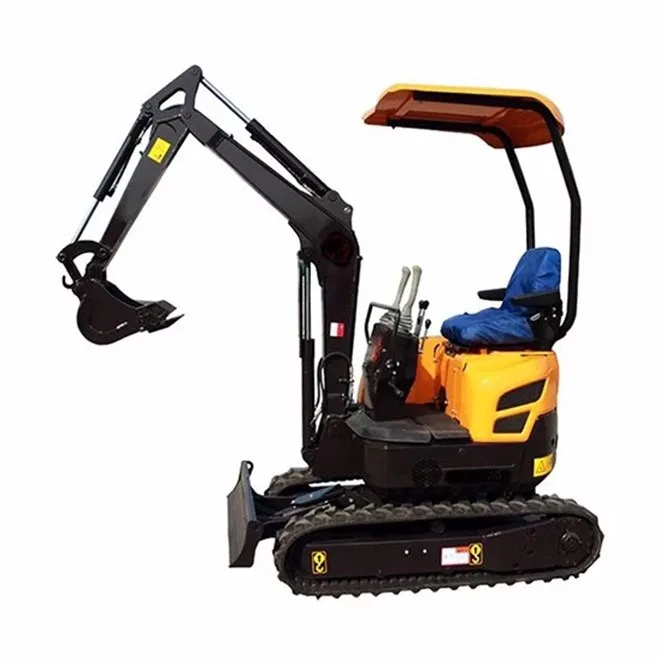

Crawler-type small diggerdescription:
Hydraulic Crawler-type small diggeris suitable for vegetable shed loose land, the municipal department of landscaping, orchard nursery trees digging, crushing of concrete pavement, sand and gravel mixing, small space construction operations, the use of quick replacement joints, optional rotary drilling, hammer, Loading bucket, grab and other accessories, reduce maintenance and operating costs, improve the degree of mechanization, small investment and high return. Machine flexible and practical, economical environmental protection and energy saving, is a good helper for farmers, vegetable farmers, garden municipal workers.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | |||
Engine | Brand | Changchai | |
Rated power | 8.6 kw/3600r/min | ||
Displacement | 6.8ml/r | ||
Bore stroke | 70x55 | ||
Main performance parameters | Digging bucket capacity | 0.025cbm/100kg | |
Bucket width | 340mm | ||
Travel speed | 1.5km/h | ||
Max. Digging depth | 1650 mm | ||
Max. Vertical digging depth | 1375 mm | ||
Max. Digging height | 2610 mm | ||
Max. Dumping height | 1850 mm | ||
Max. Digging radius on ground | 2850 mm | ||
Min. Rotation radius | 1330 mm | ||
Hydraulic system | Main pump | CBK-F6.8 | |
Swing motor | SJ-TECH (MP-1-160) | ||
Traveling motor | KERSEN (OMS-2450) | ||
Dimension | Overall dimension(LxWxH) | 2770x896x1490 mm | |
Wheelbase | 910 mm | ||
Total length of track | 1230mm | ||
Platform ground clearance | 380 mm | ||
Platform back turning radius | 784 mm | ||
Chassis width | 896 mm | ||
Track width | 130 mm | ||
Chassis ground clearance | 132 mm | ||
Track height | 320 mm | ||
Operating Weight | 940kg |
Mini crawler-type small diggerare popular in the market because of their low price, light weight, convenient maintenance and repair of excavator parts, flexible operation, wide application and high efficiency. Mini crawler excavator mainly has the following advantages:
1 ,High flexibility and wide adaptability. Due to the small size of the excavator parts, the mini excavator is compact and flexible, and is good at various pipeline excavation, foundation construction and house maintenance. There are more and more earthworks and more and more refined construction methods, which provides a large stage for small excavators to show their talents.
2, Working versatile. Mini-excavators can be used for multi-functional operations by installing various auxiliary tools through the replacement of excavator parts. For example, the roller and the flat plate can be used to fill the groove and compact; the breaker and the hydraulic clamp can be used for lightweight demolition; the rotary drill can be used for drilling; the hook can be used for Lifting and hoisting; nini crawler excavatorcan be used to clear work after installing clamp tongs.
3, The rotation is flexible and the work is precise and focused. Because the mini crawler excavator adopts the design that the tail rotation radius is zero, and the boom in the excavator fitting is hinged to the fuselage, it can swing in a wide range, even if it encounters an obstacle, it can be avoided without transferring the fuselage. In the limited space, the operator does not need to consider whether there are obstacles on the construction site to hinder the rotation, so that the operator can concentrate on the bucket operation and the movement is more precise. At the same time, the rubber track in the small excavator parts helps to reduce the damage to the landscape area and the road in the narrow construction area during the construction of the excavator, and to make the construction work more refined. At present, in the construction process of many central urban roads, mini crawler excavator can be seen everywhere in the narrow and sturdy space.
4, High return on investment. Small excavators are cheap, excavator parts have relatively low maintenance costs, and cost recovery is fast, which is the first choice for many newcomers to the excavator industry.




Title goes here.
Name: Quick-change connector for mini excavator
Brand: HW
Original: China
Quick-change connector for Auxiliary tools
Title goes here.

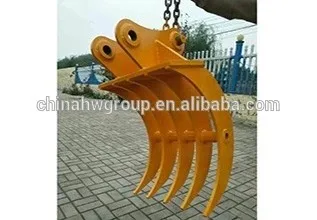

Name: Rake
Brand: HW
Original: China
Rake crawler walking mini excavator


Machine Parts

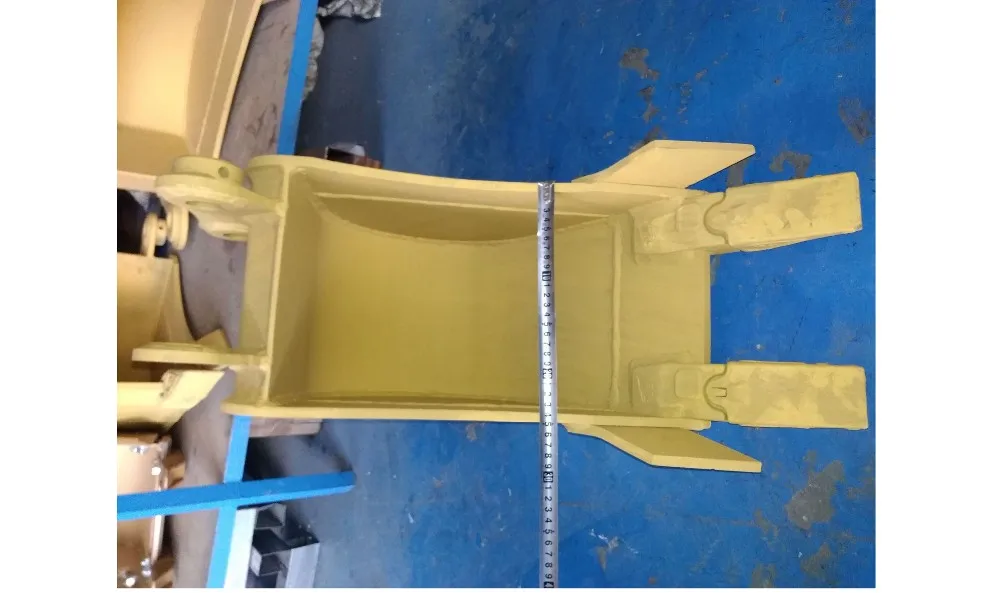

Name: Narrow bucket
Brand: HW
Original: China
200 mm narrow bucket for small excavator
Main Features

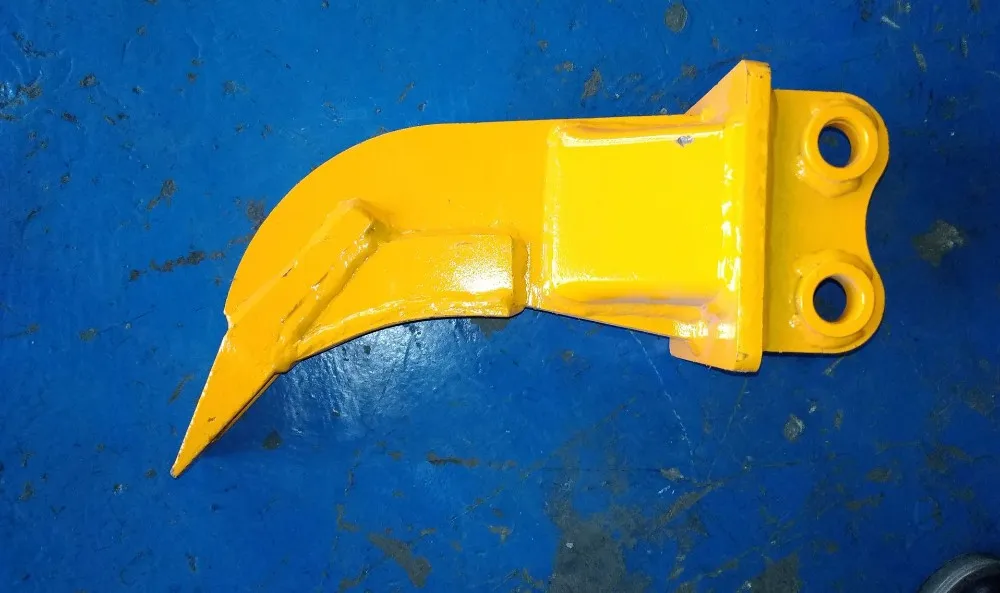

Name: Ripper
Brand: HW
Original: China
Ripper for crawler walking mini excavator


Machine Parts

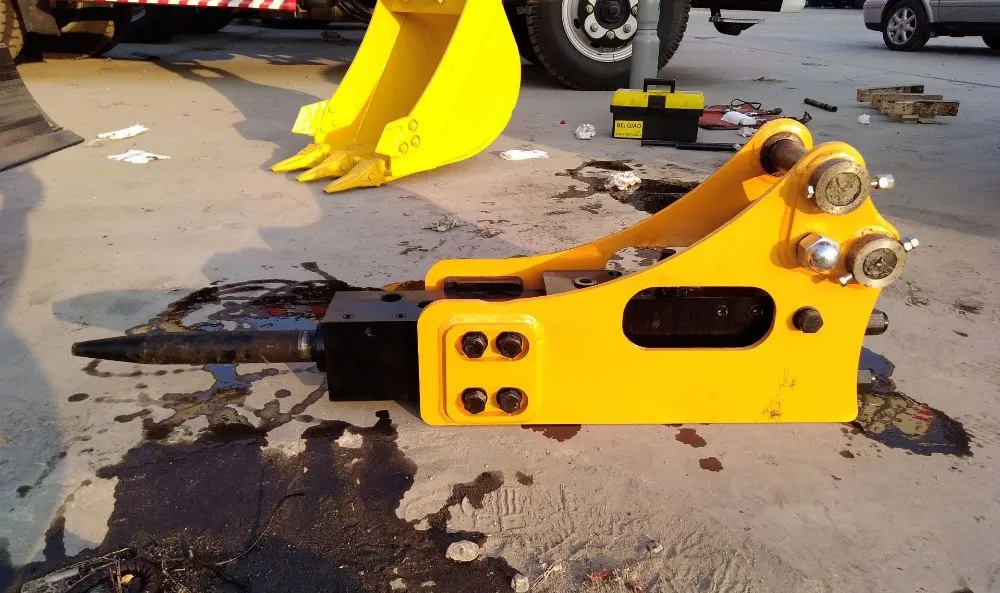

Name: Breaker hammer
Brand: HW
Original: China
Breaker hammer for mini excavator

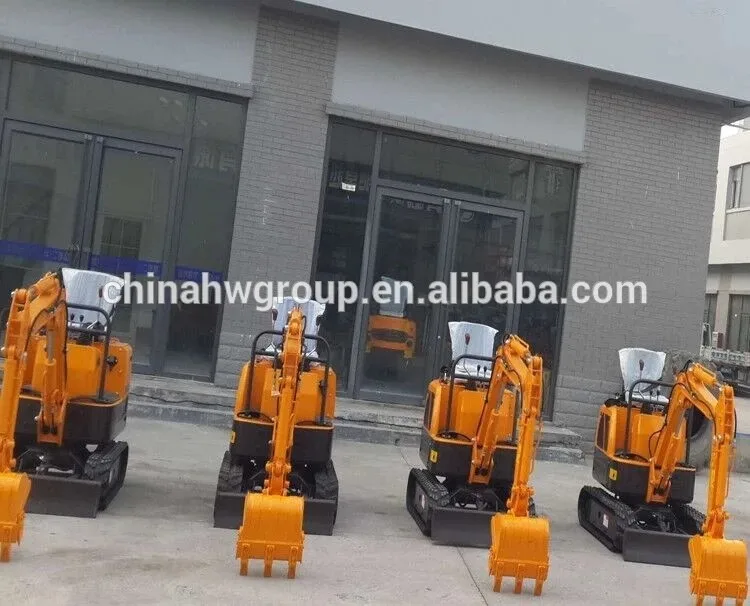

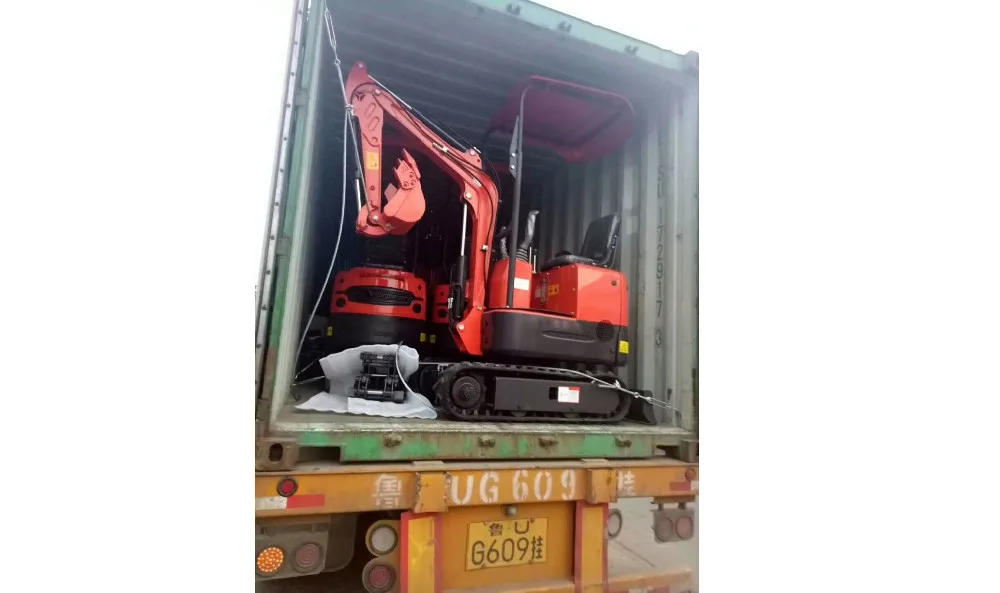

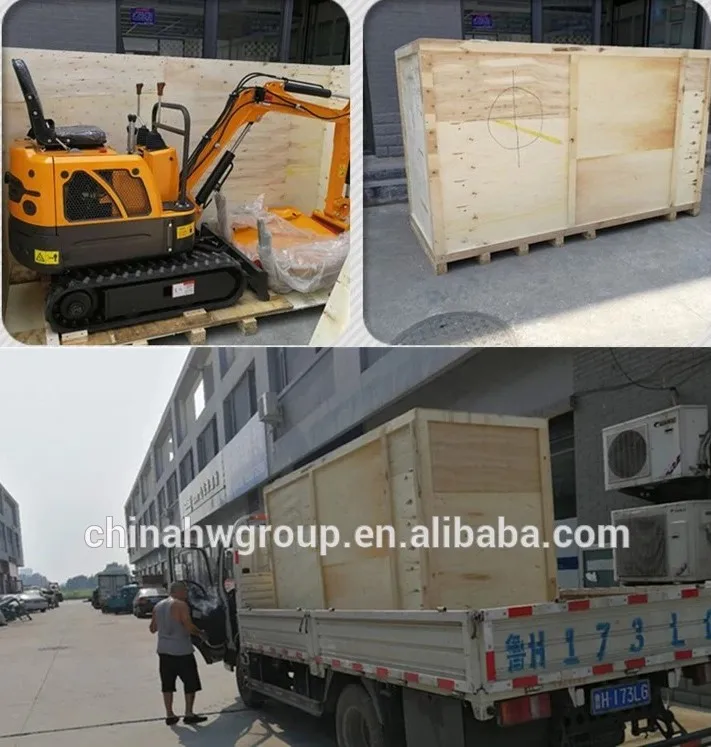

Mini crawler excavator delivery details:
PACKING:EXPORT WOODEN BOX IF LCL 6 UNITS/20f CONTAINER
MODE OF TRANSPORTATION: BY SEA
PORT OF LOADING: QINGDAO PORT, CHINA
DELIVERYTIME: WITHIN 15 DAYS AFTER RECEIVE THE DOWN PAYMENT.
