Home > Products > Hand borehole core drilling machine price

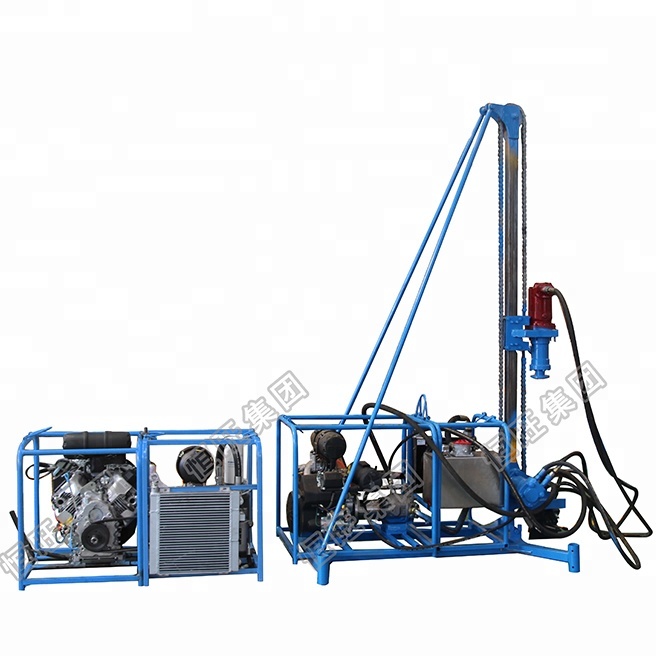

Hand borehole core drilling machine price
Click on the image to view the original image
Product： views：3Hand borehole core drilling machine price
Branch： HW
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:45
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Coal
Voltage:
Gasoline Engine Driven
Power(W):
28Kw
Dimension(L*W*H):
1524*500x300mm
Weight:
280Kg
Certification:
ISO9001
Warranty:
1 Year
Name:
Hand borehole core drilling machine
Application:
Geological Exploration
Drilling depth:
30-60m
Drilling diameter:
80-130 mm
Engine:
Gasoline Engine
Rotary speed:
112r/min
Drill pipe:
42mm
Cylinder diameter:
90mm
Feature:
High Drilling Efficiency
Overall dimensions:
1524mm
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
1000 Set/Sets per Month Hand borehole core drilling machine
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao, Tianjin, Shanghai Port
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated



Product Description





1.The hand borehole core drilling machine can achieve different drilling methods, such as mud drilling, air drilling, air hammer drilling and so on, and adapt to different stratum environment.
2.Drilling mud can reach a depth of 40-60 meters, while air drilling or air hammer drilling can reach a depth of 30-40 meters.
3.In mountainous areas, where ordinary rigs are hard to work. Our this type mountainous drilling machine ,it is easy to move and drill. Easy disassembly ,can be disassemble to carring into the mountain by single man !
4.It can be equipped with pneumatic air compressor to drill rock in mountainous area to prospecting the coal and oil.
5.If you can equip yourself with an air compressor, we can deduct the price of an air compressor and gasoline engine for you.Please let us know!



Product Parameter





Hand borehole core drilling machine Specification
Drilling methodAir shock drilling
Drilling hole diameter 60-160mm
Drilling depth 60M
Pipef60
One-time drilling length3000MM
Power head
Rated torque (N.m)800-900
Drilling speed range (r/min)0-135
Drilling machine pressure and lifting function
Feed pressure (N)5500-6000
Drilling tool lifting power (kN)12-14
Maximum lifting speed of drilling tools (m/s)0.71-0.81
Engine power (hp) / speed (r/min)27/3600
Hydraulic system
Flow (L/min)0-60
Working pressure (Mpa)20
Air compressor unit
Working pressure (Mpa)0.8
Air volume (m3/min)3.5
Engine power (hp) / speed (r/min)35/3600
Weight and size
Total weight(rig)440kg
Overrall diamensions2100*1900*1600mm
