- Piling Speed(m/min):
- 3 m
- Efficiency:
- 2 minutes per I post
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Weight:
- 6.5
- Dimension(L*W*H):
- 4100*2000*2200mm
- Certification:
- ISO9001
- Name:

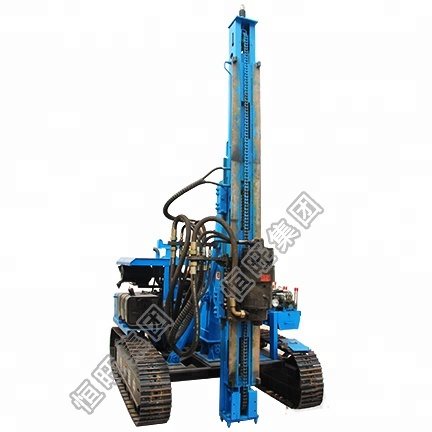

- Mini hammer solar pile driver
- Drill diameters(auger drill):
- 90-500mm
- Drill diameters(impact drill):
- 68-300mm
- Driling Depth:
- 4-6m
- Hydraulic system pressure:
- 20Mpa
- Track working pressure:
- 13Mpa
- Engine power:
- 120Kw
- Output torque:
- 26000N.m
- Working model:
- Self-pressure
- After-sales Service Provided:
- Overseas service center available
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 410X2000X2200 cm
- Single gross weight:
- 6500.0 kg
- Package Type:
- Wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 2 To be negotiated
Product Description
1. Solar hydraulic hammer pile driver, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2. The solar hydraulic hammer pile driver structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3. The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Solar hydraulic hammer pile driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment.
Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .
This pile driver fuel-efficient,is a common driver uses around half of a year ,then will save one driver money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.
This pile driver with crawler walking,own high walking and climbing ability.
The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
Product Parameter
SPECIFICATIONS FOR HAMMER PILE DRIVER | |||
Pile driver part | Engine power | Kw | 80 |
No. of cylinders | PCS | 4 | |
Engine brand | Weicai engine | ||
Working pressure | MPA | 16-20 | |
Working flow | L/Min | 120 | |
Wheel distance | M | 2 | |
Machine size | mm | 4100×2000×2200 | |
Machine weight | T | 3.5 | |
Track shoe part | Working pressure | MPA | 20 |
Rubber track weight | T | 5 | |
Total displacement | 1860 | ||
Total bearing weight | KGS | 5000 | |
Walking speed | kw/h | 0-3 | |
Ground connection beta ratio | 0.036 | ||
Pulling capacity | KGS | 4300 | |
Clambing ability | ≤ 30 | ||
Hydraulic hammer Part | Drill rod diameters | mm | 70 |
Drill rod weight | KGS | 19 | |
Hydraulic hammer weight | KGS | 230 | |
Working flow | L/Min | 40-70 | |
Working pressure | bar | 110-140 | |
Impacting frequency | bpm | 500-900 | |
Pile height | M | 4500mm | |
Product Images

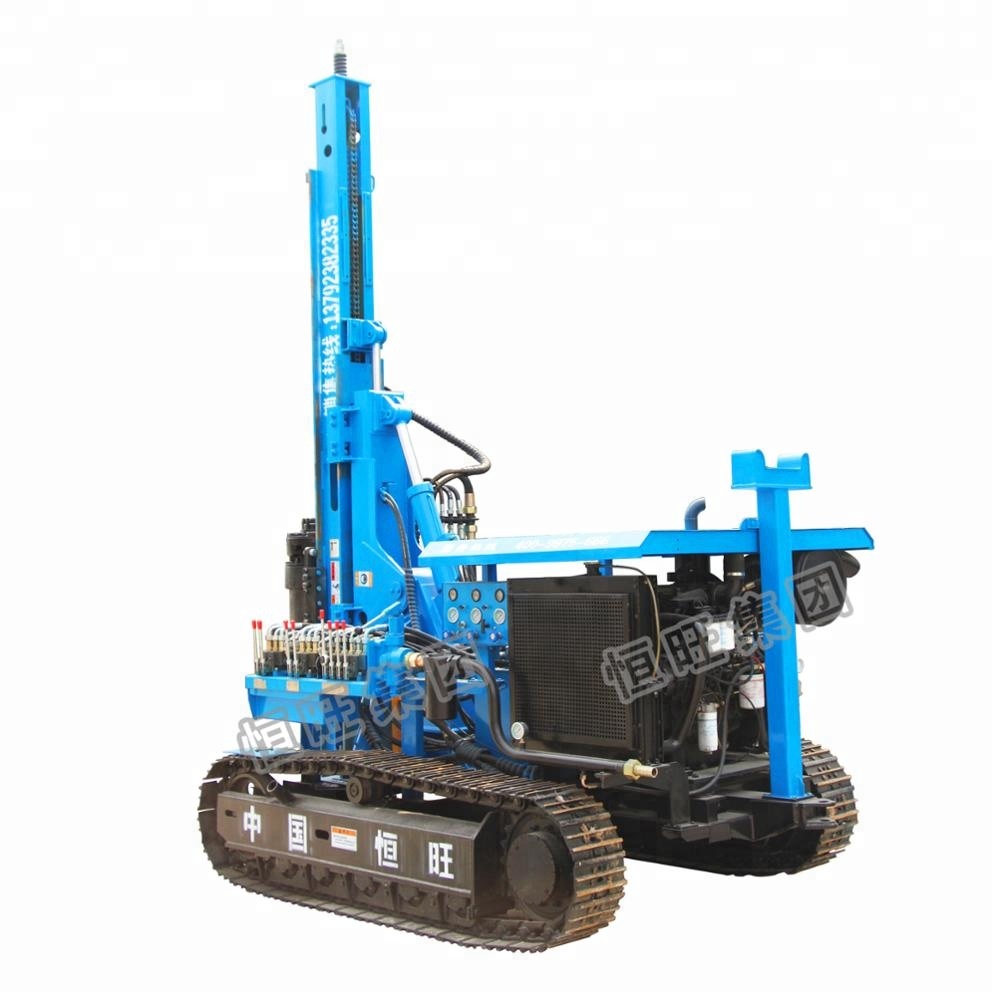

Solar hydraulic hammer pile driver detailed images
| Machine PartsName: Hammer pile driver Brand: HWZG Original: China Weichai engines, strong driving force, low fuel consumption, high economic. |
Main FeaturesName: Square hydraulic hammer this hammer used for pressing the pile into the soil. | |
| Machine PartsName: Round hydraulic hammer Function 1:this hammer can drill the hard rock with air compressor. Function 2:this hammer can drill the soil with the screw pipe. |
Main FeaturesName:Multifunction pile driver
this is the multifunction pile driver,we can change the different hammer to do the different works.it can press the pile,can drill the soil,also can drill the rock. | |
