Click on the image to view the original image
- Condition:
- New
- CNC or Not:
- Normal
- Drilling Speed:
- 10m/hour
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Voltage:
- 220V/380V,can be customized
- Power(W):
- 15kw
- Dimension(L*W*H):
- 2500*1000*1300 mm
- Certification:
- ISO9001
- Name:
- Portable hole drilling machine
- Application:
- Water well drilling
- Drilling depth:
- 160m
- End hole caliber:
- 75mm
- Maximum open hole caliber:
- 260mm
- Drill rod caliber:
- 50mm
- Spindle Speed(r/min):
- 142,285,570 r/min
- Spindle stroke:
- 450mm
- Tightrope caliber:
- 27m
- Type:
- Horizontal single urn twin-action
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Weight:
- 960kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 3X2X2 cm
- Single gross weight:
- 2000.0 kg
- Package Type:
- Standard exported wood package Portable hole drilling machine
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 2 - 10 11 - 50 >50 Est. Time(days) 2 7 30 To be negotiated

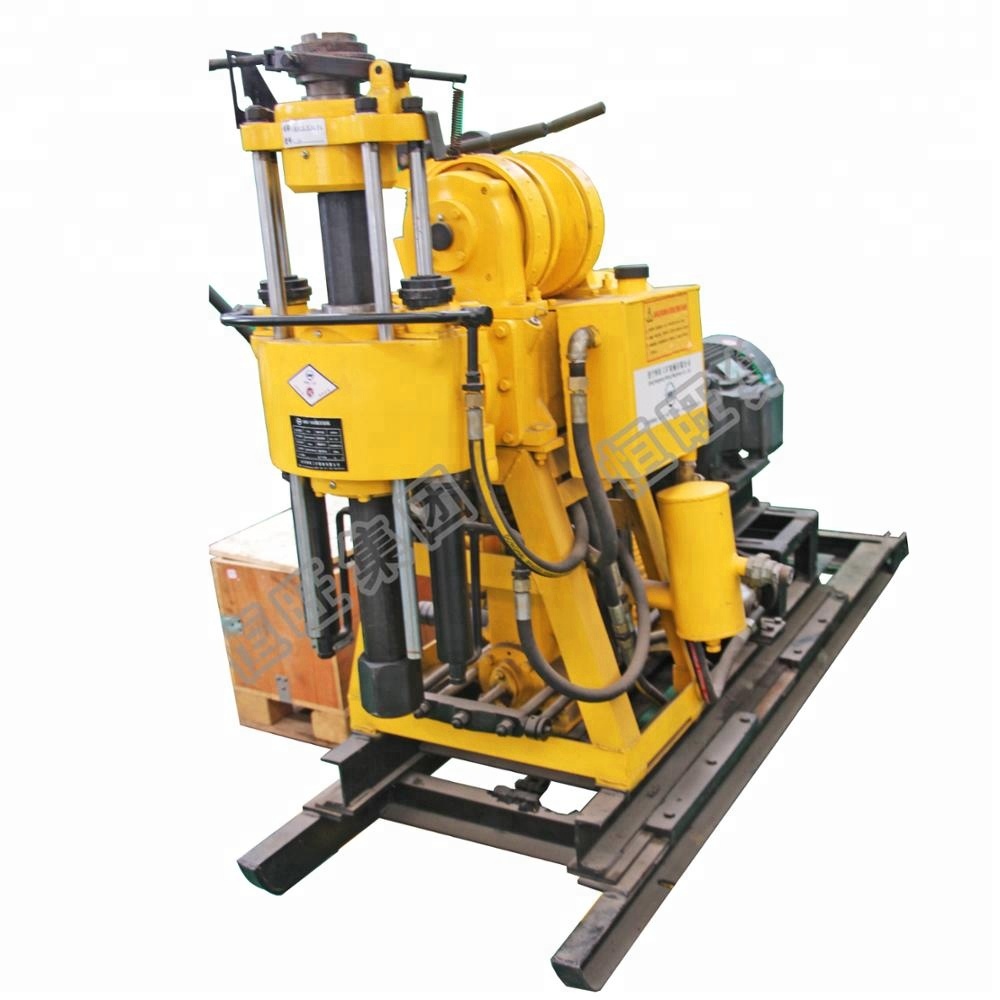

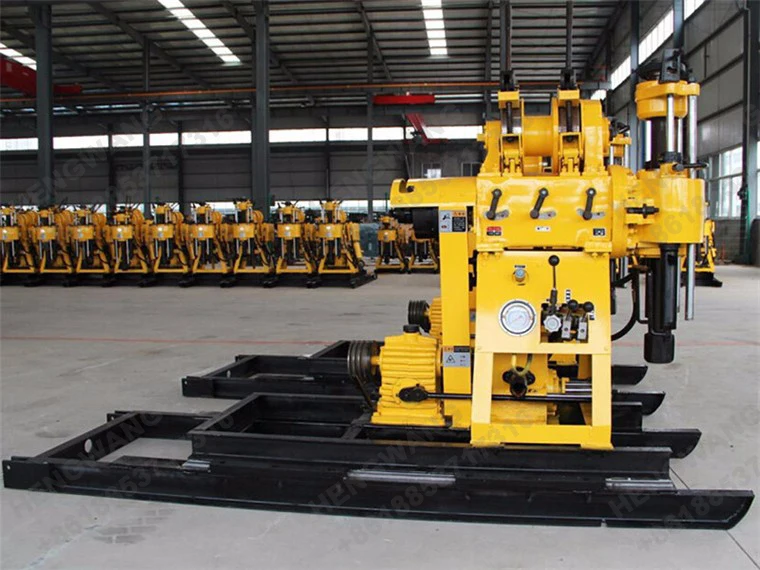

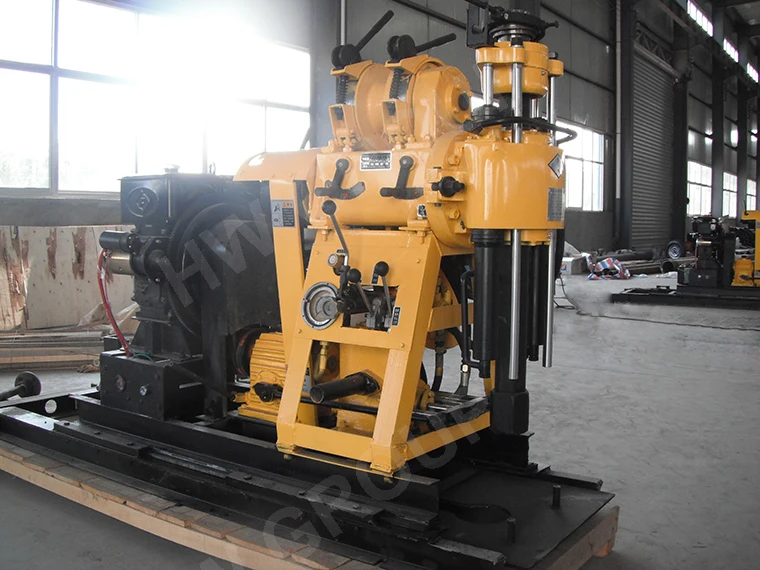

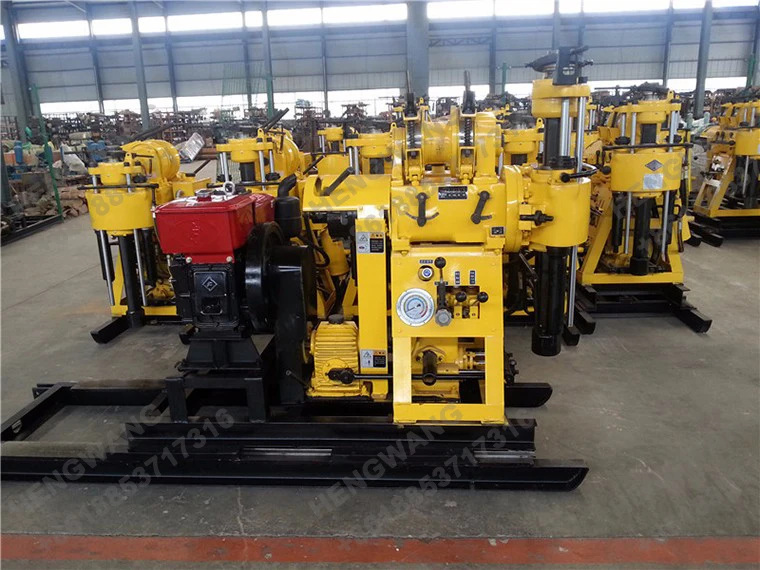

Portable hole drilling machine Applications

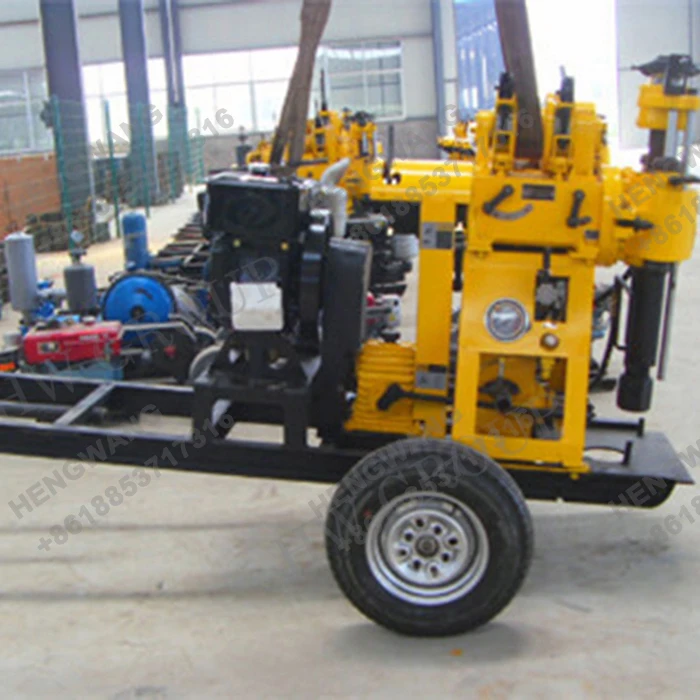

HW-160 trailer mounted water well drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.
Unity machine parameter | |
Drilling depth | 160m |
Maximum open hole caliber | 260mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75 |
Drill weight (No include power) | 560kg |
Unity machine dimensions | 2.5×1×1.3 m /2.5×0.9×1.3m |
Spindle | |
spindle speed | 142,285,570r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 960kg |
Single line lifting speed | 0.41,0.82,1.64m/s |
Tightrope caliber | 27m |
Mud pump of HWD-160 model drilling rig | |
Type | Horizontal single urn twin-action |
Displacement | 95/77L/min |
Diesle engine | Model s1110 18HP |
Electric motor | Y160M—4 11kw 1440r/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 30mm |
Water to exit caliber | 25mm |
Triangle conveyor belt | B1575mm |
With small trailer trailer | With configured drilling tower |
|
|
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
