- Piling Speed(m/min):
- 3 m
- Efficiency:
- 2 minutes per I post
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Weight:
- 6.5
- Dimension(L*W*H):
- 4100*2000*2200mm
- Certification:
- ISO9001
- Name:
- Hydraulic static pile driver hydraulic machine
- Drill diameters(auger drill):
- 90-500mm
- Drill diameters(impact drill):
- 68-300mm
- Driling Depth:
- 4-6m
- Hydraulic system pressure:
- 20Mpa
- Track working pressure:
- 13Mpa
- Engine power:
- 120Kw
- Output torque:
- 26000N.m
- Working model:
- Self-pressure
- After-sales Service Provided:
- Overseas service center available
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 410X2000X2200 cm
- Single gross weight:
- 6500.0 kg
- Package Type:
- Wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 5 To be negotiated

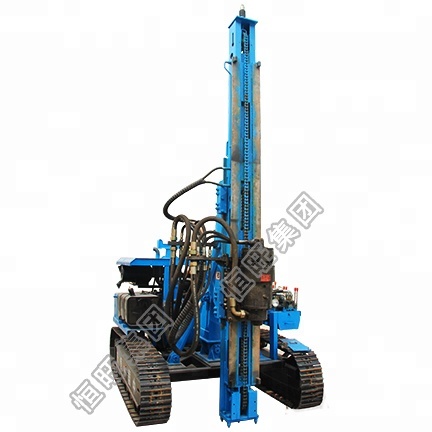

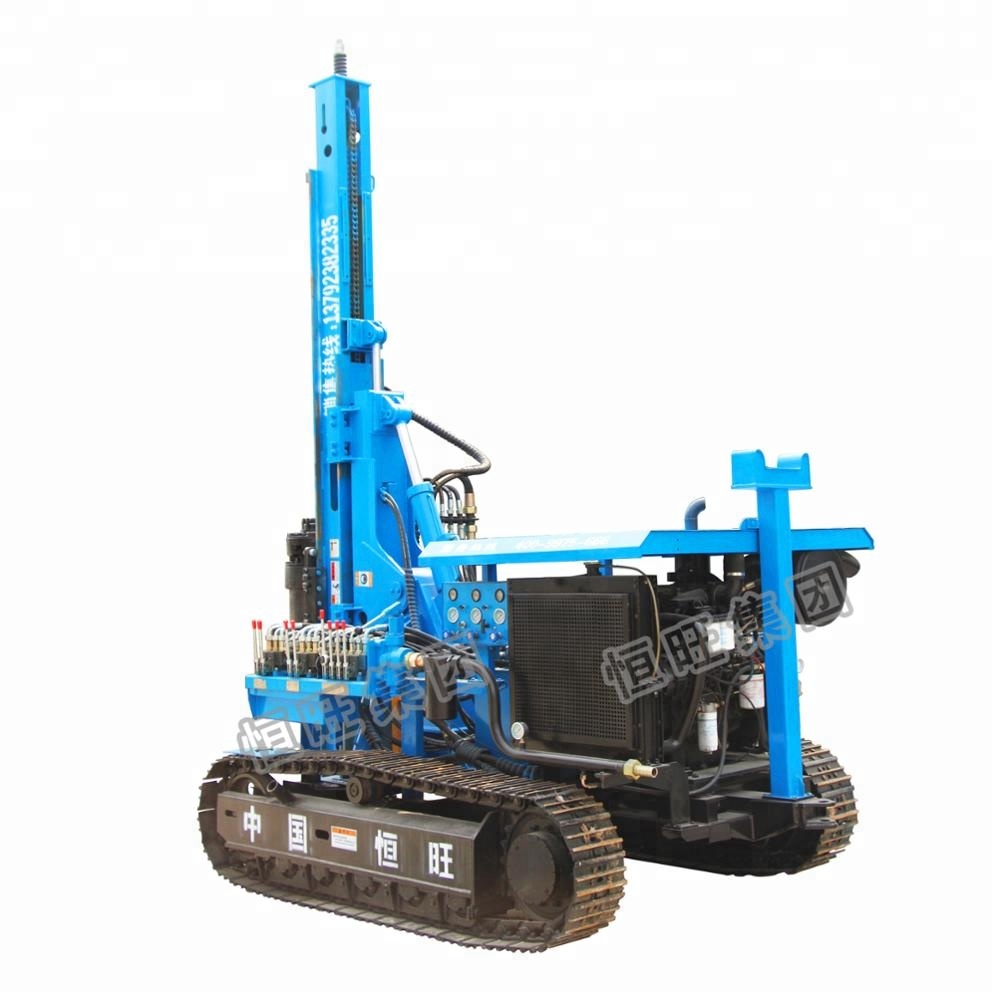

Hydraulic ground screw pile driver Introductions
1. Hydraulic ground screw pile driver, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2. Hydraulic ground screw pile driver structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.

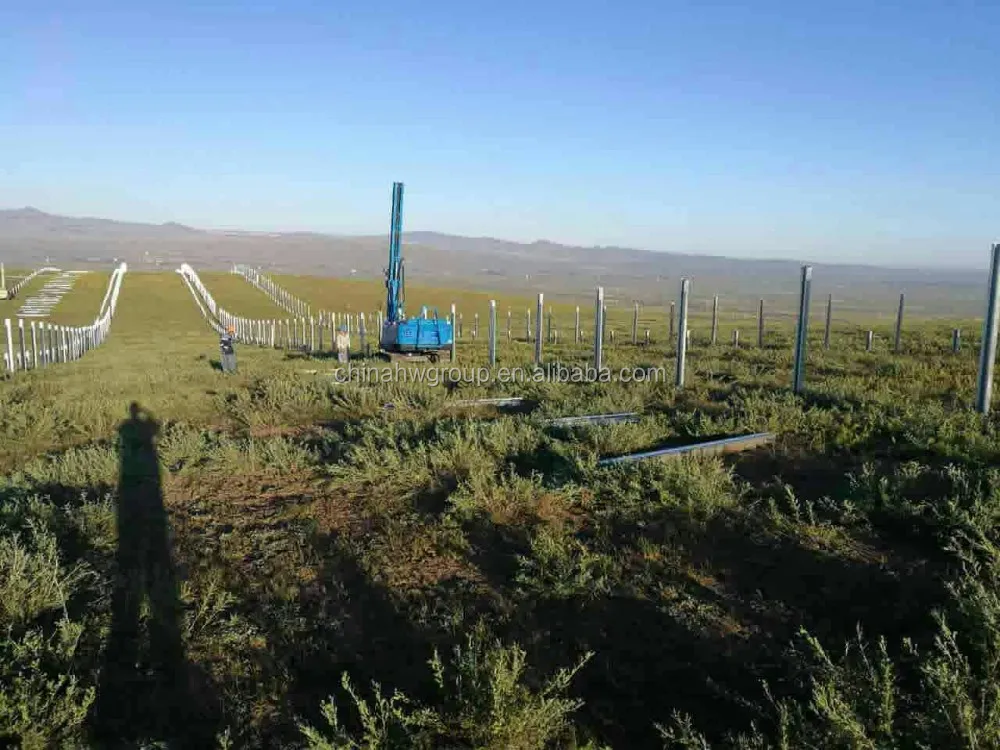

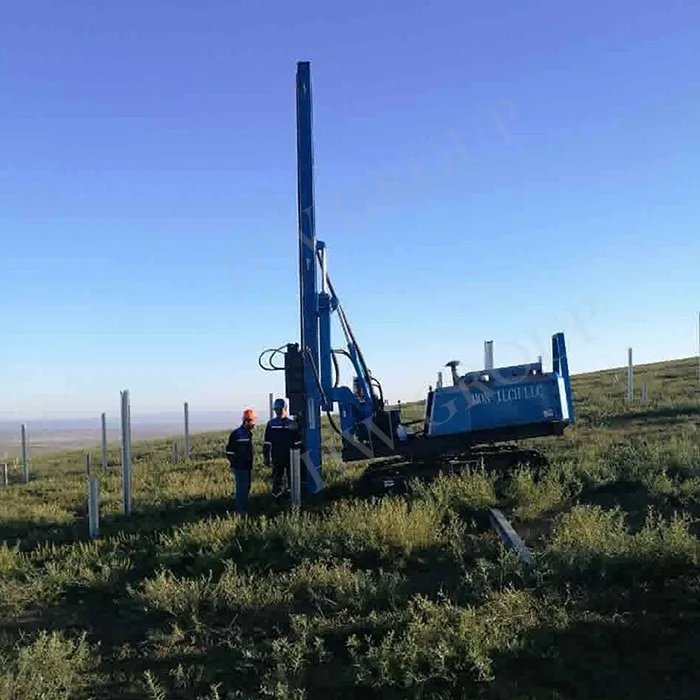

3. The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
Hydraulic ground screw pile driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment.
Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .
This pile driver fuel-efficient,is a common driver uses around half of a year ,then will save one driver money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

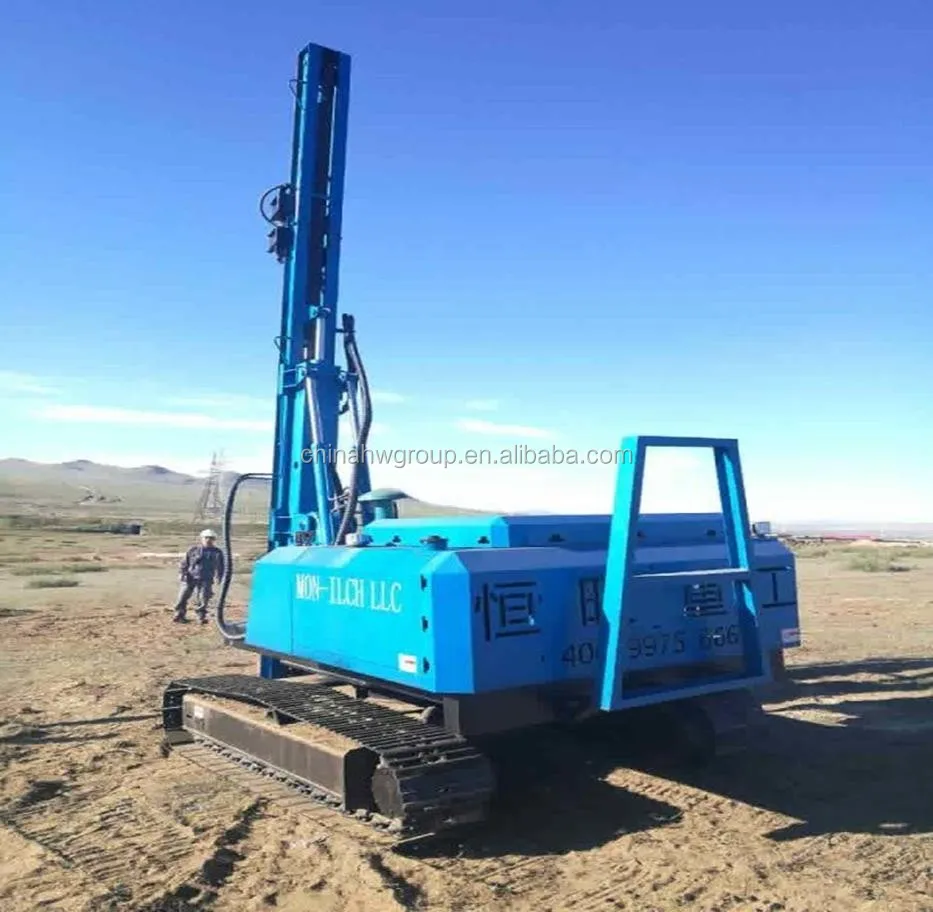

This pile driver with crawler walking,own high walking and climbing ability.
The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
Main Features
Multifunction full hydraulic solar pile driver.
Pile driving speed,the average 2 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.Oil province,is a common driver uses around half of a year can be a driver left money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.Crawler walking,high walking and climbing abilityThe frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

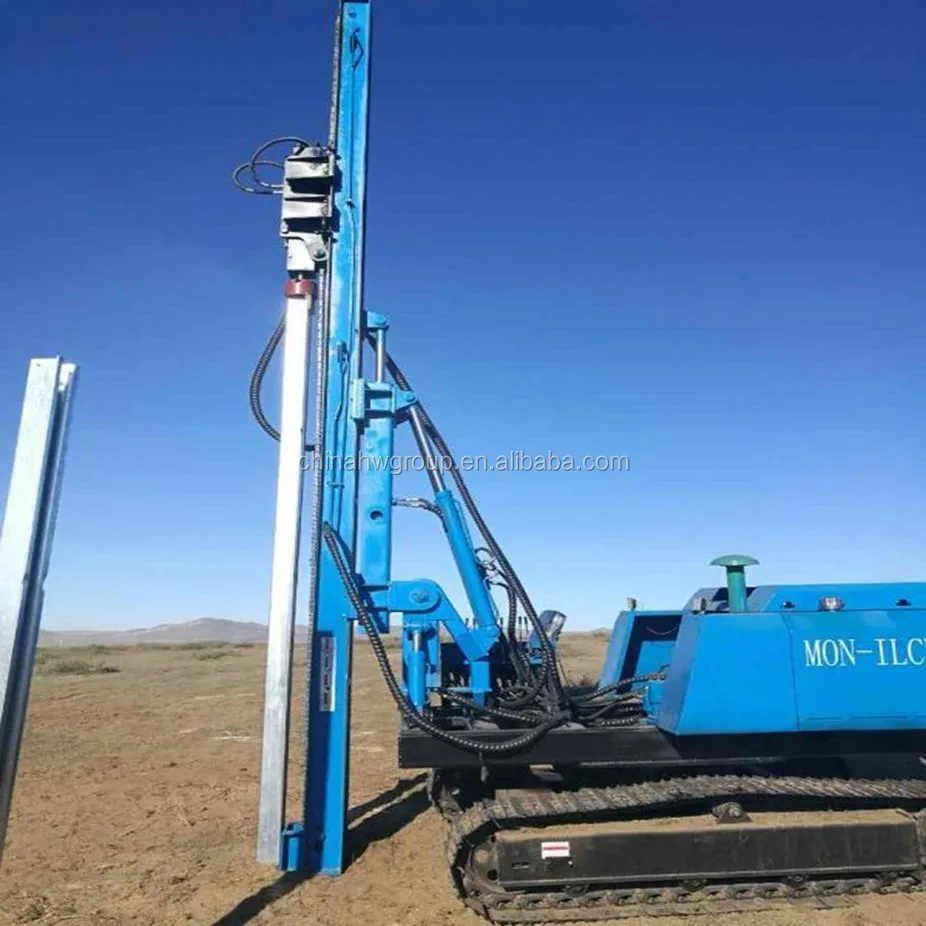

360 degree hydraulic rotation, pile travel is 6m, the highest domestic military hydraulic system configuration, imported gas,oil dual use power head, 8 tons of chassis. Can configured with a set of piling function, a set of drilling function.
