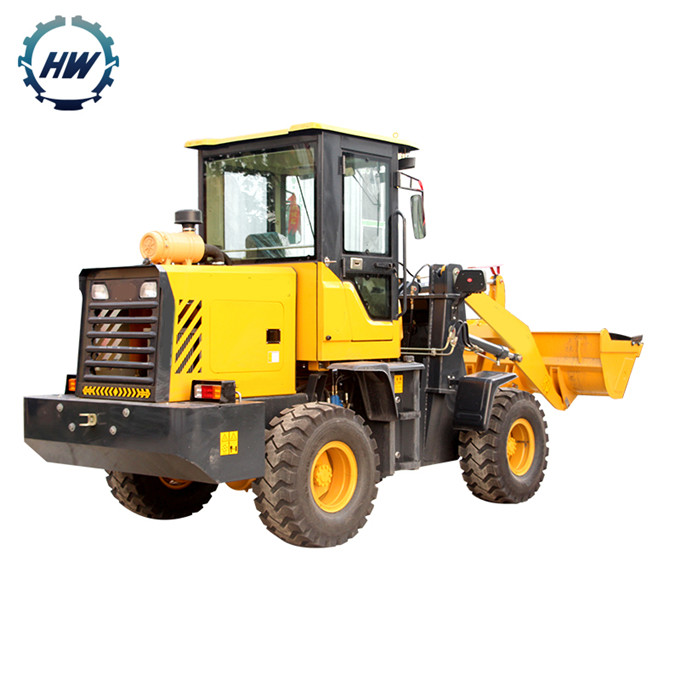

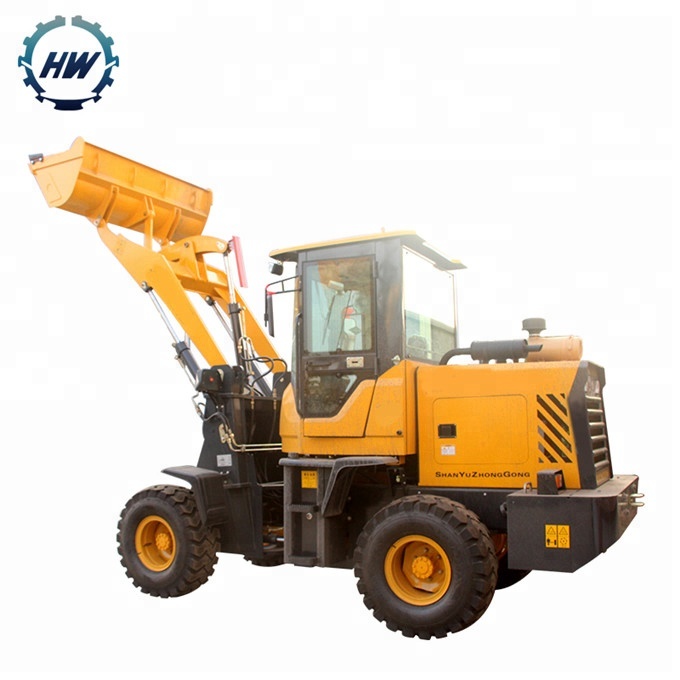

Chinese 800KG HW small wheel loader for sale

Click on the image to view the original image

Product：	views：3Chinese 800KG HW small wheel loader for sale
Branch：	HW
Type：	Front Loader
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:45

Product Details

Overview

Quick Details

Machine Weight:: 2500kg

Dimension(Long * Breadth * High):: 5000mm*2000mm*3000mm

Warranty:: 1 Year

After-sales Service Provided:: Field installation, commissioning and training, Online support, Free spare parts

Condition:: New

Brand Name:: HW

Type:: Front Loader

Moving Type:: Wheel Loader

Certification:: CE ISO

Product name:: Chinese new wheel loader price

Dump height:: 3200mm

Dump distance:: 1000mm

Min. turning radius(outside of bucket):: 5600mm

Operating weight:: 3000kg

Rated power/Speed:: 30KW/2400 rpm

Max. breakout force:: 36 KN

Transmission type:: Full-power shift, countershaft type

Max. travel speed:: 24km/h

Max. turning angle:: 35°±1

Supply Ability

Supply Ability:: 1200 Set/Sets per Year hydraulic wheels loader

Packaging & Delivery

Packaging Details: hydraulic wheels loader
one set loading in 40HC container

Port: Qingdao or Shanghai

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Chinese new wheel loader price
Model	HW-L26
Rated capacity	0.6 m³
Rated load	1200kg
Transportation	5000mm2000mm3000mm
Dump height	3200mm
Dump distance	1000mm
Wheel base	2000mm
Tread	1440mm
Max. breakout force	36 KN
Total time	12s
Operating weight	3000kg
Engine
Model	YuChai Y28 diesel engine
Pattern	Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed	30KW/2400 rpm
Torque converter and transmission system
Pattern	3-element single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward, 2 reverse 2
Max. travel speed	24km/h
Axle	Hualu
Main reducer pattern	Arc taper gear, model ration of first grade
Pattern of wheelside moderation	Planet gear moderation of single
Tire

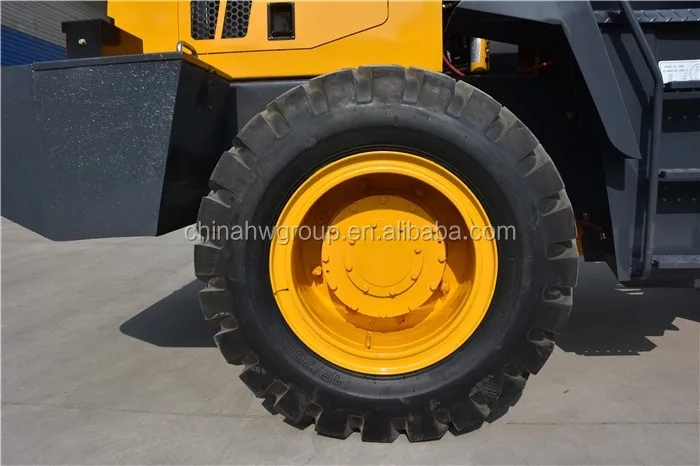

Tire size	16/70-24
Steering system
Pattern	Articulated and hydraulic steering
Min. turning radius(outside of bucket)	5600mm
Max. turning angle	35°±1
Implement hydraulic system
Implement pump	CBG2063
System working pressure	16MPa
Brake system
Brake type	Air assisted oil disc on four wheel
Parking brake type	Soft axle control, outside bunch drum type

1. Executive standard: customer"s requirements. Above information serves as a reference only, we can change the parameters reasonably according to your request.

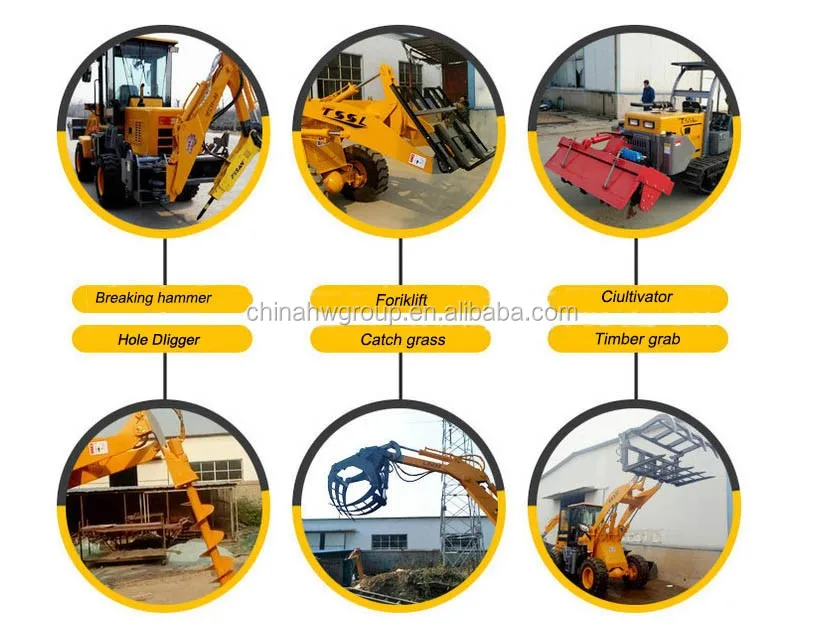

2. Optional parts: snow plow, pallet fork, gripper, rock/coal bucket, portal frame, side dump bucket, clamp bucket, light material bucket, joystick, air condition, back up camera etc.
3. Warranty: 12 months after delivery, necessary spare parts presented free. After warranty, we can always provide spare parts according to customer"s wishes.

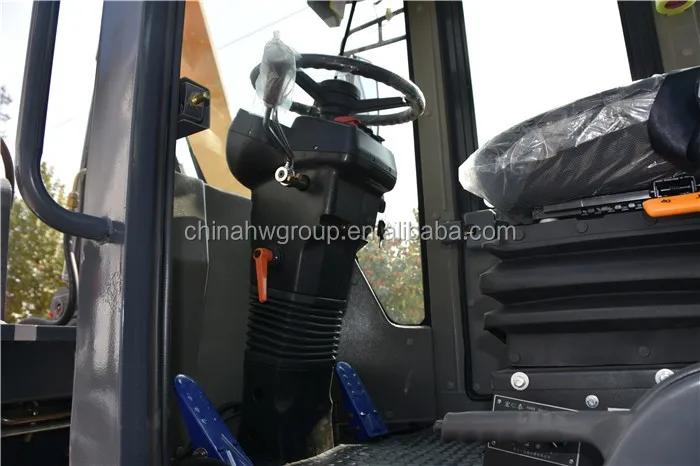

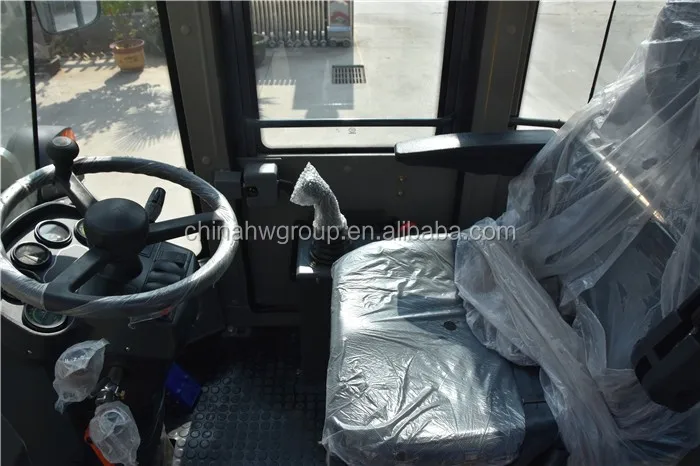

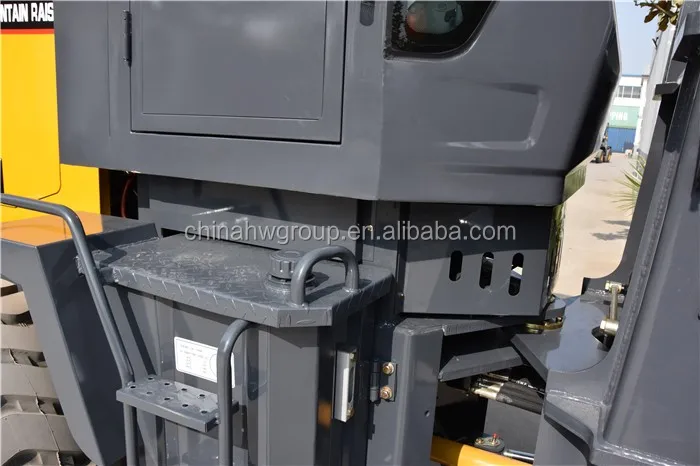

Detailed Images
