1, with excellent work efficiency and excellent cost-effective;
2, the standard configuration bulldozer can be flat site, earth backfill, increase machine stability;
3, simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding;
4, with mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved;
Product Parameter

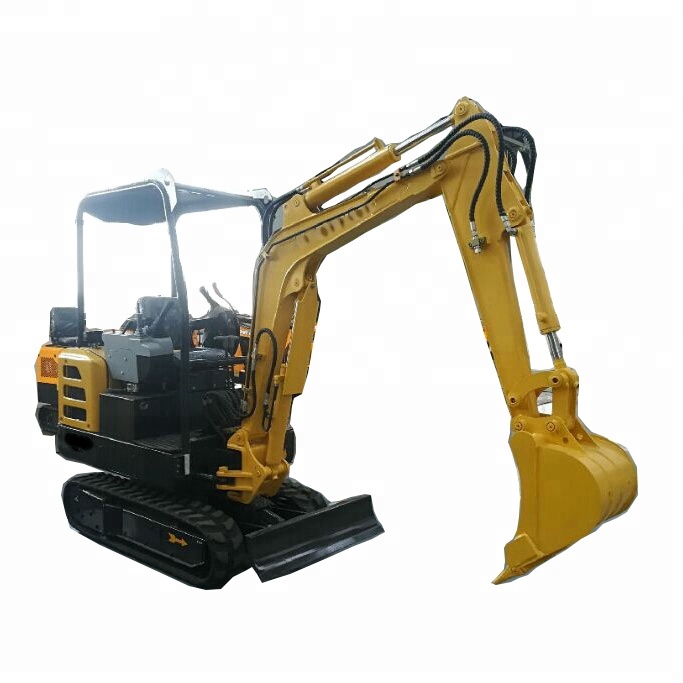

construction machine china mini digger 0.8 ton excavator | |
Model | HW08 |
Operating Weight | 800kg |
Digging bucket capacity | 0.025cbm/100kg |
Bucket width | 340mm |
Engine |
KOOP |
Rated power | 8.6 kw/3600r/min |
Displacement | 0.211 L |
Bore stroke |
70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor
| SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450) |
Travel speed | 1.5km/h |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Wheelbase | 910 mm |
Total length of track |
1230mm
|
Platform ground clearance |
380 mm |
Platform back turning radius | 784 mm |
Chassis width |
896 mm |
Track width
| 130 mm |
Max. Digging depth |
1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius |
1330 mm |
