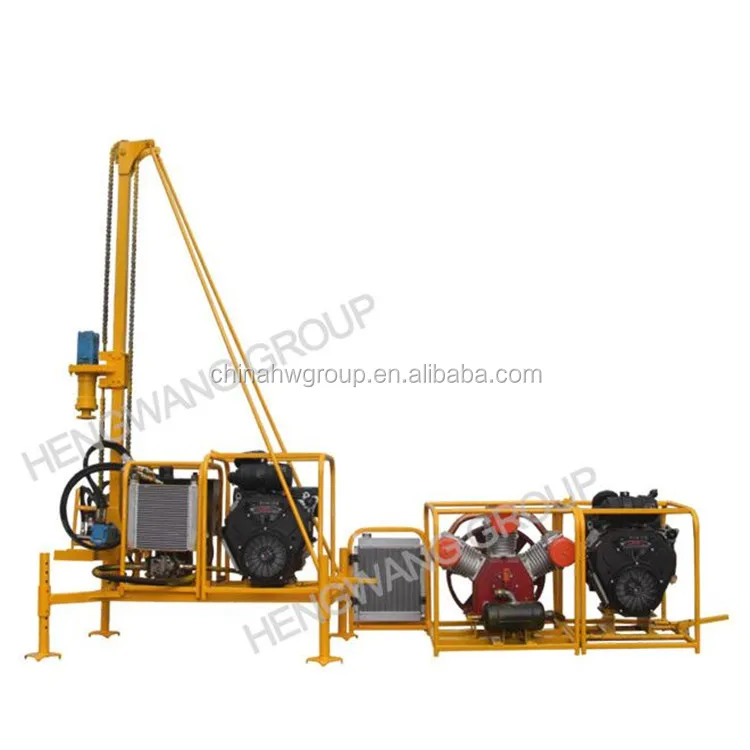

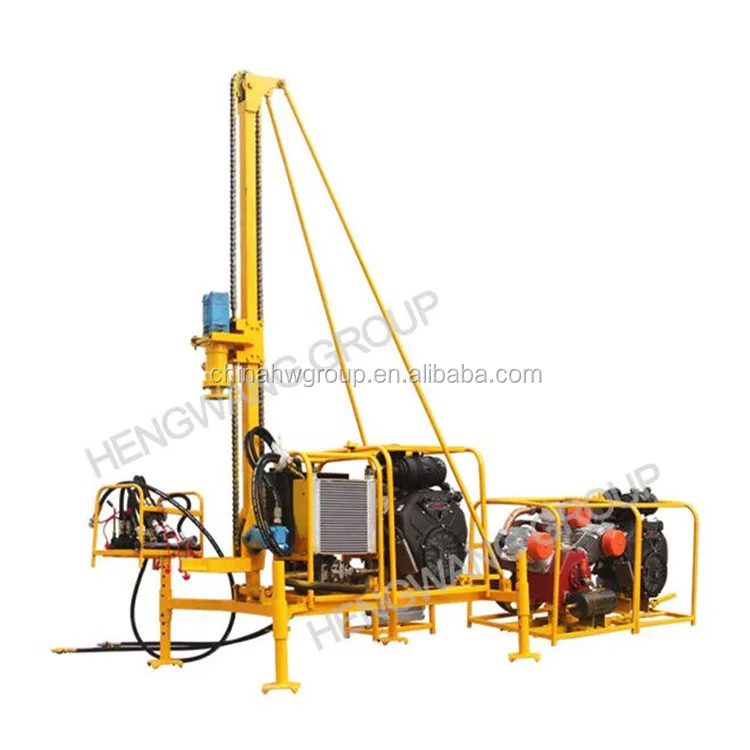

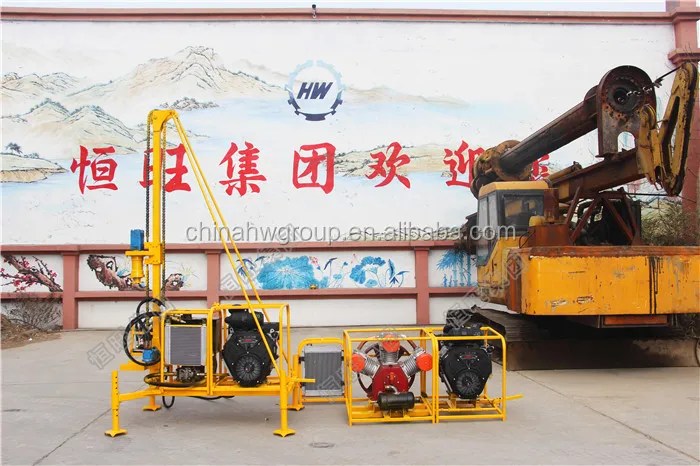

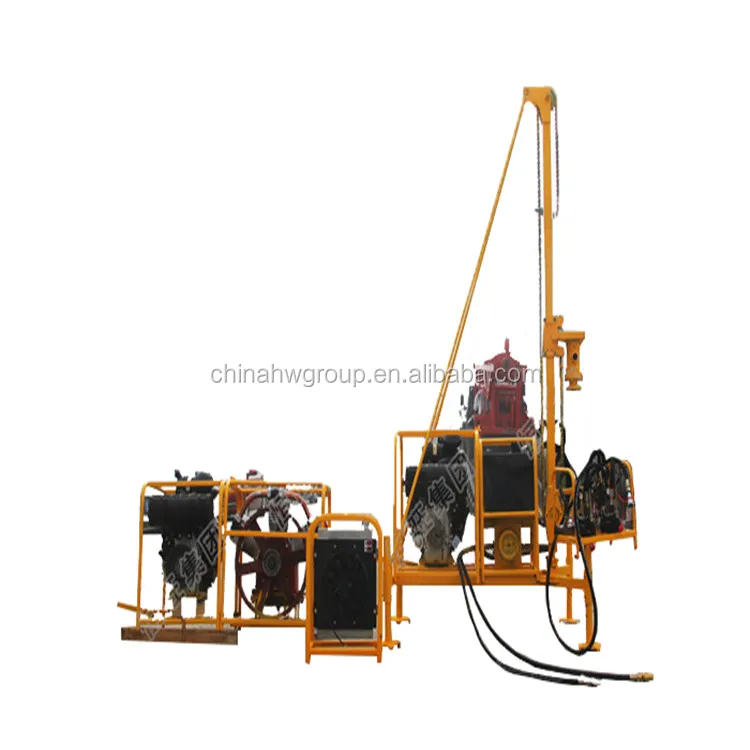

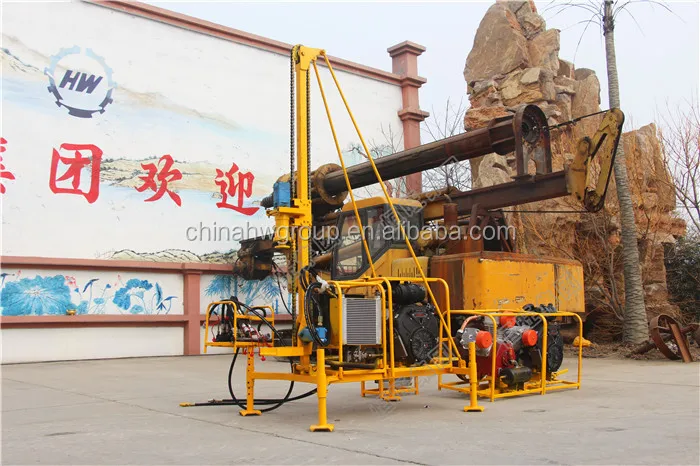

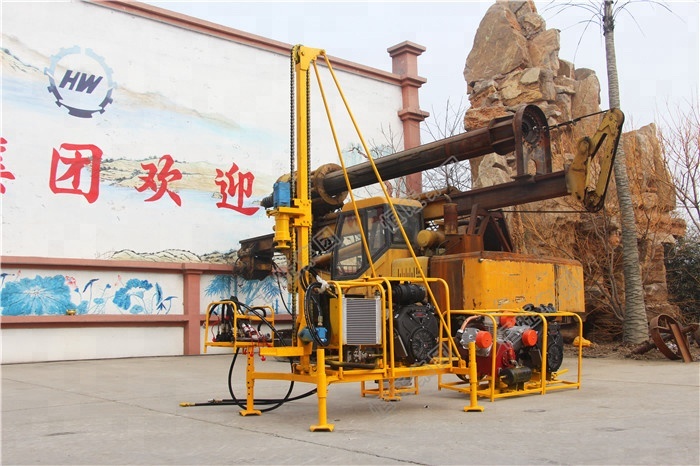

* HW portable drill is mounted with hydraulic top-driven system with compact and strong structure to work in the toughest working condition. It can be used in any of the most difficult area that vehicles can not access, such as: sharp mountain, hill, heavy forest, etc. It has good performance in drilling on hard rocks in high efficiency.
* HW has sufficient drilling capability in different drilling methods: air drilling, mud drilling, auger drilling or with DTH hammer.
* Clients can choose to use gasoline engine or diesel engine as the power of drilling rig.
The reliability, efficiency and quality reputation has been set up among clients by several thousands units of portable drill rigs used in different countries.
* The rig is installed with safety, caution and environmental protection signs, and it meets with the requirement of HSE.
Product Parameter
Mountains Area Drilling Rig | |||
Model | HW-30 | ||
Drilling depth | 30-50m | ||
Drilling method | Air shocking method | ||
Spiral Drilling and mud drilling (alternative ) | |||
Borehole Diameter | Air shock drilling (mm) | Lithostratigraphy70-150 | |
Mud drilling (mm) | Loose stratum75-160 | ||
Drill pipe(Diameter× length) | Air shock drilling(mm) | Φ50×1500 | |
Power head | Rated torque(N.m) | 800-900 | |
Drilling speed range(r/min) | 0-135 | ||
Drilling machine pressure and lifting function | Lifting force of drilling tools(KN) | 12-16 | |
Maximum lifting speed of drill tools(m/s) | 0.71-0.81 | ||
Engine power (kw)/rotary speed(r/min) | 26/3600 | ||
Hydraulic system | Flow(L/min) | 0-60 | |
Working pressure(Mpa) | 20 | ||
Air compressor unit | Model / configuration number | Fuel injection screw type/a set | |
Air volume(m3/min) | 3.8 | ||
Working pressure(Mpa) | 0.8 | ||
Engine power(kw)/Drilling speed(r/min) | 26/3600 | ||
1:What’s the MOQ?
----1Set.
2.Is it difficult to operate?
----Hydraulic electric concrete stone pump is easy to operate, we can share how-to-use video with you and we will send you the detailed operation manual via email.
3.What’s the usually delivery terms?
----FOB, CNF, CIF, EXW will be OK.
4.What’s the payment terms?
----We accept Western Union, T/T, L/C,Paypal,Trade Assurance.
5.Does machines have warranty period?
-----Yes, our machine with one year warranty period for main parts, quick parts are excluded.
