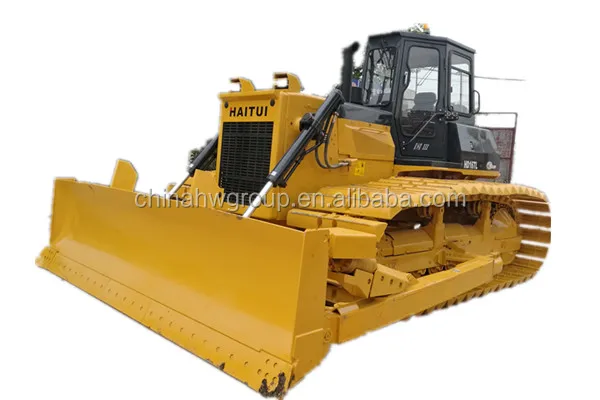

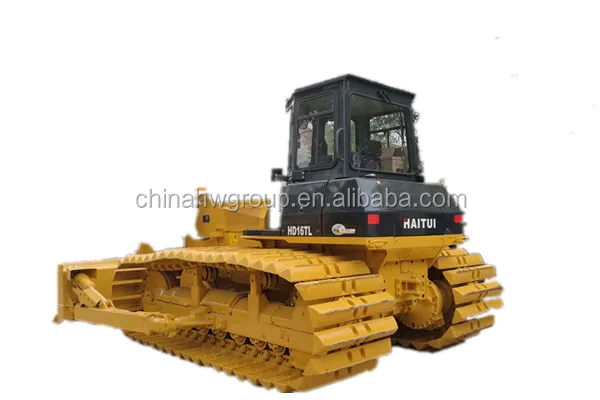

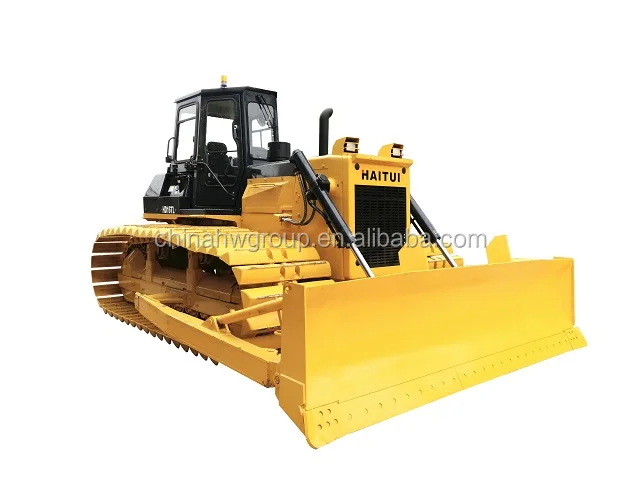

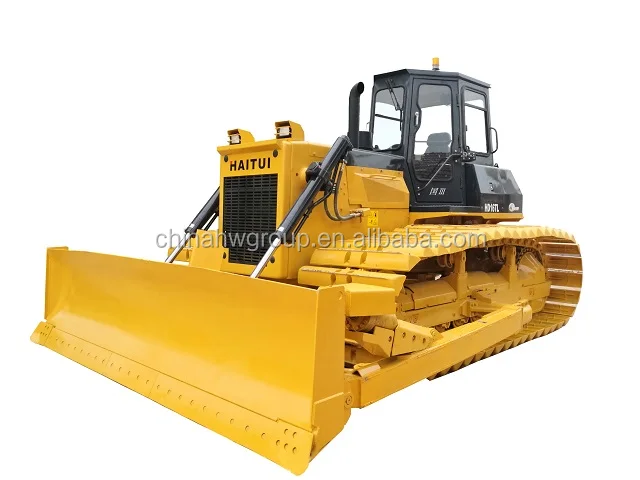

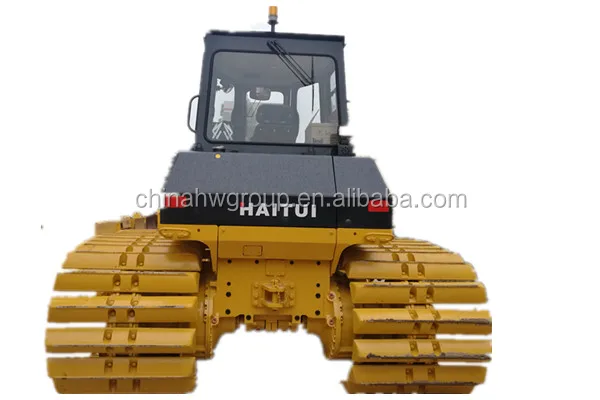

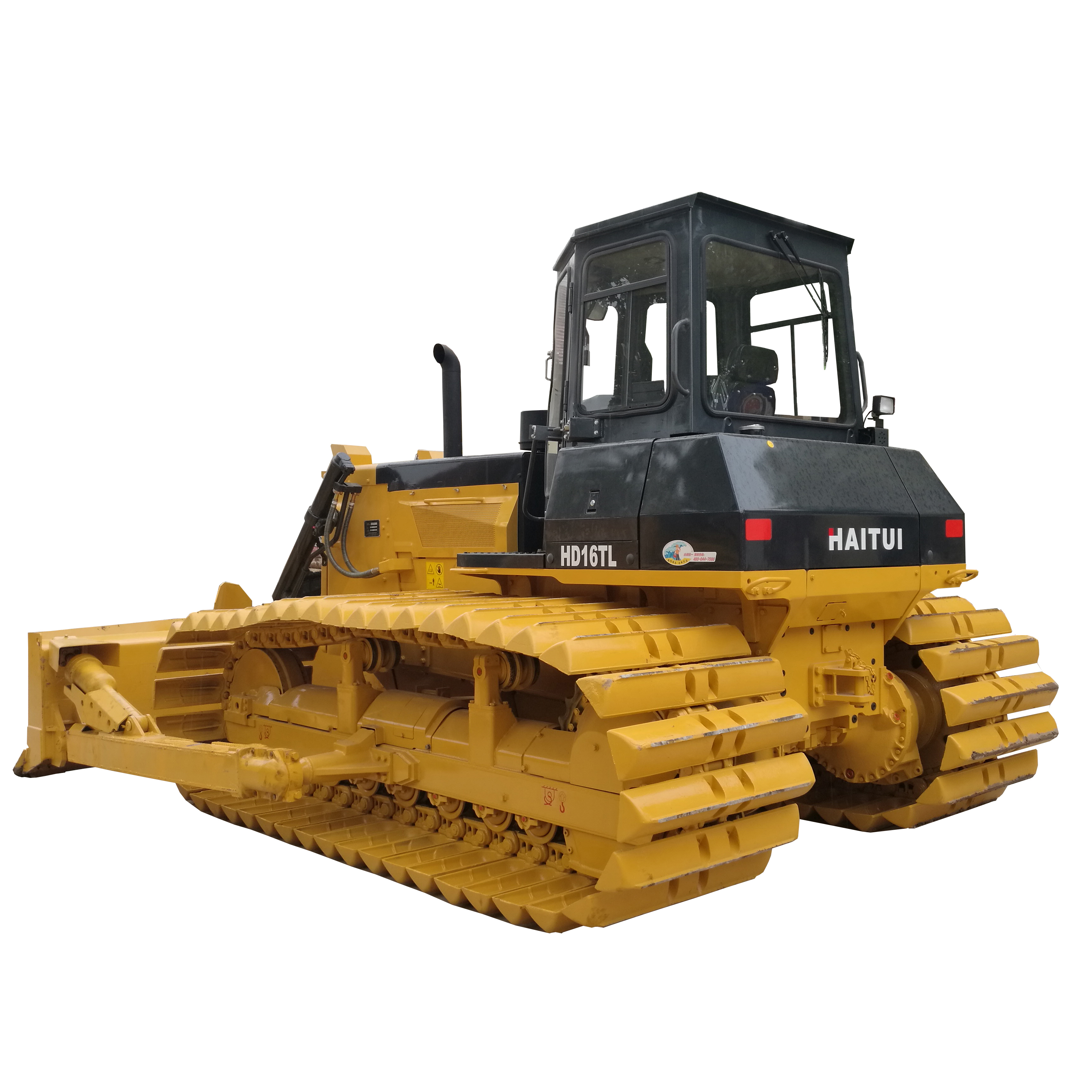

* HW16 hydraulic series bulldozer, with high technology content, strong power, high efficiency, easy maintenance and other characteristic, can adapt for severe working conditions,such as highway, railway, mining, airport construction.
Product Parameter
Items | HW18 |
Main Specifications | |
Model | HW18 |
Type | 160HP Hydraulic Standard |
Engine Model | WP10G178E355 |
Displacement | 9.726L |
Rated Power | 131/1850Kw/rpm |
Max torque | 830/1000-1200N.m/rpm |
Operating Weighting | 17000kg |
Dimension (No Ripper ) | 5140*3388 * 3031 mm |
Min Ground Clearance | 405 mm |
Ground Pressure | 0.067Mpa |
Track Gauge | 1880 mm |
Dozing Capacity | 4.55 m3 |
Blade Width | 3390mm |
Blade Height | 1150mm |
Max Drop Below Ground | 540mm |
Track Shoe Width | 3390mm |
Pitch | 203.2mm |
Quantity Of Track Link | 37 |
Max Pressure | 14Mpa |
Discharge | 213L/min |
Max Tractor Force | 146KN |
Grade Ability | 30º |
Gear 1 st Speed | 3.29 km/h |
Max Speed | 9.63 km/h |
Main Clutch Force | 145N |
Steering Clutch Force | 80N |
Mechnical Transmission Force | 112N |
Hydraulic Transmission Force | 46N |
