Click on the image to view the original image

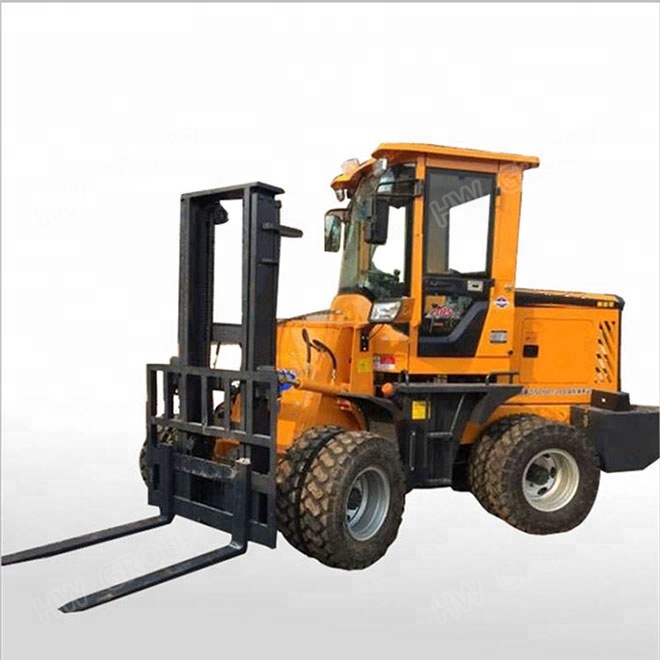

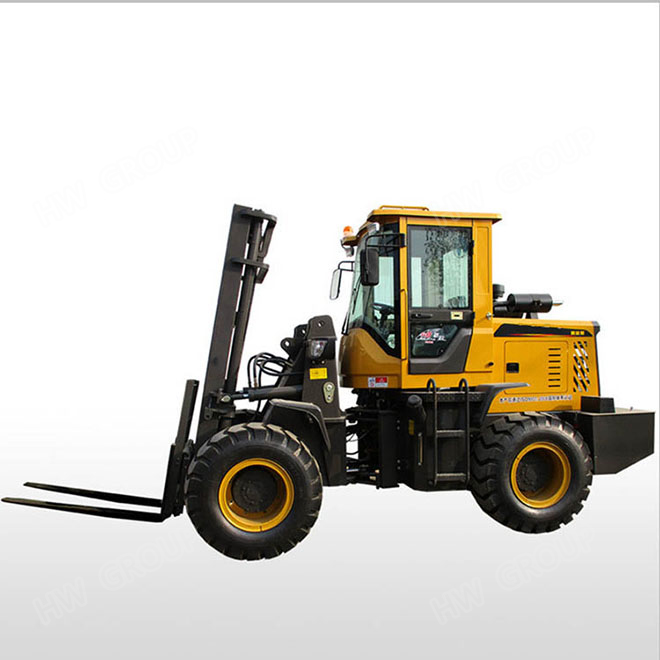

* The loader forklift is one of the functions of the multifunctional loader in our factory that the loader refit the forklift machine.
* The machine with a variety of functional transformations,it can swith the loader(-mounted) shovel,then change into the function of loading.
Product Parameter
Specification For Loader Forklifts machine | |
Model | HW |
Fork length | 1200mm |
Rated hoisting weight | 3000kg |
The lowest position of the fork | 10mm |
Hoisting height | 4000mm |
Fork width | Adjustable |
Industrial vehicles | Forklift truck |
Special industry | All-terrain forklift |
Way of walking | Engine Powered Fork Lift Trucks |
Processing customization | Yes |
Dimension | 4500*2100*1800mm |
Wheel base | 2400mm |
Tread | 1440mm |
Operating weight | 4500kg |
Model | HW |
Rated power/Speed | 65KW/2400 rpm |
Torque converter and transmission system |
|
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Main reducer pattern | Arc taper gear , model ration of first grade |
Pattern of wheelside moderation | Planet gear moderation of single |
Tire size | 16/70-24 |
Implement pump | CB2063 |
System working pressure | 20MPa |
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control , outside bunch drum type |
1:What’s the MOQ?
----1Set.
2.Is it difficult to operate?
----Hydraulic electric concrete stone pump is easy to operate, we can share how-to-use video with you and we will send you the detailed operation manual via email.
3.What’s the usually delivery terms?
----FOB, CNF, CIF, EXW will be OK.
4.What’s the payment terms?
----We accept Western Union, T/T, L/C,Paypal,Trade Assurance.
5.Does machines have warranty period?
-----Yes, our machine with one year warranty period for main parts, quick parts are excluded.
