- Bucket capacity:
- 0.06
- Operating Weight:
- 1960
- Rated Speed:
- 2-3
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 3500mm
- Maximum Digging Depth:
- 2300mm
- Machine Weight:
- 1960kg
- Max Digging Radius:
- 4120mm
- Certification:
- CE ISO
- Application:
- BuildingAgriculture
- Product name:
- China mini hydraulic pump excavator price for sale
- Shipping Length:
- 3635
- Overall Width:
- 1300
- Shovel Height:
- 250
- Counterweight Clearance:
- 475
- ArmLength:
- 1840
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Supply Ability:
- 400 Set/Sets per Month Mini crawler excavator 1 ton
- Packaging Details
- Wooden case
- Port
- Qingdao Tianjin or Shanghai Port
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 7 To be negotiated

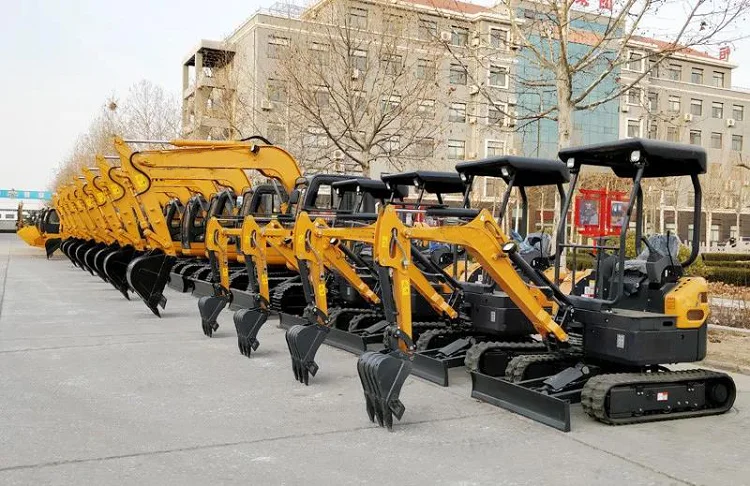

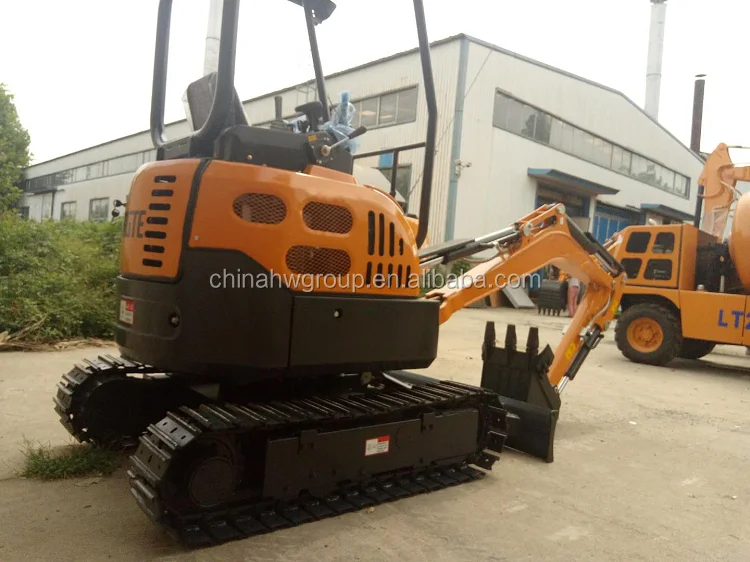

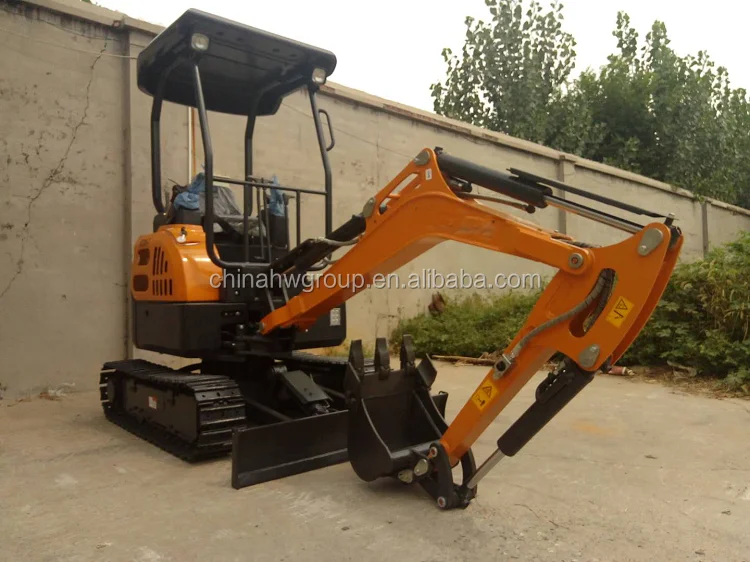

Introduction of mini excavator
Mini crawler excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with brand engine and imported pump and valve,easy to maintain.
Suitable for vegetable shed loose land, the municipal department of landscaping, orchard nursery trees digging, crushing of concrete pavement, sand and gravel mixing, small space construction operations, the use of quick replacement joints, optional rotary drilling, hammer, Loading bucket, grab and other accessories, reduce maintenance and operating costs, improve the degree of mechanization, small investment and high return. Machine flexible and practical, economical environmental protection and energy saving, is a good helper for farmers, vegetable farmers, garden municipal workers.
Feature
1, The mini digging machine with excellent work efficiency and excellent cost performance.
2, Standard bulldozers can be flat site, earthwork backfill, increase machine stability.
3, Simple operation, small and flexible, easy to transport, can work in a small venue, especially suitable for in the orchards such as kiwi, vineyards, oranges, navel orange species value, trenching, fertilization, weeding.

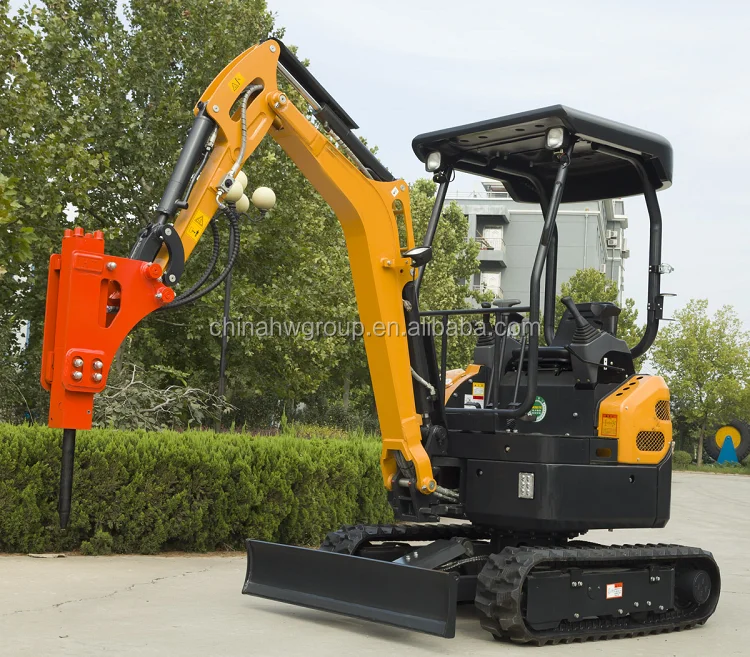

4, With digging, crushing, hook clearance, drilling, multi-purpose earthmoving, quick replacement of accessories, machine utilization greatly increased.
Parameter
Shipping Length(mm) | 3635 | |
b | Shipping Height(mm) | 2400 |
c | Overall Width(mm) | 1300 |
e | Radius, Swing Center to Rear End(mm) | 640 |
f | Shovel Height(mm) | 250 |
g | Shovel Width(mm) | 1300 |
h | ShovelLifting Height(mm) | 270 |
i | Counterweight Clearance(mm) | 475 |
j | Minimum Clearrance(mm) | 180 |
k | ArmLength(mm) | 1840 |
l | Boomlength(mm) | 1015 |
m | Number of cylinders (unit) | 3 |
n | Displacement (L) | 0.854 |
o | Fuel tank (L) | 16 |
p | Hydraulic tank (L) | 21 |
q | Engine oil (L) | 1.3-2.8 |
a | Max. Digging Height(mm) | 3500 |
b | Max. Dumping Height(mm) | 2430 |
c | Max. Digging Depth(mm) | 2300 |
d | Max. Digging Radius(mm) | 4120 |
Engine Type | Yanmar 3TNV70-SSY |
Power(kw/rpm) | 10/2200 |
Hydraulic System Pressure(Mpa) | 18.6 |
Hydraulic System FlowL/min | 2*20+14 |
Bucket Volume (m3) | 0.06 |
Bucket Digging Force(KN) | 12 |
Arm Digging Force(KN) | 9 |
Rotation Speed (r/min) | 10 |
Travel Speed(km/h) | 2--3 |
Approximate Weight(kg) | 1960 |
