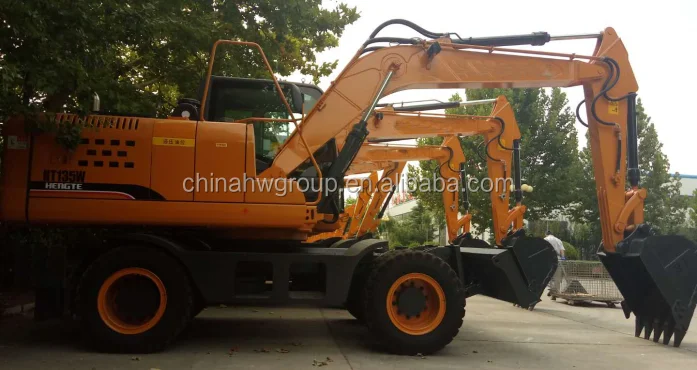

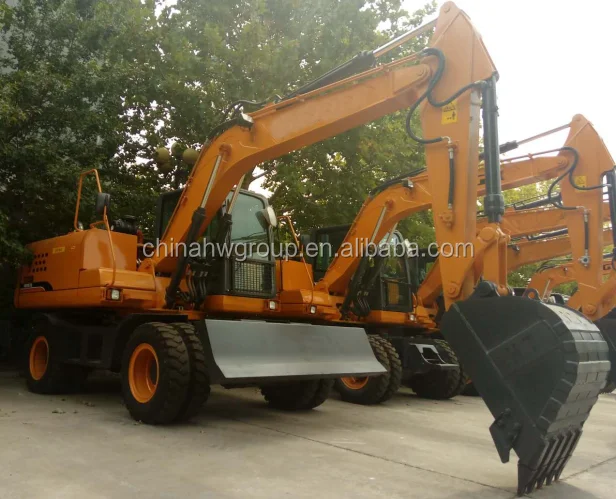

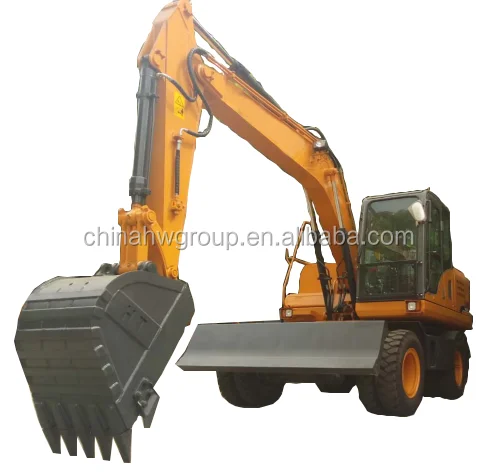

Introduction of excavator
Wheel excavator is designed for l works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with brand engine and imported pump and valve,easy to maintain.
Suitable for vegetable shed loose land, the municipal department of landscaping, orchard nursery trees digging, crushing of concrete pavement, sand and gravel mixing, small space construction operations, the use of quick replacement joints, optional rotary drilling, hammer, Loading bucket, grab and other accessories, reduce maintenance and operating costs, improve the degree of mechanization, small investment and high return. Machine flexible and practical, economical environmental protection and energy saving, is a good helper for farmers, vegetable farmers, garden municipal workers.
Feature
1, The machine with excellent work efficiency and excellent cost performance.
2, Standard bulldozers can be flat site, earthwork backfill, increase machine stability.
3, Simple operation, small and flexible, easy to transport, can work in a small venue, especially suitable for in the orchards such as kiwi, vineyards, oranges, navel orange species value, trenching, fertilization, weeding.
4, With digging, crushing, hook clearance, drilling, multi-purpose earthmoving, quick replacement of accessories, machine utilization greatly increased.
Parameter
a | (Shipping Length) | 7350 (mm) |
b | (Shipping Height) | 3005 (mm) |
c | (Overall Width) | 2520 (mm) |
d | (Tyre Type) | 900-20 |
e | (Radius, Swing Center to Rear End) | 2395 (mm) |
f | (Wheelbase) | 2620 (mm) |
g | (Whell Tread) | 2000 (mm) |
j | (Steering Width) | 2490 (mm) |
a | (Max. Digging Height) | 7340 (mm) |
b | (Max. Dumping Height) | 5250(mm) |
c | (Max. Digging Depth) | 4500(mm) |
d | (Max. Digging Radius) | 7500 (mm) |
(Engine Brand) | Cummins |
(Power) | 93/2200 (kw/rpm) |
(Hydraulic System Pressure) | 34.3(MPa) |
Hydraulic System Flow) | 2X130(L/min) |
(Bucket Volume) | 0.53 (m3) |
(Bucket Digging Force) | 85 (KN) |
(Arm Digging Force) | 53 (kN) |
(Gradeability) | 70% |
(Rotation Speed) | 13-14 (r/min) |
(Travel Speed) | 28(km/h) |
(Approximate Weight) | 12500 (kg) |
