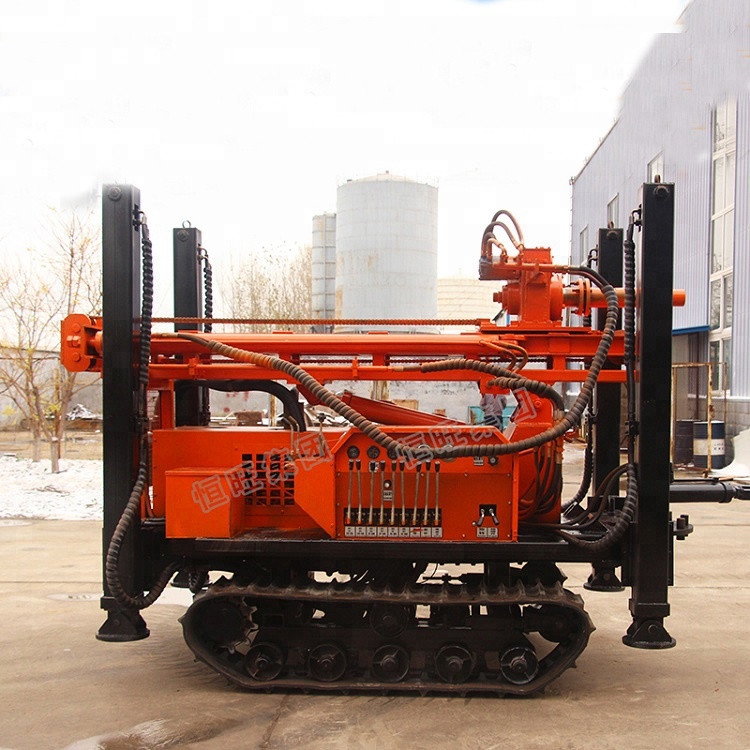

Click on the image to view the original image
Overview
Quick Details
- Condition:
- New
- Type:
- Core Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- Diesel Engine Driven
- Power(W):
- 85
- Dimension(L*W*H):
- 3442mm*2400mm* 2800mm
- Weight:
- 6500kg
- Certification:
- CE / ISo
- Warranty:
- 1 Year
- The hole diameter:
- 100~300
- Once-time advance length:
- 3000mm
- Climbing angles(Max):
- 30
- Air consumption(m/min):
- 1.5 2.0 3.0
- Drilling depth(m):
- 200
- Walking speed(km/h):
- 2.5-5
- Rig lifting force:
- 20t
- Drill pipe diameter(mm):
- 76 89 102
- Using air pressure:
- 1.7~3.5
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 700 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- Wooden case
- Port
- Qingdao Shanghai Ningbo
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 6 To be negotiated
