- Charging Capacity:
- 5.5m3
- Reclaiming capacity:
- 4m3
- Mixing Power:
- 85KW/2400r/min
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Motor Power:
- 2.2kw
- Speed of Mixing Drum:
- 10-16r/min
- Water Supply Mode:
- Automatic
- Working Cycle Period:
- 40s-60s
- Discharge Way:
- anticlockwise
- Outline Dimension:
- 7011*2441*3310(MM)
- Product name:
- Hot sale 4 cubic meters concrete mixer truck price
- Drum Capacity:
- 5.5m3
- Charging Capacity::
- 18L
- Water Supply Mode::
- Water Pump
- Application::
- Mixing Cement
- Keywords::
- self-loading concrete mixer
- Power type::
- Diesel engine
- Engine::
- YUCHAI /CUMMINS/ YTO
- Weight::
- 8700KG
- Color::
- Can be customized
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Supply Ability:
- 300 Set/Sets per Year Hot sale 4 cubic meters concrete mixer truck price
- Packaging Details
- 2units self loading concrete mixer/40HQ ofHot sale 4 cubic meters concrete mixer truck price
- Port
- Qingdao or Shanghai port
- Lead Time:
Quantity(Sets) 1 - 2 3 - 5 >5 Est. Time(days) 30 60 To be negotiated

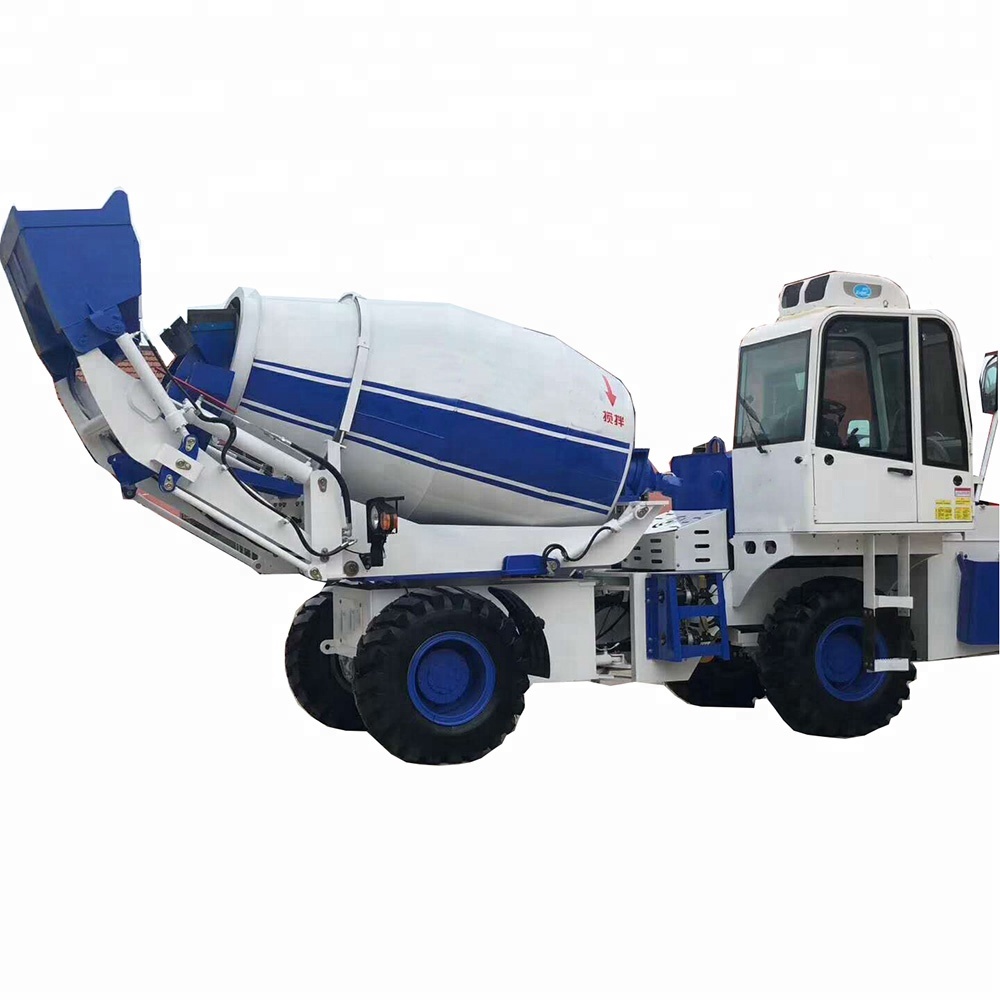

Hot sale 4 cubic meters concrete mixer truck price

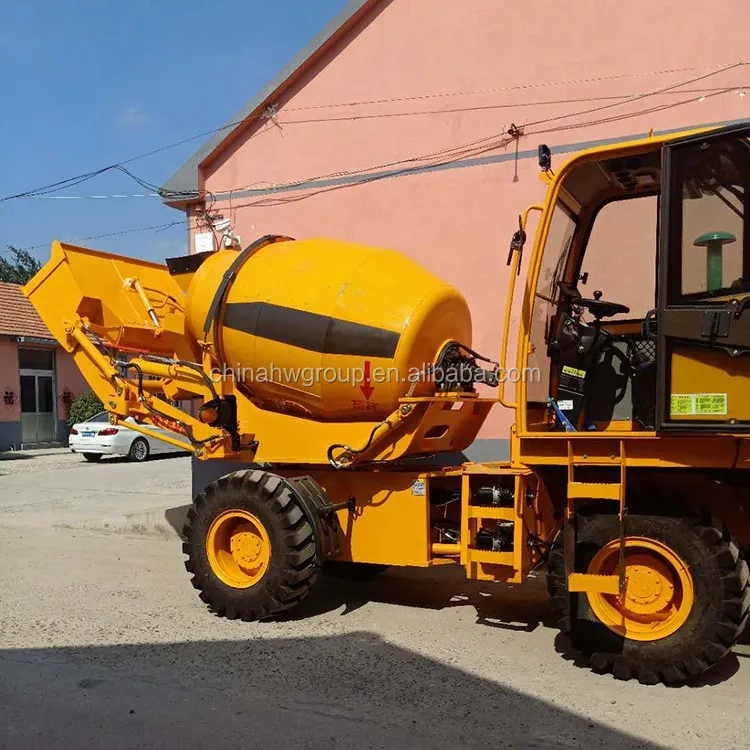

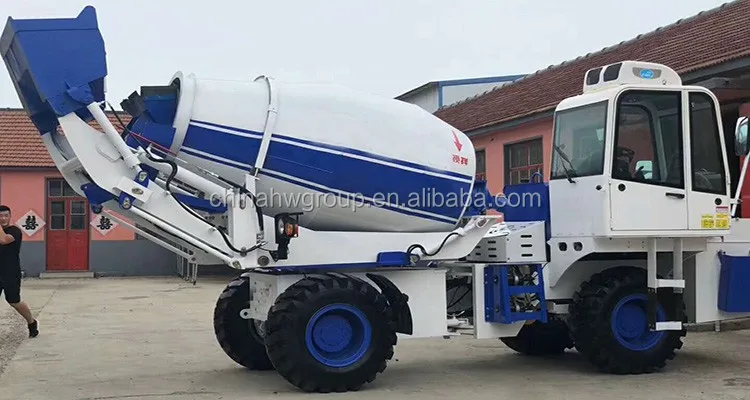

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Hot sale 4 cubic meters concrete mixer truck price | |
4.0 self loading mobile concrete mixer | Technical paremeters |
Drum capacity | 5.5m3 |
Concrete output | 4m3 |
Weight | 8700kg |
L*W*H | 7011*2441*3310(MM) |
Wheelbase | 2.35m |
Loading ratio | 76% |

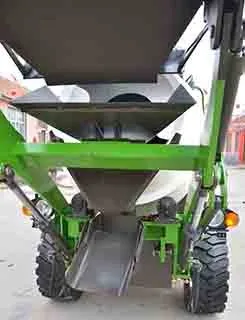

Rotary drum | Discharge mouth height 1.8 meters.Level turn 180 ° (options) |
transmission way | Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4. |
Climbing ability | 30% |
speed | Low speed 0-25 km/h, high speed 0-45 km/h. |
hydraulic system | Open feed, two gear pump participate in action. |

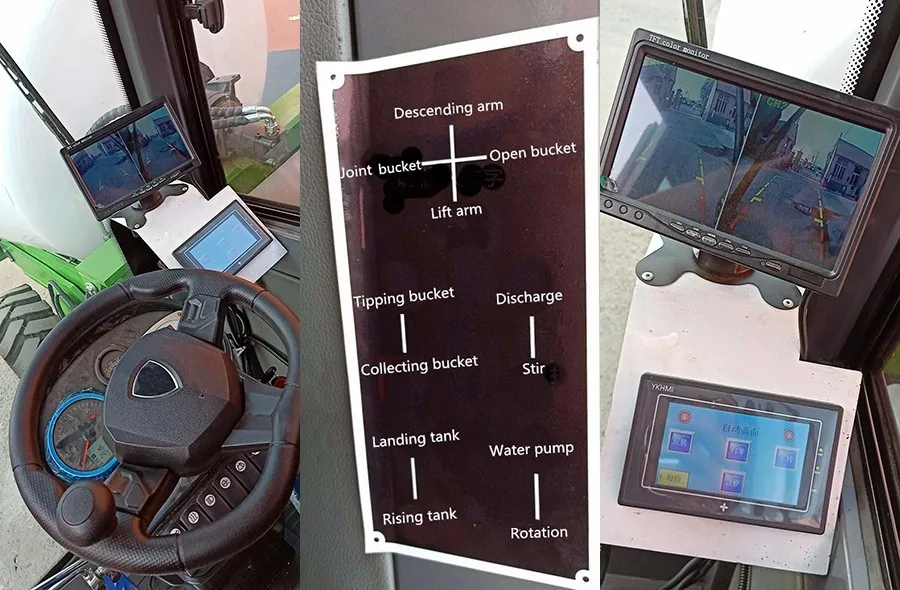

Joystick | A four-way hydraulic pilot with an electric control button controls the bucket. |
Water supply | Self-priming hydraulic drive pump/electronic water flow |
system | monitor/high pressure washer (optional). |
brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub. |
Turn | Hydraulic steering, rear wheel steering. |
Tire | 16/70-20 wire tires |
power system | 24V |

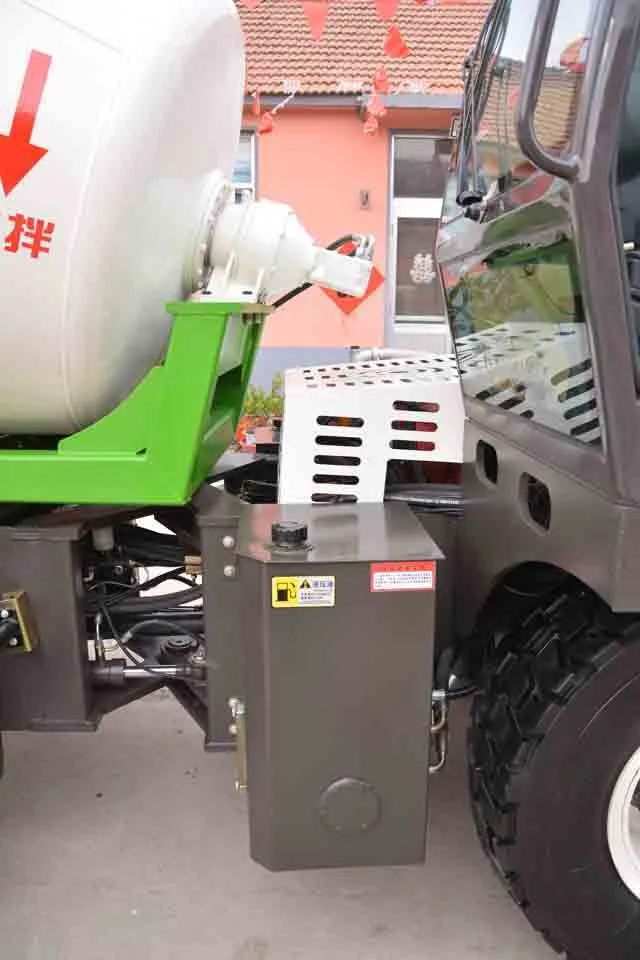

OIL TANK/water tank | 2X2 water tank .Diesel tank:125 litres.Hydraulic tank:130 litres |
Metering | Electronic weighing system (optional). |
Working processing of concrete mixer:

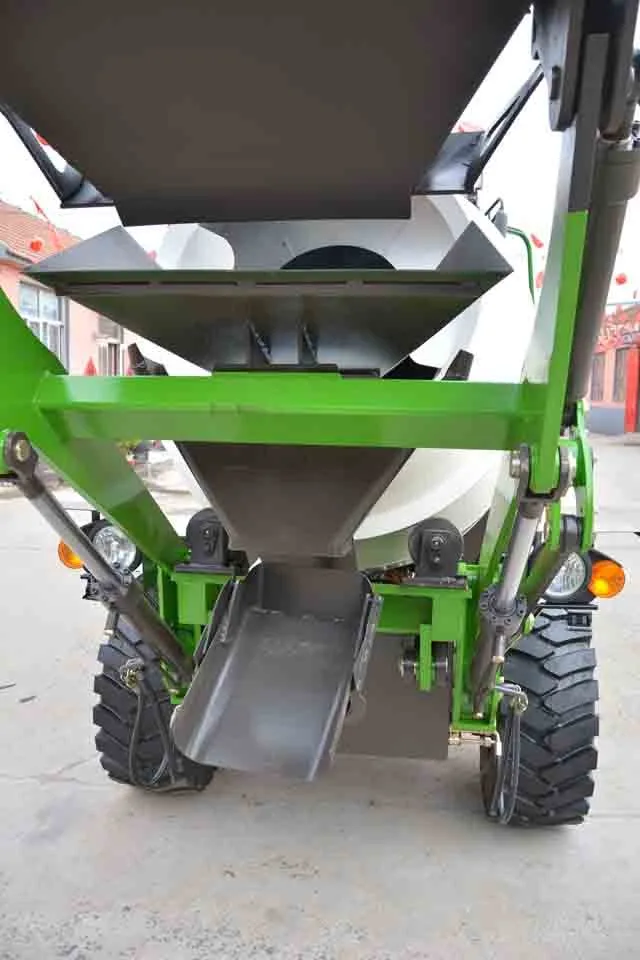

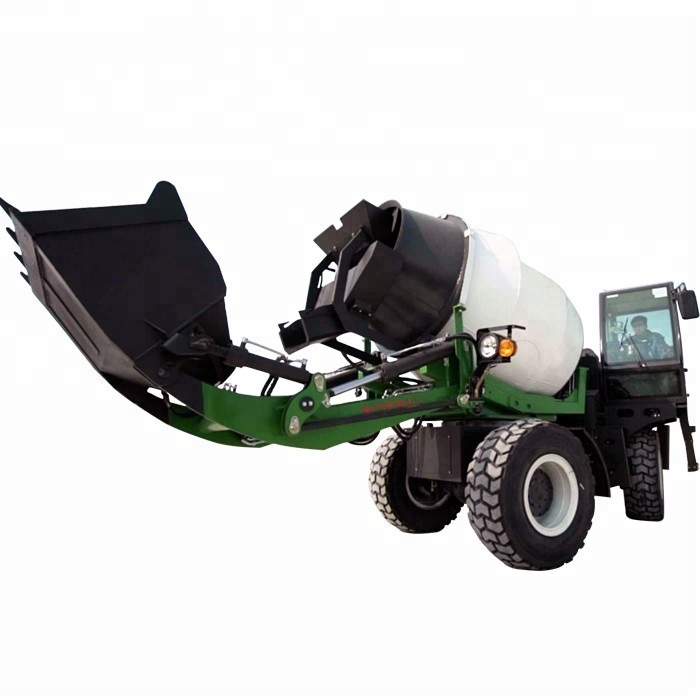

1.by charging scoop,small amount of sand and gravel is loaded into the mixing drum,
2.self-loading concrete mixer interior injected into water, when the supply water flow is completed, adding cement, self-loading concrete mixer will run to the designated place to unload concrete, at the same time, the mixing drum will keep rotating to ensure that the concrete dose not condense.

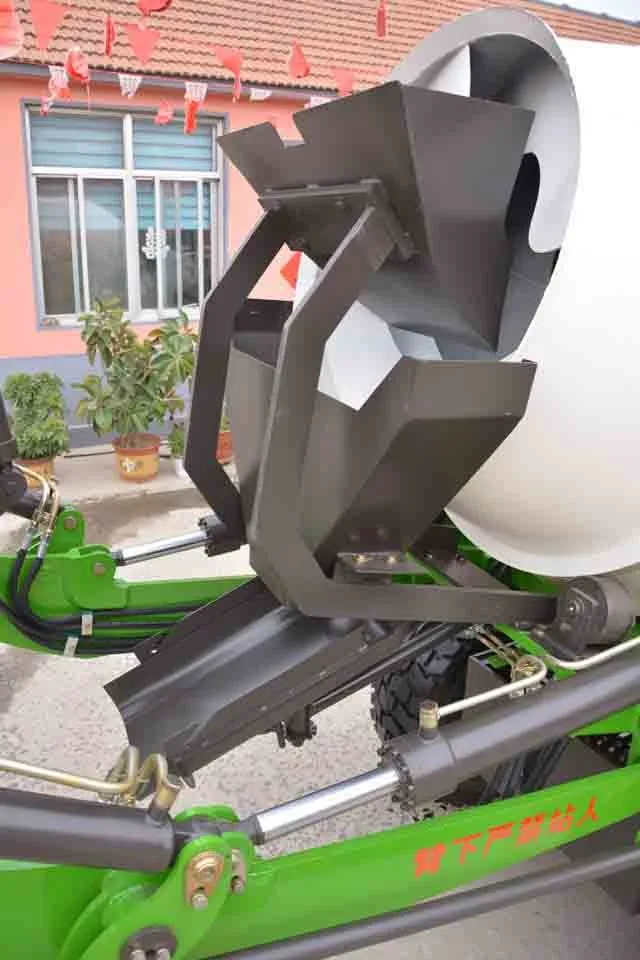

3.mixing drum is equipped with the screw type of blade,, the maximum savings in working time and raw material,
4.After working, the completion of the need for equipment to be cleaned to ensure that the normal work in the future.

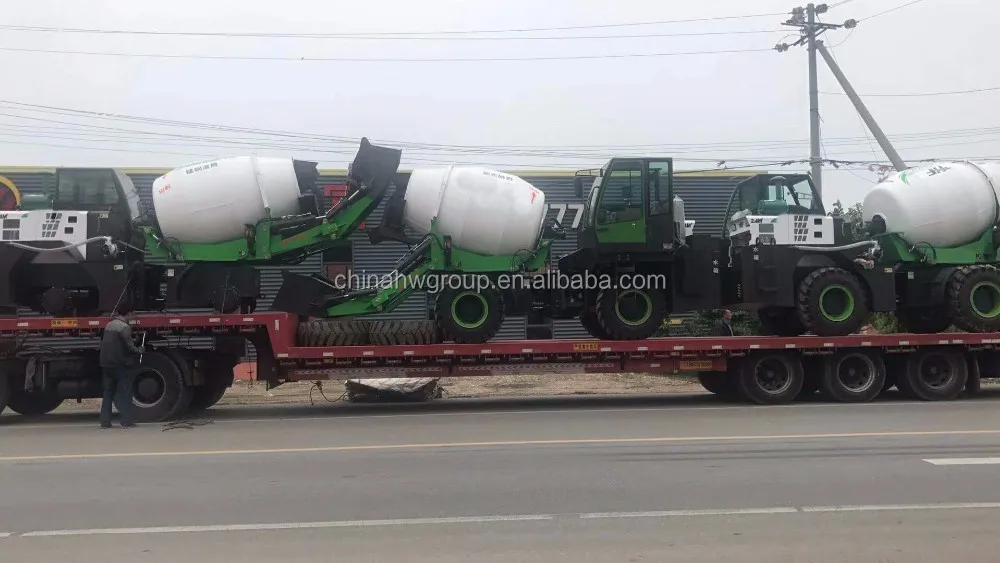

Attention:This is our customer in Indonesia received our mixer truck, the machine was put into work soon after the machine was received, used very well, and made very satisfied evaluation, as long as you give us 50% of the trust, we return you 99.9 % of quality service and price.





Q1. Are you manufacturer or trader?
A: We are manufacturer of construction machines. Actually, we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We"d like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
