Home > Products > brand new concrete machinery cement mixer truck price

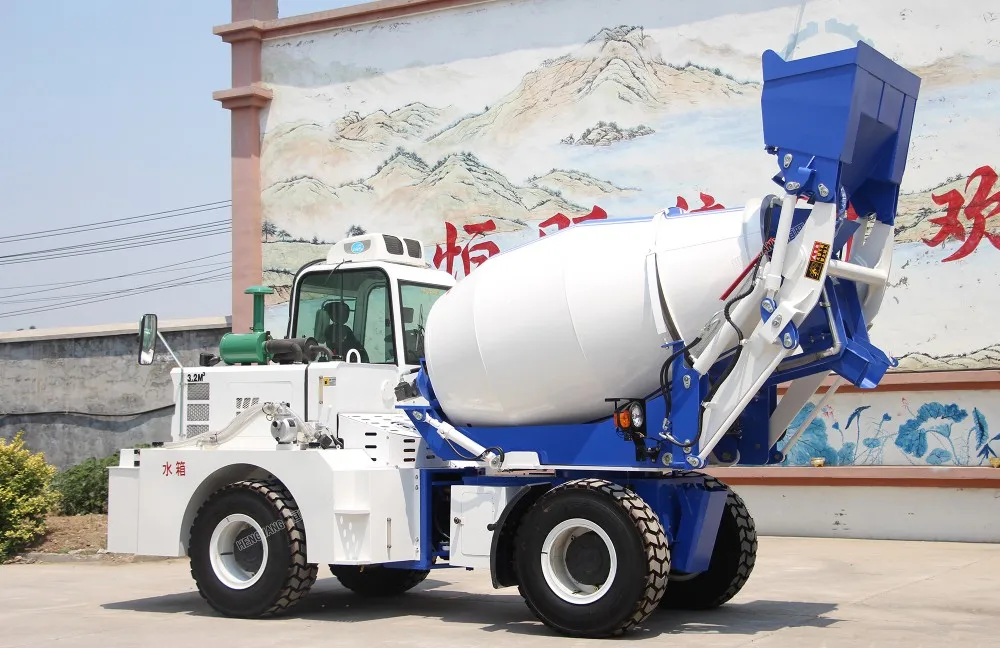

brand new concrete machinery cement mixer truck price
Click on the image to view the original image
Product: views:3brand new concrete machinery cement mixer truck price
Branch: HW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:46
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
5.5m3
Reclaiming capacity:
4m3
Mixing Power:
85KW/2400r/min
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Applicable Industries:
Construction works
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Motor Power:
2.2kw
Speed of Mixing Drum:
10-16r/min
Water Supply Mode:
Automatic
Working Cycle Period:
40s-60s
Discharge Way:
anticlockwise
Outline Dimension:
7011*2441*3310(MM)
UNIQUE SELLING POINT:
High operating efficiency
Product name:
brand new concrete machinery cement mixer truck price
Drum Capacity:
5.5m3
Charging Capacity::
18L
Water Supply Mode::
Water Pump
Application::
Mixing Cement
Keywords::
self-loading concrete mixer
Power type::
Diesel engine
Engine::
YUCHAI /CUMMINS/ YTO
Weight::
8700KG
Color::
Can be customized
Supply Ability
Supply Ability:
300 Set/Sets per Year brand new concrete machinery cement mixer truck price
Packaging & Delivery
Packaging Details
2units self loading concrete mixer/40HQ of brand new concrete machinery cement mixer truck price
Port
Qingdao or Shanghai port
Lead Time:
Quantity(Sets)1 - 23 - 5 >5
Est. Time(days)3060To be negotiated
Product Description

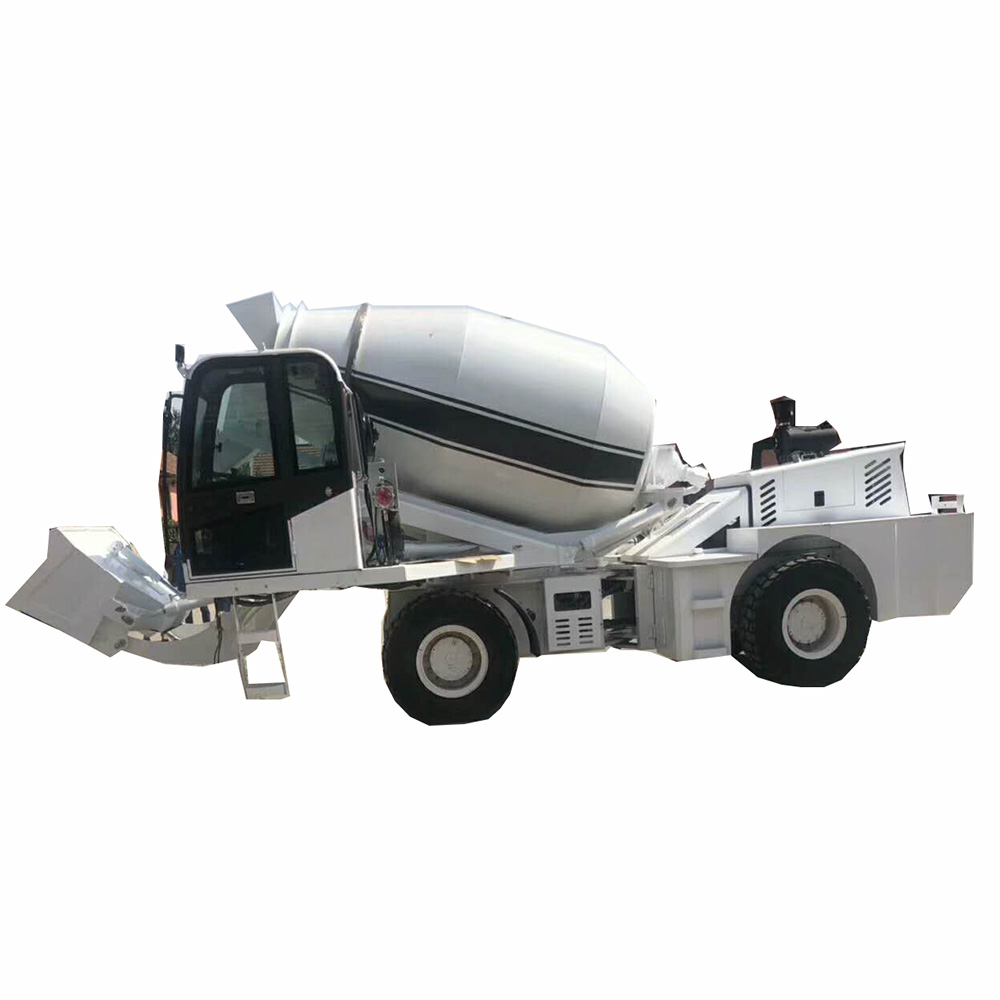

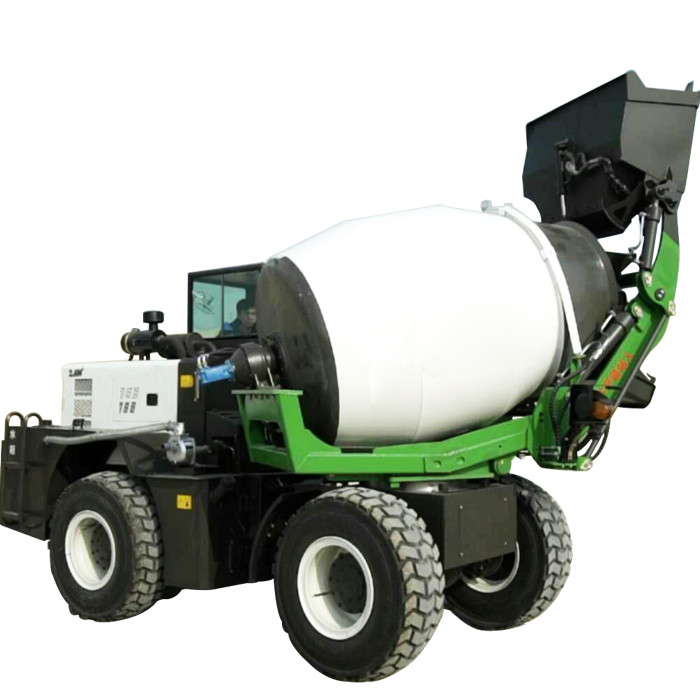

brand new concrete machinery cement mixer truck price

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

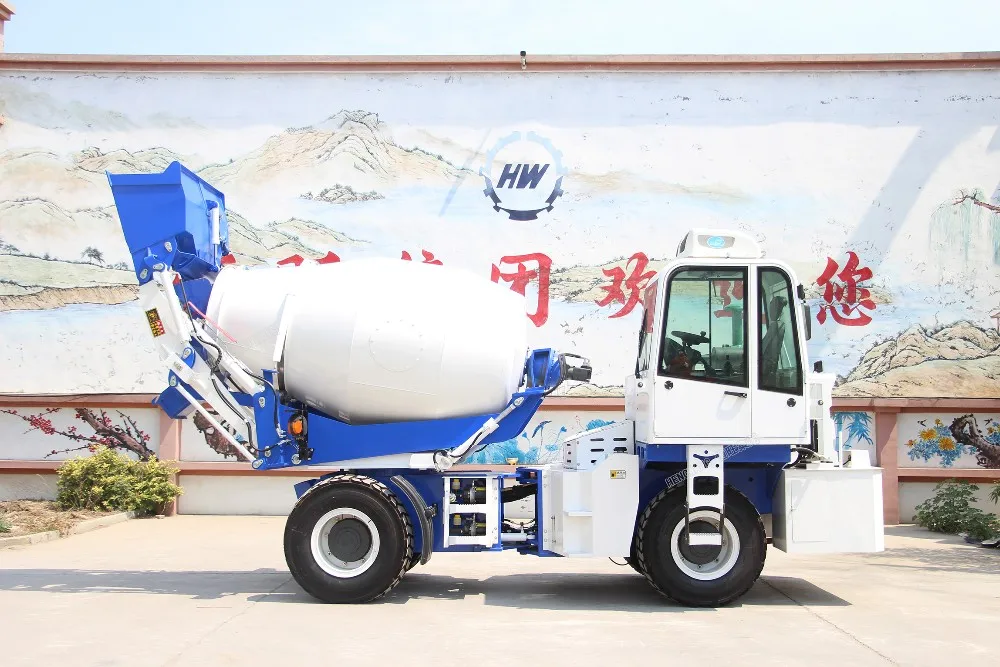

                                                    brand new concrete machinery cement mixer truck price

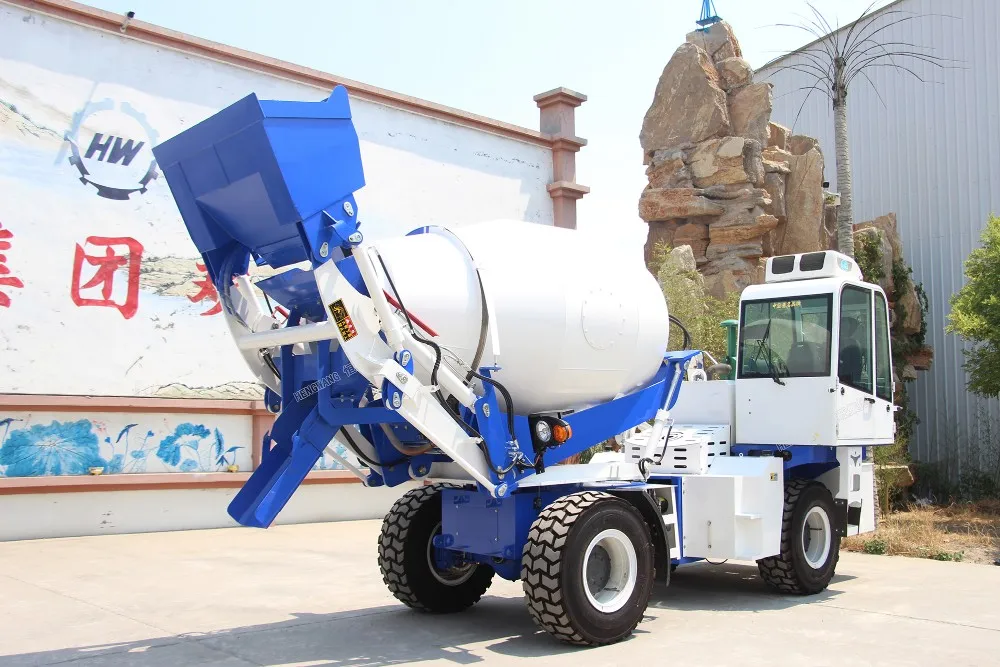

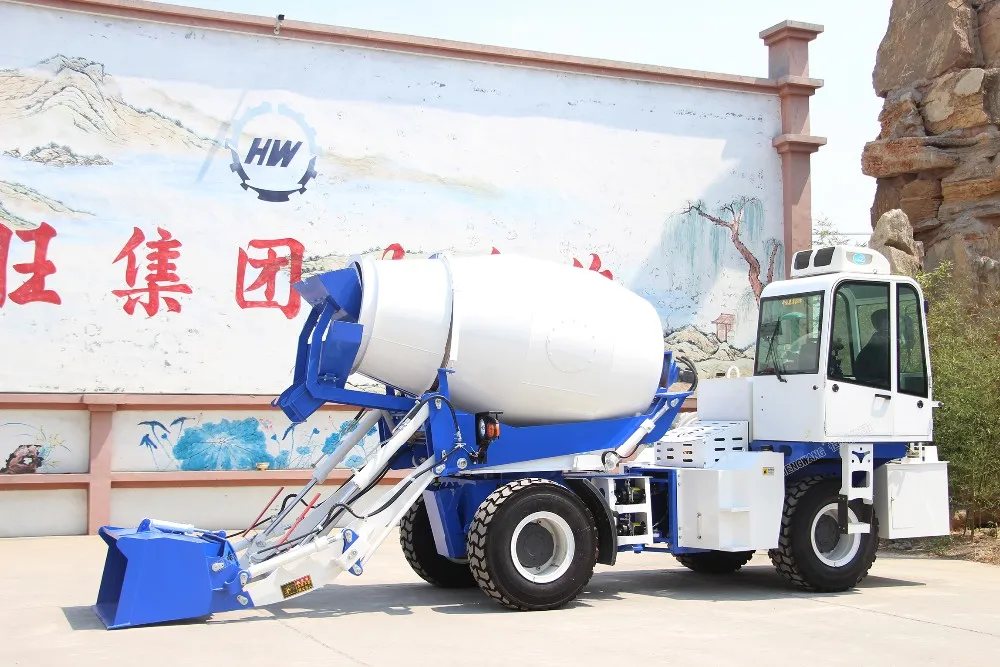

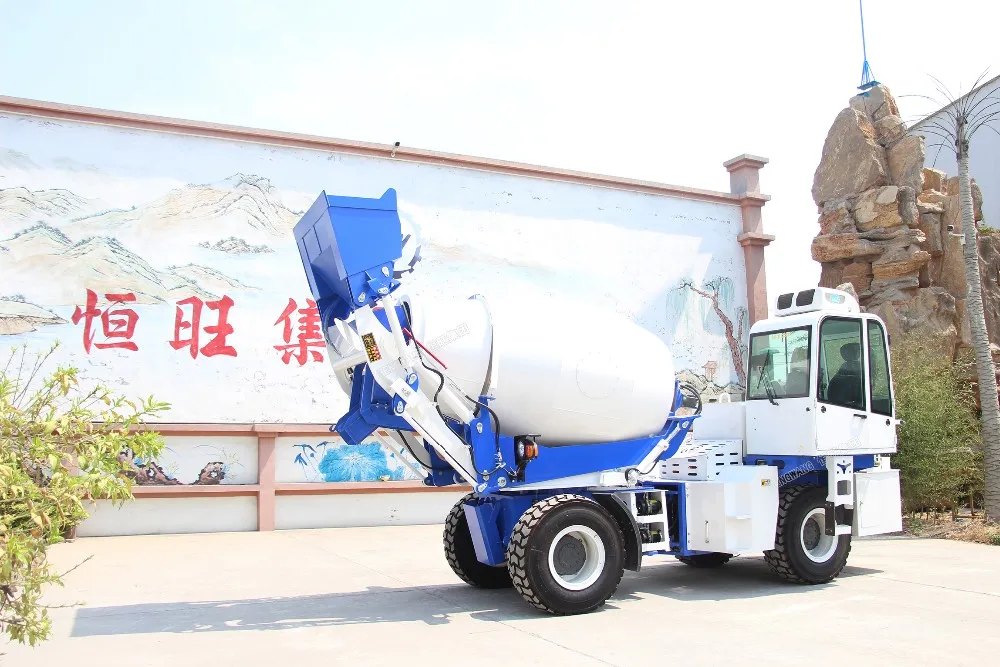

4.0 self loading mobile concrete mixer
Technical paremeters
Drum capacity
5.5m3
Concrete output
4m3
Weight
8700kg
L*W*H
7011*2441*3310(MM)
Wheelbase
2.35m
Loading ratio
76%
Rotary drum
Discharge mouth height 1.8 meters.Level turn 180 ° (options)
transmission way
Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4.
Climbing ability
30%
speed
Low speed 0-25 km/h, high speed 0-45 km/h.
hydraulic system
Open feed, two gear pump participate in action.
Joystick
A four-way hydraulic pilot with an electric control button controls the bucket.
Water supply
Self-priming hydraulic drive pump/electronic water flow
system
monitor/high pressure washer (optional).
brake
inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub.
Turn
Hydraulic steering, rear wheel steering.
Tire
16/70-20 wire tires
power system
24V
OIL TANK/water tank
2X2 water tank .Diesel tank:125 litres.Hydraulic tank:130 litres
Metering
Electronic weighing system (optional).

Working processing of concrete mixer:

1.by charging scoop,small amount of sand and gravel is loaded into the mixing drum,
2.self-loading concrete mixer interior injected into water, when the supply water flow is completed, adding cement, self-loading concrete mixer will run to the designated place to unload concrete, at the same time, the mixing drum will keep rotating to ensure that the concrete dose not condense.
3.mixing drum is equipped with the screw type of blade,, the maximum savings in working time and raw material,
4.After working, the completion of the need for equipment to be cleaned to ensure that the normal work in the future.

Packing & Delivery
Our Company
Our Service
FAQ

Q1. Are you manufacturer or trader?

A: We are manufacturer of construction machines. Actually, we produce most of the parts in our own factory for better cost and quality control.


Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% against copy of B/L.


Q3. How about your delivery time?

A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order. Sometimes we have some in stock.


Q4. Are you interested in dealership with local company?

A: Yes, we are quite interested in this business. We"d like to cooperate with some local partner to sell more World machines in local market and supply better service.


Q5. What is your warranty policy?

A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?

A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they come from.
