Overview
Quick Details
- Bucket capacity:
- 0.21m3
- Operating Weight:
- 6500kg
- Rated Speed:
- 2.5~4.2km/h
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 5499mm
- Maximum Digging Depth:
- 3808mm
- Machine Weight:
- 6500kgs
- Max Digging Radius:
- 6128mm
- Certification:
- CE ISO
- gradeability:
- 70%(35°)
- fuel tank:
- 105L
- working pressure:
- 28Mpa
- swing speed:
- 0-11r/min
- Total length:
- 5940mm
- Total width:
- 1880mm
- Dozer Blade:
- 1880*350mm
- Bucket digging force:
- 48KN
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 10 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- Packing in container
- Port
- Qingdao Shanghai Dalian Tianjin
- Lead Time:
Quantity(Sets) 1 - 5 >5 Est. Time(days) 15 To be negotiated
Product Description

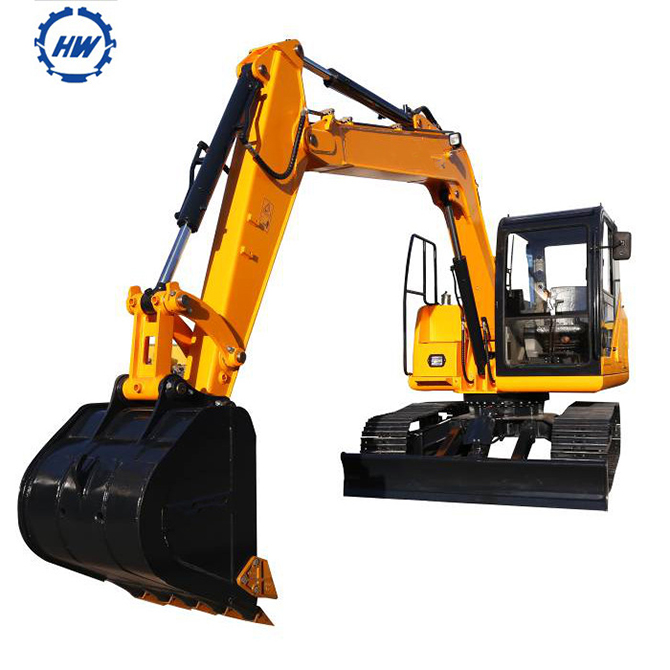

6.5Ton full hydraulic crawler excavator 0.21m3 bucket for sale
Excavators, also known as excavating machines, are also known as excavators. They are used to excavate materials above or below the surface of the carrier and are loaded into the earth moving machinery of the transport vehicle or unloaded to the stockyard. The materials excavated by the excavator are mainly soil, coal, sediment and pre-pulled soil and rock. From the development of construction machinery in recent years, the development of excavators is relatively fast, and excavators have become one of the most important construction machinery in engineering construction.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | |||
Overall Length | 5940mm | Engine type | Direct injection, water cooled, supercharge |
Overall Width | 1880mm | Swing Speed | 0-11r/min |
Overall Height | 2570mm | Traveling Speed | 2.5~4.2 km/h |
Ground clearance | 700mm | Bucket Digging Force | 48kn |
Track length | 2580mm | Arm Digging Force | 35kn |
Track width | 400mm | Traveling Tracking Force | 30.8kn |
Undercarriage width | 1880mm | Dozer Blade | 1880×350mm |
Engine Model | Kubota V2607 42.4KW/2000rpm |



excavator Feature And Advantage
1.Full imported hydraulic system ensure the stable quality.
2.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency

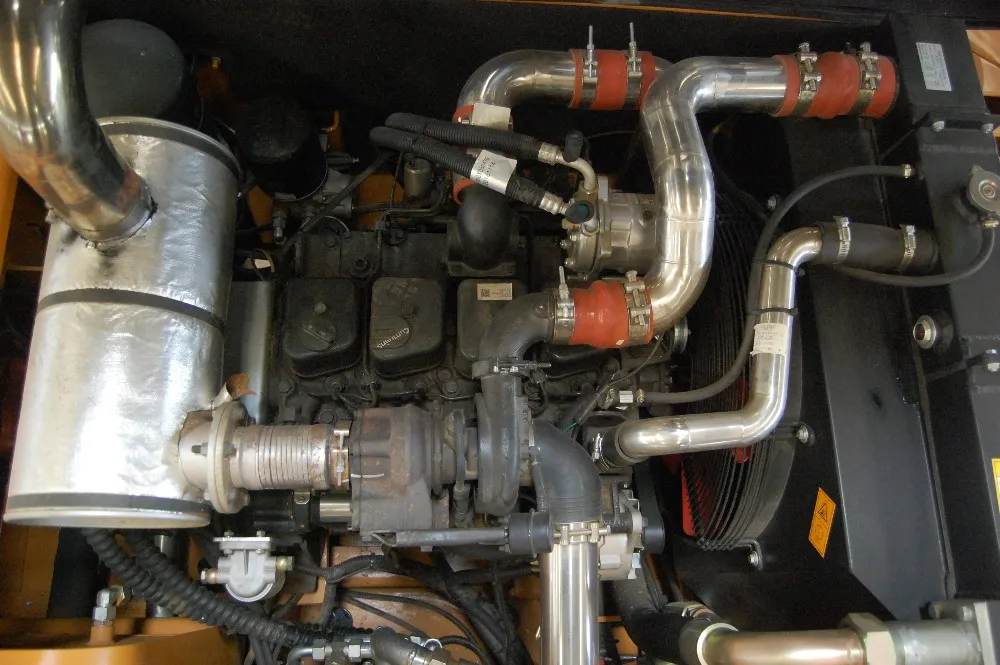

3.Original Kubota engine,high efficiency low noise.
4.equipped with double fuel filter to guarantee fuel purity to protect engine
5. extend hydraulic line for various attachments.
6. Full sealed cabin with A/C and comfort seat make operator easy to work.
7. Intelligent control electric system.
8. Open covering parts makes the maintenance easy to proceed.
2.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3.Original Kubota engine,high efficiency low noise.
4.equipped with double fuel filter to guarantee fuel purity to protect engine
5. extend hydraulic line for various attachments.
6. Full sealed cabin with A/C and comfort seat make operator easy to work.
7. Intelligent control electric system.
8. Open covering parts makes the maintenance easy to proceed.
