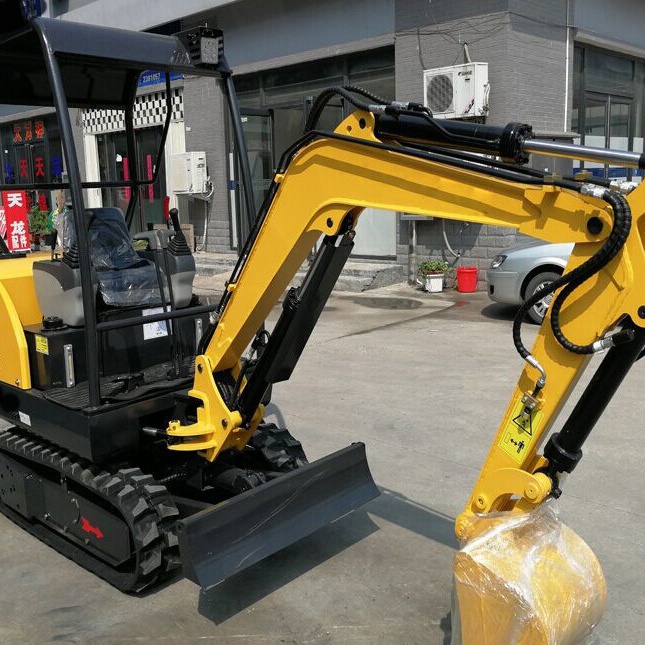

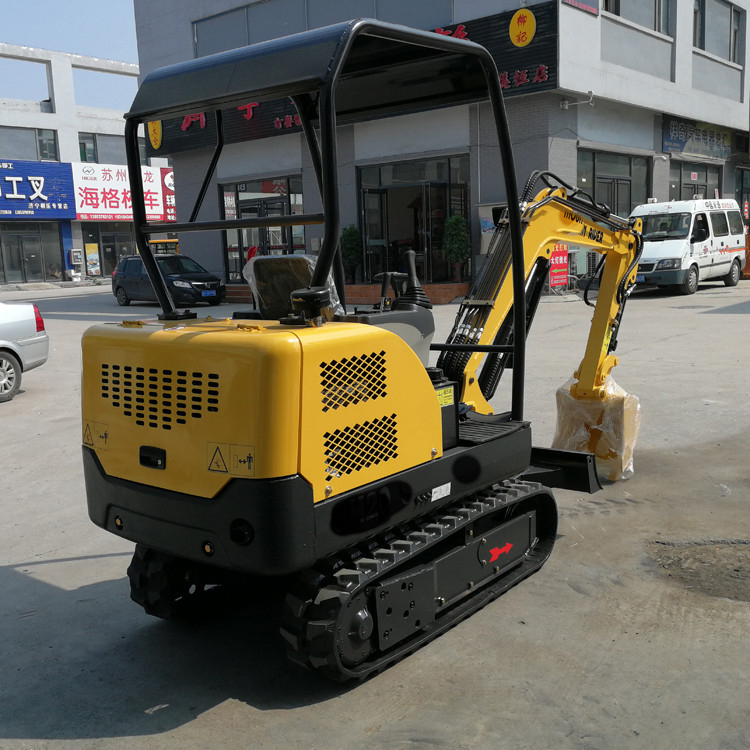

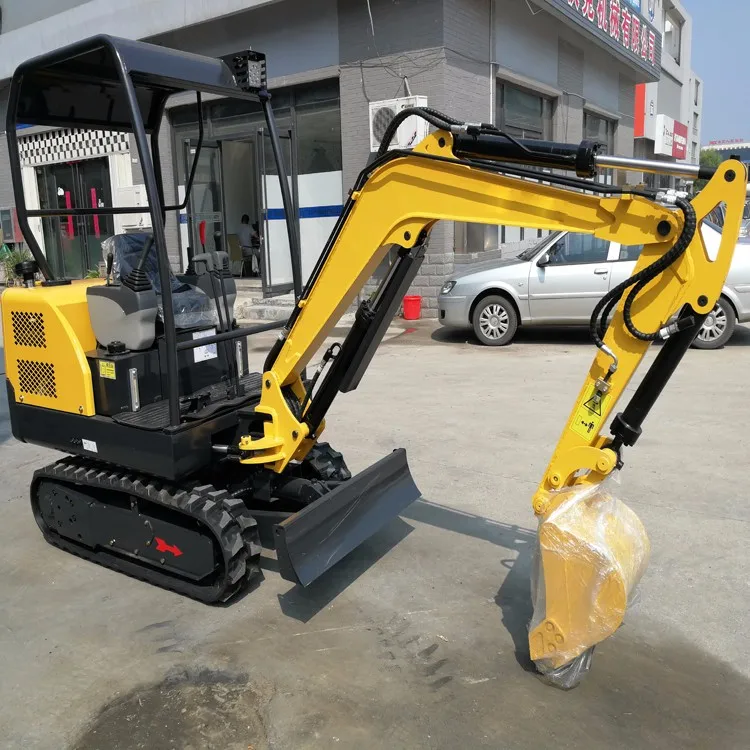

Farm machinery mini metal rc excavator steel track
Click on the image to view the original image
Product： views：3Farm machinery mini metal rc excavator steel track
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:46
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
0.06m3
Operating Weight:
2000kg
Rated Speed:
2km/h
Place of Origin:
Shandong, China
Brand Name:
HW
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
3365mm
Maximum Digging Depth:
2050mm
Machine Weight:
2000kgs
Max Digging Radius:
3860mm
Certification:
CE ISO
Color:
Yellow and black
Brand name:
HengWang
Working pressure:
16Mpa
Rotation radius:
1125mm
Engine model:
KM385B
Rated power:
18.1KW
Backhoe bucket capacity:
0.06M3
Max. discharge height:
2385mm
Length of crawler:
1580mm
Product name:
Mini Excavator
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
small four excavator packing within container
Port
Qingdao Shanghai Dalian Tianjin
Lead Time:
Quantity(Sets)1 - 10 >10
Est. Time(days)5To be negotiated
Product Description

HW-18 model exacavator

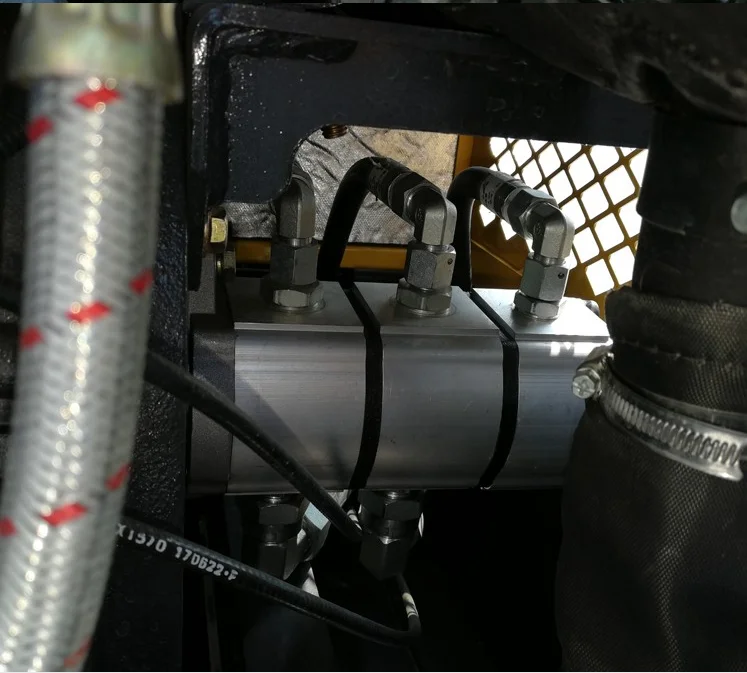

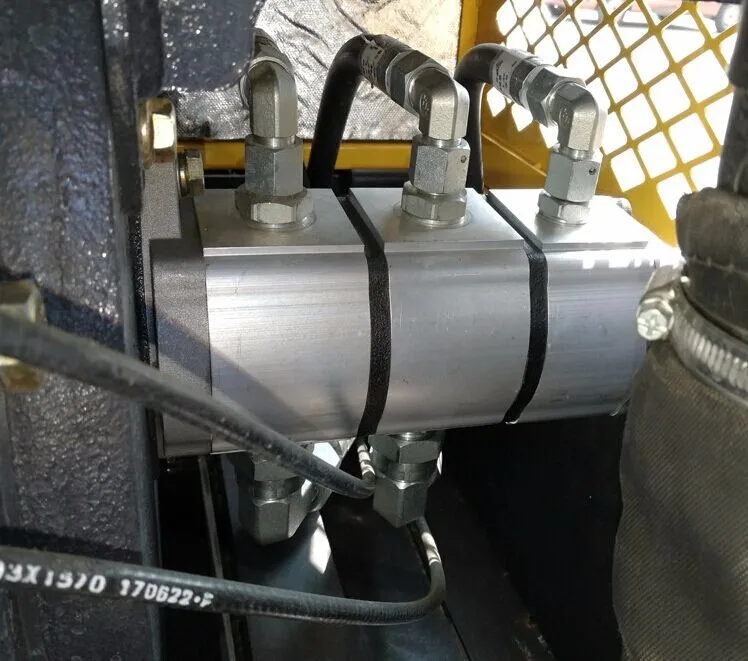

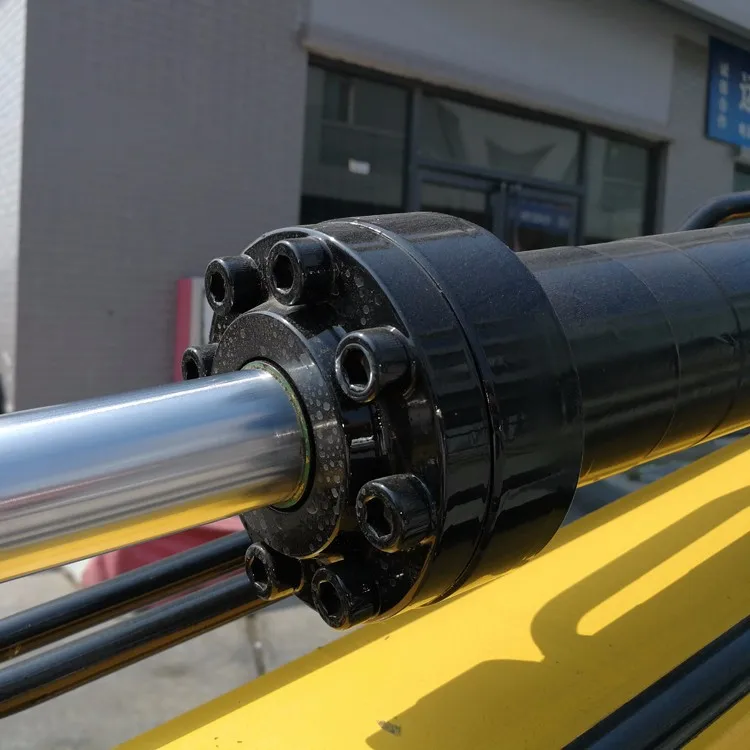

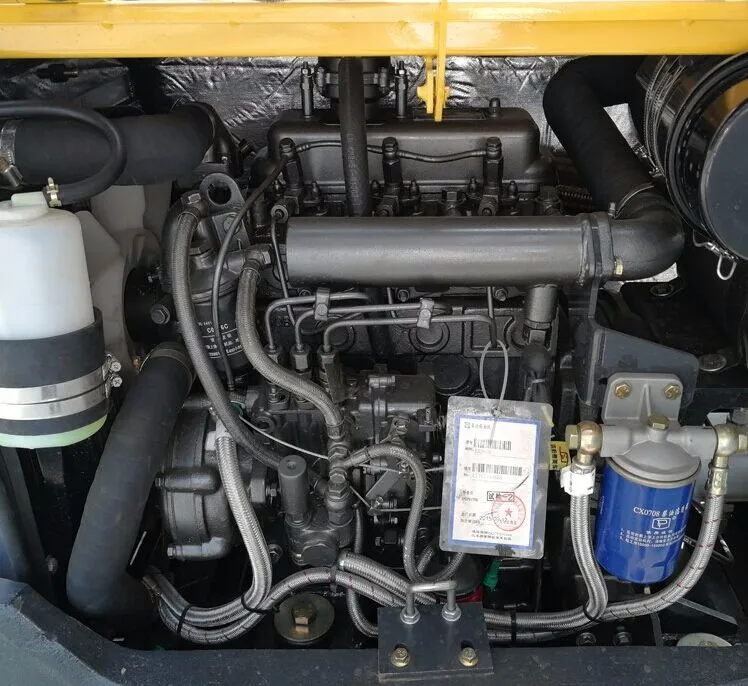

Triple gear pump, Eaton motor, hydraulic cylinder with buffer, large diameter of cylinder, large excavator and reliable performance. The Yanmar 3TNV88 engine is optional.

SPECIFICATIONS FOR  MIMI EXCAVATOR
MODELS
HW-20
Length of crawler
1580mm
TOTAL OPERATING WEIGHT
2000kg
Width of crawler
230mm
Length of total machine
2170mm
Rotation radius
1125mm
Working device form
backhoe
Discharge height
2385mm
Backhoe bucket capacity
0.06m3
Connect Ground pressure
23.6KPA
Rated power
18.1kw
Max.ground digging radius
3860mm
Rated revolving speed
2200rmp
Max.clmib capability
30o
Engine model
KM385B
Max.Digging height
3365mm
Max.Digging depth
2050mm
System pressure
16Mpa
Wheelbase
820mm
Platform clearance
500mm
Vertical excavator depth
1955mm
Lifting height of earth shovel
230mm
Digging depth of earth shovel
275mm
Swing angle of the arm(left)
75o
Swing angle of the arm(right)
45o

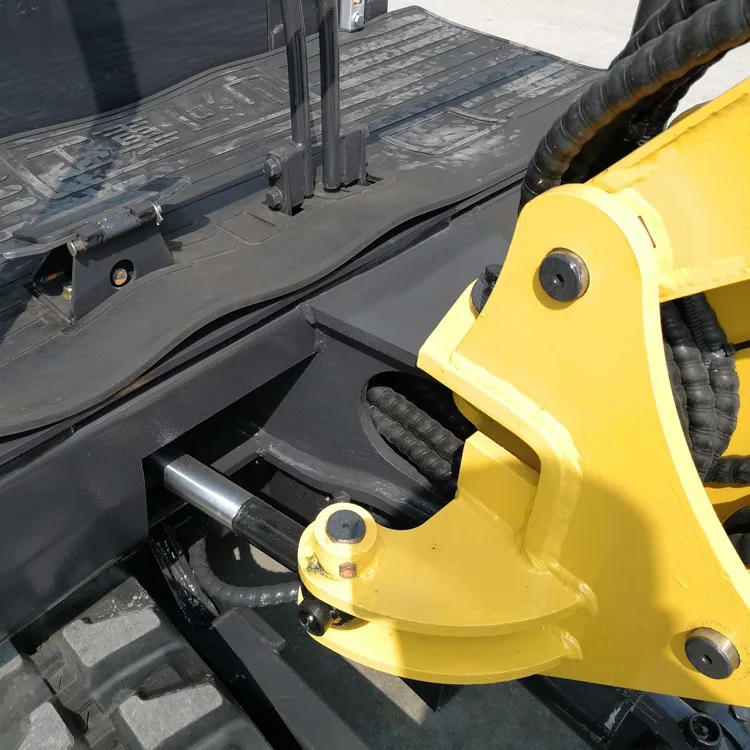

Detailed Images
Our Company
Our service
Our team
Our customer

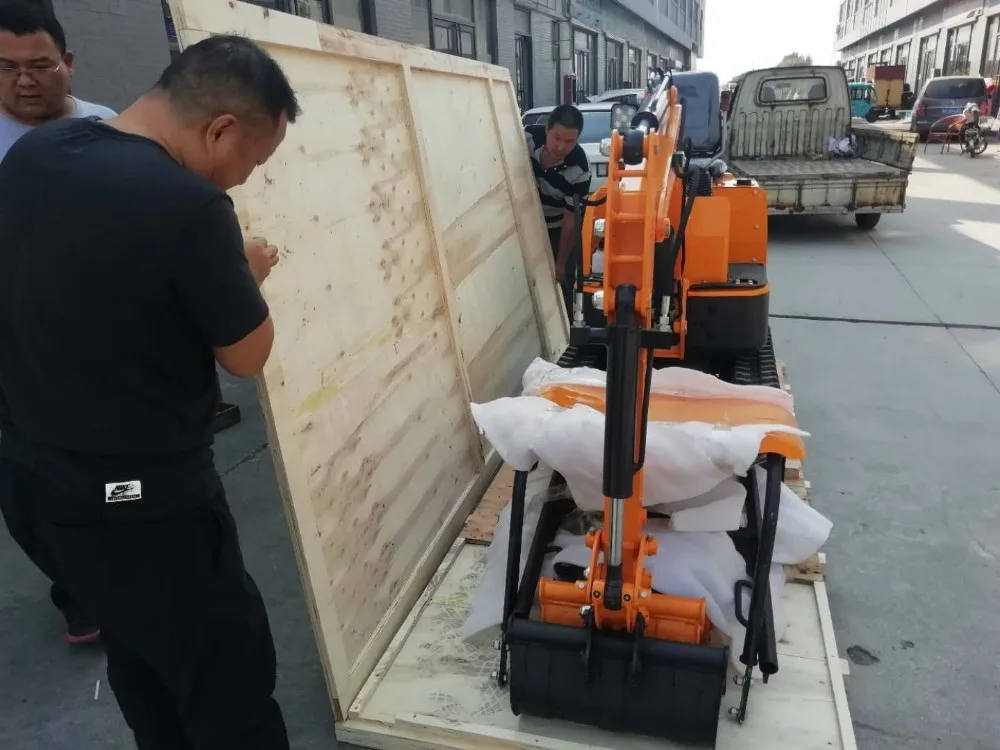

Packing&shipping
