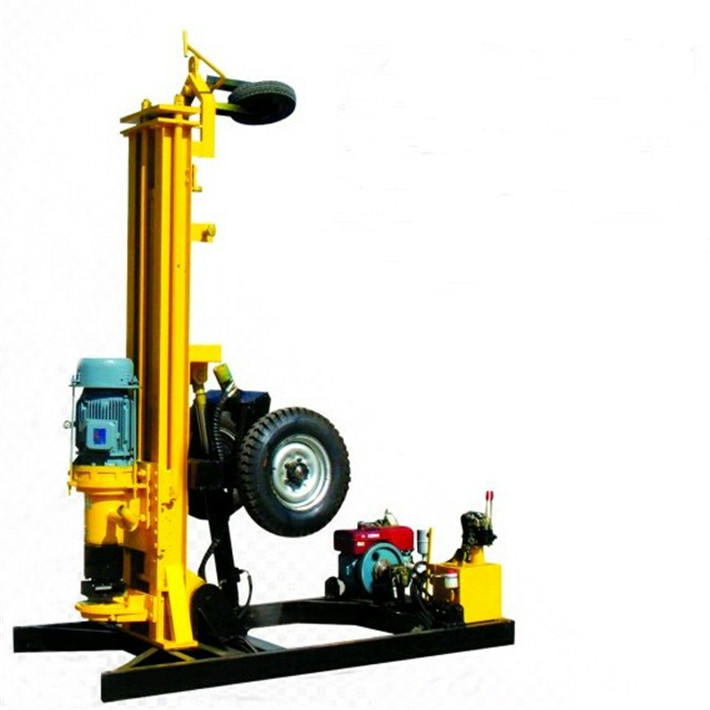

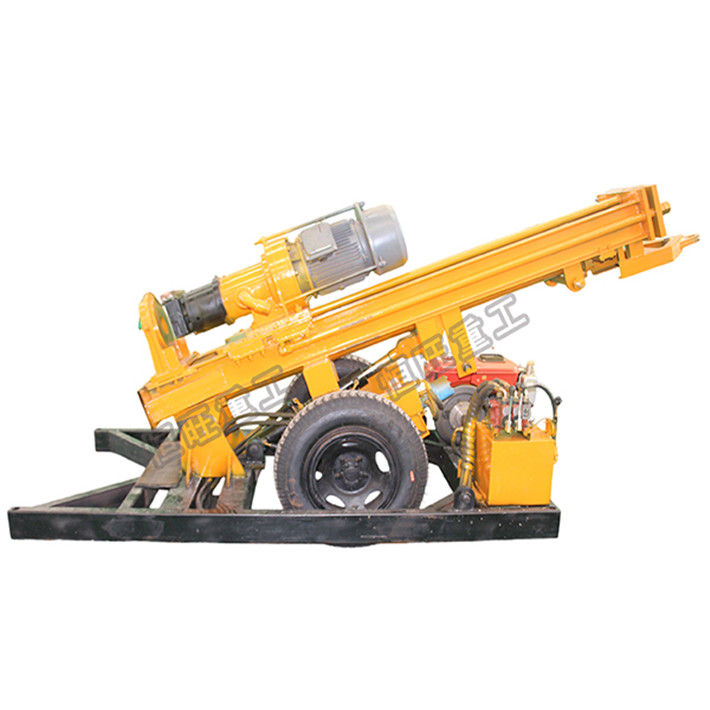

Portable pneumatic deep rock bolt drilling rig for sale

Click on the image to view the original image

Product：	views：3Portable pneumatic deep rock bolt drilling rig for sale
Branch：	HENGWANG
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:46

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENGWANG

Usage:: Water Well

Voltage:: Diesel Engine Driven

Dimension(L*W*H):: 2.75*0.95*1.6m

Weight:: 1800kg

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Name:: pneumatic drilling rig

Model:: HW-200

Color:: Yellow

Drilling depth:: 200m

Drilling diameter:: 75mm~219mm

Air consumption:: 21M3/min

Air pressure:: 1.45-2.5Mpa

Electric power:: 15KW

Key words:: Horizontal Drilling Machine

Supply Ability

Supply Ability:: 10 Set/Sets per Month pneumatic drilling rig

Packaging & Delivery

Packaging Details: Export wooden case for Mobile submersible pneumatic DTH rotary drilling rig for sale

Port: Qingdao,China

Lead Time:

Quantity(Sets)	1 - 2	3 - 5	>5
Est. Time(days)	3	6	To be negotiated

Air drilling rig

Mobile pneumatic DTH rotary drilling

Pneumatic drilling rig is used for drilling large blast hole. It"s especially convenient to be used during the initial period of opencast working, other drill carriage unable to reach, unable to carry on the normal work.

1).Forward, turn, and the impact of all the compressed air as power, structure simple, power, relocation facilities.

2). In the single-top, double top, bearing-type three supporting structures to choose, can adapt to any geological features.

3). Centralized control mechanism, easy to operate.

4). Unique dual muffle effect, reducing environmental pollution.

Mobilepneumatic DTH rotary drilling Parameter

Model		HW-200
Drilling diameter		100-254mm
Adaptation of geological environment		Adaptation of geological environment
Drilling direction		45-90° with the ground
Drilling depth		200m
One-time advance length of the drilling tool		1500mm
Motor power		11kw
Drilling rotation speed		0-52
Air pressure		0.8-2.1Mpa
Gas consumption		14.5L/min
Total weight		1800KG
