Introduction of product

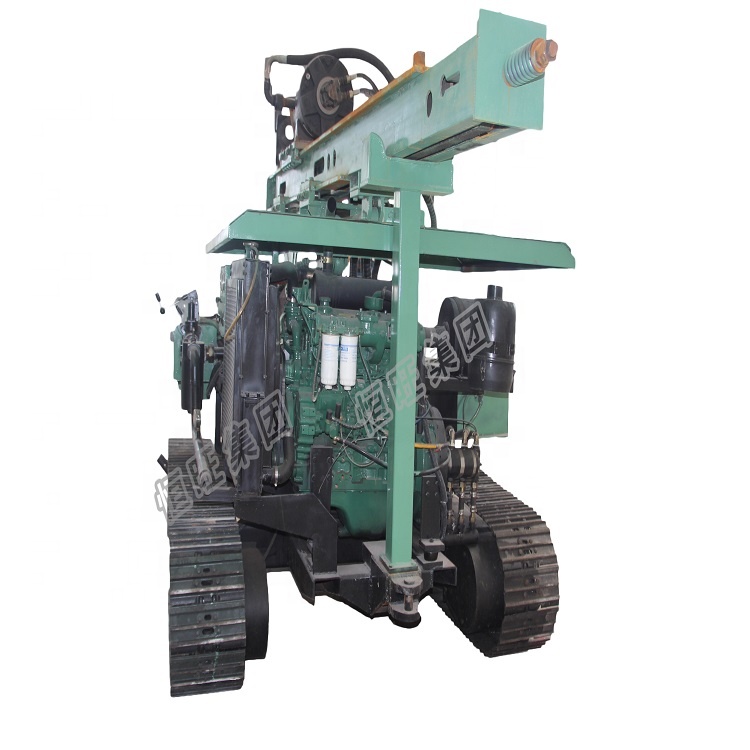

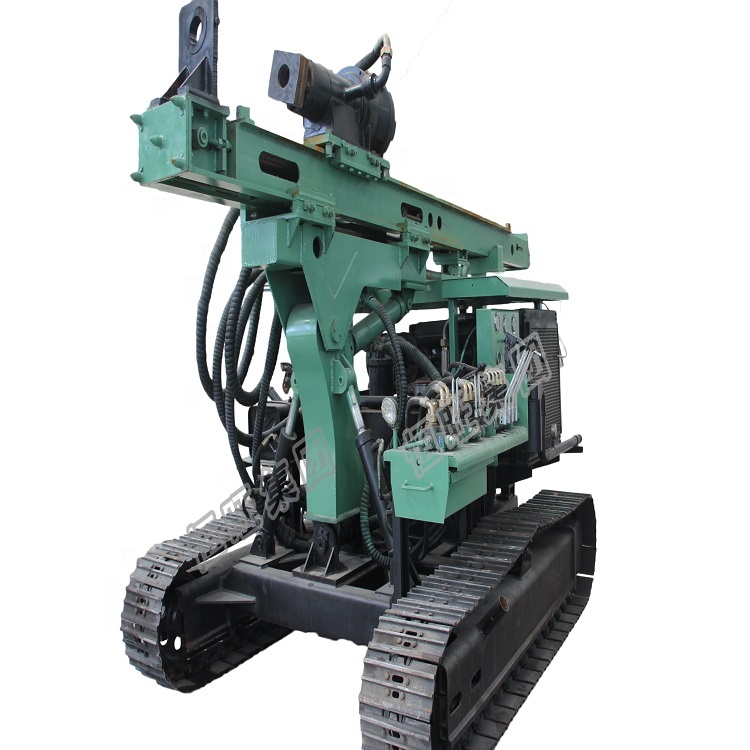

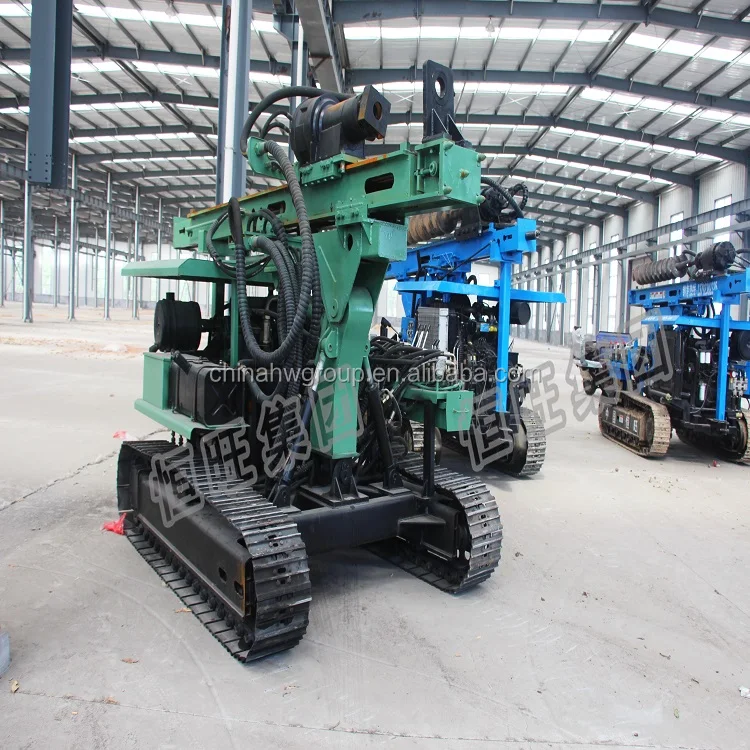

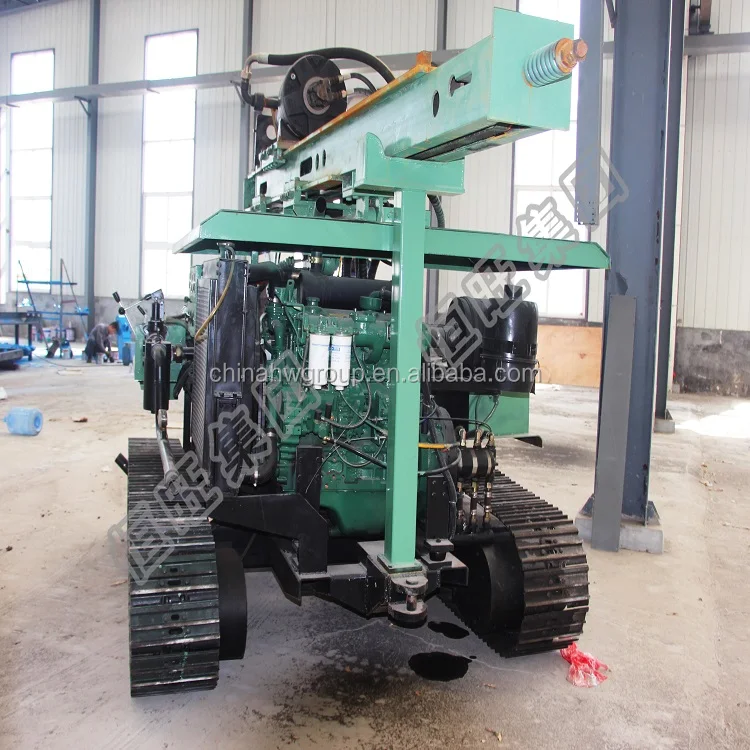

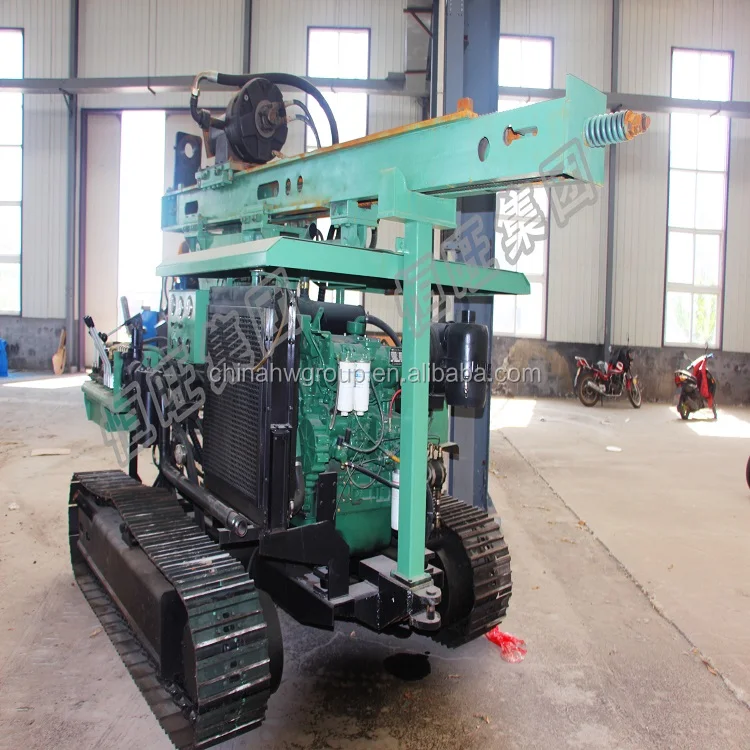

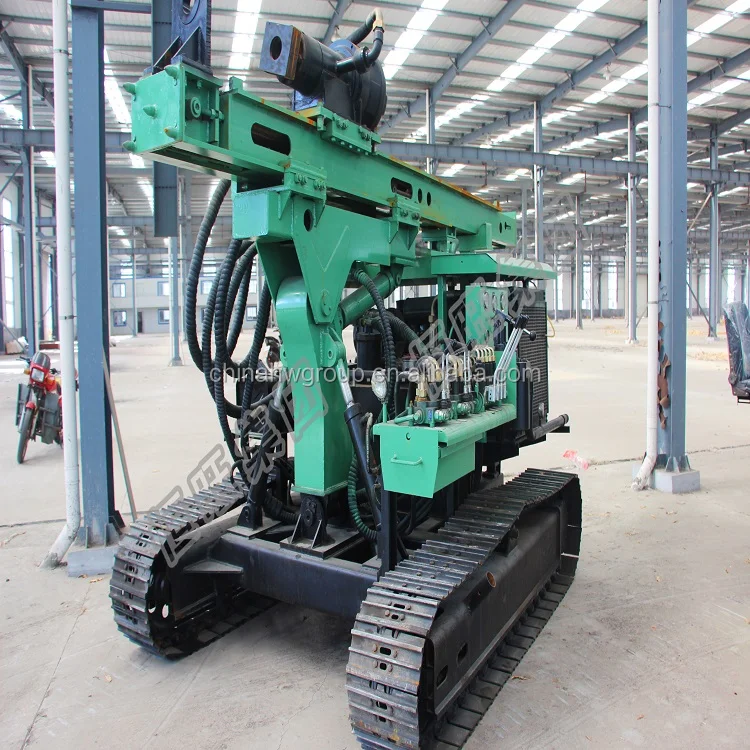

Hengwang brand Electric crawler photovoltaic solar pile driver, using a new hydraulic technology,
Piling in various venues (farm, ranch, orchard) Piling anchoring, water wells, photovoltaic solar rotating piles and water drilling, power stations, open pit mining, road construction and other stone blasting holes and other rock drilling.
Advantage of Electric crawler photovoltaic solar pile driver:
1. Power configuration: domestic first-class diesel engine, providing a reliable source of power for construction operations
2. Hydraulic system: advanced hydraulic system, high-quality hydraulic components, strict assembly process to ensure the efficiency and durability of the hydraulic system
3. Styling design: the use of domestic high-quality crawler site. High strength, good stability, industrial design, operator space is more spacious
4. Production process: The production process is more rational, the wear parts are heat treated, the welding process is strict, the deformation is reduced, and the testing equipment is perfect.
Product Parameter
Product parameter | |
Model | HWZGX-390L |
Hammer model | 390 |
Rod diameter | 0-800mm |
Duplex gear pump pressure | 20Mpa |
Pile height | 2-6.5m |
Duplex gear pump displacement | 40ml/r
|
Hydraulic system pressure | 20Mpa |
Overall machine weight | 6000kgs |
Diesel engine | 80KW |
Rotation angle | 360 degree |
Radius of rotation | 1925mm |
Effective press pile stroke | 0-4000mm |
Track shoe | 350mm |
Walking motor total emission | 1575ml/h |
Walking motor total pressure | 18Mpa |
Walking motor output torque | 4300NM
|
Walking motor rotation | 50r/min |
