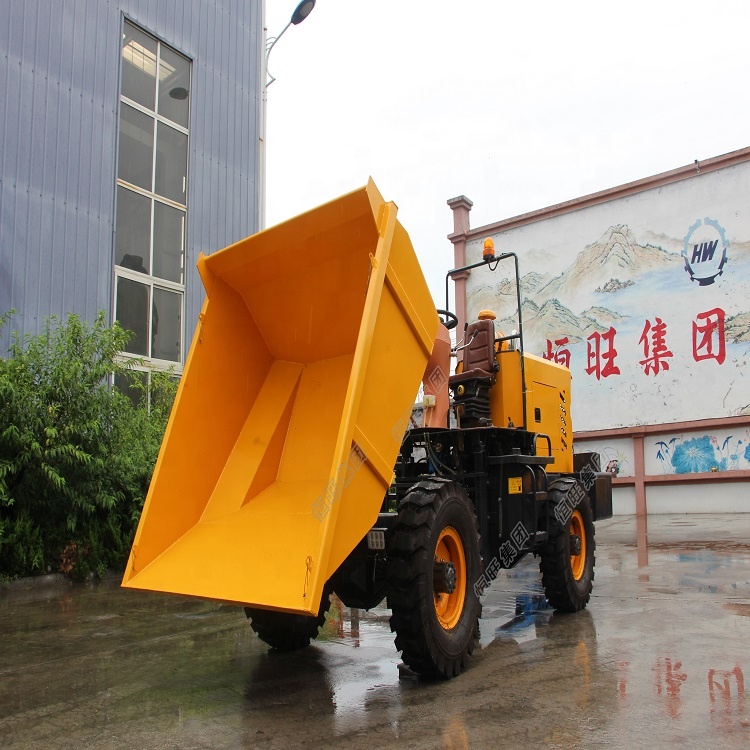

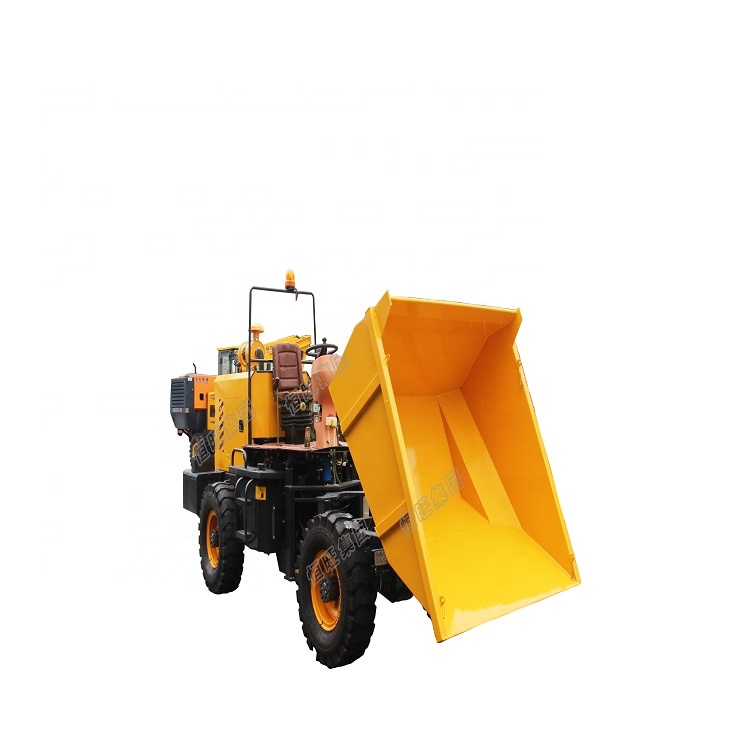

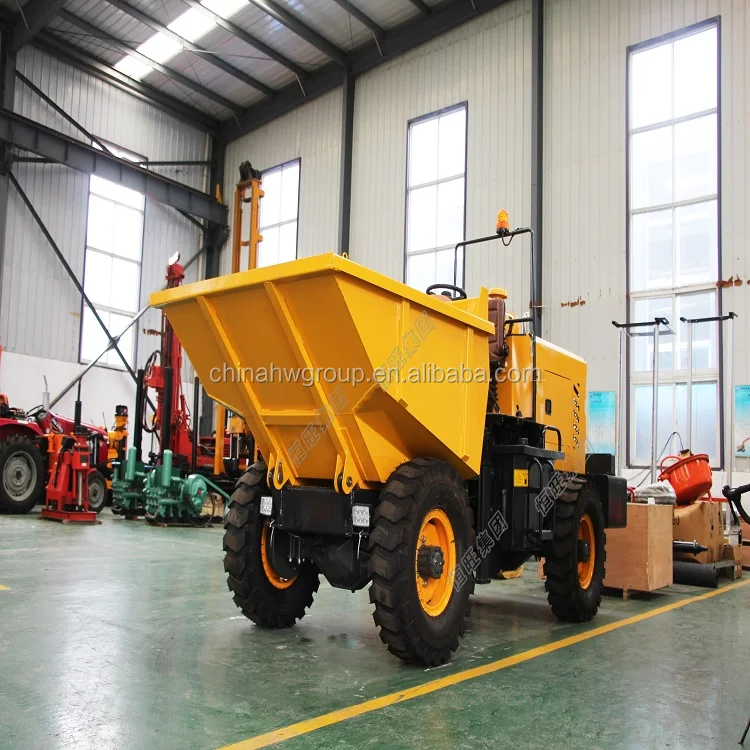

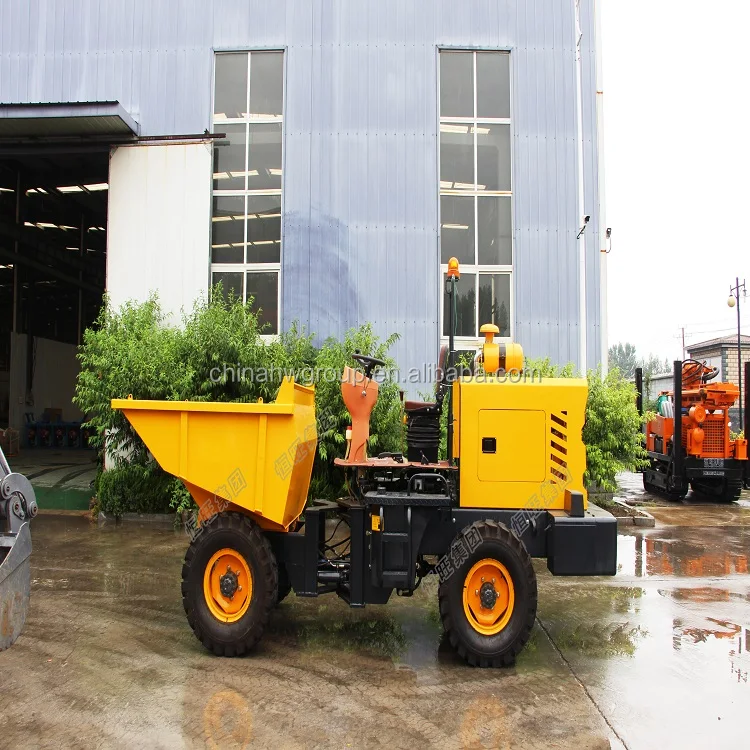

Click on the image to view the original image
Introduction of product
1.mining dumpers
2.reasonable structures,
3.convenient and fiexible manipulating,
4.strong and durable
Product Parameter
Engine Details | Model | HW |
Engine type | Inline : water cooled | |
3 cylinders , Diesel Engine | ||
Rated power | 20KW | |
Rated speed | 2200r/min | |
Min Full Consumption | 198g/kw.h | |
Bucket | Bucket capacity | 1.50m3 / 1400L |
Rated loading weight | 3000kg | |
Operating weight | 1850kg | |
Tipping | Hydraulic | |
Dimension | Overall length | 3550mm |
Overall height | 2350mm | |
Overall width | 1700mm | |
Wheel base | 1360mm | |
Tread | 1960mm | |
Minimum turn radius | 4000mm | |
Tire | Front Tire :8.25/16 | Rare tire :8.25/16 |
Drive type | 4*4 wheel drive | |
Steering | Hydraulic | |
