Home > Products > Chinese mini crawler backhoe loader mini excavator for sale

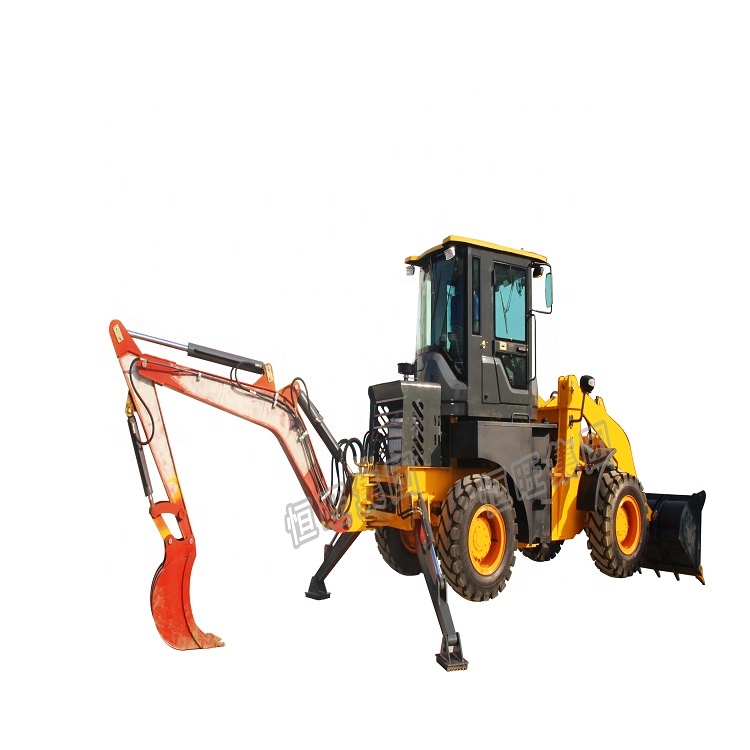

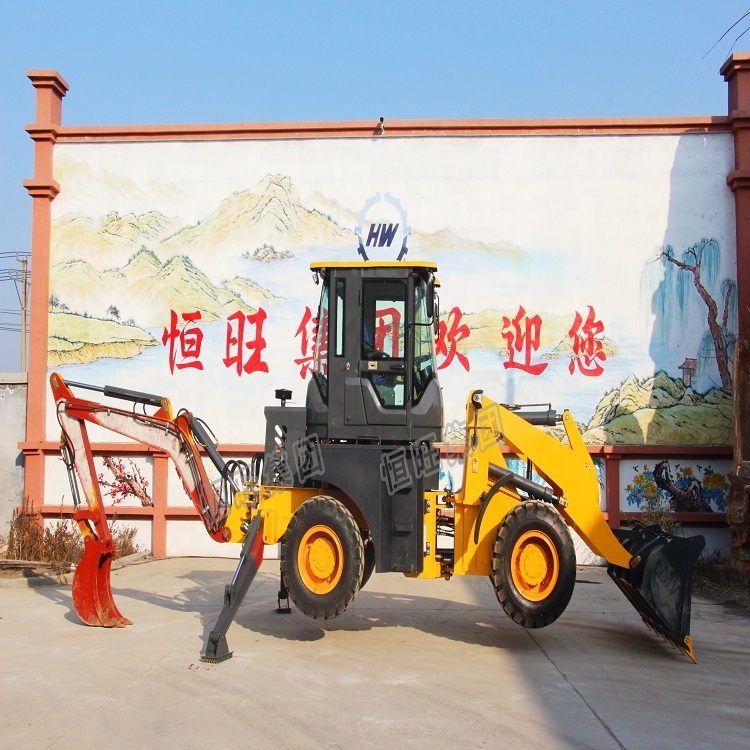

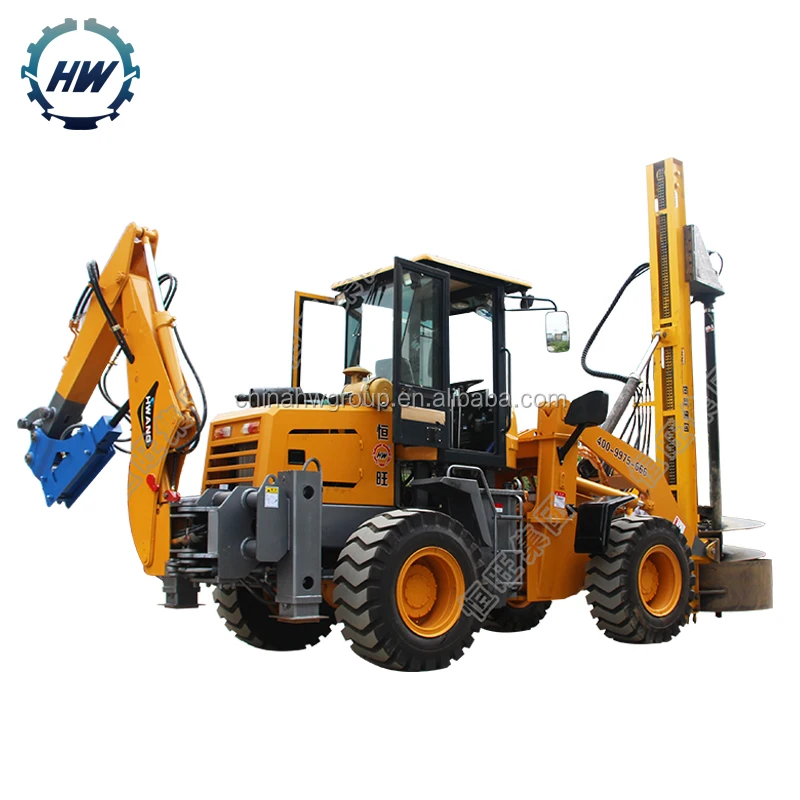

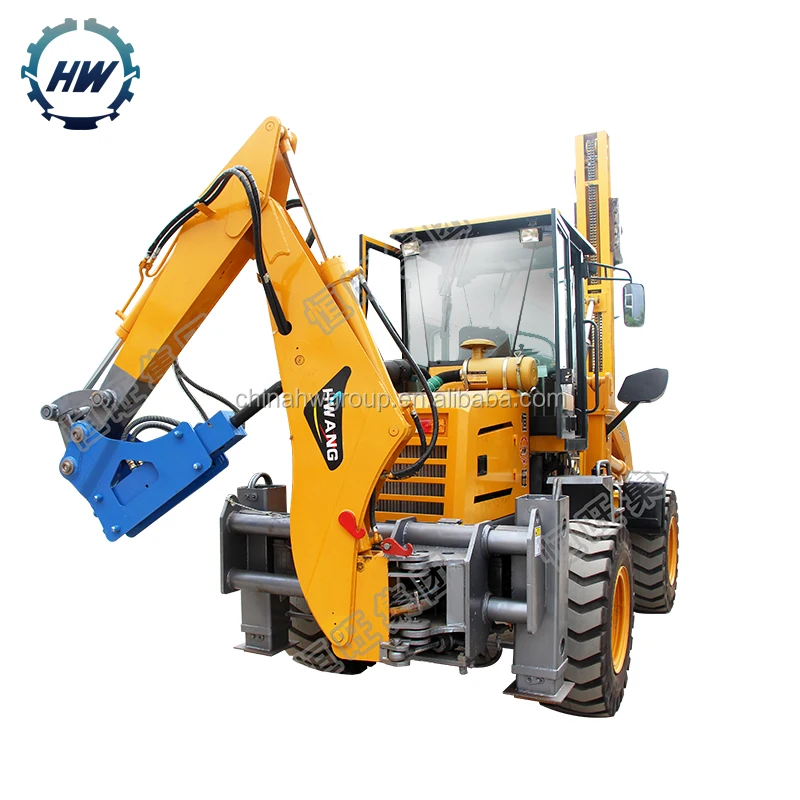

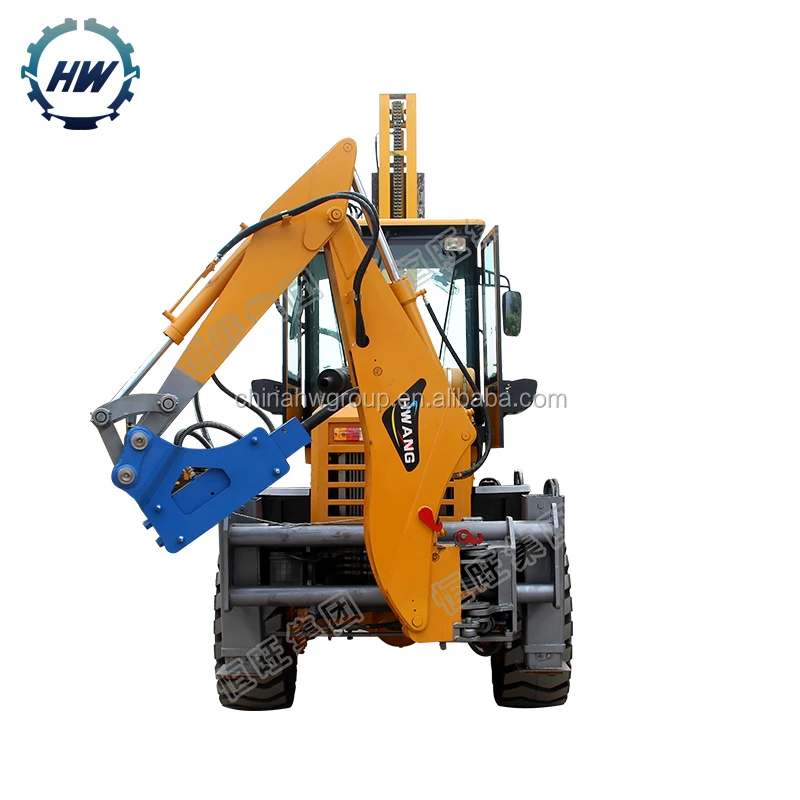

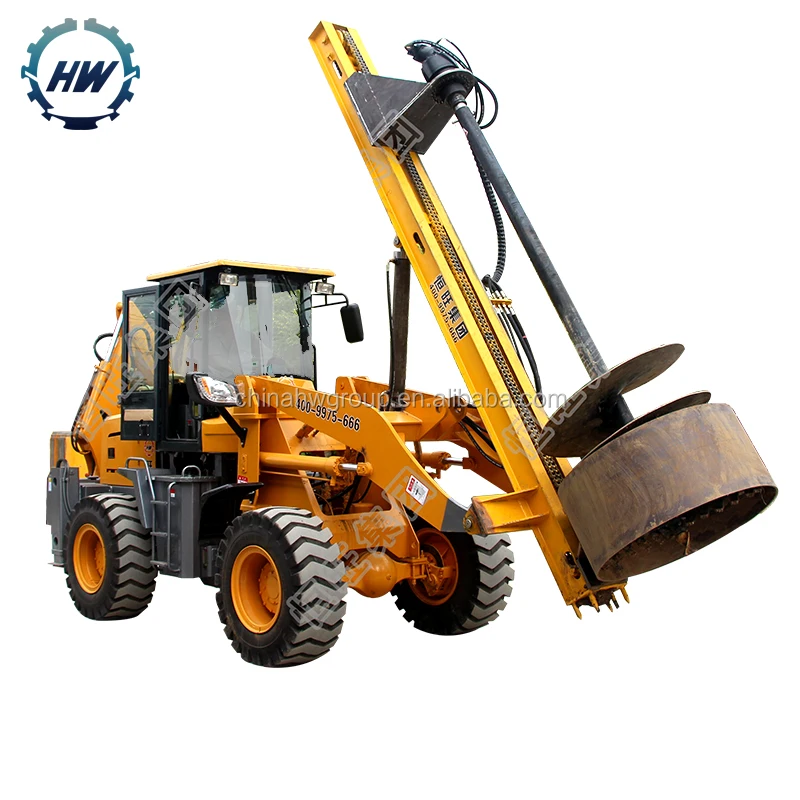

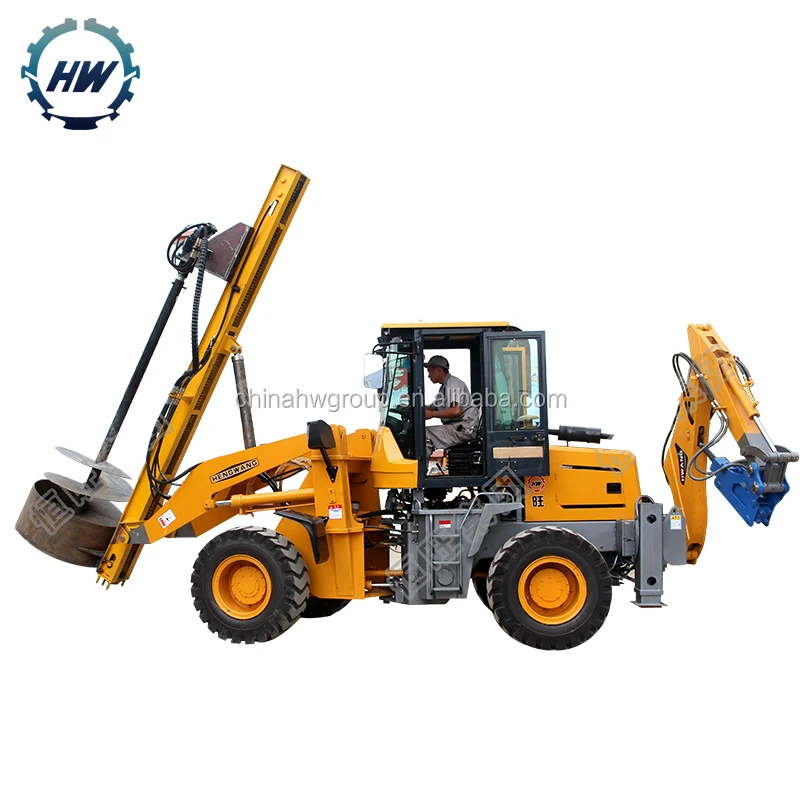

Chinese mini crawler backhoe loader mini excavator for sale
Click on the image to view the original image
Product： views：3Chinese mini crawler backhoe loader mini excavator for sale
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:47
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
0.9 m3
Operating Weight:
6000kg
Rated Speed:
0-30km/h
Place of Origin:
Shandong, China
Brand Name:
HW
Condition:
New
Moving Type:
Wheel Excavator
Maximum Digging Height:
4000mm
Maximum Digging Depth:
2700mm
Machine Weight:
3800kg
Max Digging Radius:
3915mm
Certification:
CE ISO
Product name:
Chinese mini crawler backhoe loader mini excavator for sale
Operating weight:
3800kg
Capacity of digger bucket:
0.3m3
System working pressure:
20mpa
Engine:
38KW
Max. excavating height:
4000mm
Max. excavating depth:
2700mm
Max. excavating radius:
5000mm
Capacity of loader bucket:
1.2 m3
Rated load:
1600kg
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
40 Set/Sets per Month Construction hydraulic wheel loader machine
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao Tianjin or Shanghai Port
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated

Introduction of mini loader

Construction hydraulic wheel loader machine incorporating and loading into an organic whole. It adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.

It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions. the wheel type excavators a loader is to fight pair, unhitch in the front, articulate, type style excavators a loader.





Parameter



                                                SPECIFICATIONS FOR BACKHOE LOADER
Loader Performance
Loading bucket capacity
m3
1.2
Rated load capacity
kg
1600kg
Dumping height
mm
2600
Dumping reach when at max. dumping height
mm
880
Max. breakout force
Kn
49
Backhoe Performance

Capacity of excavator bucket
m3
0.3
Max. excavating depth
mm
2700
Max. excavating radius
mm
5000
Revolute angle of movable
°
180

Hydraulic system
Hydraulic system
KPa
50.1
Main pump
KN
161
Rate flow
KN
125
Front and Rear Axles
Front and Rear Axles
%
45
Max. Traction
Kn
38
Max. steering angle
°
35
Hydraulic System
Min. turning radius (front wheel center)
MM
4910
Loading pressure
Mpa
21.5
Digging Pressure
Mpa
21.5
steering Pressure
Mpa
14
Tyre
16/70-20
Engine
Engine
Model
WEI CHAI4108
Rated power
HP
110
Rated speed
r/min
2400
Transmission System
Forward I gear shift
km/h
0-11
Forward II gear shift
km/h
0-27
Reverse I gear shift
km/h
0-10
Reverse II gear shift
km/h
0-26
FIGURE
Drive type

4WD
Operation weight
Kg
3800
Size(L*W*H)
mm
7300mm*2100mm*3000mm
