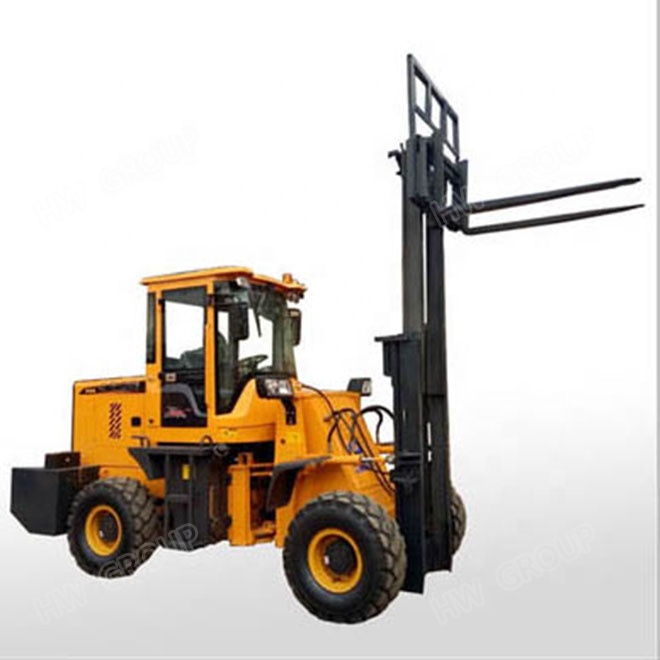

Introduction of truck
3 ton diesel forklift truck is one of the functions of the multifunctional loader in our factory that the loader refit the forklift machine.
The machine with a variety of functional transformations,it can swith the loader(-mounted) shovel,then change into the function of loading.
Application
1. For the construction ,carry building materials.
2. The forklift can loading and unloading of goods used in a factory.
Use of site; uneven, muddy land, mountain roads, port wharf, brick factory, military goods stacking, and other short haul transportation.
Parameter
Specification For 3 ton diesel forklift truck | |
Model | HF200 |
Fork length | 1200mm |
Rated hoisting weight | 3000kg |
The lowest position of the fork | 10mm |
Hoisting height | 4000mm |
Fork width | Adjustable |
Industrial vehicles | Forklift truck |
Special industry | All-terrain forklift |
Way of walking | Engine Powered Fork Lift Trucks |
Processing customization | Yes |
Dimension | 4500*2100*1800mm |
Wheel base | 2400mm |
Tread | 1440mm |
Operating weight | 4500kg |
Engine | |
Model | WC38 |
Pattern | Inline, water-cooled, 4-stroke, direct injection |
Rated power/Speed | 65KW/2400 rpm |
Torque converter and transmission system | |
Pattern | 3-element single stage |
Transmission type | Full-power shift, countershaft type |
Number of gear | 2 forward, 2 reverse 2 |
Max. travel speed | 24km/h |
Axle | Hualu |
Main reducer pattern | Arc taper gear, model ration of first grade |
Pattern of wheelside moderation | Planet gear moderation of single |
Tire | |
Tire size | 16/70-24 |
Implement hydraulic system | |
Implement pump | CB2063 |
System working pressure | 20MPa |
Brake system | |
Brake type | Air assisted oil disc on four wheel |
Parking brake type | Soft axle control, outside bunch drum type |

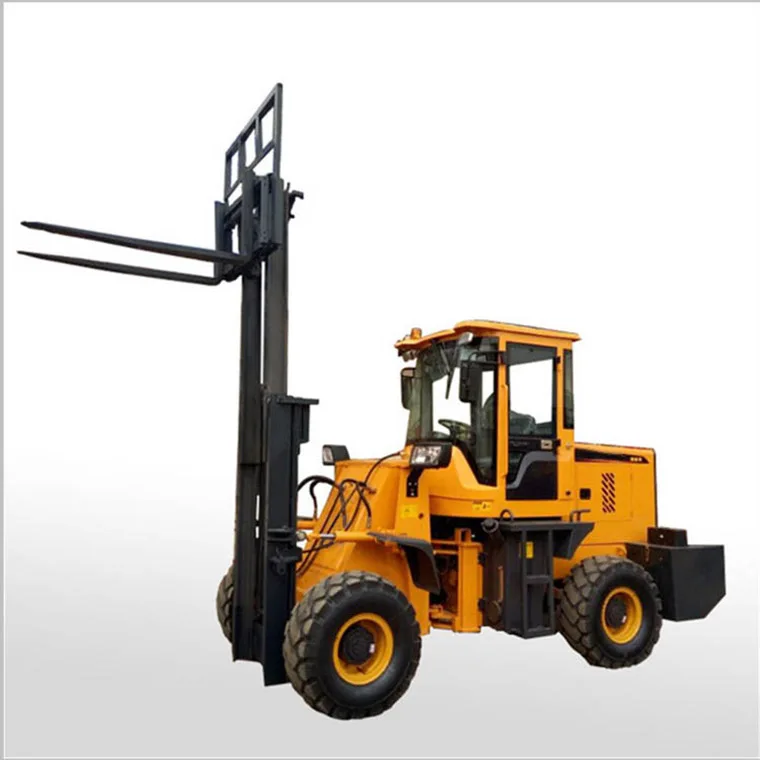

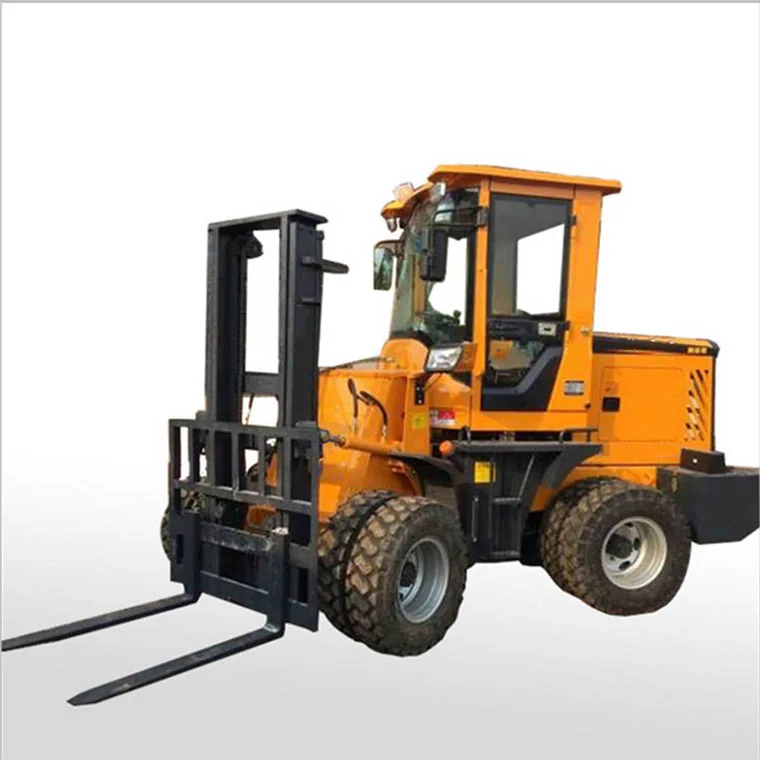

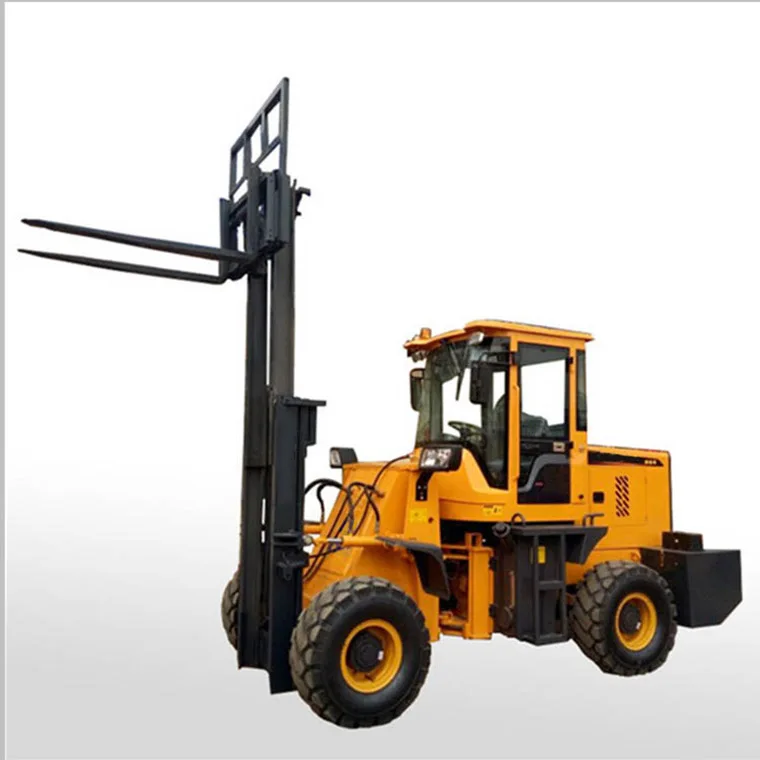

Images
