Man Portable drilling rig Japan engine with lower price backpack drilling rig

Click on the image to view the original image

Product：	views：3Man Portable drilling rig Japan engine with lower price backpack drilling rig
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:48

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Gasoline

Place of Origin:: China

Brand Name:: HW

Usage:: Coal

Voltage:: NO

Power(W):: 7.75HP

Dimension(L*W*H):: 30.48*28.02*33.58cm

Weight:: 30kg

Certification:: ISO

Warranty:: One year

Name:: portable core drilling rig

Power:: 7.75HP

Engine:: Gasoline engine

Drilling depth:: 30m

After-sales Service Provided:: Overseas service center available

Supply Ability

Supply Ability:: 6000 Set/Sets per Month core drilling rig

Packaging & Delivery

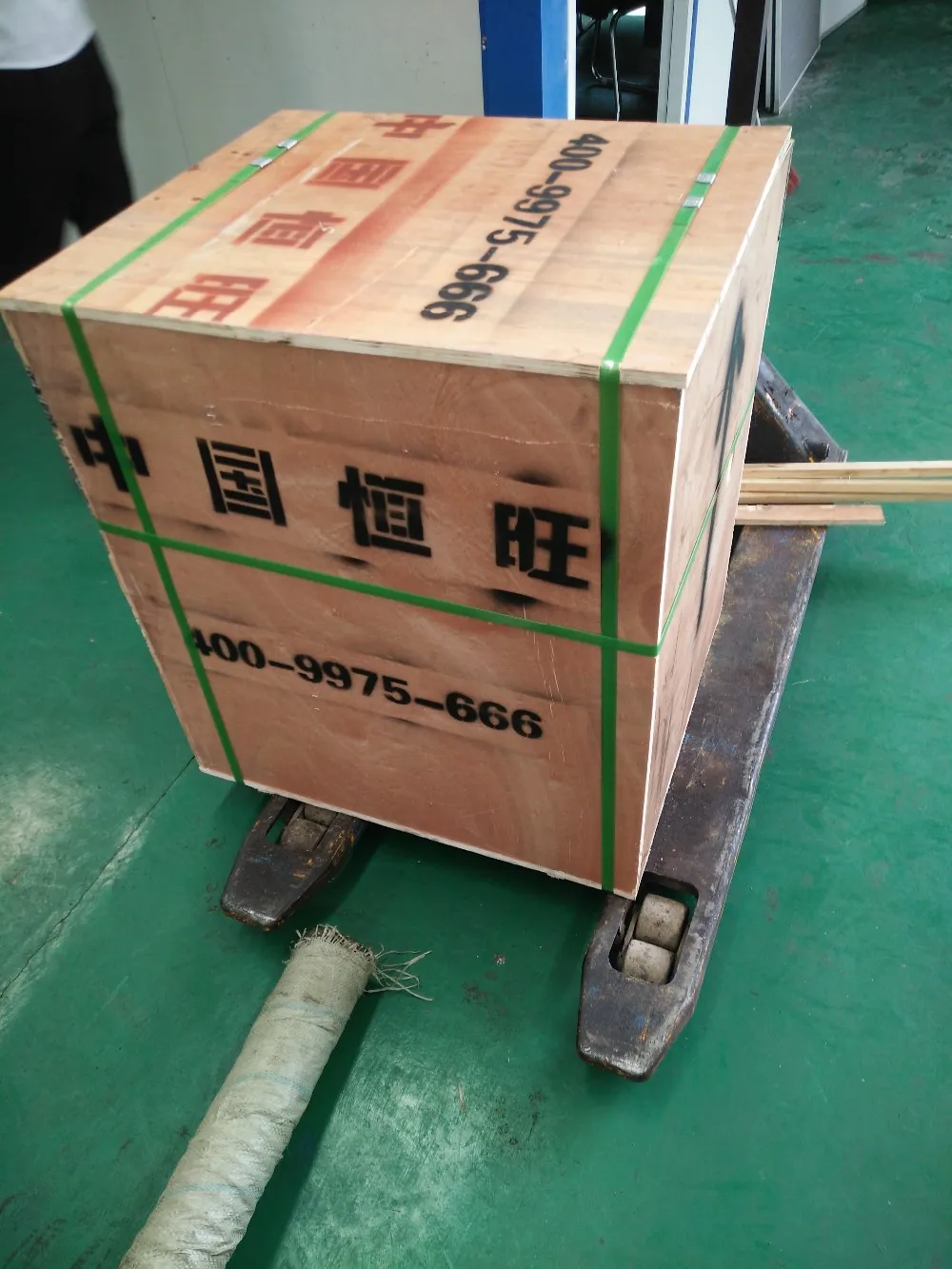

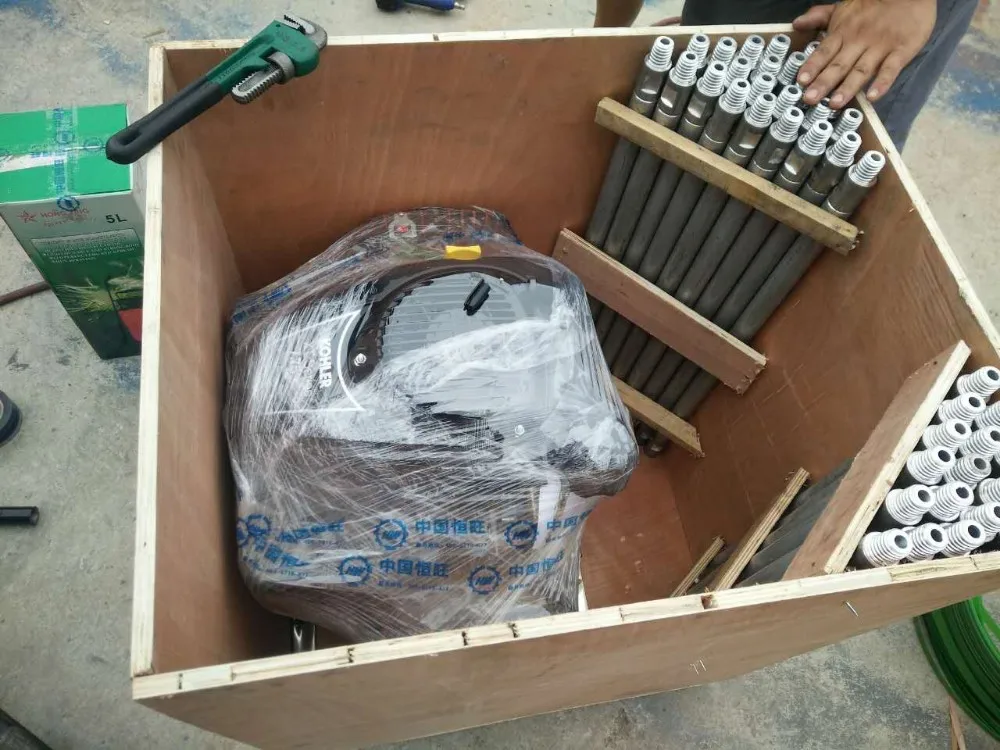

Packaging Details: core drilling rig packing within wooden case

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 3	4 - 10	>10
Est. Time(days)	2	4	To be negotiated

Product Description

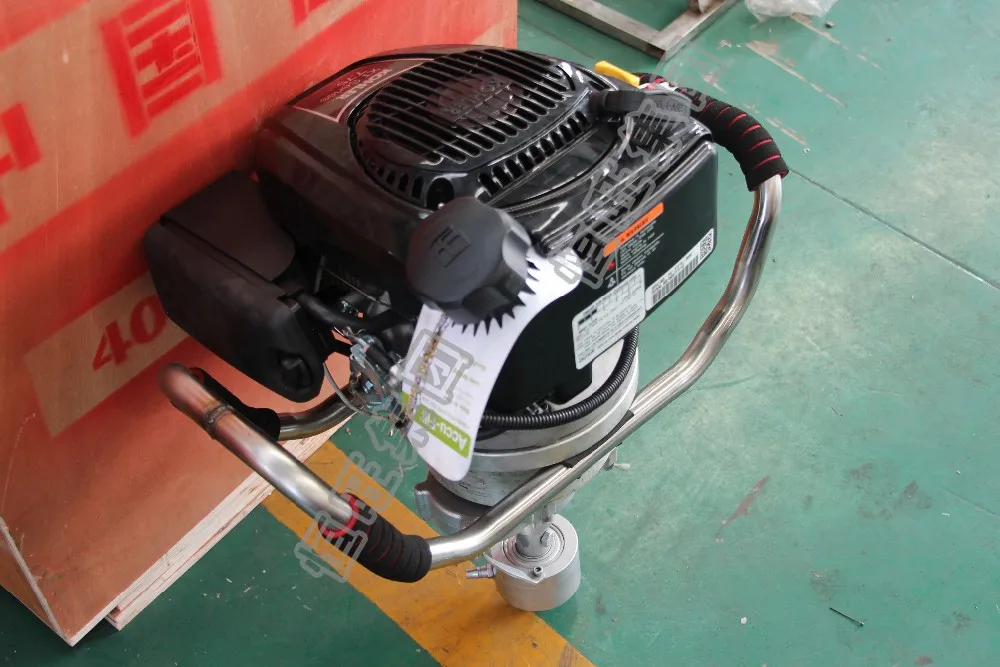

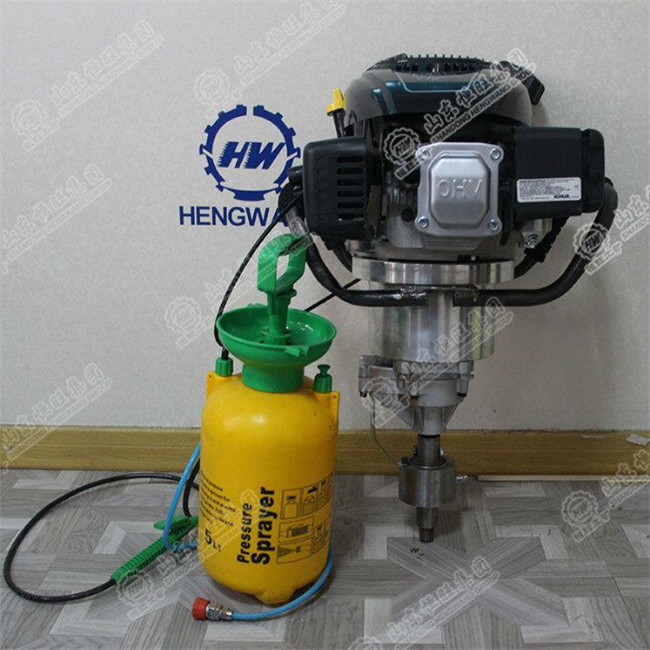

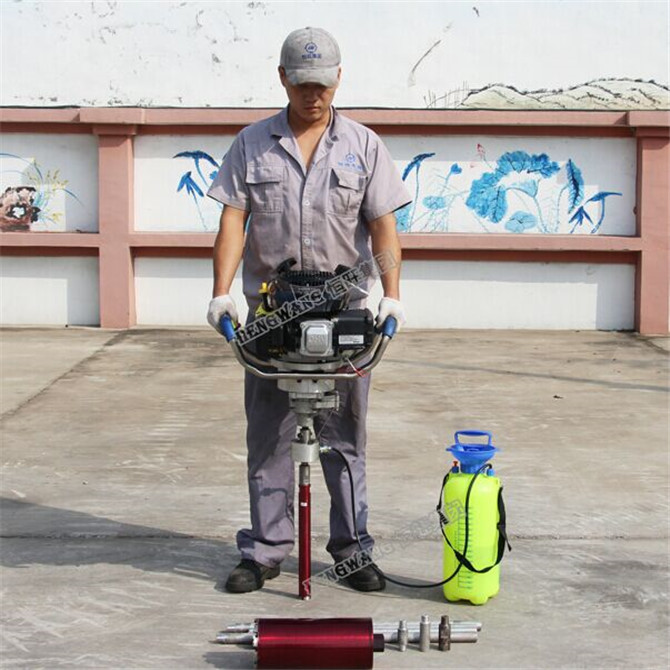

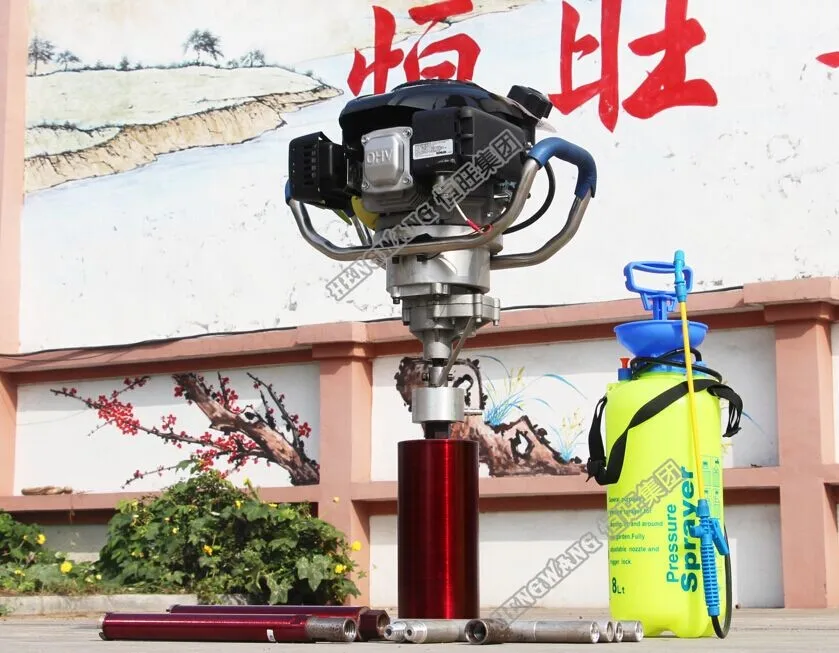

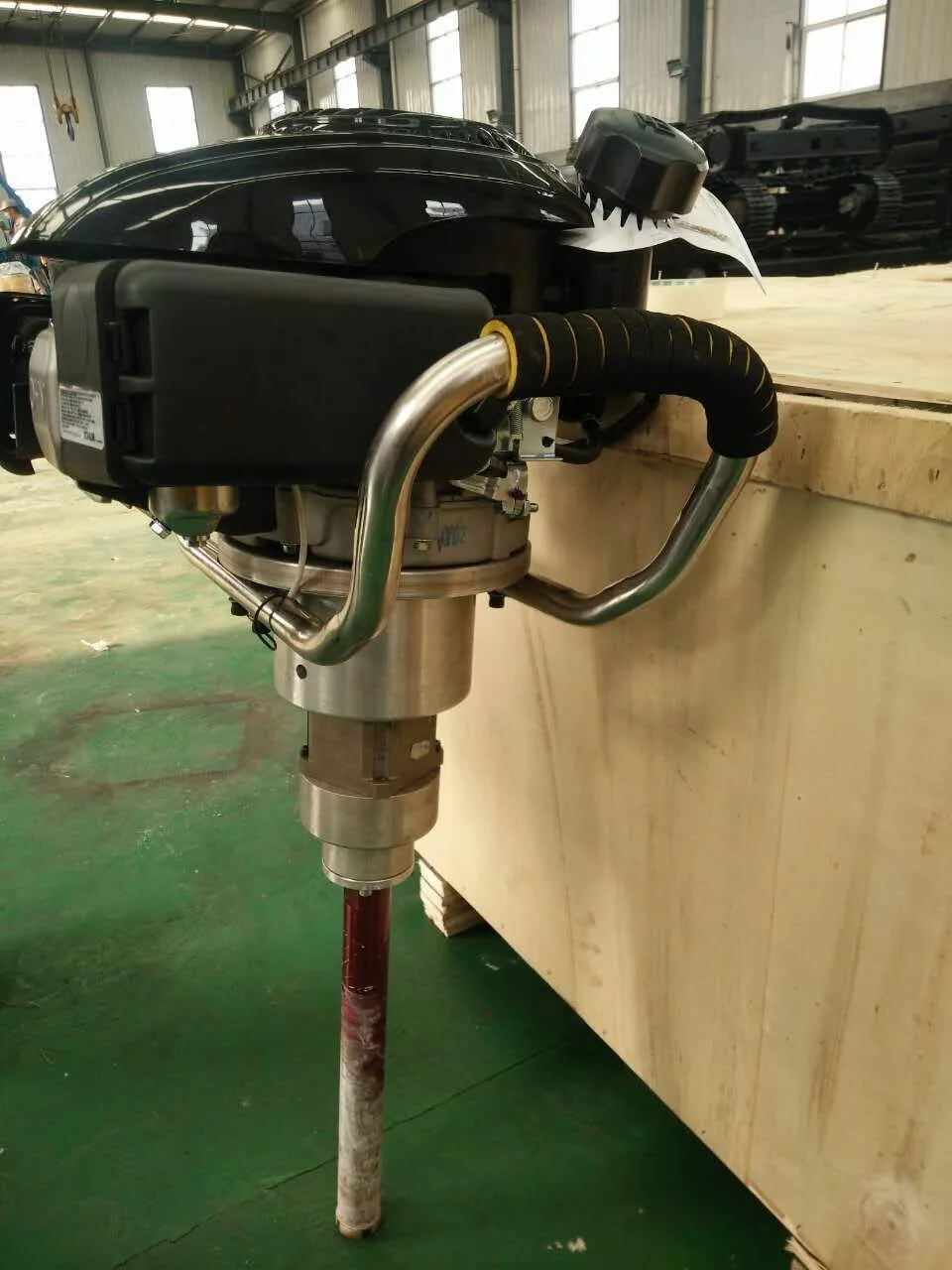

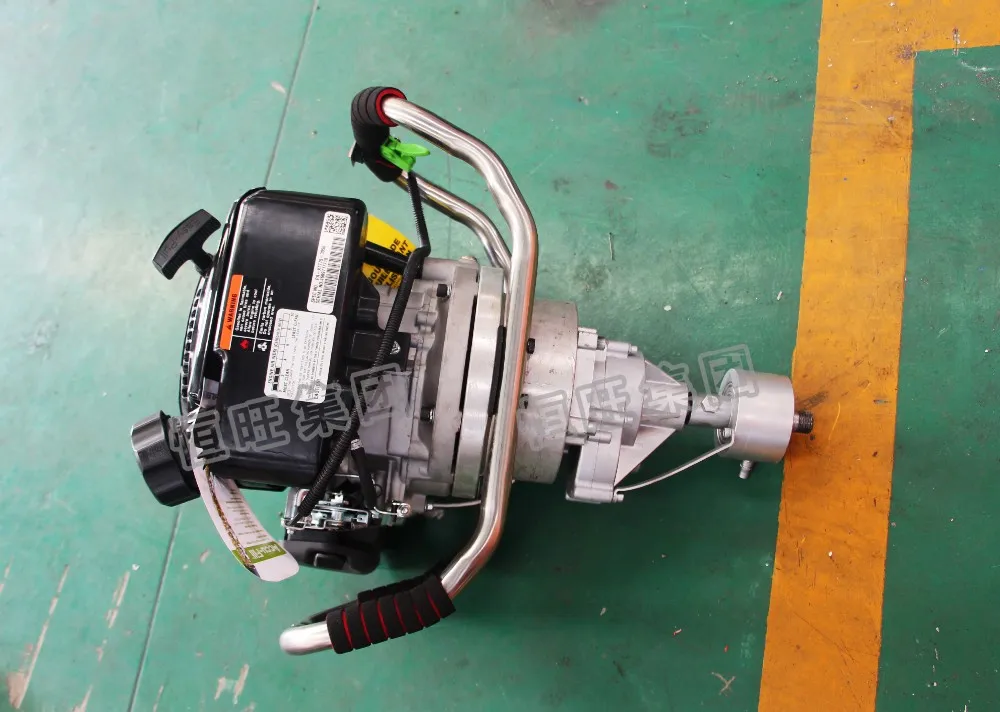

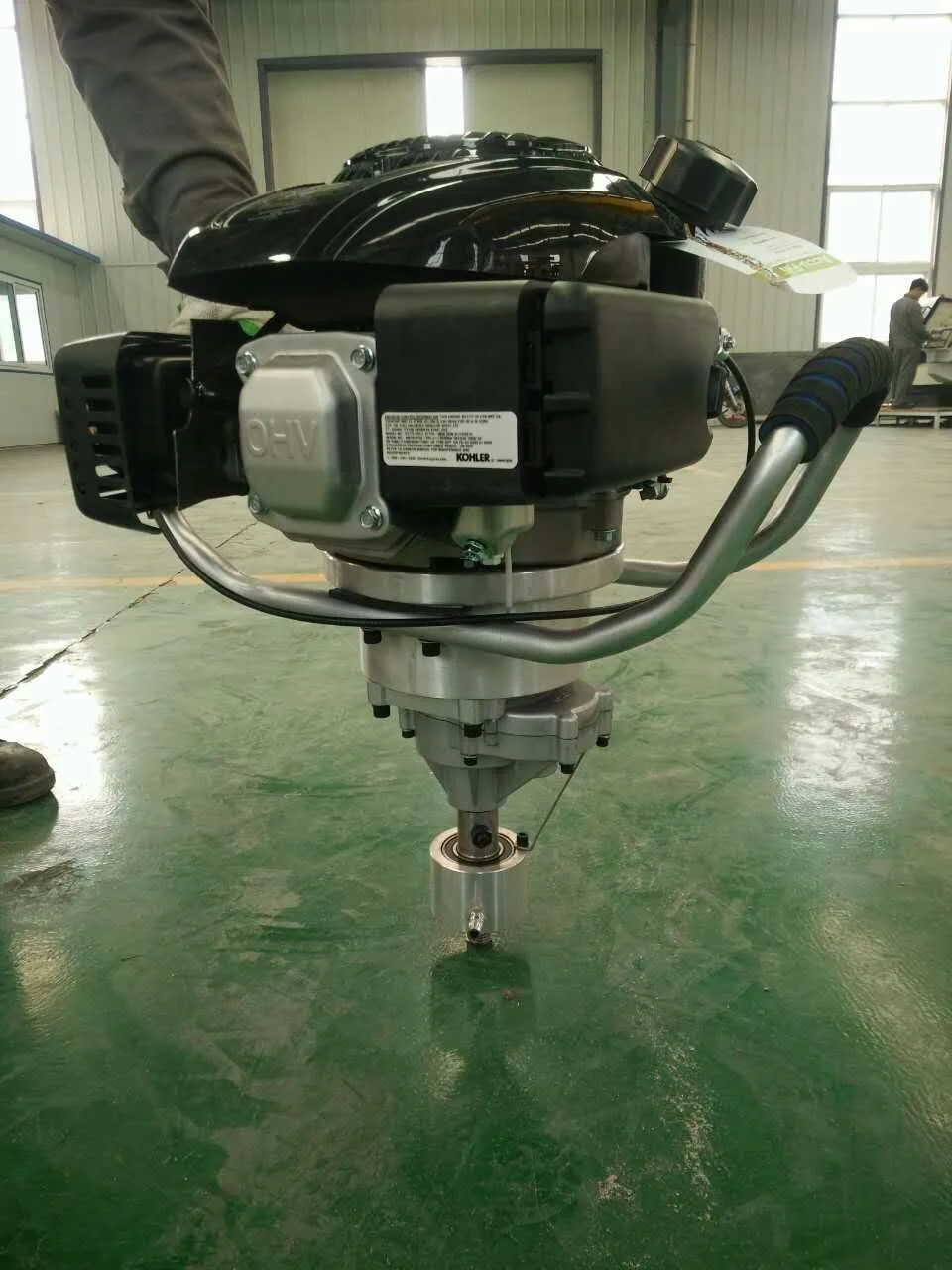

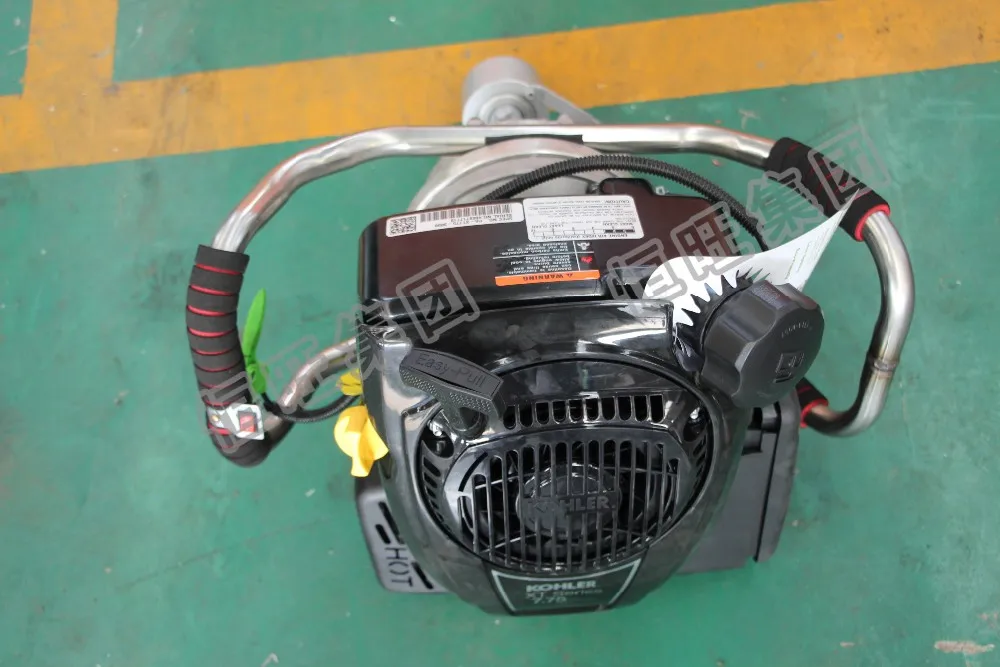

Portable backpack drilling rig

The drilling rig has the characteristics of fast drilling, deep sampling, simple operation and light carrying, and can cope with various complicated geology, increase labor efficiency, reduce labor cost, and is suitable for geological exploration, petroleum exploration, mineral investigation and construction in the inconvenient location of the field. Sampling, blasting and drilling work. It can effectively replace the shallow core sampling and exploration work of medium-sized core drilling rigs.

Portable backpack drilling rig Maintenance

1. After the rig is used, the debris, dirt, dust and other dirt on the rig and the drilling tool should be cleaned in time;

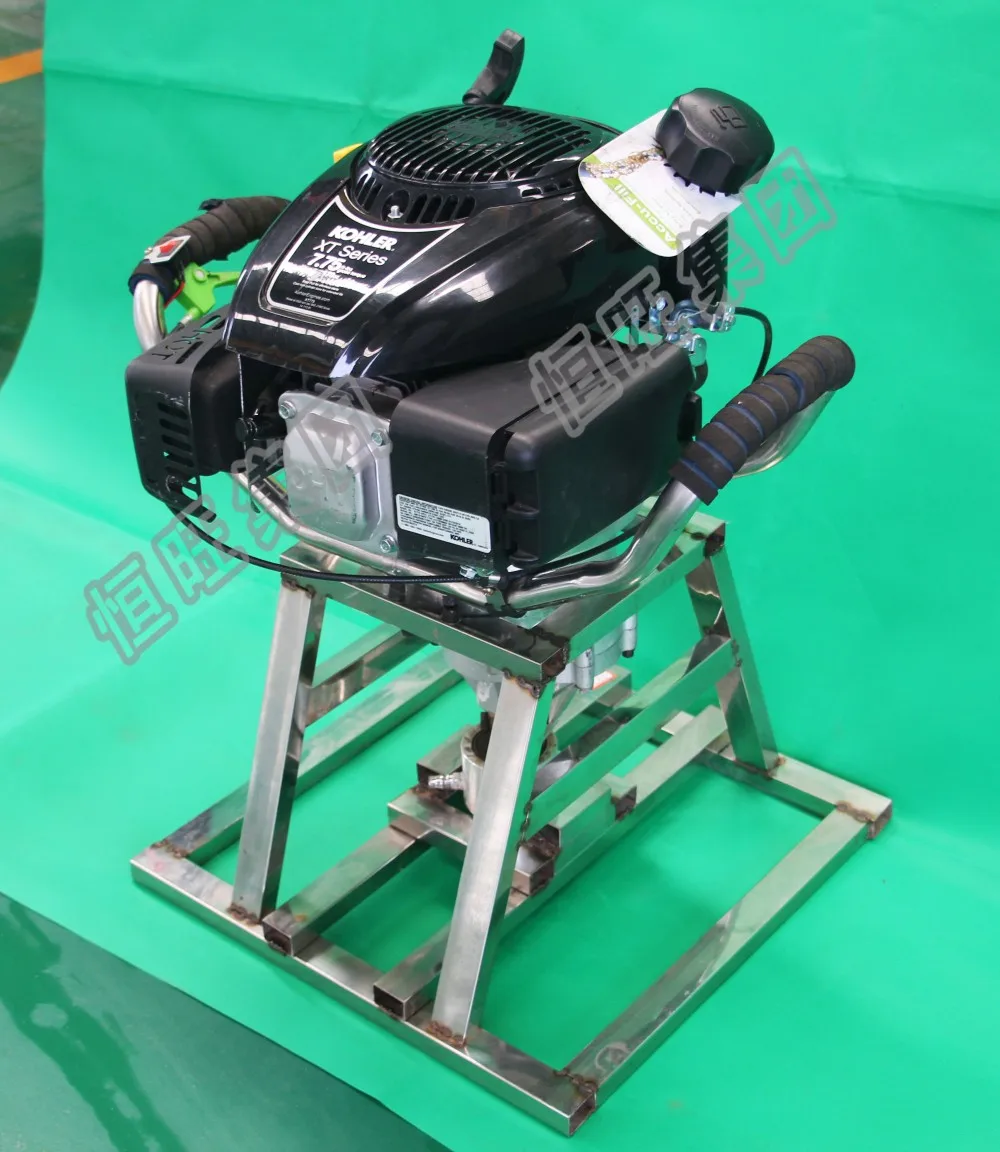

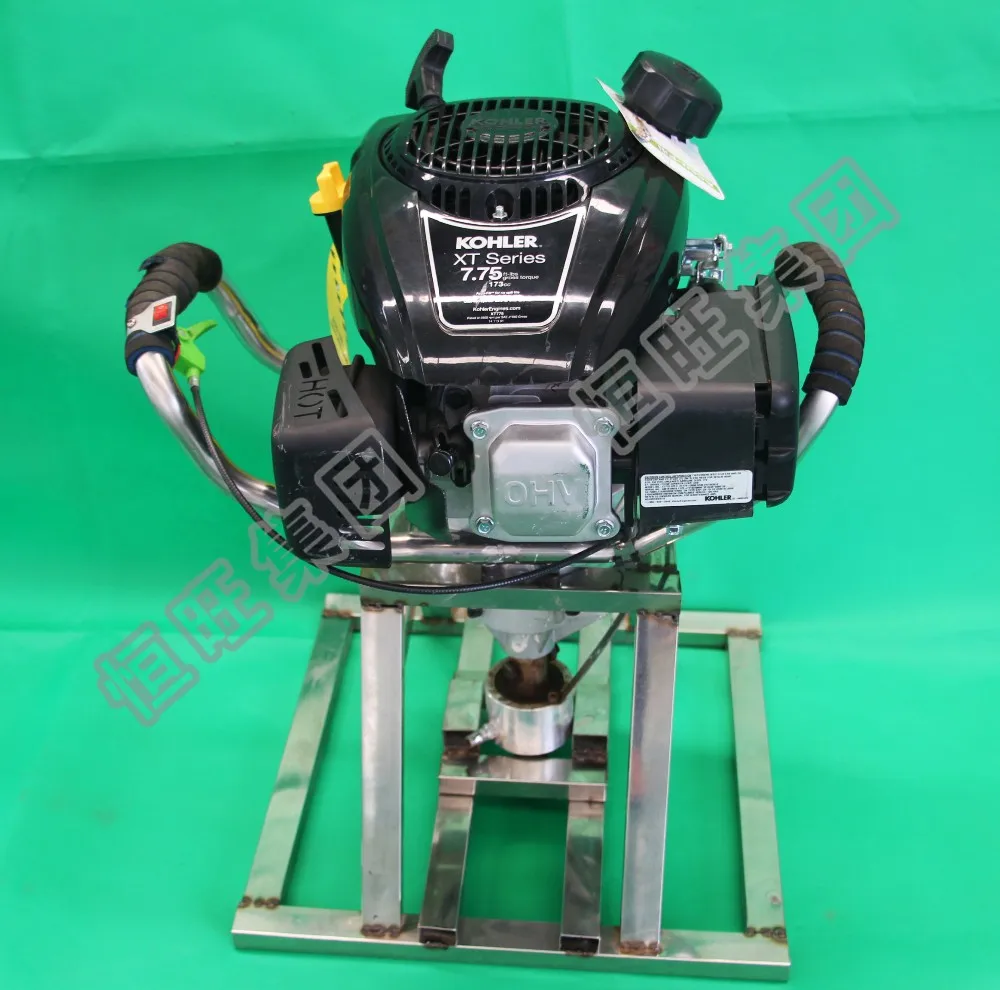

2. The rig should be placed vertically on the rack attached when not in use to avoid unnecessary contact. Injury;

3. The oil in the oil cylinder should be replaced at least once a month to avoid damage to the parts;

4. The threaded joints of the drill pipe, drill bit, etc. should be regularly coated with butter or lubricating oil to increase the service life;

5. During the period when the drilling rig is not in use, the water in the manual high-pressure water pump should be drained in time, and the connection with the drilling rig should be disconnected and stored separately;

6. When the drilling rig is in use, it is necessary to connect the spindle connecting sleeve to ensure the service life of the spindle.

7. When the drill pipe is disassembled, it is necessary to use matching tools to avoid damage caused by the violent disassembly and assembly of the drill pipe;

8. The outer diameter of the drill bit must be larger than the outer diameter of the drill pipe to avoid drilling during drilling. The rod will be greatly worn;

9. If the rig is not used for a long time, when it is re-enabled, it should be operated for 10 minutes under no-load operation according to the method of the first use.

Detailed Images

Portable backpack drilling rig Spare parts

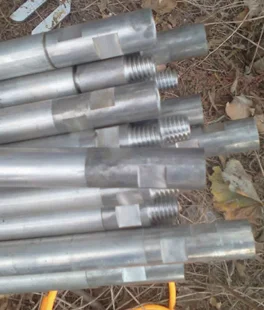

Drill pipe

This portable core sampling rig is the first in the industry to use titanium alloy drill pipe. The titanium alloy drill pipe has the advantages of light weight, high strength, good corrosion resistance and high heat resistance. The weight of the drill pipe is reduced to the greatest extent without affecting the hardness of the drill pipe. The weight of each 75cm (including the hand) titanium alloy drill pipe is 1.1kg, which is only 1/3 of the weight of the ordinary cast steel drill pipe. Medium and deep hole core sampling work with φ42-108mm aperture

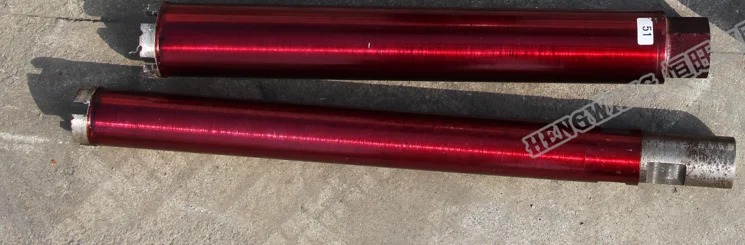

Drill bit

The diamond thin-walled core drill bit is made up of a combination of a long thin-walled coring tube and a diamond cutting head. It has the characteristics of fast drilling efficiency and complete core sampling.

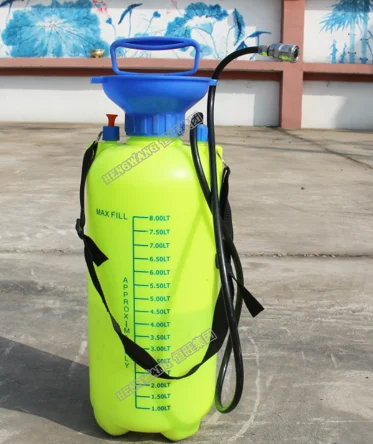

Water pump

The manual high-pressure water pump used in the drilling machine injects the indispensable water into the drilling process of the drilling machine by squeezing the exhaust water to accelerate the drilling efficiency. The attached water injection pipe is equipped with a throttle valve switch to control the amount of water injection during the drilling process, and can also respond to different geological conditions by controlling the water injection volume.
