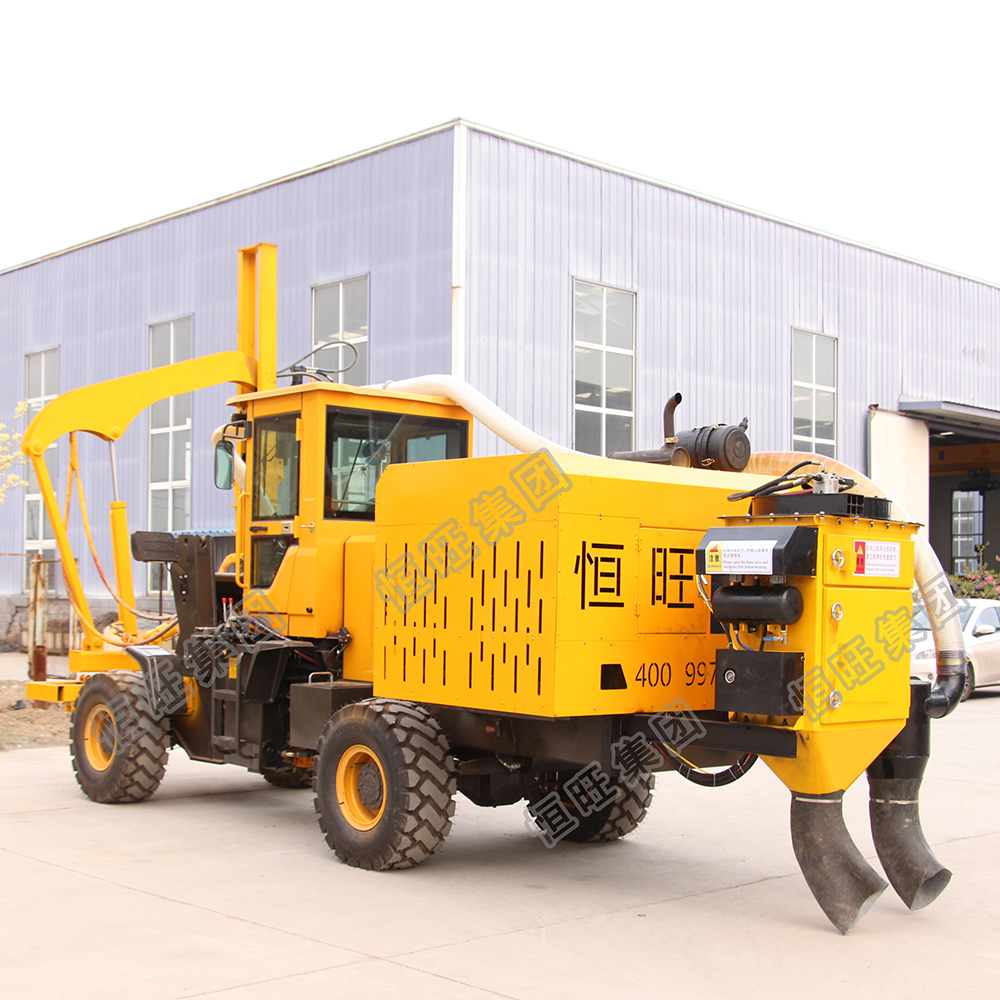

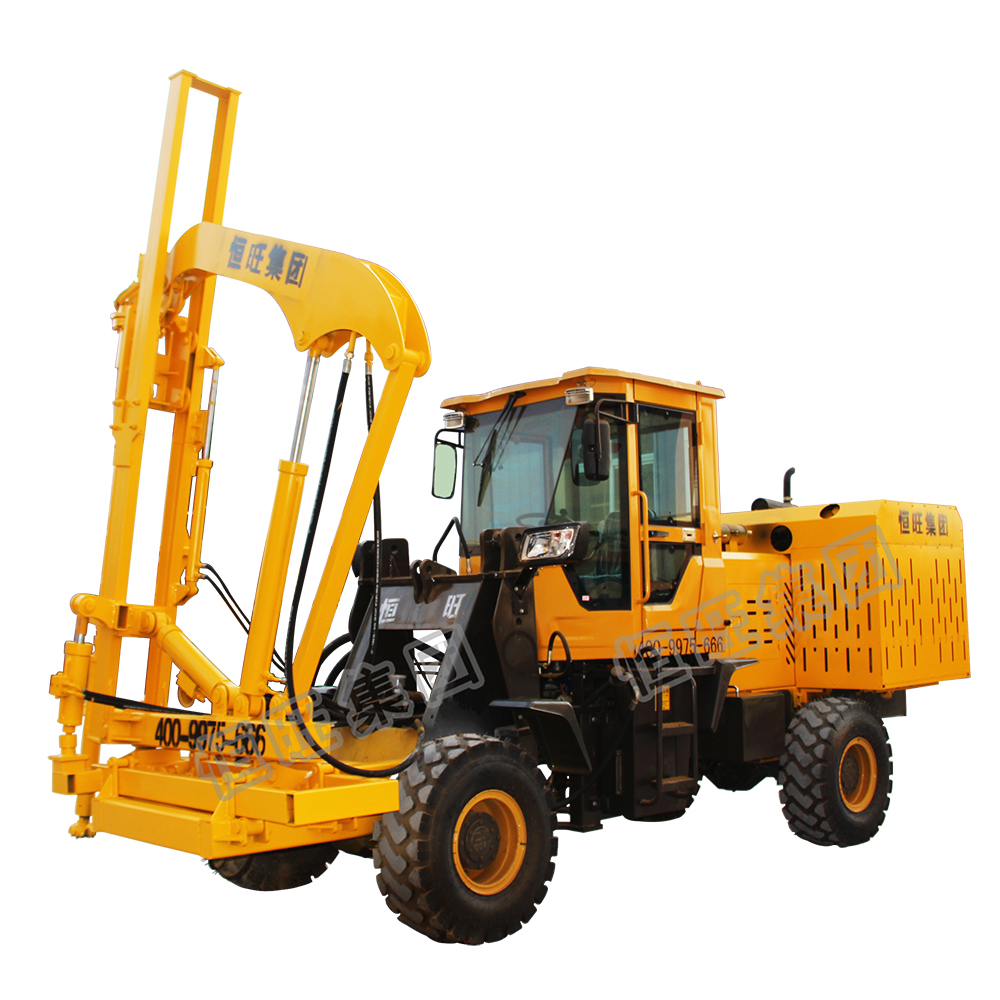

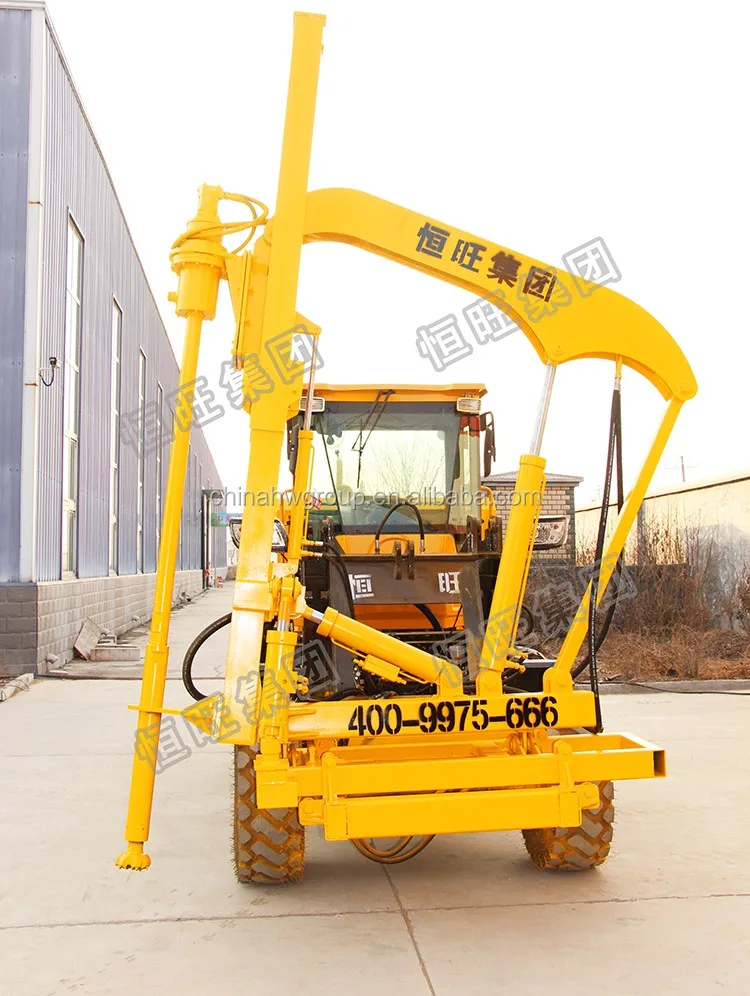

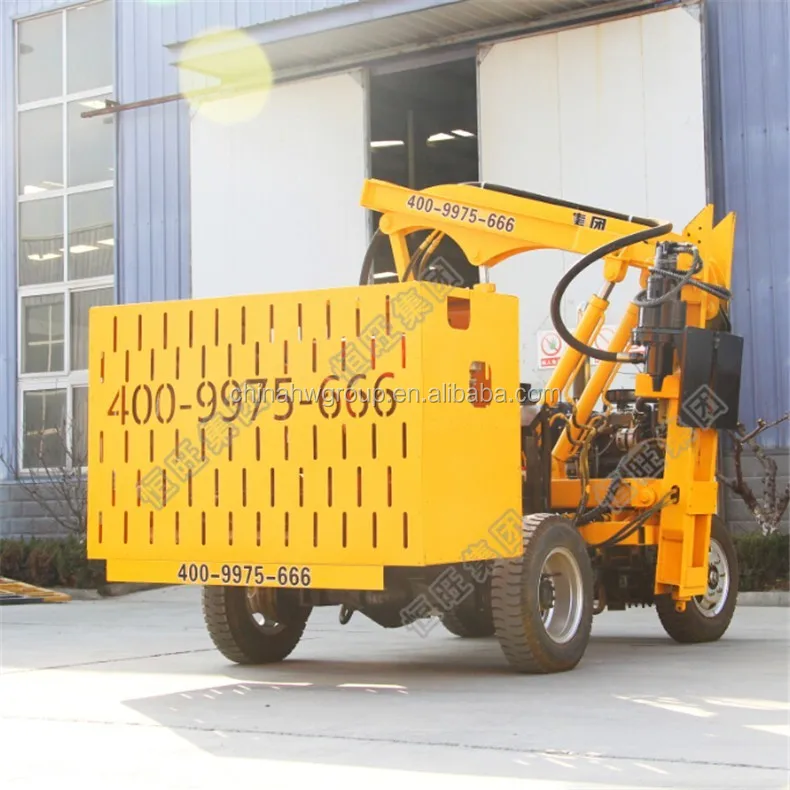

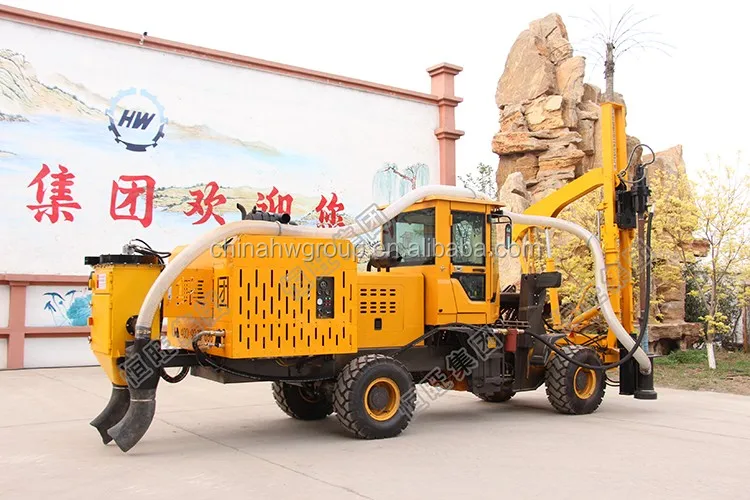

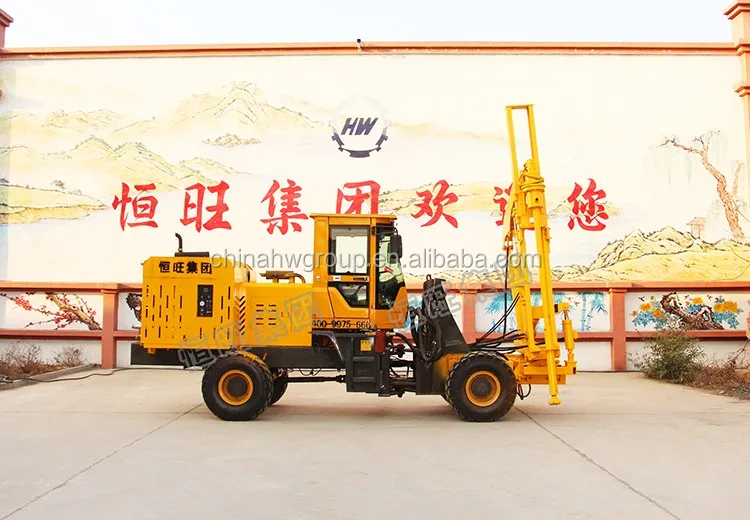

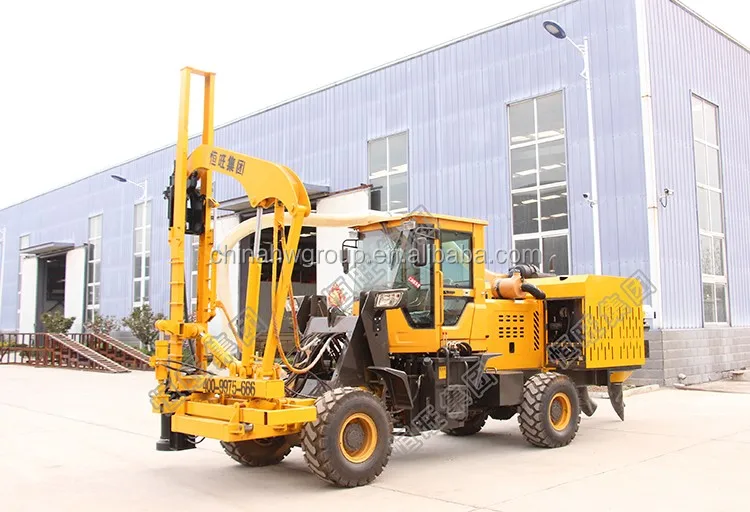

drop hammer guardrail pile driver with dedusting device

Click on the image to view the original image

Product：	views：3drop hammer guardrail pile driver with dedusting device
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:48

Product Details

Overview

Quick Details

Piling Speed(m/min):: 2.7m

Efficiency:: High

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 4t

Dimension(L*W*H):: 3200*2000*2900mm

Certification:: ISO9001:2015

Name:: drop hammer guardrail pile driver with dedusting device

Diesel power:: 40kw

Pile diameter:: 114-220mm

Pile length:: 2.6-3.3m

Hydraulic system:: 80-110L/Min

Rated system pressure:: 15Mpa

wheel track:: 1620mm

Pile hydraulic hammer weight:: 80kg

Hydraulic hammer frequency:: 500-900Bpm

Drill power unit weight:: 60kg

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 100 Set/Sets per Month drop hammer guardrail pile driver with dedusting device

Packaging & Delivery

Packaging Details: naked packing for drop hammer guardrail pile driver with dedusting device

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 1	2 - 10	>10
Est. Time(days)	15	30	To be negotiated

Product Description

This drop hammer guardrail pile driver is one-piece multifunctional guardrail pile driver which with small air compressor ,and it also can be equip with dedusting device.This drop hammer guardrail pile driver"s pressure system adopt advanced hydraulic system, high-quality hydraulic components and strict assembly process to ensure high efficiency and durability of hydraulic system.The overall frame structure of drop hammer guardrail pile driver is excellent and the materials are completely GB. High strength, good stability, and industrial design, the operator"s working space is more spacious.The production process of drop hammer guardrail pile driver is more reasonable, and the wear parts are heat treated. The welding process is rigorous, the overall stress relief treatment of the frame welding, the deformation is reduced, and the testing equipment is perfect.

Load-type guardrail drilling rig is a piling drilling machine widely used in highway, railway, construction, hydropower, port and other construction projects. In recent years, Hengwang has been repairing both inside and outside the production of pile driver, and has obtained structural parts and shifting. A major breakthrough in the quality of the optional parts of the box, the sales of the products continue to rise, and the product technology and product services have moved to the forefront of the industry.

Drop hammer guardrail pile driver
Model	HW20
Diesel power	40KW
Pile diameter	114-220mm
Pile length	2.6-3.3 m
Hydraulic system flow	80-110(L/Min)
Rated system pressure	15(Mpa)
wheel track	1620mm
wheel base	2070mm
Dimension(LWH)	320020002900mm
Weight	3400kg
Pile hydraulic hammer weight	80kg
Hydraulic hammer frequency	500-900Bpm
Hydraulic hammer working flow	40-70L/min
Hydraulic hammer working pressure	11-14Mpa
Drill power unit weight	60kg

Main Features for drop hammer guardrail pile driver

1,The host model of guardrail pile driver: the domestic standard 20 loader.

2, Construction geology: highway, railway guardrail pile driver, (plus air compressor can play rock).

3, The standard diameter: standard diameter 114-180mm, the largest aperture 200mm.

4, Configuration air compressor: Recommended 8 cubic air compressor, for the duration requirements, please configure a large air compressor, powerful, fast.

5, The product advantages: four-wheel drive, turbocharged, powerful.

6.Body with air compressor

7.Can be equip with dedusting device.

Detailed Images

Machine Parts

Name: pile driver air compressor

Brand:HW
Original: China
Flow 3.5 cubic meters
Power 18.5KW
Type: piston type

Machine Parts

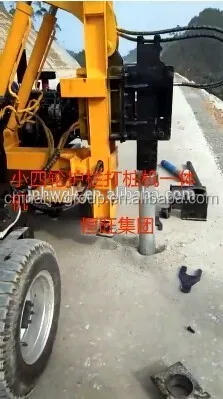

Name: Pile driver working
Brand:HW
Original: China
Can working on the stone ,concrete and rock use air compressor

Machine Parts

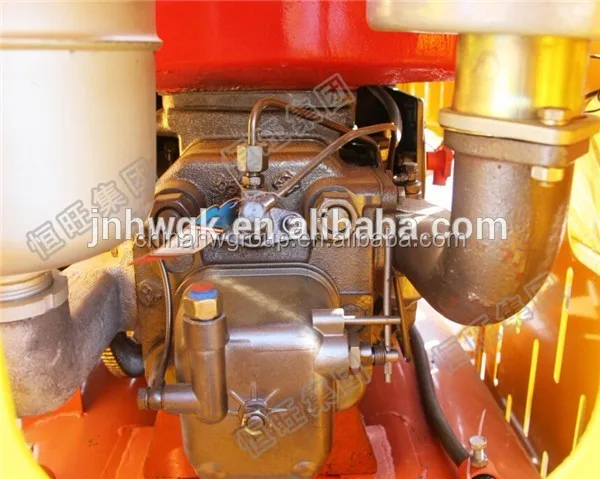

Name: Pile driver diesel engine
Brand:HW
Original: China
Adopt domestic good diesel engine to ensure strong and reliable power

Machine Parts

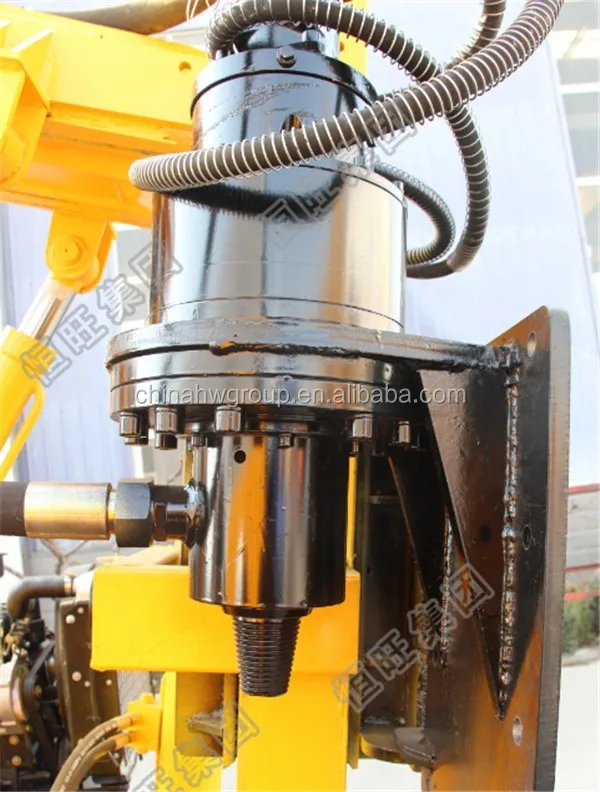

Name: Pile driver hammer
Brand:HW
Original: China

Strong hammer ,hydraulic systerm fast speed pile driver

Machine Parts

Name: Hammerhead directional valve for highway guardrail pile driver

Brand:HW

Original: China

Reversing valve is a valve to realize hydraulic oil flow communication, cutting and reversing, as well as pressure unloading and sequence action control, is a direction control valve with two or more flow forms and two or more oil ports.And can be sensitive to control any part of the machine.

Main Features

Name: Dashboard for highway guardrail pile driver
Brand: HW
Original: China
You can clearly know the oil level, electric quantity and water temperature

Machine Parts

Name: Hydraulic oil tank
Brand: HW
Original: China
The hydraulic oil level shall ensure the normal test demand when the equipment leaves the factory, and the hydraulic oil shall be added by itself when working normally.
