4 m lifting height 3 ton electric side loader forklift for sale
Click on the image to view the original image
Product： views：44 m lifting height 3 ton electric side loader forklift for sale
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:48
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
3000kg
Operating Weight:
3000kg
Rated Speed:
24km/h
Place of Origin:
Shandong, China
Brand Name:
HW
Condition:
New
Moving Type:
Wheel Excavator
Maximum Digging Height:
2600mm
Maximum Digging Depth:
1800mm
Machine Weight:
6000kgs
Max Digging Radius:
3600mm
Certification:
ISO
Product name:
Loader Forklifts
Fork length:
1200mm
The lowest position of the fork:
10mm
Hoisting height:
4000mm
Fork width:
Adjustable
Industrial vehicles:
Forklift truck
Way of walking:
Engine Powered Fork Lift Trucks
Wheel base:
2400mm
Max. travel speed:
24km/h
Pattern of wheelside moderation:
Planet gear moderation of single
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package or as your requirement for Multifunctional Loader Forklifts machine
Port
qingdao port
Lead Time:
Quantity(Sets)1 - 23 - 5 >5
Est. Time(days)13To be negotiated
Product Description

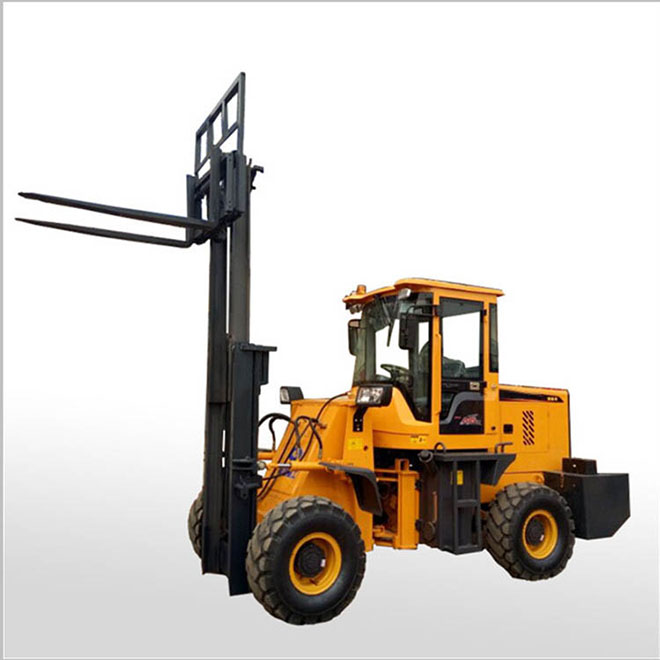

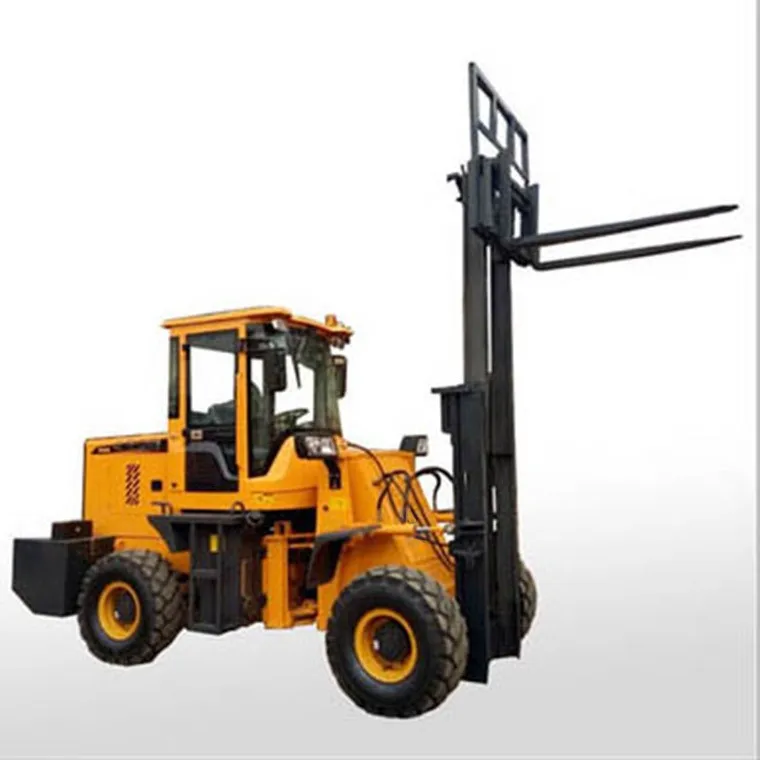

Hydraulic ride on loader forklift with cab

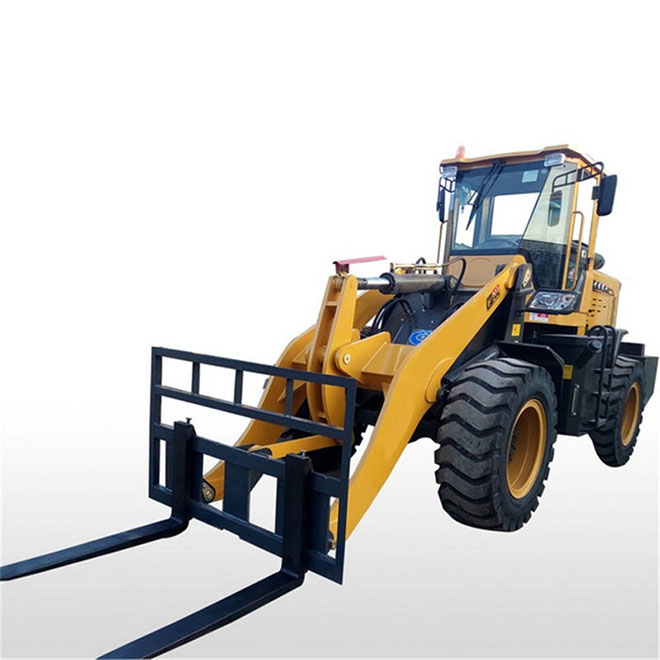

The loader forklift is one of the functions of the multifunctional loader in our factory that the loader refit the forklift machine.
The machine with a variety of functional transformations,it can swith the loader(-mounted) shovel,then change into the function of loading.
Product application:
1. For the construction ,carry building materials.
2. The forklift can loading and unloading of goods used in a factory.
Use of site; uneven, muddy land, mountain roads, port wharf, brick factory, military goods stacking, and other short haul transportation.

Specification For Loader Forklifts machine
Model
HWE-R40
Fork length
1200mm
Rated hoisting weight
3000kg
The lowest position of the fork
10mm
Hoisting height
4000mm
Fork width
Adjustable
Industrial vehicles
Forklift truck
Special industry
All-terrain forklift
Way of walking
Engine Powered Fork Lift Trucks
Processing customization
Yes
Dimension
4500*2100*1800mm
Wheel base
2400mm
Tread
1440mm
Operating weight
4500kg
Engine
Model
WC38
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power/Speed
65KW/2400 rpm
Torque converter and transmission system
Pattern
3-element single stage
Transmission type
Full-power shift, countershaft type
Number of gear
2 forward, 2 reverse 2
Max. travel speed
24km/h
Axle
Hualu
Main reducer pattern
Arc taper gear, model ration of first grade
Pattern of wheelside moderation
Planet gear moderation of single
Tire
Tire size
16/70-24
Implement hydraulic system
Implement pump
CB2063
System working pressure
20MPa
Brake system
Brake type
Air assisted oil disc on four wheel
Parking brake type
Soft axle control, outside bunch drum type

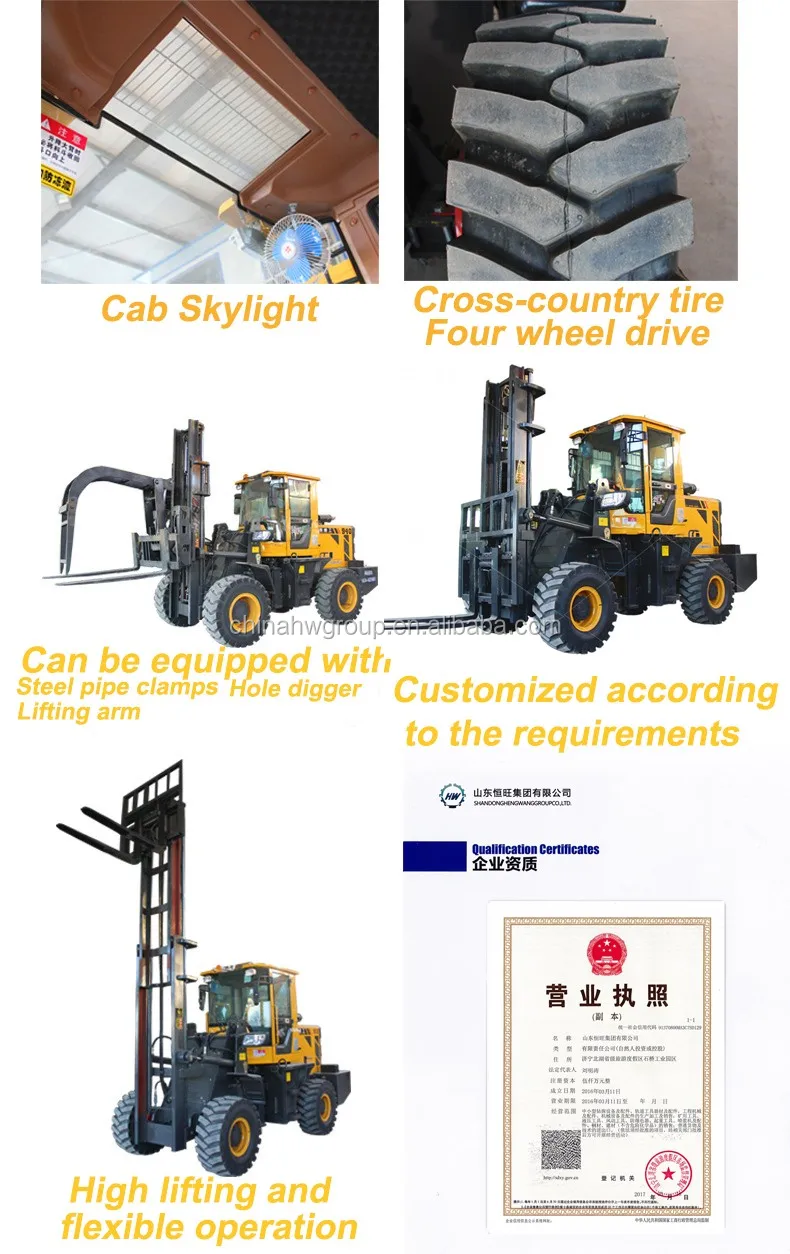

Product Advantages

Hydraulic ride on loader forklift with cab

Packing & Delivery

Hydraulic ride on loader forklift with cab
