Home > Products > Crawler mounted Mining Drilling Rig Portable Water Well Drilling rig price
Crawler mounted Mining Drilling Rig Portable Water Well Drilling rig price
Click on the image to view the original image
Product： views：3Crawler mounted Mining Drilling Rig Portable Water Well Drilling rig price
Branch： HW
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:48
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Voltage:
diesel
Power(W):
15
Dimension(L*W*H):
5400*2120*2650mm
Weight:
7200KG
Certification:
ISO
Warranty:
One year
Drilling depth:
300m
Drilling diameter:
75mm-273mm
Drill rod diameter:
76mm,89mm,102mm
Product name:
Water well drilling rig
Diesel engine:
48kw
Working Pressure(bar):
20 Mpa
Ratedspeed:
2400r/min
Power:
Diesel engine
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
100 Set/Sets per Month hydraulic drilling rig
Packaging & Delivery
Packaging Details
HWXY-160/230 model packing within wooden case
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 23 - 5 >5
Est. Time(days)24To be negotiated
Product Description

Hydraulic and air water well drilling rig

Water well drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc


Model
HWXY-160
HWXY-230
HW-300L
Drilling depth
160m
230m
300M
Drilling  diameter
75mm-160mm
75-273mm
90mm-273mm
Drill rod diameter
42mm,50mm
42mm,50mm,60mm
76mm,89mm,102mm
Drill angle
90-75
90-75
90
Engine power
15kw
18KW
48
Machine Dimension
2.4*0.8*1.3m
2.7*0.9*1.5
5.54*2.21*2.65
Drill mast height
6.5m
6.5M
mud pump flow
95l/min
145l/min
need mud pump and air compressor
Mud pump max. pressure
1.2Mpa
2 mpa

Hydraulic and air water well drilling rig , Borehole core Drilling Machine for Sale

Detailed Images

Our company is group company , we manufacture drilling rig , we have many model and type , following you can reference:

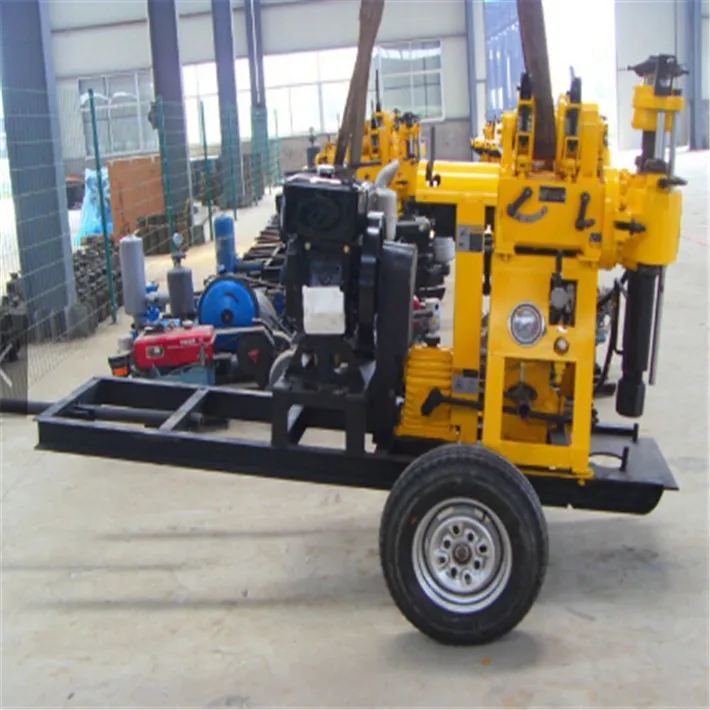

HWXY-160 /230 drilling rig with wheels


160 model and 230 model can add the wheels ,then you can moving easy

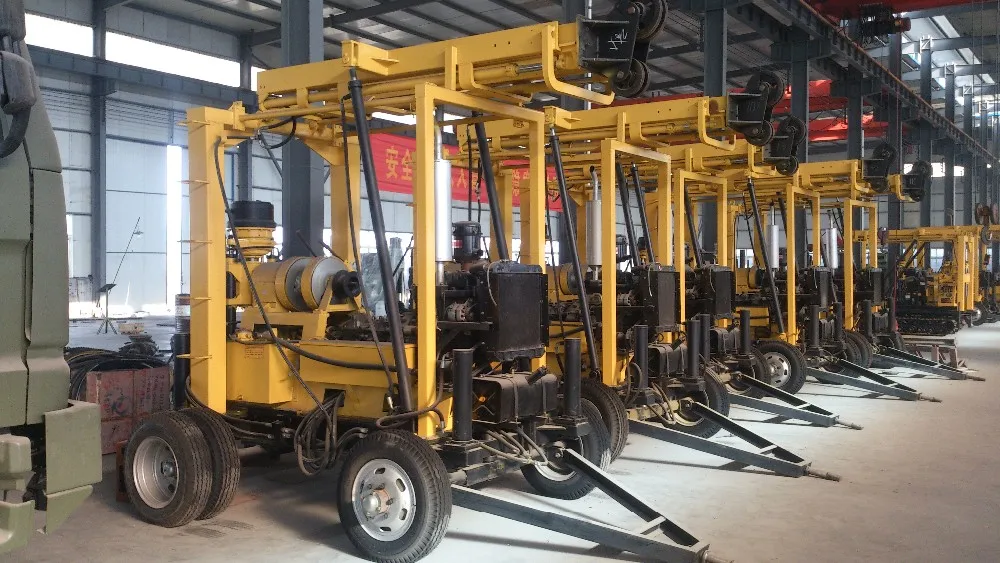

XYX-3 drilling rig with wheels and hydraulic drill mast


This model can drilling 600M ,and moving easy

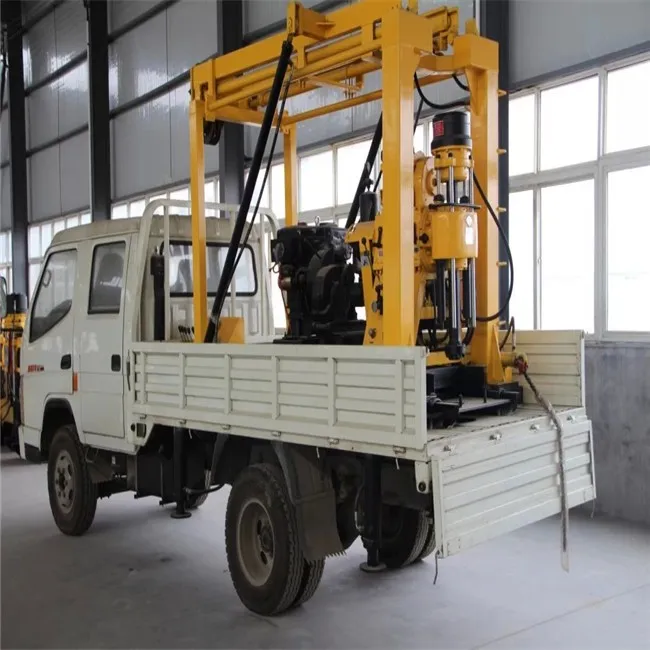

Truck mounted hydraulic drilling rig

The machine is reasonable in structure , simple in operation, convenient in maintenance and convenient in transportation and no need to lift by crane after it is transported to the site .



Tricycle water drilling rig

It is suitable for geological survey exploration,basic exploration of roads and high rise buildings ,various structural inspection holes on concrete , river embankments , subgrade grouting hole and direct grouting ,civil water wells and ground temperature central air conditioning.

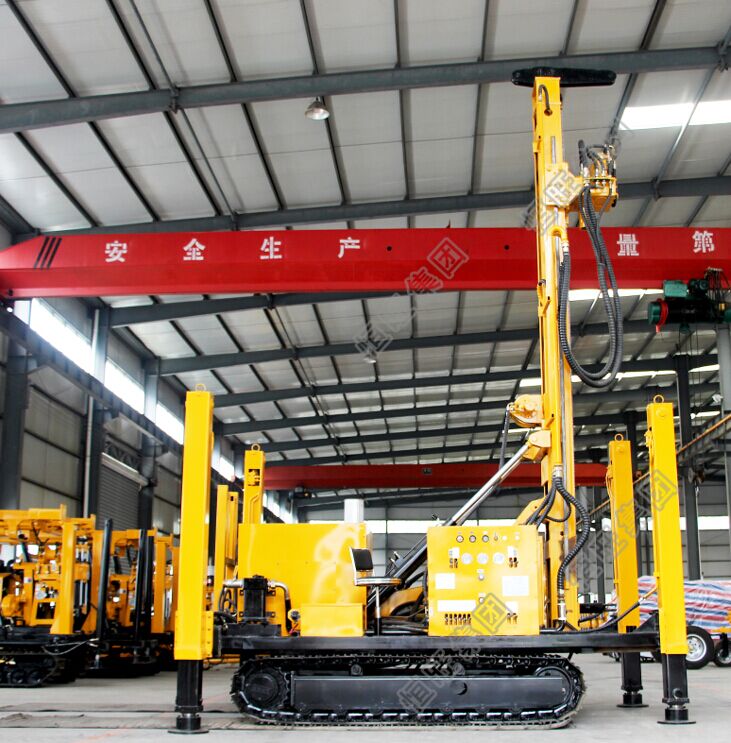

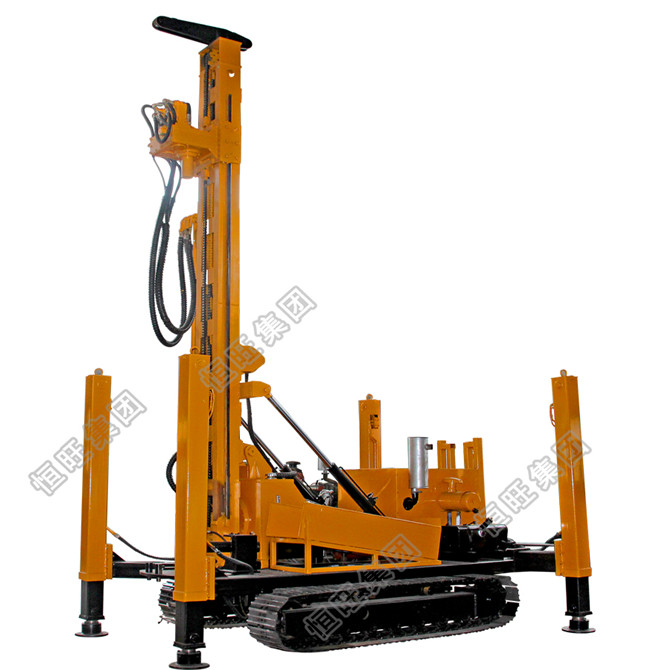

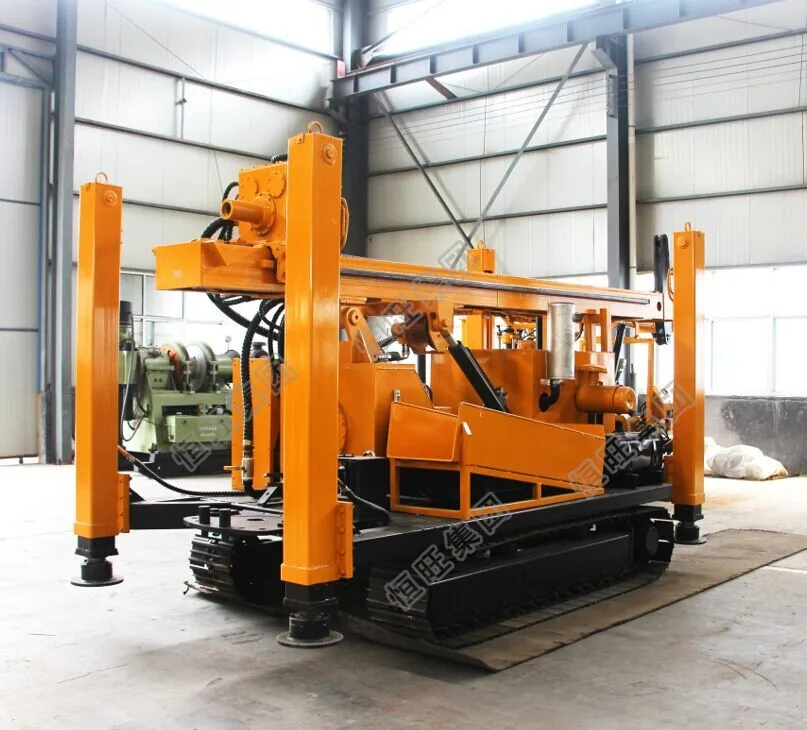

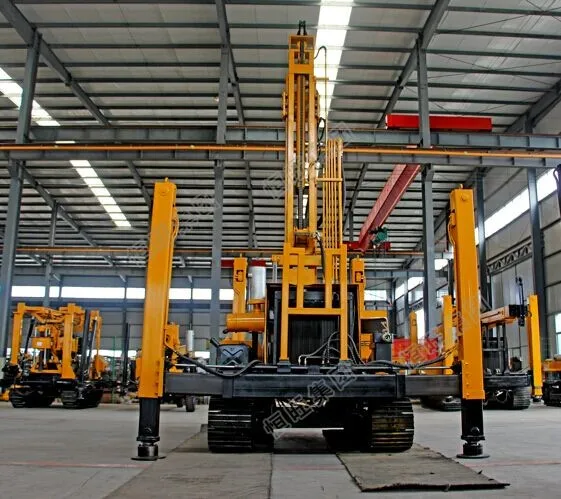

Crawler hydraulic drilling rig

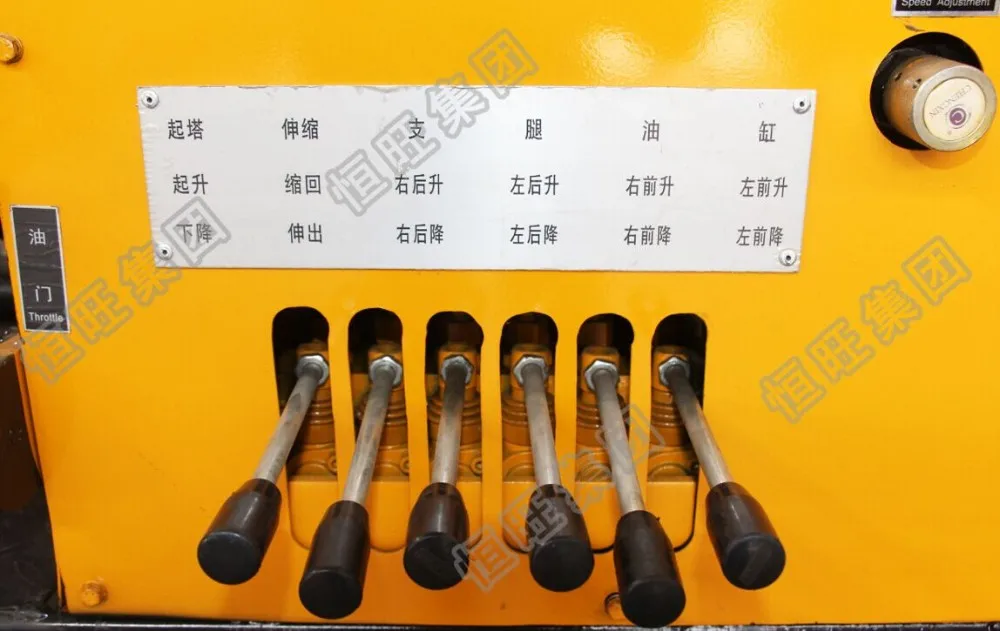

This drilling rig use the automatic telescopic drilling tower , supported by two high strength cylinder and s set of hydraulic value control the drilling tower up and down .The operation saves of time and labor , safety and reliable ,to create the maximize benefits for users


Water well drilling rig Spare parts--BW mud pump and air compressor

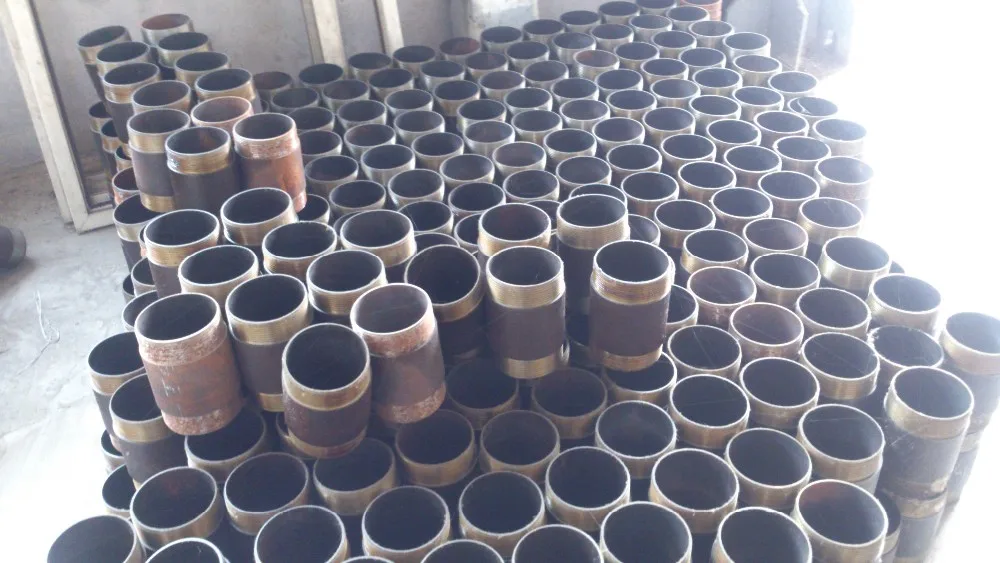

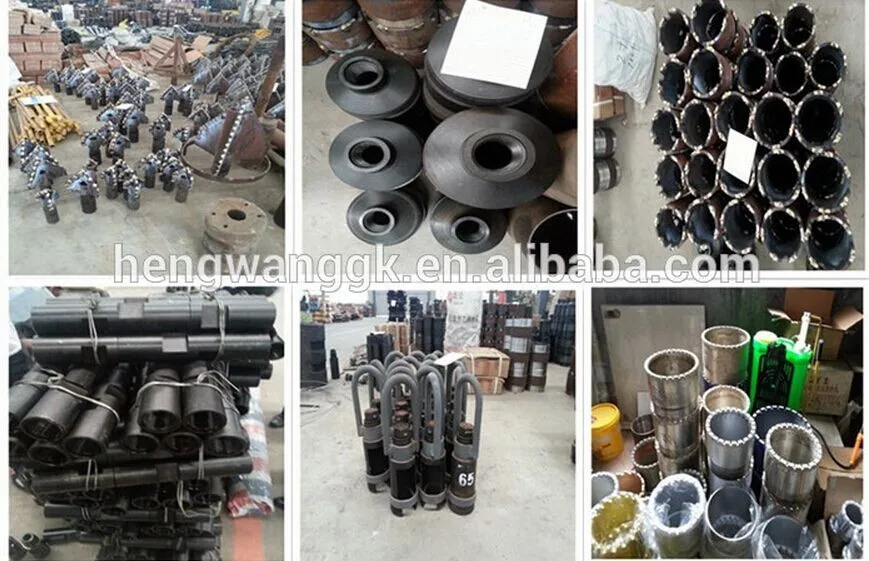

Water well drilling rig Spare parts--Driling rig , drill bit and others   :

Packing & Delivery

Hydraulic and air water well drilling rig

Certifications

Hydraulic and air water well drilling rig

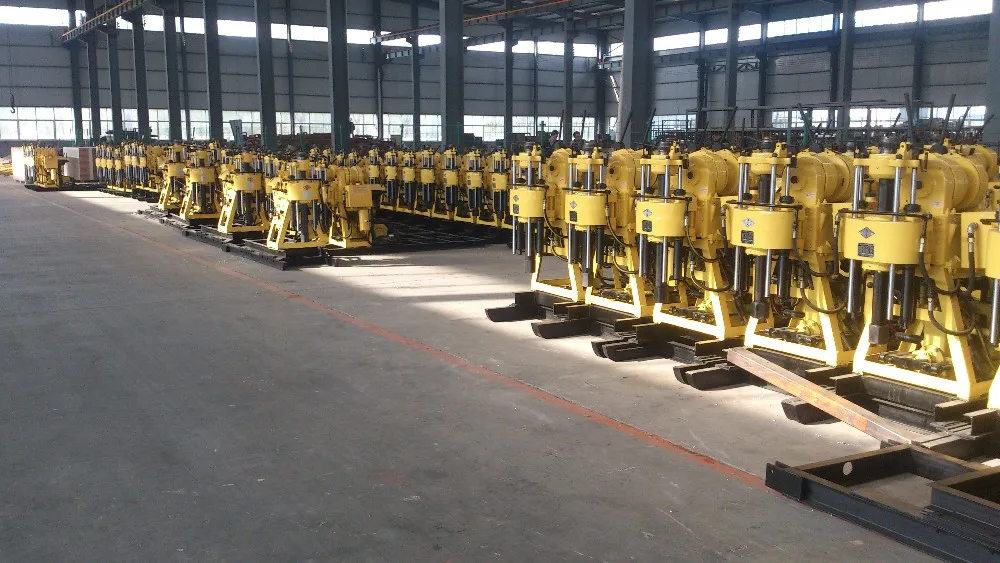

Our Company

Hydraulic and air water well drilling rig

Contact person

Sales Manager : Sally

Telephone number : 0086-537-2882968
Mobile number : +008613608916725
Whatsapp :+8613608916725
Wechat : 008613608916725
Skype : 8613608916725
E-mail : hw018@ hengwanggk.com
