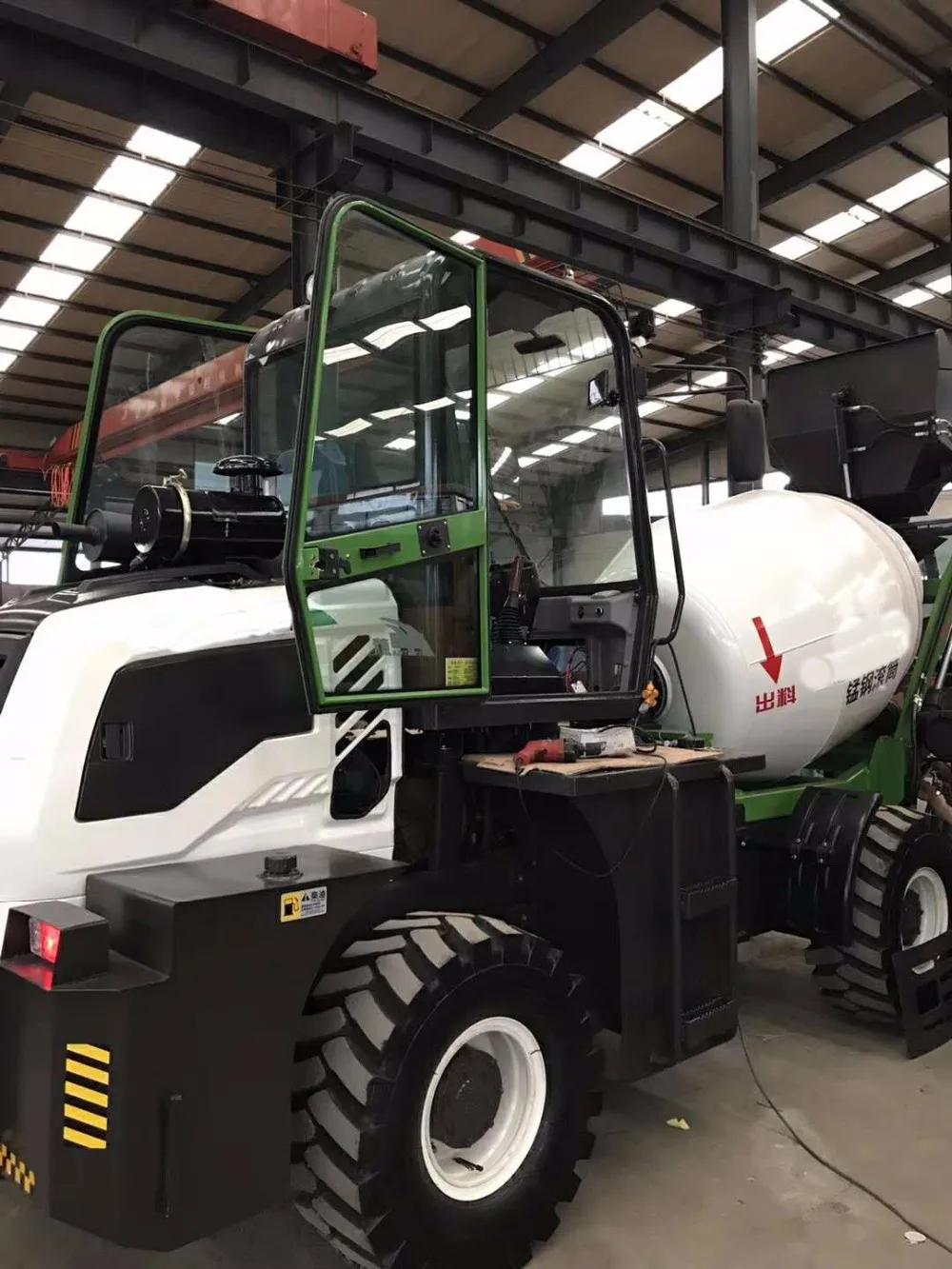

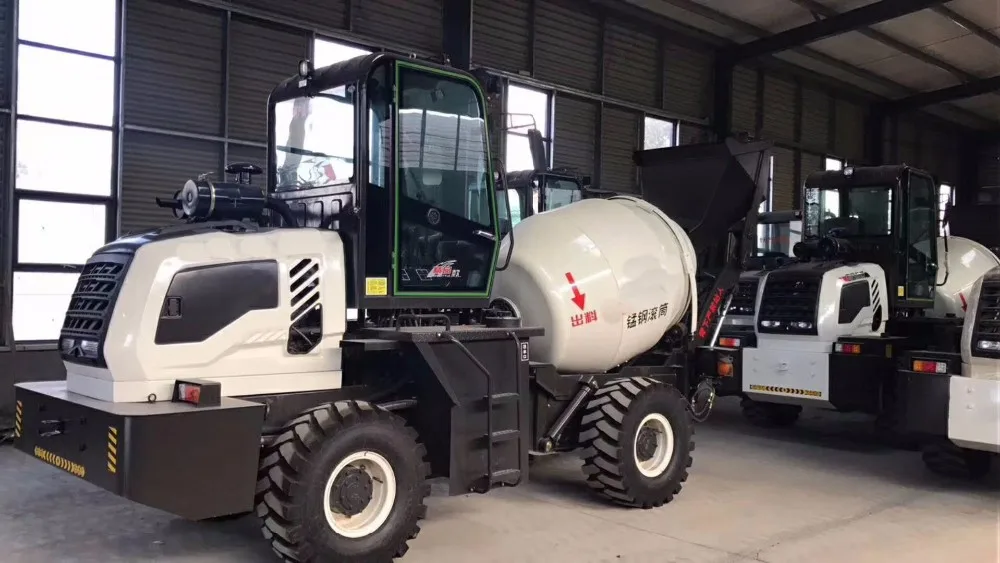

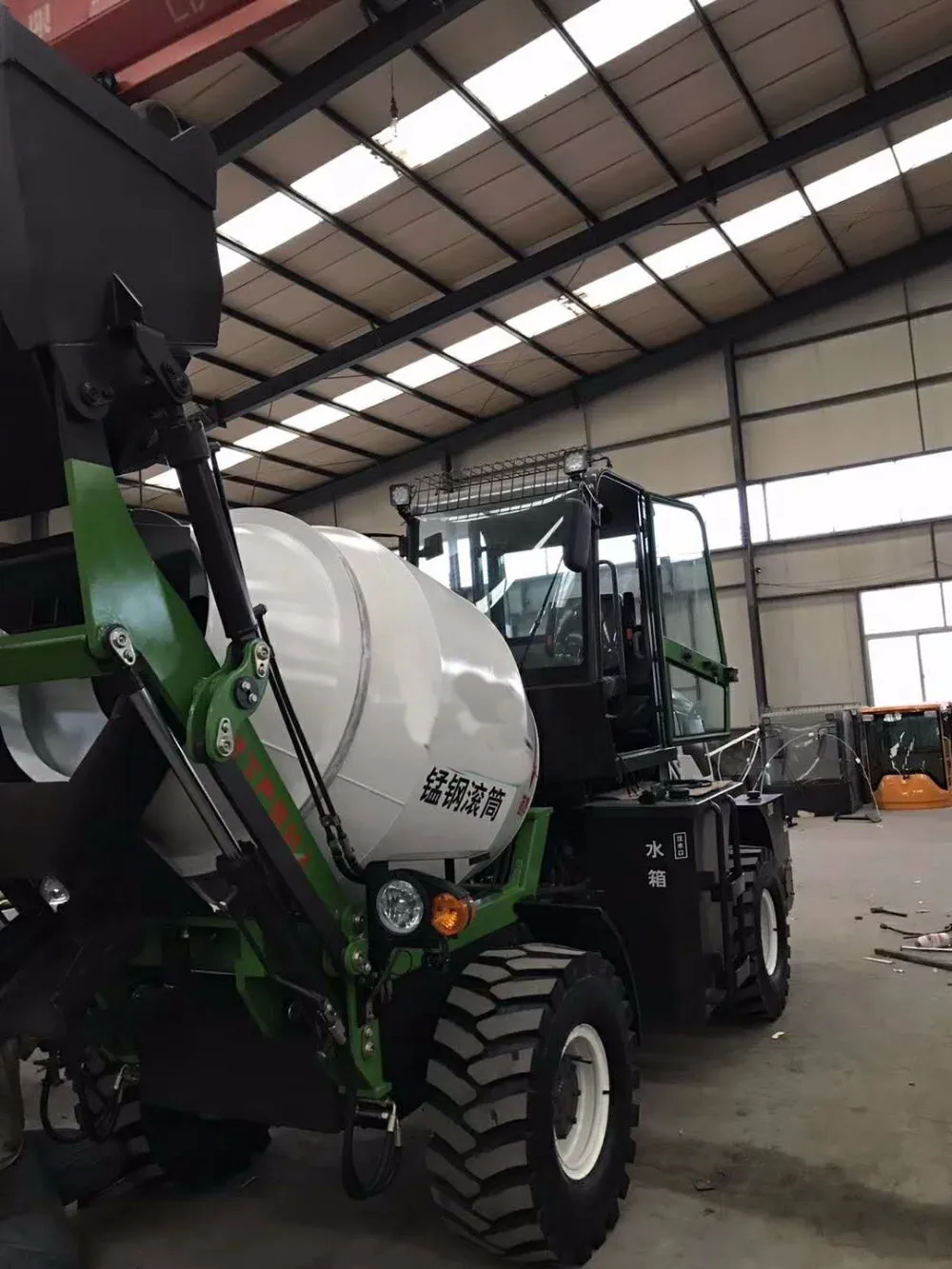

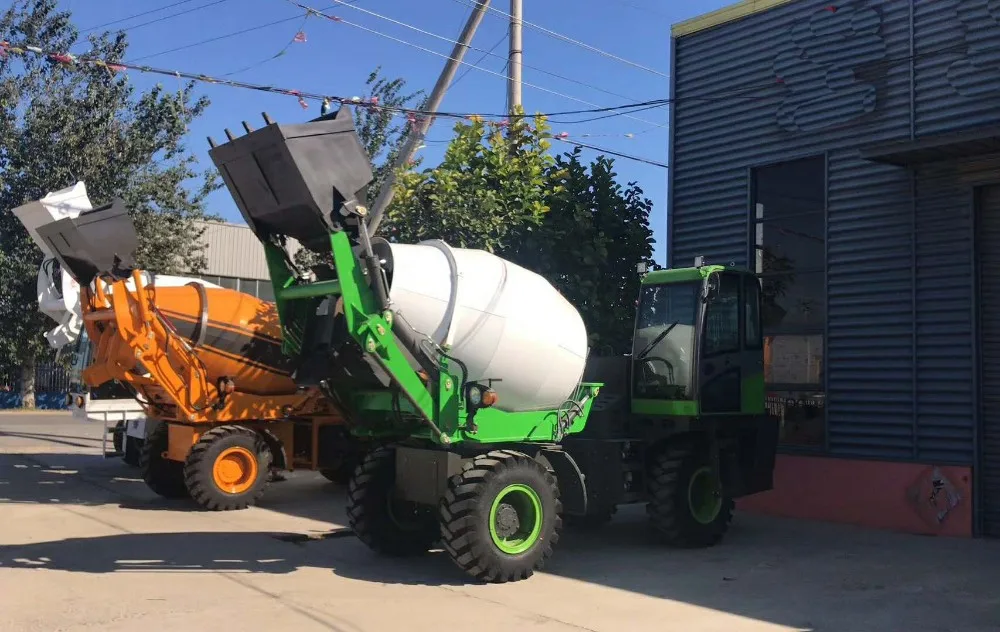

Self loading rc concrete mixer truck

Click on the image to view the original image

Product：	views：3Self loading rc concrete mixer truck
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:48

Product Details

Overview

Quick Details

Charging Capacity:: 600L

Reclaiming capacity:: 750L

Mixing Power:: 78KW/2400r/min

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Motor Power:: 2.2kw

Speed of Mixing Drum:: 10-20r/min

Water Supply Mode:: Automatic

Working Cycle Period:: 30s-40s

Discharge Way:: Auto Hydraulic

Outline Dimension:: 6100*1850*3000

Product name:: Concrete mixer truck

Charging capacity:: 1.2m3

Discharge Way::: anticlockwise

Pump Model:: CBGV-4025

max.travelling speed:: 24kw/h

max.torque:: 380/1500-1800N.m/r/min

Slump of concrete:: 70-260mm

water tank capacity:: 540L

Motor Model:: BM5-400

Reduction gear ratio:: 1:34

After-sales Service Provided:: No overseas service provided

Supply Ability

Supply Ability:: 50 Set/Sets per Month

Packaging & Delivery

Packaging Details: Standard export package or as your requirement for concrete mixer truck

Port: Qingdao Dalian Tianjin Shanghai

Lead Time:

Quantity(Sets)	1 - 20	>20
Est. Time(days)	10	To be negotiated

Product Description

Concrete Mixer truck

1.2m3 cheap price of small mini mixer machine self loading concrete mixer is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.

SPECIFICATIONS FOR CONCRETE MIXER TRUCK
Actual mixing volume	1.2m³	Drove type	4X4
Geometrical capacity	1.4m³	Operating weight	4580kg
Angle of inclination	16^o	Max.loading weight	2800kg
Rotaring speed	0-14 r/min	Max.total weight	7380kg
Mixing drum blade	Two sets of spiral blades.and	Overall dimensions	610018503000mm
Slump of concrete	70-260mm	Gradeability	26%
Pump Model	CBGV-4025	Tire	23.5/70-16
Motor Model	BMSS-250	Minimum turning radius	5000mm
Reduction gear ratio	1:10	Rated power	55KW/2400 78KW/2400KW/min
