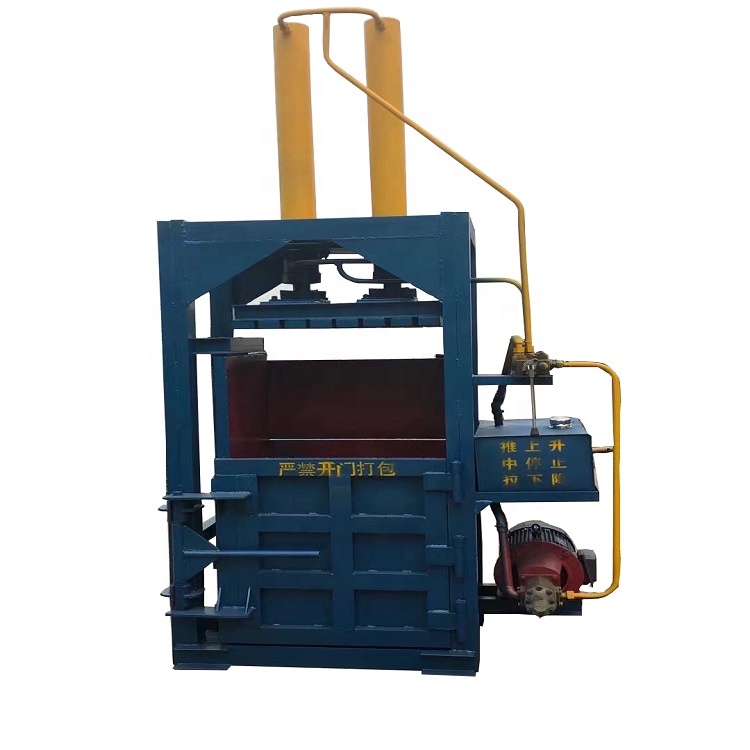

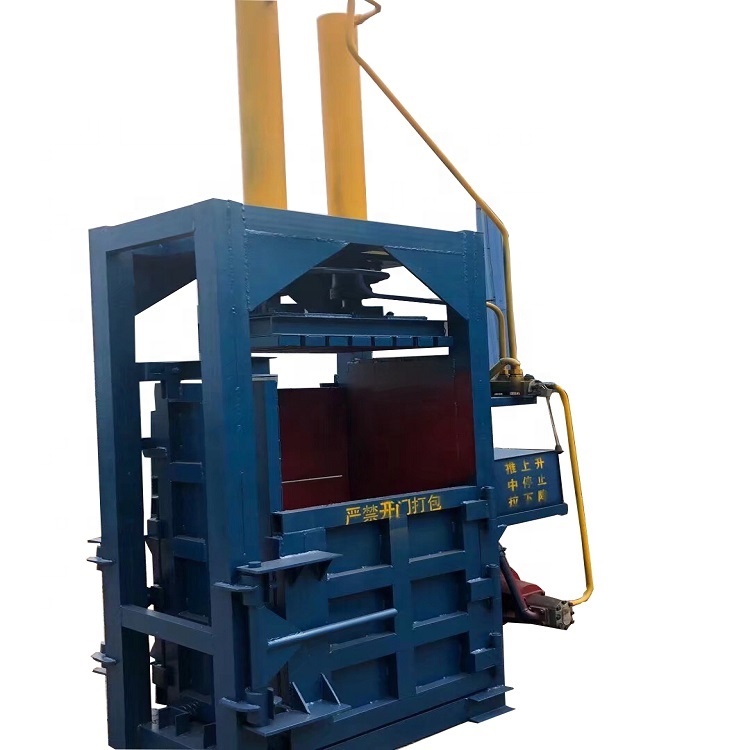

Hydraulic baling press machine

Click on the image to view the original image

Product：	views：3Hydraulic baling press machine
Branch：	HW
Type：	Other, Other
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:48

Product Details

Overview

Quick Details

After-sales Service Provided:: Engineers available to service machinery overseas

Application:: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles

Packaging Material:: Plastic, Paper, Metal, Glass, Wood

Type:: Other, Other

Condition:: New

Packaging Type:: Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, Case

Automatic Grade:: Automatic

Driven Type:: Hydraulic

Voltage:: 220v/380v

Power:: 4KW

Place of Origin:: Shandong, China

Brand Name:: HW

Weight:: 800KG

Dimension(L*W*H):: 800*400*800mm

Certification:: ISO

Product name:: Hydraulic baling press machine

Package Size:: 110*80*100cm

delivery:: within 3 days to qingdao port

stock:: in stock

color:: green or blue

Capacity:: 8-10/h

Bale size:: 1100*700 mm

Delivery Detail:: within 5 days

Supply Ability

Supply Ability:: 1000 Set/Sets per Week

Packaging & Delivery

Packaging Details: Wooden case

Port: Qingdao Shanghai

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Introduction of product

(1)This packing machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.

(2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6

pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.

(3)Also, we can produce the machine according to the requirement from customer.

a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy

b.Electric button control, it can reaches manual adjusting and semi automatic control

c. Independent feeding opening with automatic pulling out installation, to reduce labor force.

d.It can be made according to the demands of customers

Product Parameter

Model	Force	Bale size	Bale weight	Efficiency	Power (KW)	Machine weight	Size (mm)
HW10-6040	10 Ton	600*400 mm	30-50 KG	4-6 bale/hour	2.2	1000 KG	9006502100
HW20-8060	20 Ton	800*600 mm	80-100 KG	4-6 bale/hour	4	1100 KG	10007502750
HW30-8060	30 Ton	800*600 mm	100-130 KG	4-6 bale/hour	5.5	1300 KG	10007502750
HW30-11070	30 Ton	1100*700 mm	130-150KG	4-6 bale/hour	5.5	1700 KG	13508503200
HW40-11070	40 Ton	1100*700 mm	180-200KG	4-6 bale/hour	7.5	1800 KG	13508503200
HW40-12080	40 Ton	1200*780 mm	200-240KG	4-6 bale/hour	7.5	2050 KG	160010503300
HW50-12080	50 Ton	1200*800 mm	320-350KG	4-6 bale/hour	7.5 or 11	2600 KG	160010503300
HW60-12080	60 Ton	1200*800 mm	380-420KG	4-6 bale/hour	11 or 15	2900 KG	160010503300
HW80-12080	80TON	1200*800 mm	450-480KG	4-6 bale/hour	15	3300 KG	160010503300
HW100-12080	100TON	1200*800 mm	500-550KG	4-6 bale/hour	15	3700KG	160010503300
HW120-150100	120TON	1500*1000 mm	650-700KG	4-6 bale/hour	15 or 18.5	4300KG	210015503300
HW150-150100	150TON	1500*1000 mm	850-900KG	4-6 bale/hour	18.5	5100KG	210015503300
