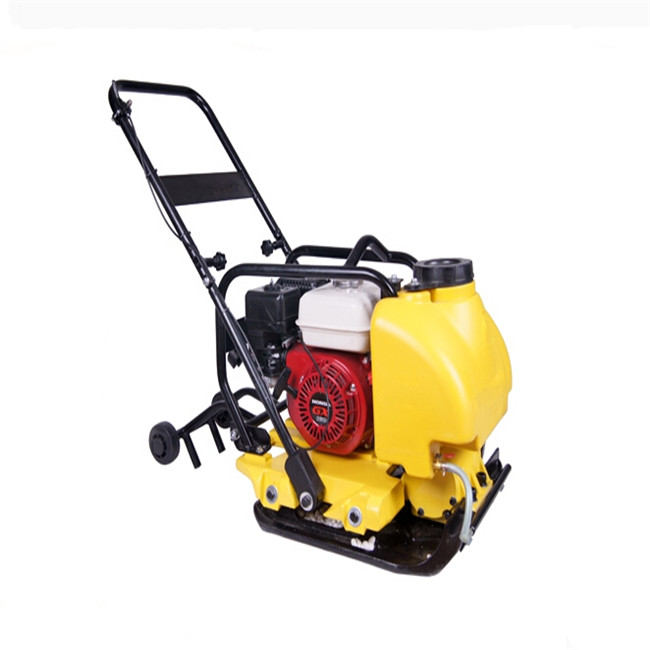

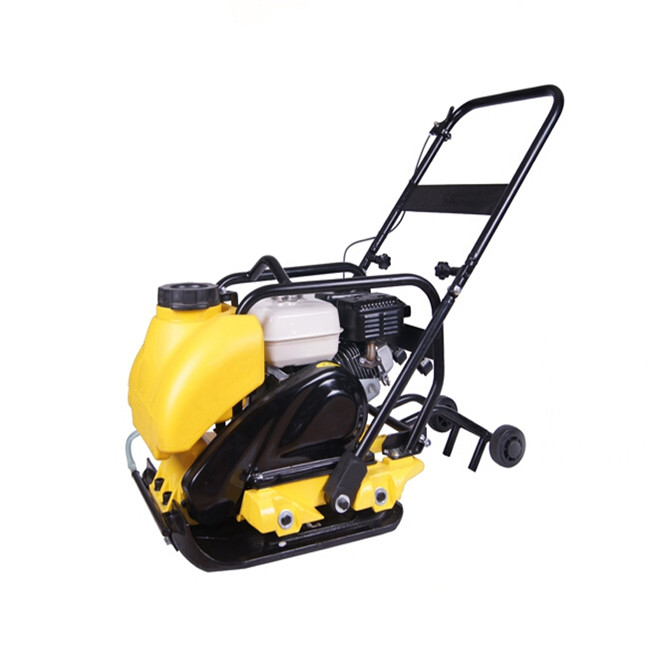

HW-90 Cheap mini plate compactor for road machine

Click on the image to view the original image

Product：	views：3HW-90 Cheap mini plate compactor for road machine
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:49

Product Details

Overview

Quick Details

Power(W):: 5.5KW

Dimension(L*W*H):: 0.4CBM

Warranty:: ONE YEAR

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Condition:: New

Application:: Road machine

Power Type:: Gasoline

Brand Name:: HW

Place of Origin:: China

Certification:: ISO

Name:: Gasoline Reversible Vibrating Plate compactor

Engine:: gasoline /electric

Color:: yellow

Plate Size:: 90

Supply Ability

Supply Ability:: 6000 Set/Sets per Month plate compactor

Packaging & Delivery

Packaging Details: plate compactorpacking within wooden case

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 5	6 - 12	>12
Est. Time(days)	1	3	To be negotiated

Product Description

Strong power gasoline /electric plate compactor for road

It is divided into internal combustion type and electric vibration plate. The vibration plate is mainly used for the bonding between compacted particles and materials with less friction, such as river sand, gravel and asphalt. The main working parameters of the vibrating plate are: the bottom area of the working plate, the mass of the whole machine, the exciting force and the excitation frequency. Under normal circumstances, the floor area of the same type of flat plate is similar, so the performance of the flat impact cymbal is mainly affected by the quality of the whole machine, the exciting force and the excitation frequency. The exciting force is mainly used to maintain the forced vibration of the material to be compacted; and the excitation frequency affects the compaction efficiency and the degree of compaction. That is, under the same exciting force, the higher the excitation frequency, the higher the compaction efficiency and compactness. high.

The vibrating plate must maintain a certain jump height when the work jumps, generally between 0.4-0.8mm. When the vibrating plate reaches the same exciting force, the higher the operating frequency of the plate cymbal, the smaller the required vibration quality, and the lighter the overall quality. However, since most flatbeds use a gasoline engine as a power source, and a gasoline engine can withstand limited vibration, the higher the operating frequency, the higher the vibration isolation requirement, and the higher the technical requirements for each component.
