Shandong Hengwang Group Co., Ltd.

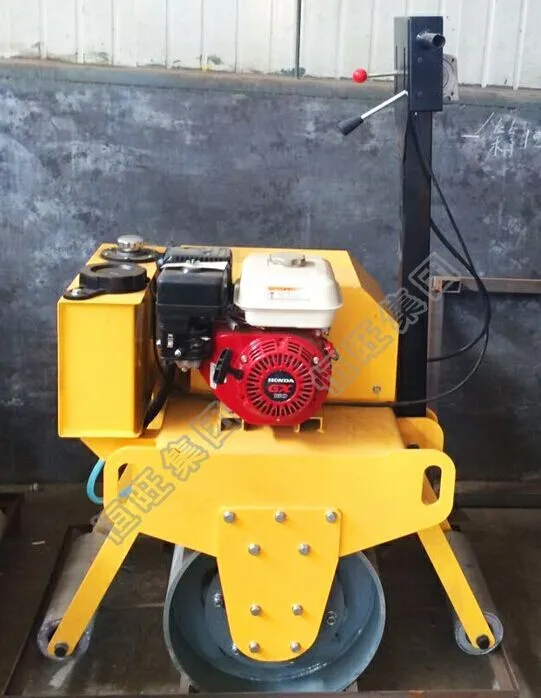

Walk-behind single wheel diesel road roller HW-YL600C

Model:HW-YL600C     Walking speed: 0-4km/h
Stering radius :30%      Nominal amplitude:0.5mm
Vibration frequency:75HZ         Vibration force:20kN
Water tank capacity:20L    Drive:Hydraulic pump and motor
Engine model:Honda     Engine: air cooling 4 stroke
Power4.0hp/3600rpm      Fuel tank capacity:2.5L
Fuel consumption:280g/kwh        Width of the steel wheel:600mm
Steel wheel diameter:450mm     length about armrest flat:1650mm
Width:800mm Height about   Arm stand:1300mm
Packing size:1160x900x1100mm      Work weight:350kg

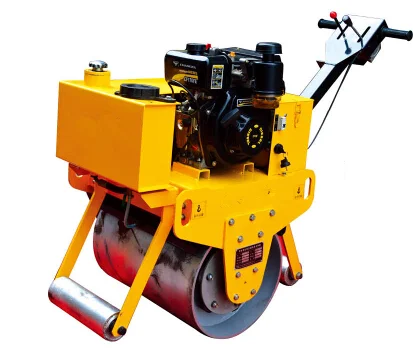

Walk-behind single wheel diesel road roller HW-YL700

Model:HW-YL700C                 Walking speed: 0-4km/h
Steering radius :30%              Nominal amplitude:0.5mm
Vibration frequency:75HZ  Vibration force:20kN
Water tank capacity:20L  Drive:Hydraulic pump and motor
Engine model:CF178  Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm  Fuel tank capacity:3.5L
Fuel consumption:280g/kwh  Width of the steel wheel:700mm
Steel wheel diameter:450mm            length about armrest flat:1900mm
Width:800mm Height about    Arm stand:1400mm
Packing size:1160x900x1100mm  Work weight:520kg

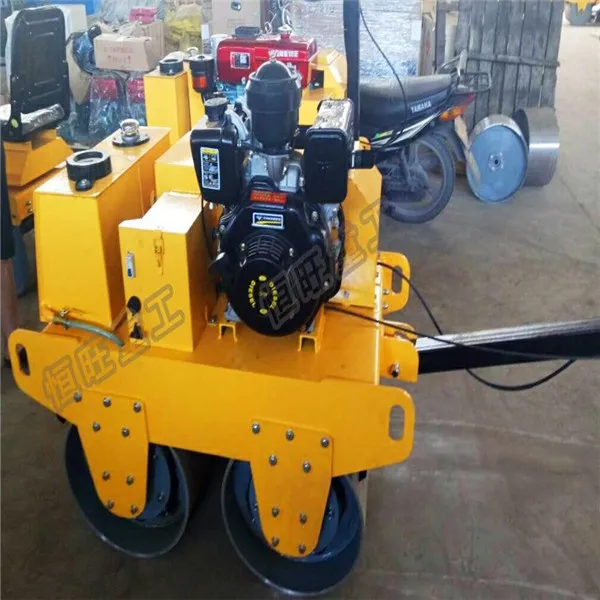

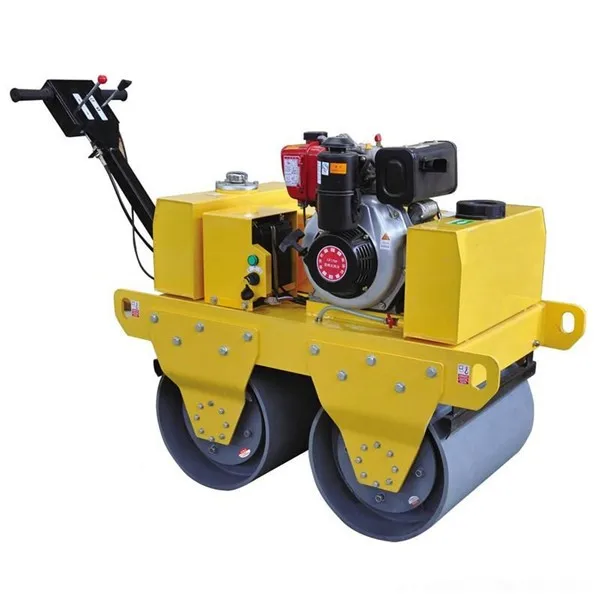

Walk-behind double wheel diesel road roller HW-YLS600B

Vibration frequency:75HZ  Vibration force:20KN
Water tank capacity:20L  Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178F  Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:3.5L
Fuel consumption:280g/kwh Width of the steel wheel:600mm
Steel wheel diameter:450mm length about armrest flat:2450mm
Width:750mm Height about Arm stand:1800mm
Packing size:1460x810x1230mm Work weight:530kg

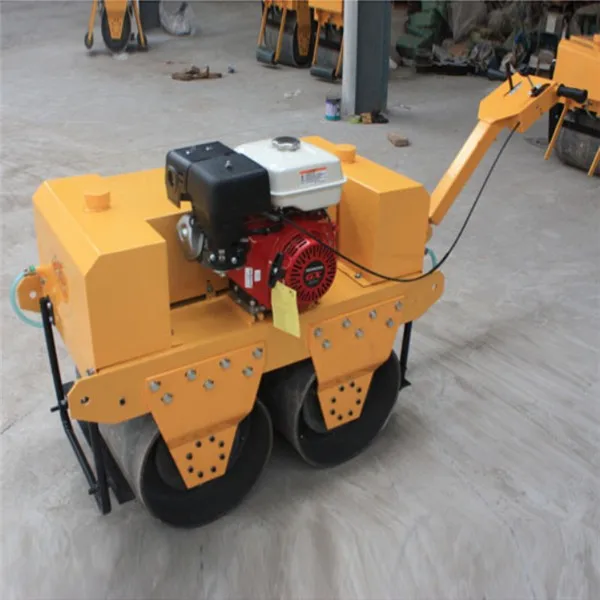

Walk-behind double wheel gasoline road roller HW-YLS600

Vibration frequency:75HZ Vibration force:30KN
Water tank capacity:30L Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:GX270 Engine: Petrol engine, air cooling 4 stroke
Power4.0hp/3600rpm Fuel tank capacity:6L
Fuel consumption:280g/kwh Width of the steel wheel:600mm
Steel wheel diameter:450mm length about armrest flat:2450mm
Width:750mm Height about Arm stand:1800mm
Packing size:1460X810X1230mm Work weight:520kg

Walk-behind double wheel diesel road roller HW-YLS700A

Vibration frequency:70HZ Vibration force:20KN
Water tank capacity:30L Drive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180F Engine: Diesel engine, air cooling 4 stroke
Power 7hp/3600rpm Fuel tank capacity:3.5L
Fuel consumption:280g/kwh Width of the steel wheel:700mm
Steel wheel diameter:350mm length about armrest flat:2460mm
Width:850mm Height about Arm stand:1800mm
Packing size:1460x910x1230mm Work weight:570kg

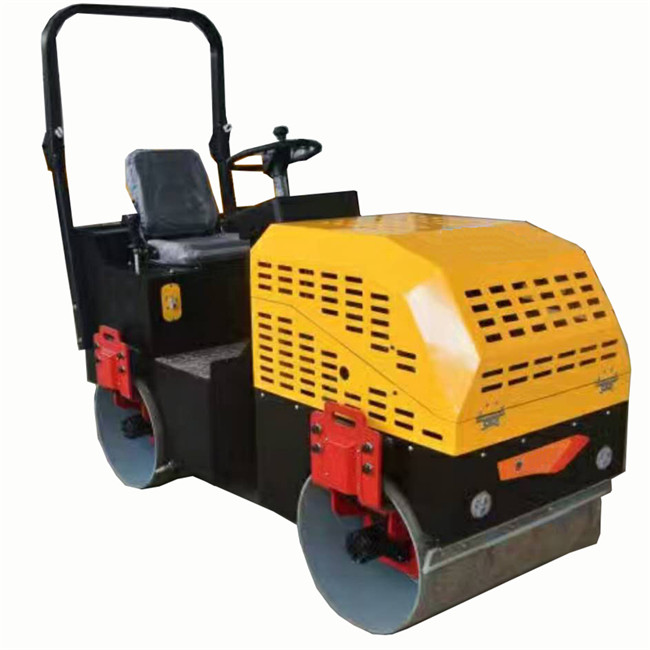

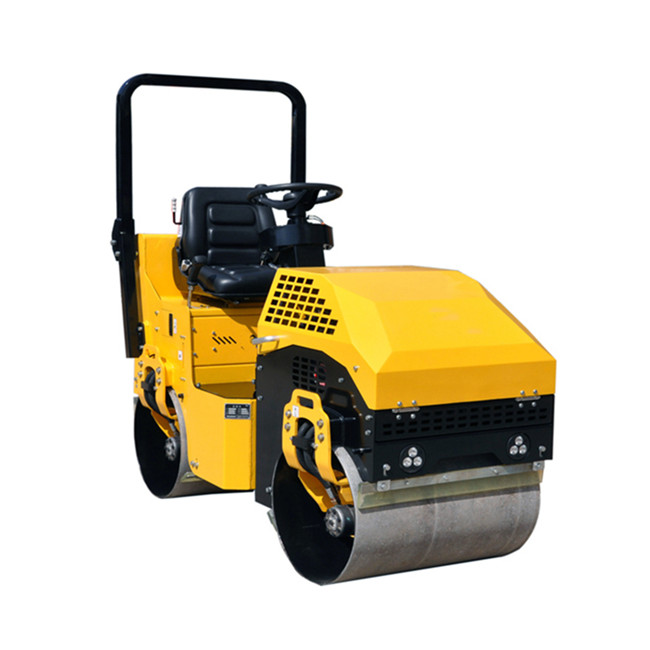

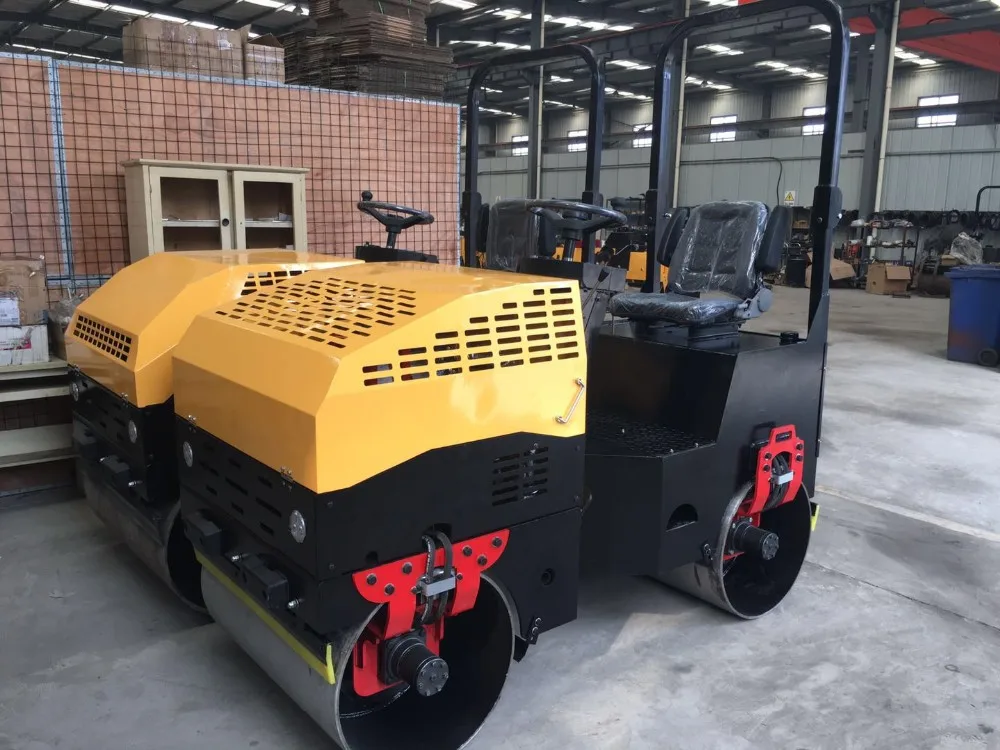

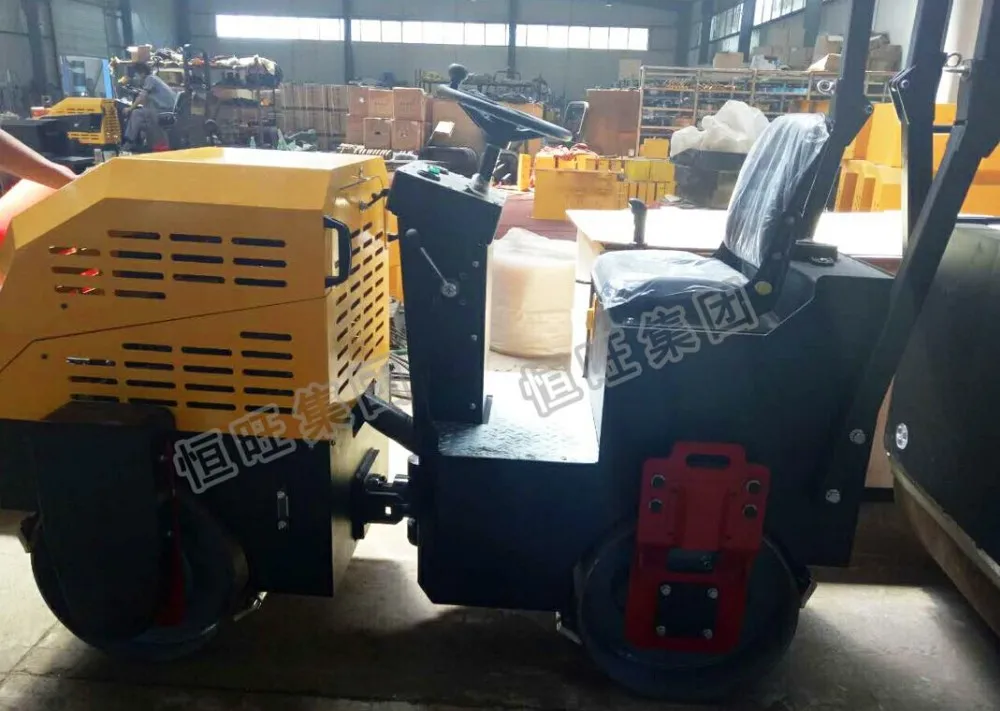

Ride on diesel road roller one ton HW-JSY900A

Net weight1000kg Water tank capacity of 60L
Outside turning radius (m) 2.4
Forward / backward speed m / min 0-100
Climbing ability 30% Vibration Hertz HZ (vpm) 60 (3600)
Excitation force KN 30 Engine Changchai engine
Engine type four-stroke, three-cylinder, water-cooled
Engine Model 3M78 Rated power (Hp) 24
Displacement L 0.487 Engine speed at full load rpm 3600
Engine speed at idle rpm 2900 Battery Pack V 12VDC
Air Filter Type G042544 (Donaldson) Fuel type diesel
Fuel tank volume 30L Fuel consumption L / HR. 3
