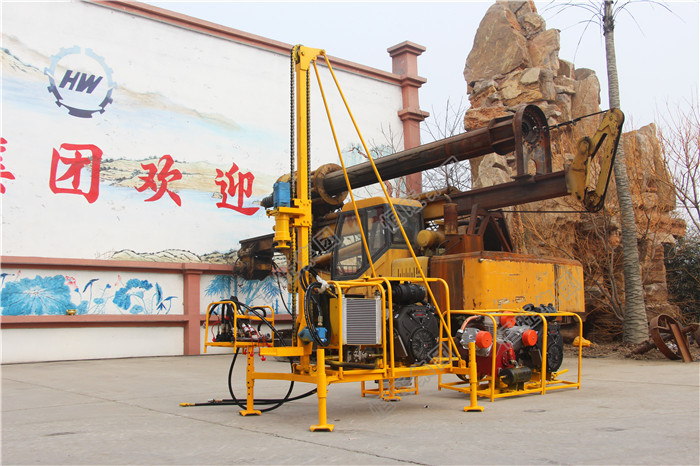

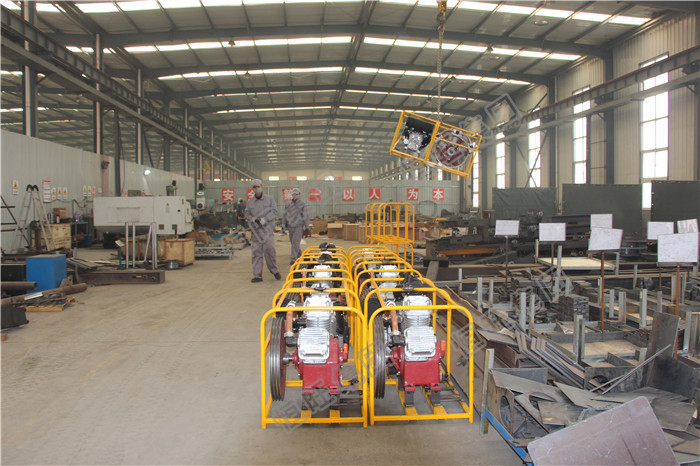

Introduction of drilling rig
Water well and oil exploration drilling rig using different media, this exploration drilling rig can achieve different drilling methods, such as mud drilling, air drilling, air hammer drilling and so on, and adapt to different stratum environment. Drilling mud can reach a depth of 30 meters, while air drilling or air hammer drilling can reach a depth of 15 meters.
The main parts include assembling drawworks, winches, gearboxes, revolving, pulleys, powertrain, and different configurations, such as mud drilling, air hammer drilling and air drilling.
Drive gear box, easy to operate and repair, low labor intensity. On the basis of the drilling engine, the drilling rig is easy to move and drill. The self-help winch can improve the drill rod and drill. The man pulled down.
A 9 HP diesel engine or a 9 HP gasoline engine provides a power rig. The engine adopts the method of stepless speed regulation. So it is unnecessary to stop or start the engine often in drilling. The performance is good, the efficiency is high, the labor intensity is low. The water well and oil exploration drilling rig meets the safety requirements.
Parameter
| Model | HW600 | |
| Drilling depth | 30-60m | |
| Drilling method | Air shock drilling | |
| Spiral drilling and mud drilling (alternative) | ||
| Borehole diameter | Air shock drilling(mm) | Lithostratigraphy70-90 Loose stratum75-95 |
| Mud drilling(mm) | 75-90 | |
| Drill pipe(Diameter× length) | Air shock drilling(mm) | ∅60×1500 |
| Mud drilling(mm) | ||
| Power head | Rated torque(N.m) | 800-900 |
| Drilling speed range(r/min) | 0-135 | |
| Drilling machine pressure and lifting function | Feed pressure(N) | 5500-6000 |
| Lifting force of drilling tools(KN) | 12-16 | |
| Maximum lifting speed of drill tools(m/s) | 0.71-0.81 | |
| Engine power (kw) | 20/3600 | |
| Hydraulic system | Flow(L/min) | 0-60 |
| Working pressure(Mpa) | 20 | |
| Air compressor unit | Model / configuration number | Fuel injection screw type/a set |
| Air volume(m3/min) | 3.8 | |
| Working pressure(Mpa) | 0.8 | |
| Engine power(kw)/Drilling speed(r/min) | 26/3600 | |
