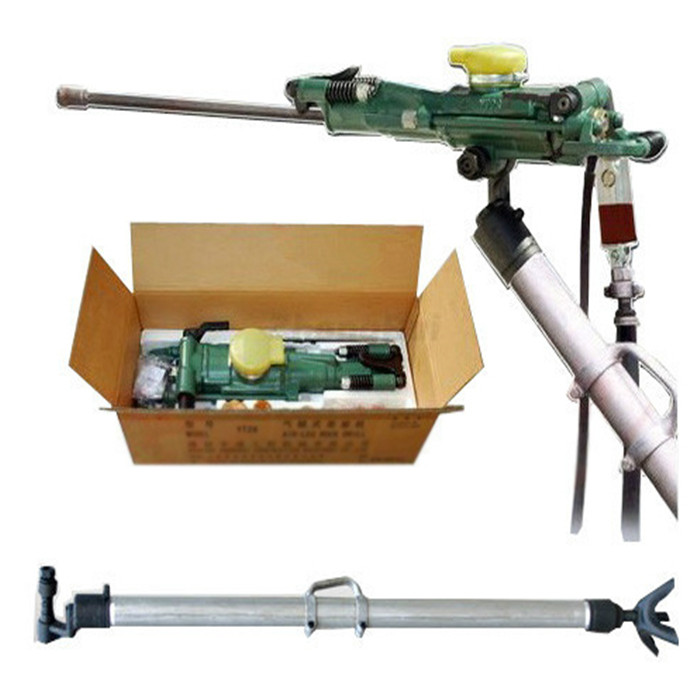

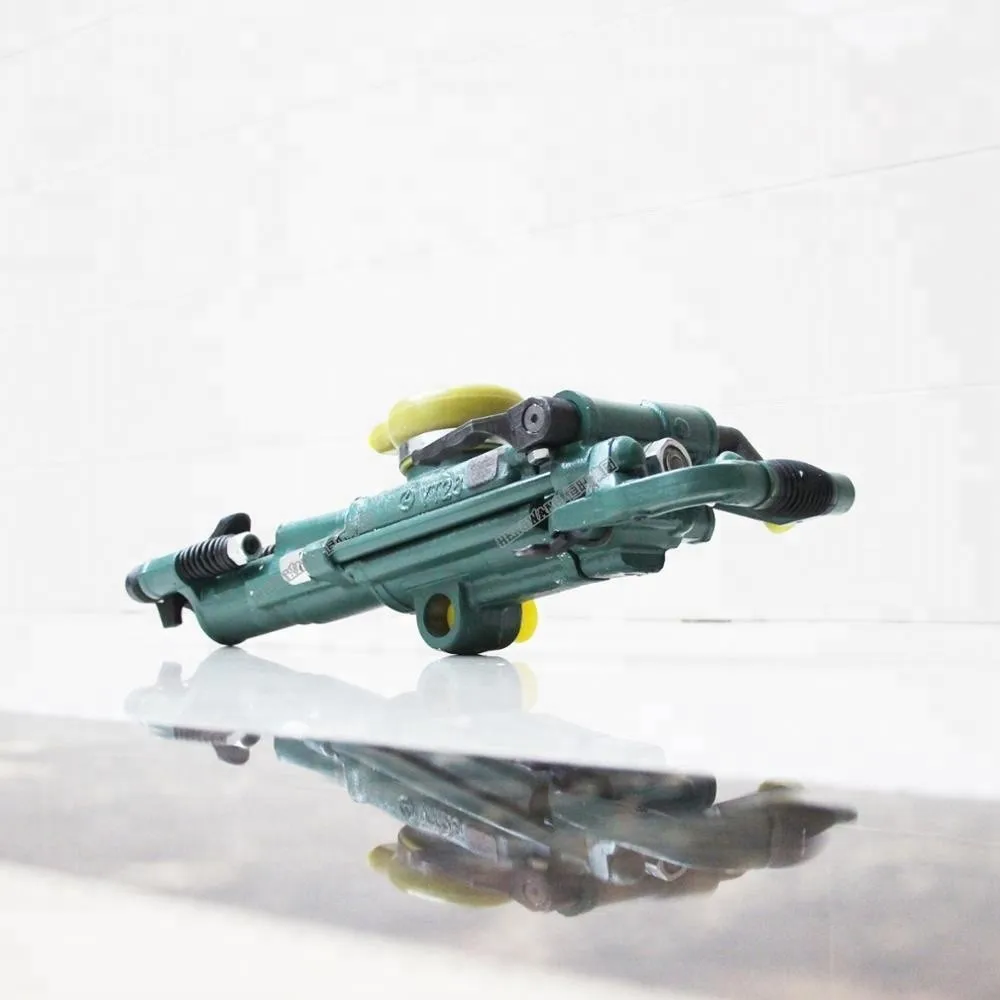

Pusher leg pneumatic rock drill bits for hard rock
Click on the image to view the original image
Product： views：3Pusher leg pneumatic rock drill bits for hard rock
Branch： HW
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:49
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Rock drill
Voltage:
220V/380V
Dimension(L*W*H):
76*32*26cm
Weight:
28kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Name::
Pneumatic rock drill machine
Drilling Depth::
5m
Drilling Hole Dia::
34-42MM
Water pipe inner Dia::
13MM
Air pipe inner Dia::
25MM
Drilling Frequency::
≥40HZ
Air consumption::
≤82L/S
Air pressure::
0.63Mpa
Cylinder Dia::
80mm
Supply Ability
Supply Ability:
100 Unit/Units per Week
Packaging & Delivery

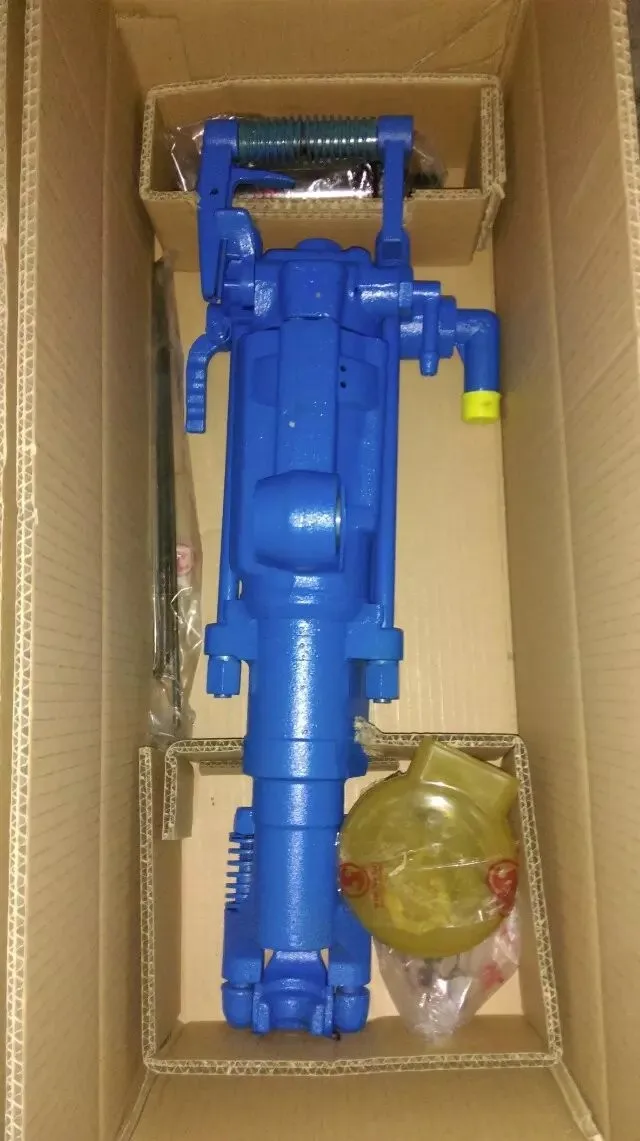

Packaging Details
Standard exported wooden case
Port
Qingdao,Shanghai or Tianjin Port
Lead Time:
Quantity(Units)1 - 100 >100
Est. Time(days)7To be negotiated
Product Description

Rock Drill Feathures:

1.The rock drill isa kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

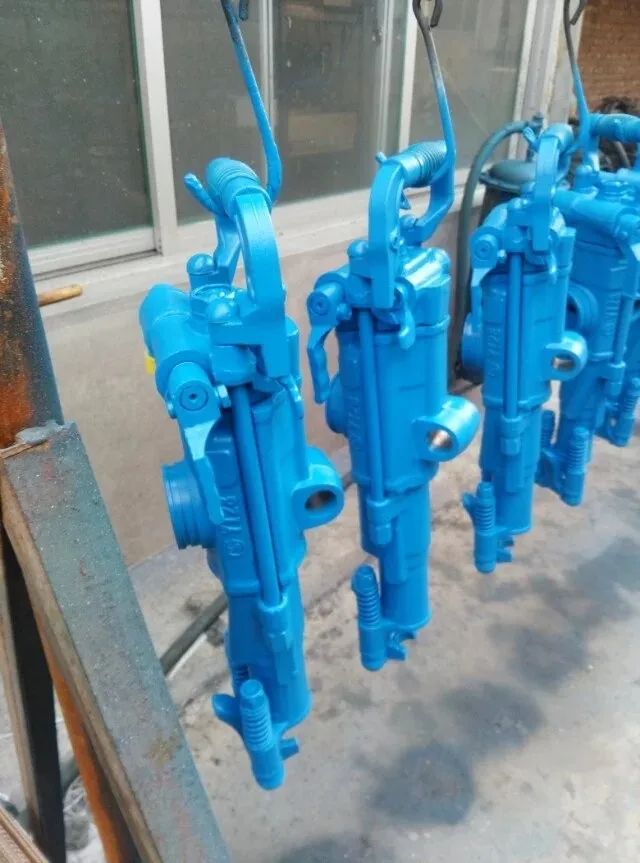

SPECIFICATIONS FOR YT28 ROCK DRILL
Type
YT28
Weight
26 (Kg)
Length
661(mm)
Cylinder dia
φ80 (mm)
Piston stroke
60 (mm)
Working pressure
0.4~0.5 (Mpa)
Impact energy
≥60.2 (J)
Impact frequency
≥37 (Hz)
Air consumption
≤81 (L/s)
Working water pressure
0.2~0.3 (Mpa)
Air pipe inner dia
φ25 (mm)
Water pipe inner dia
φ13 (mm)
Rock drill hole dia
φ34~φ42 (mm)
Rock drill hole depth
5 (m)
Shank size
22×108 (mm)

YT28 Rock Drill Application:

It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.
