Home > Products > yt28 air leg hand held pneumatic drilling machine

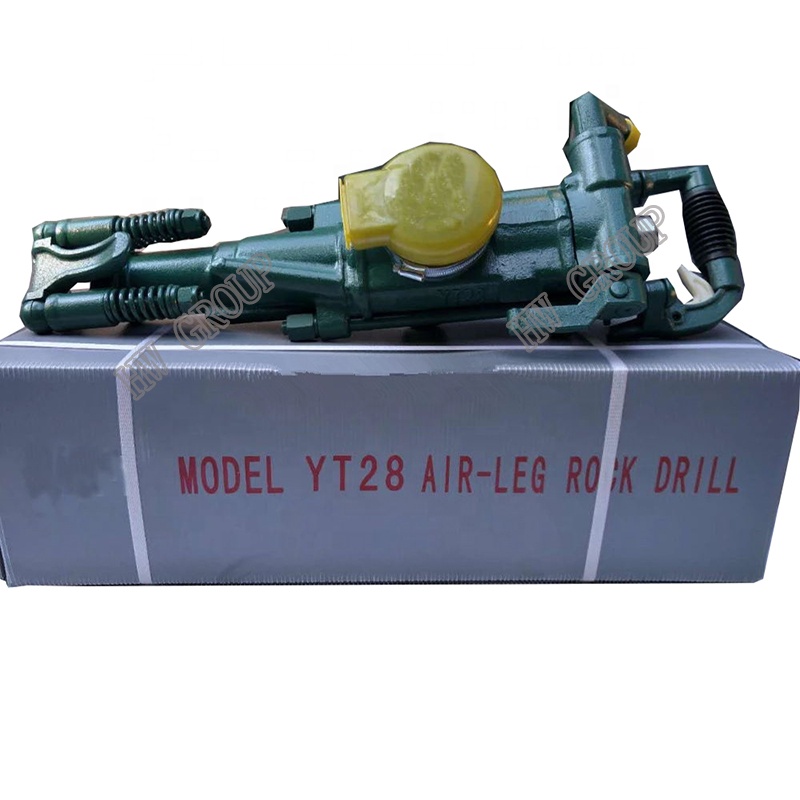

yt28 air leg hand held pneumatic drilling machine
Click on the image to view the original image
Product： views：3yt28 air leg hand held pneumatic drilling machine
Branch： HW
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:49
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
drive by air compressor
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Coal
Voltage:
220V/380V
Dimension(L*W*H):
670*240* 210mm
Weight:
28kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
name:
yt28 air leg hand held pneumatic drilling machine
Application:
hard rock drill
Drilling depth::
5m
Air pressure::
0.4-0.63Mpa
Air pipe diameter:
25mm
Bit diameter::
34-42mm
Shank dimension:
22*108mm
Length::
661mm
Cylinder*stroke::
80mm*60mm
Impact energy::
>=70J
Supply Ability
Supply Ability:
50000 Set/Sets per Month yt28 air leg hand held pneumatic drilling machine
Packaging & Delivery
Packaging Details
standard wooden box for yt28 air leg hand held pneumatic drilling machine
Port
Qingdao port
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)7To be negotiated
Product Description

yt28 air leg hand held pneumatic drilling machine

Pneumatic drilling machine widely used for mining, roadway driving and various rock drilling operations. Air leg pneumatic rock drill machineis is an important tool in metallurgical, coal, railway, transportation, water conservancy, infrastructure and national defense stone works. Pneumatic drilling machine is suitable for wet drilling of medium hard and hard rock. The diameter of the muzzle is 34-42mm and the drilling depth can reach 5m.Yt seriespneumatic rock drill may match with FT160BD short air leg of FT160BC long air leg.


yt28 air leg hand held pneumatic drilling machine structure features:

Pneumatic drilling machine adopts bowl with valve distribution form, reasonable structure, flexible. With light weight, high drilling speed, low gas consumption, small vibration, easy to operate, low failure rate and long life of parts, as well as good economic benefit.

                                         Specification for YT series pneumatic rock drilling machine with air leg
Model
YT28
YT27
YT29A
YT24C
TY24
Weight
26kgs
27kgs
26.5kgs
24kgs
24kgs
Length
661mm
668mm
659mm
628mm
678mm
Air pressure
0.4-0.63Mpa
0.4-0.63Mpa
0.4-0.63Mpa
0.4-0.63Mpa
0.4-0.63Mpa
Impact frequency
≧37HZ
≧39HZ
≧39HZ
≧37HZ
≧31HZ
Air consumption
≦81L/s
≦86L/s
≦88L/s
≦80L/s
≦67L/s
Impact energy
≧70J
≧75J
≧78J
≧65J
≧65J
Cylinder*stroke
80mm*60mm
80mm*60mm
82mm*60mm
76mm*60mm
70mm*70mm
Air pipe diameter
25mm
19mm
25mm
25mm
19mm
Shank dimension
22*108mm
22*108mm
22*108mm
22*108mm
22*108mm
Drilling depth
5m
5m
5m
5m
5m
Bit diameter
34-42mm
34-45mm
34-45mm
34-42mm
34-42mm
Detailed Images

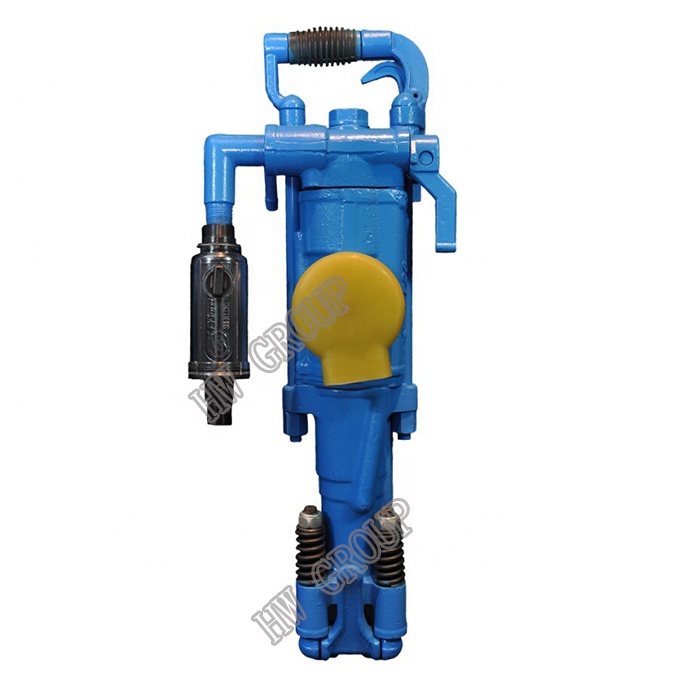

 Pneumatic drilling machine

This air leg pneumatic rock drill machine can use tapered chisel bits/ Tapered cross bits/Tapered button bits, the diameters such as 32mm, 34mm,36mm, 38mm,40mm, 42mm.

Pneumatic drilling machine

B22 drill rod for air leg pneumatic rock drill machine ,the length can be customized as your demand.

Pneumatic drilling machine

This pneumatic rock drill machine can match with FT160BD short air leg of FT160BC long air leg.

Pneumatic drilling machine

Some spare parts will send to you with the pneumatic rock drill machine together,this just for free.

Packing & Delivery

Packing for pneumatic drilling machine:

We will send theair leg pneumatic rock drill machine picture which you have orderd, then packing it with standard export wooden box after you have confirmed the machine is ok .

Different machines" package will be different. We usually supply export wooden box ,carton box package. If it is a big machine and production line machine , it will be loaded in the container directly .

Delivery for pneumatic drilling machine:

1. Delivery by sea :After it was delivered to the seaport . We will tell you the shipping time and arrival time . Finally, we"ll send you all original documents by Express for free .

2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport . We will tell you the Express tracking number .

3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .

Related Products
History deal
Our Company

Shandong Hengwang Group Co.,Ltd

Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of pneumatic drilling machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.

FAQ

MOQ,Payment,Loading port,price term,OEM

1.Payment : I:100% T/T
                     II:30% advaced and the balance paid before delivery
                     III:credit letter at sight
2.MOQ:1Pcs
3.Port of loading: Qingdao Port or others
4.Price term:FOB Qingdao price
5.OEM:we are pleased to be your OEM factory
