Home > Products > Pneumatic water well drilling rig machine
Pneumatic water well drilling rig machine
Click on the image to view the original image
Product： views：3Pneumatic water well drilling rig machine
Branch： HW
Type： Pneumatic drilling rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:49
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Pneumatic drilling rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Usage:
Water Well
Voltage:
240V/380V
Dimension(L*W*H):
2.6*1.5*1.5m
Weight:
960kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Model:
HW-200
Drilling depth:
100-150m
Drilling angle from ground:
45o-90o
Electric motor power:
7.5-11kw
Diesel engine:
24HP
Supply Ability
Supply Ability:
20 Set/Sets per Week
Packaging & Delivery
Packaging Details
1. Wooden case and iron construction packing;
2. As per your requirements
3. Pneumatic well drilling rig wheel type drilling rig portable water well drilling rig
Port
Shanghai Qingdao Dalian Tianjin port
Lead Time:
Quantity(Sets)1 - 20 >20
Est. Time(days)10To be negotiated
Product Description

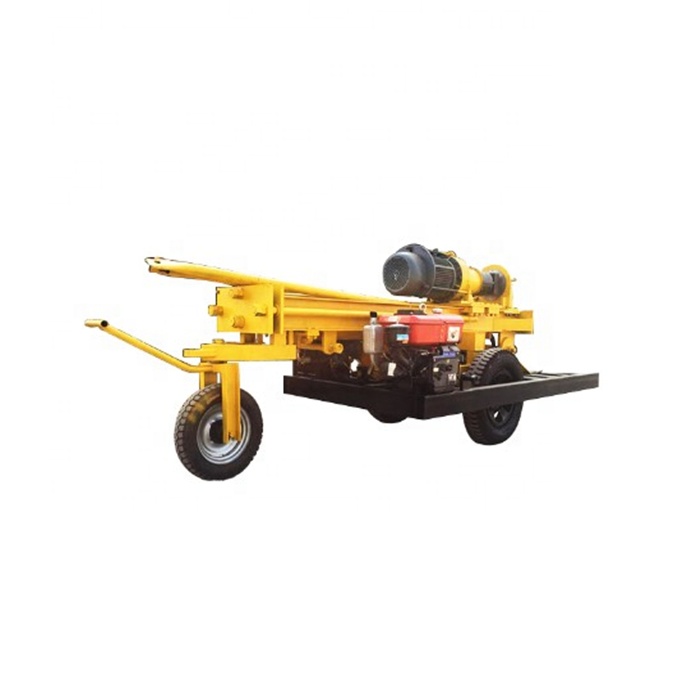

HW-200 Pneumatic drilling rig

small portable borehole drilling machines DTH water well drilling rig price, suitable for workers, civil drilling, geothermal drilling, with a large diameter drilling, deep drilling, mobile and flexible application of geographical advantages.

SPECIFICATIONS FOR HW-200 PNEUMATIC DRILLING RIG
Model
HW-200
Drilling depth
100-150m
Drilling angle from ground
45o-90o
Stroke per time
1500mm
Electric motor power
7.5-11kw
Diesel engine
24HP
Drilling head rotary speed
0-90 r/min
Air pressure
0.8-2.1 Mpa
Rotary torque
1650N.m
Propulsive force
13000N
Drilling speed
100m/day
Air consumption
12-21m3/min
Total weight
960kg
Size
2.6*1.5*1.5m

Main Features

1) Safe and stable crawler
2) Centralized control system
3) Easy-to-maintain hydraulic pumps
4) Safe and stable hose structure
5) Powerful and strong push and return system
6) Flexible operation of drill arm
7) Tertiary air purification to protect the protect the machine

Our Company

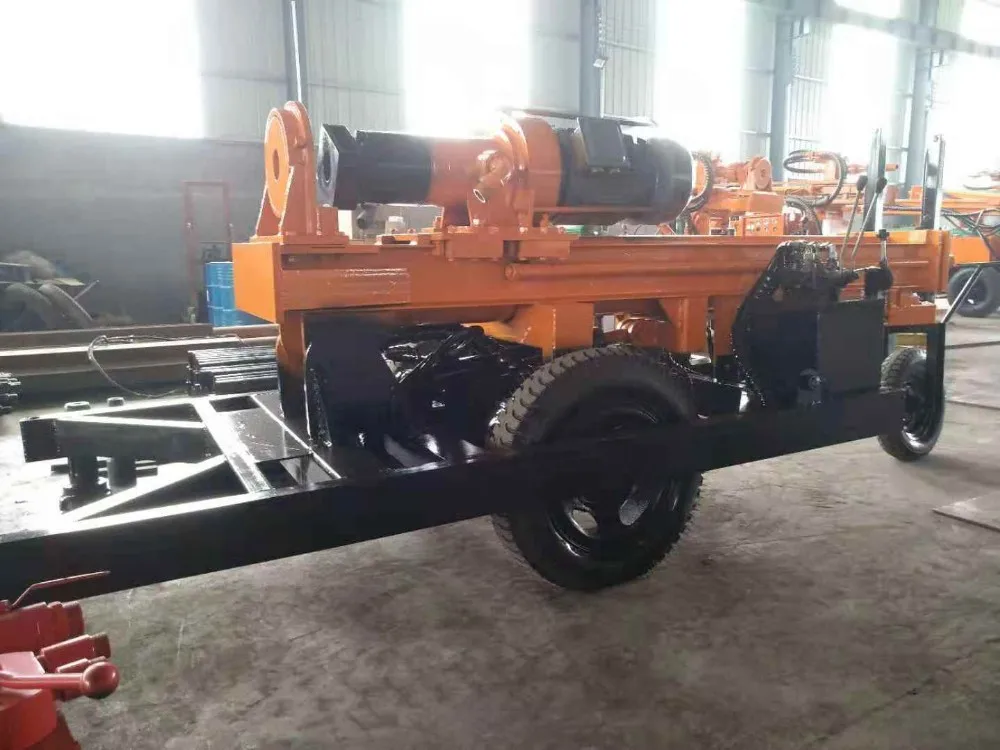

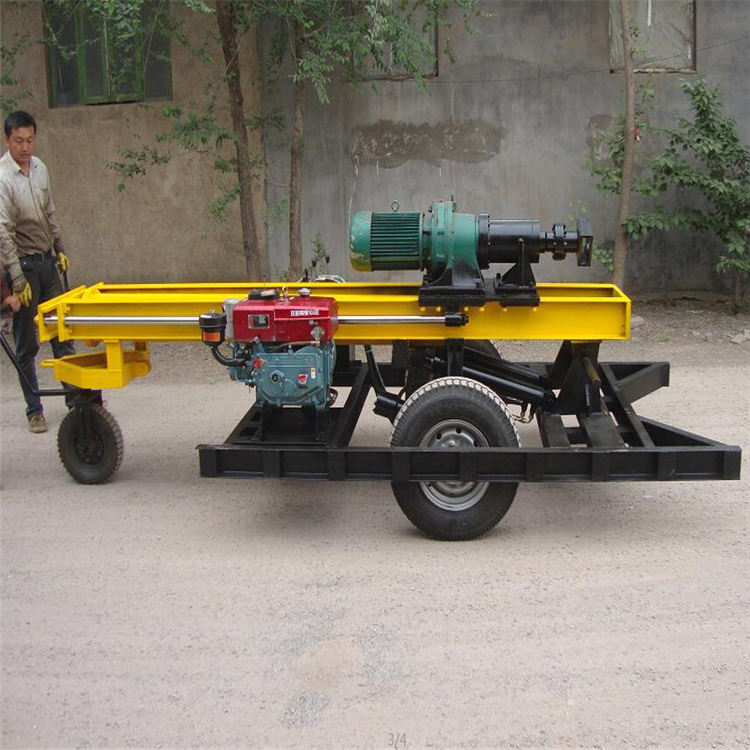

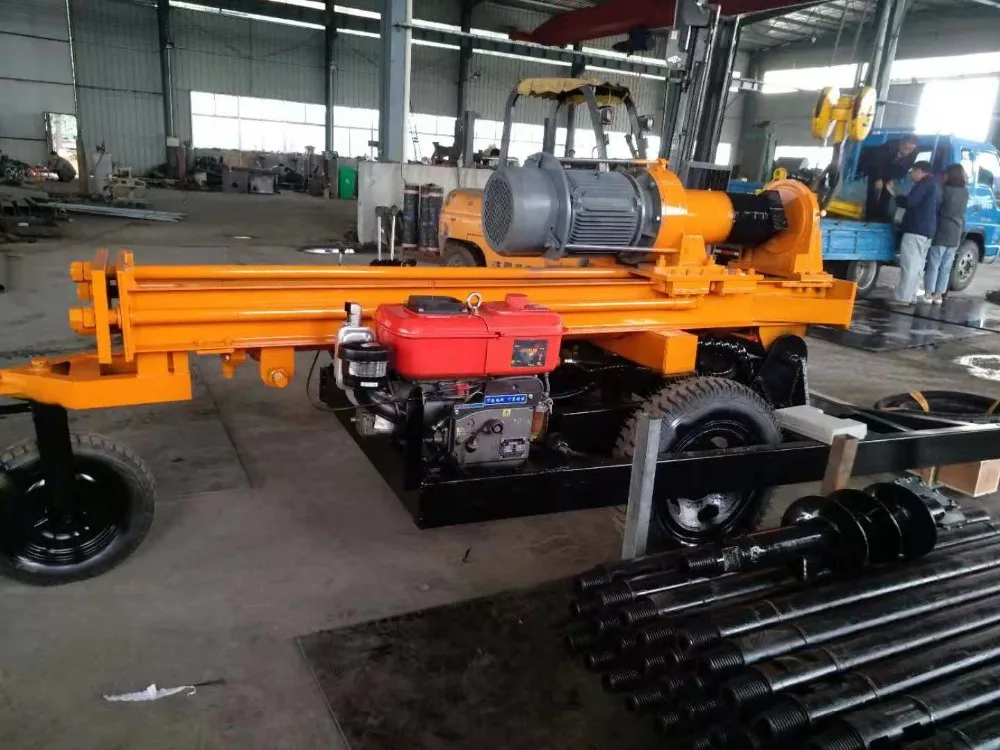

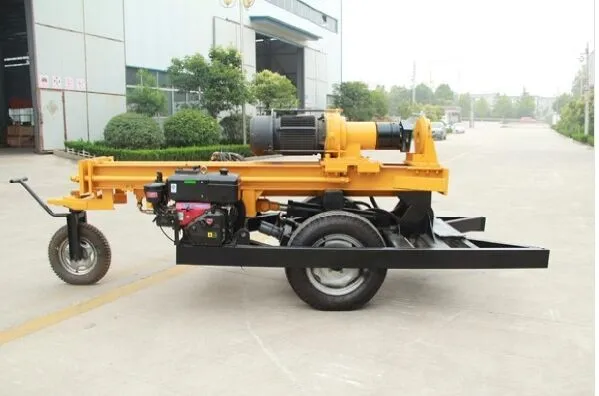

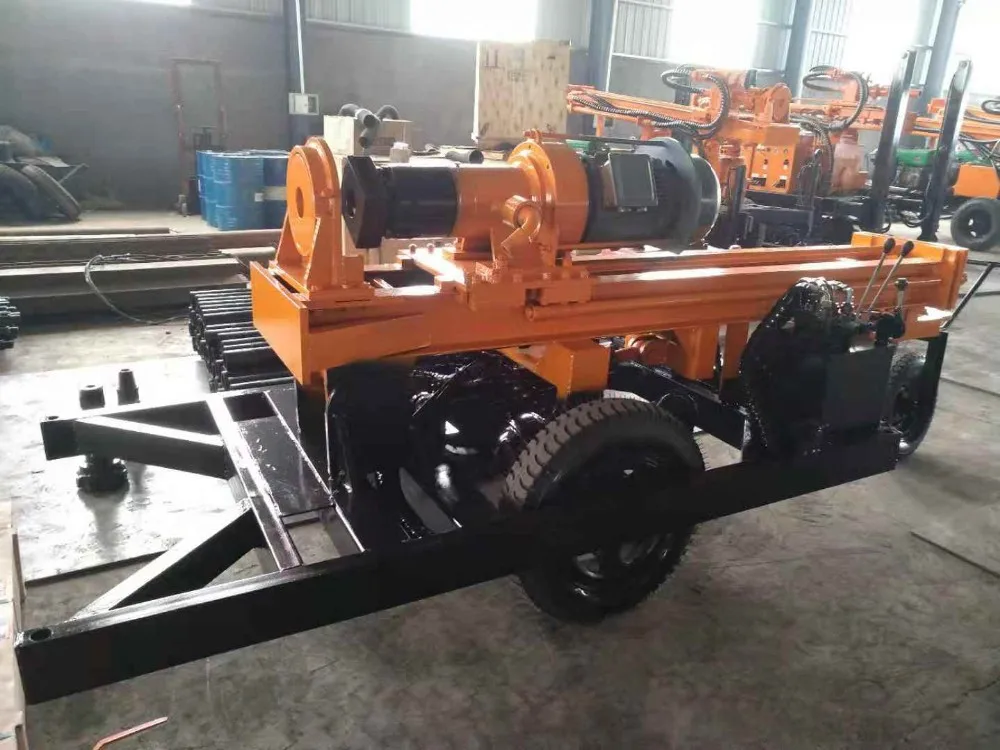

Detailed Images
