- Cutting Depth:
- 185mm
- Power(W):
- 6600
- Rotary Speed:
- 1-2m/min
- Power Source:
- Gasoline Engine
- After-sales Service Provided:
- Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available, No overseas service provided
- Warranty:
- 1 Year
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Voltage:
- 220/380
- Weight:
- 130KG
- Dimension(L*W*H):
- 930*565*1020mm
- Certification:
- 1200*400*820
- Color:
- Yellow/Red
- Diameter of Blade:
- 350/400/450/500mm
- Propulsion:
- Hand push
- Supply Ability:
- 100 Set/Sets per Week
- Packaging Details
- wooden case concrete road cutting machine / road cutting machine
- Port
- Qingdao/Tianjin/Shanghai
- Lead Time:
Quantity(Sets) 1 - 100 >100 Est. Time(days) 7 To be negotiated

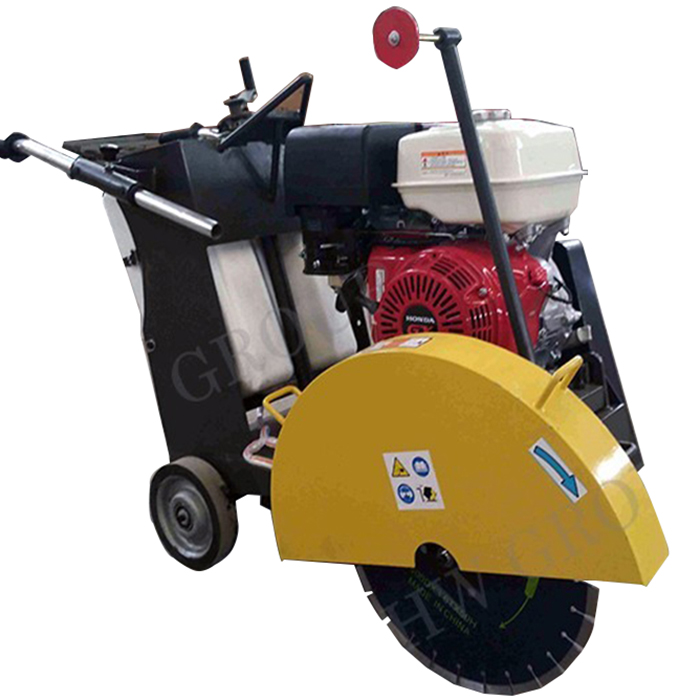

Road Cutting Machine
Road Cutting Machine (often known as Asphalt Road Cutter or Road Cutter) is a power tool used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials.
It can be a small hand-held cut-off concrete saw, a big walk-behind concrete cutter or other styles, besides the gasoline, petrol engines; it can also be powered by diesel, hydraulic or pneumatic pressure, or electric motors. The cutter blades used on concrete cutters are often diamond cutter blades to cut concrete, asphalt, stone, etc.
SPECIFICATIONS FOR ROAD CUTTING MACHINE | |||
Model | HW-400 | HW-500 | HW-600 |
Length * Width*Height (mm) | 1200*400*820 | 1980*630*900 | 1815*540*800 |
Blade Dimensions (mm) | 400 | 500 | 600 |
Cutting Depth (mm) | 130 | 180 | 230 |
Cutting depth adjustment | Screw | Screw | Screw |
Cutting speed (m / min) | 1-2.5 | 1-2.5 | 1-2.5 |
Propulsion | Hand push | Hand push | Hand push |
Water tank capacity (L) | 38 | 38 | 49 |
Engine lubricating oil capacity (L) | 1.1 | 1.5 | 1.8 |
Rated power (KW) | 8.5 | 8.5 | 20 |
Rated speed (rpm) | 3600 | 3600 | 3600 |
Idle speed (rpm) | 1500±150 | 1500±150 | 1500±150 |
Air displacement(cm3) | 390 | 390 | 390 |
Fuel tank capacity (liters) | 6.0 | 6.0 | 6.0 |
Fuel consumption (liters / hour) | 1.1 | 1.1 | 1.1 |
Fuel grade | Above 90# unleaded gasoline | Above 90# unleaded gasoline | Above 90# unleaded gasoline |




Main Features
1.Double water pipe---better cooling both side of blade
2.Rustless/ABS water tank---providing an optimum flow and volume of water for the blade
3.Super-rigid box frame---ensuring straight auts while resisting warping and vibration
4.Hinged front,lift-up blade guard--- to conveniently replace the diamond blade
5.Adjustable height handle---to esaily raise or lower cutting depth
