Asphalt road cutter/cutting machine
Click on the image to view the original image
Product: views:4Asphalt road cutter/cutting machine
Branch: HW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:50
  Negotiated
Product Details
Overview
Quick Details
Cutting Depth:
185mm
Power(W):
6600
Rotary Speed:
1-2m/min
Power Source:
Gasoline Engine
After-sales Service Provided:
Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available, No overseas service provided
Warranty:
1 Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Voltage:
220/380
Weight:
130KG
Dimension(L*W*H):
930*565*1020mm
Certification:
1200*400*820
Color:
Yellow/Red
Diameter of Blade:
350/400/450/500mm
Propulsion:
Hand push
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden case concrete road cutting machine / road cutting machine
Port
Qingdao/Tianjin/Shanghai
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)7To be negotiated
Product Description

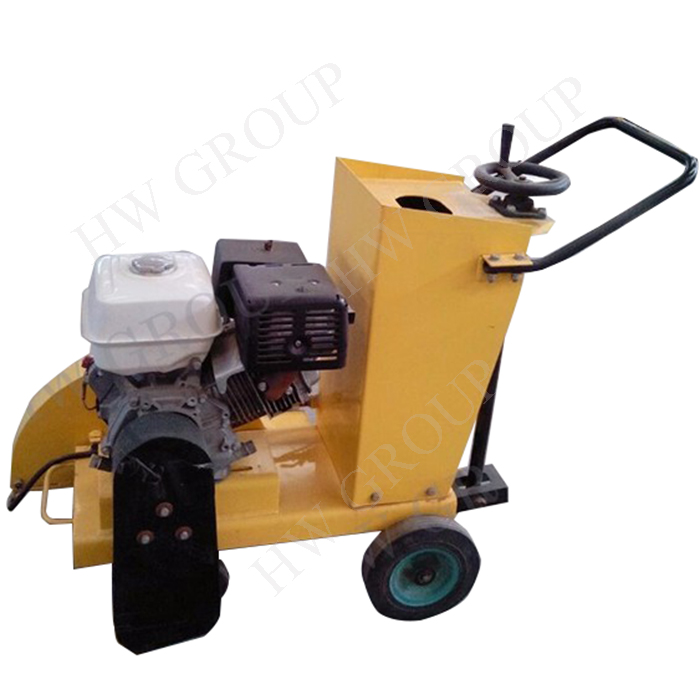

Road Cutting Machine

Road Cutting Machine (often known as Asphalt Road Cutter or Road Cutter) is a power tool used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials.
It can be a small hand-held cut-off concrete saw, a big walk-behind concrete cutter or other styles, besides the gasoline, petrol engines; it can also be powered by diesel, hydraulic or pneumatic pressure, or electric motors. The cutter blades used on concrete cutters are often diamond cutter blades to cut concrete, asphalt, stone, etc.

SPECIFICATIONS FOR ROAD CUTTING MACHINE
Model
HW-400
HW-500
HW-600
Length * Width*Height (mm)
1200*400*820
1980*630*900
1815*540*800
Blade Dimensions (mm)
400
500
600
Cutting Depth (mm)
130
180
230
Cutting depth adjustment
Screw
Screw
Screw
Cutting speed (m / min)
1-2.5
1-2.5
1-2.5
Propulsion
Hand push
Hand push
Hand push
Water tank capacity (L)
38
38
49
Engine lubricating oil capacity (L)
1.1
1.5
1.8
Rated power (KW)
8.5
8.5
20
Rated speed (rpm)
3600
3600
3600
Idle speed (rpm)
1500±150
1500±150
1500±150
Air displacement(cm3)
390
390
390
Fuel tank capacity (liters)
6.0
6.0
6.0
Fuel consumption (liters / hour)
1.1
1.1
1.1
Fuel grade
Above 90# unleaded gasoline
Above 90# unleaded gasoline
Above 90# unleaded gasoline

Main Features

1.Double water pipe---better cooling both side of blade
2.Rustless/ABS water tank---providing an optimum flow and volume of water for the blade
3.Super-rigid box frame---ensuring straight auts while resisting warping and vibration
4.Hinged front,lift-up blade guard--- to conveniently replace the diamond blade
5.Adjustable height handle---to esaily raise or lower cutting depth
