Concrete Demolition Tool Splitter Electric Motor Rock Splitter for sale
Click on the image to view the original image
Product： views：3Concrete Demolition Tool Splitter Electric Motor Rock Splitter for sale
Branch： HW
Type： Rock Splitter
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:50
  Negotiated
Product Details
Overview
Quick Details
Type:
Rock Splitter
Condition:
New
Application:
rock breaker
Motor Type:
AC Motor
Place of Origin:
China
Brand Name:
HW
Dimension(L*W*H):
1.2CBM
Certification:
ISO
Warranty:
One year
After-sales Service Provided:
Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Name:
rock splitter
piston diameter:
90mm
drilling diameter:
40-50mm
drilling depth:
more than 600mm
crack width:
10~40mm
Engine:
Electricity engine /diesel engine
capacity of tank:
40L-90L
working pressure:
55-60Mpa
working flow:
2-13L/Min
Supply Ability
Supply Ability:
5000 Set/Sets per Week rock splitter
Packaging & Delivery
Packaging Details
rock splitter packing within wooden case
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 23 - 5 >5
Est. Time(days)13To be negotiated
Product Description

Hydraulic rock splitter ,rock splitter wedge for sale

Rock splitting machine, also known as rock splitting machine, is a machine for splitting rocks. It is used in construction, decoration, engineering construction, ore mining.

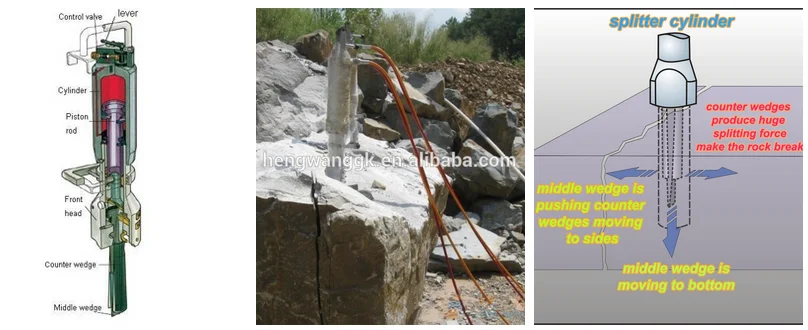

Splitting machine|The structure of the splitter is mainly composed of hydraulic station, oil pipeline, splitting gun and decoupling. According to the type of power station, it can be divided into four types: electric type, diesel type, gasoline type and air motor. According to the split gun material can be divided into: steel split gun and aluminum split gun. It can also be classified according to the size of the split gun power.

Models

Model
HW90-250-1
HW90-250-2
HW90-250-3
HW90-250-4
piston diameter
90mm
90mm
90mm
90mm
drilling diameter
Φ50mm
Φ42mm
Φ45mm
Φ50mm
drilling depth
≧600mm
≧500mm
≧550mm
≧600mm
cheese block length
10~40mm
10~40mm
10~40mm
10~40mm
weight
30Kg
31Kg
32Kg
33Kg
                                                                                Hydraulic rock splitter
Engine
Electricity engine
Gaoline engine /diesel engine
weight
60kg
100kg /150kg
100kg
130kg/150kg
capacity of tank
15L
40L /88L
45L
65L/90L
motor power
1.5KW
4KW/7.5KW
4Hp
7Hp/7.5Hp
working pressure(Mpa)
55-60
55-60
55-60
55-60
working flow(L/min)
2-13
2-13
2-13
2-13
configurable splitting machine number
1-5
2-7/2-10
1-3
3-8/3-10
Detailed Images

Hydraulic rock splitter , rock splitter wedge for sale

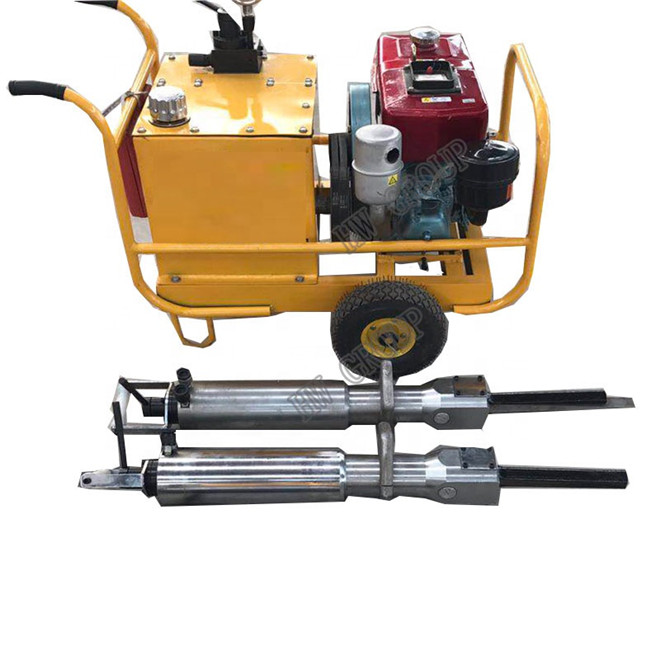

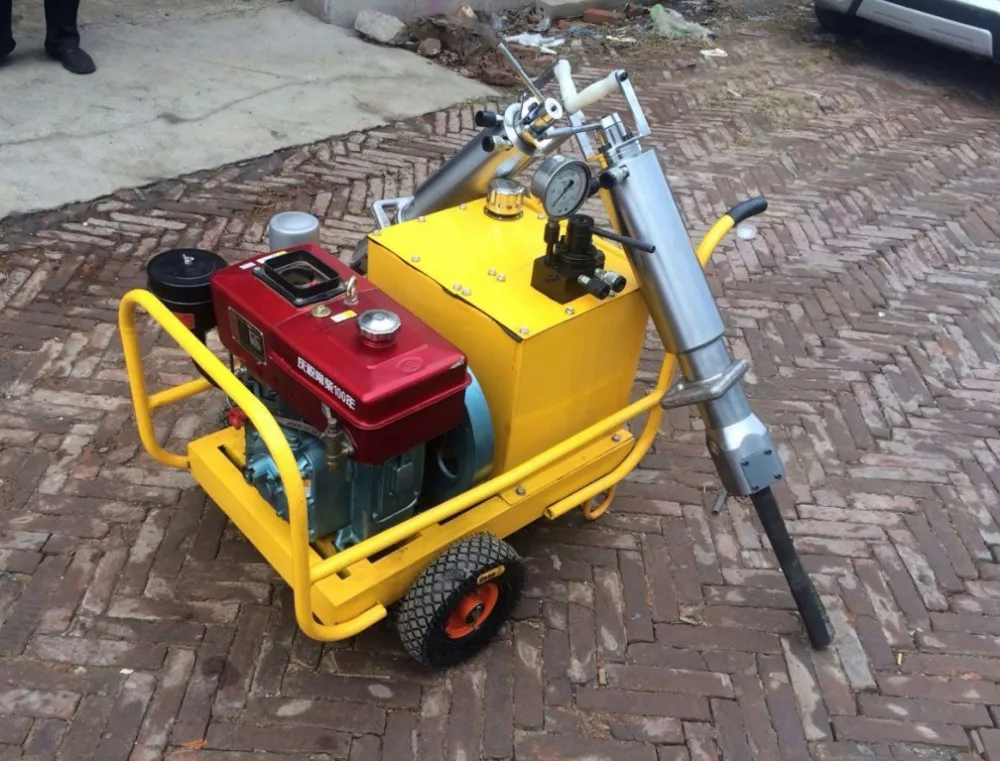

Diesel engine power

diesel engine power with rock splitter gun

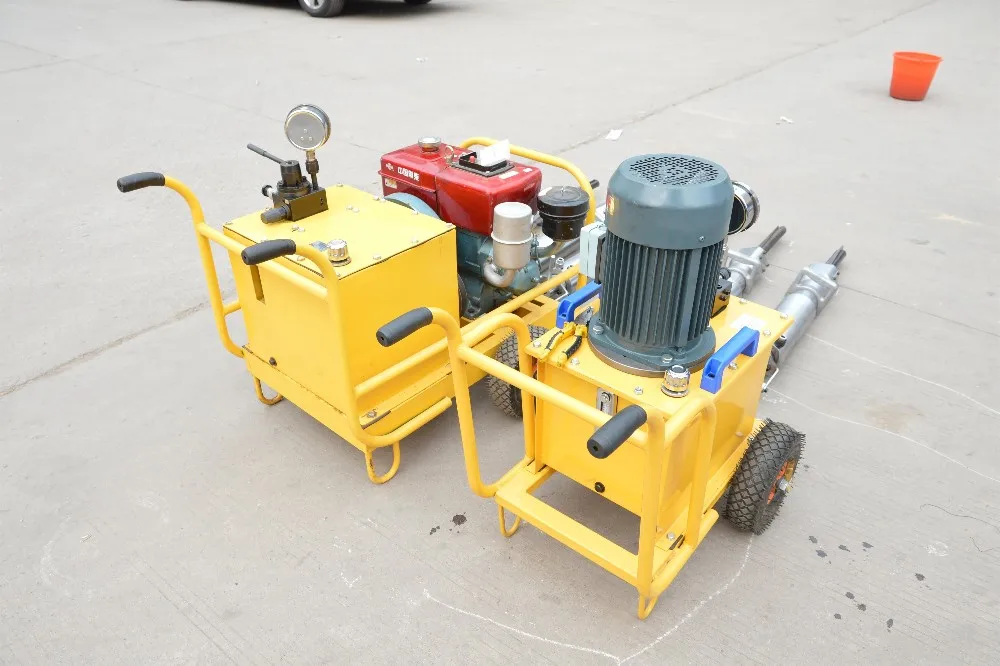

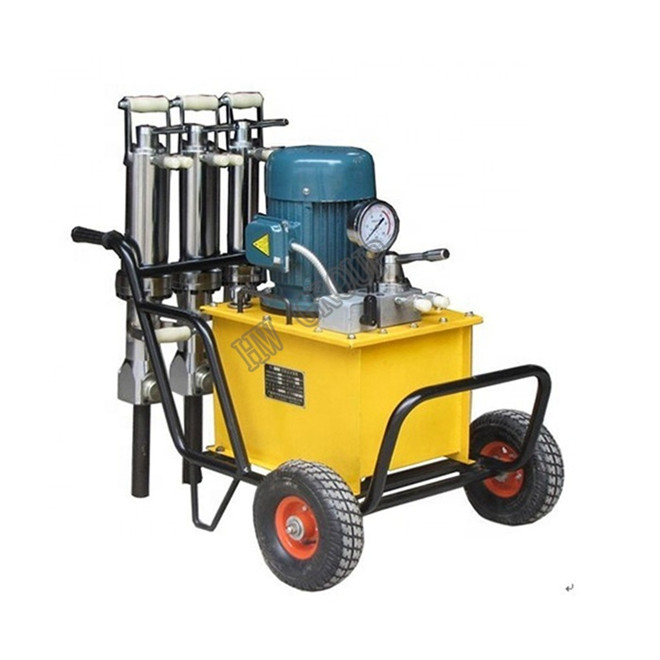

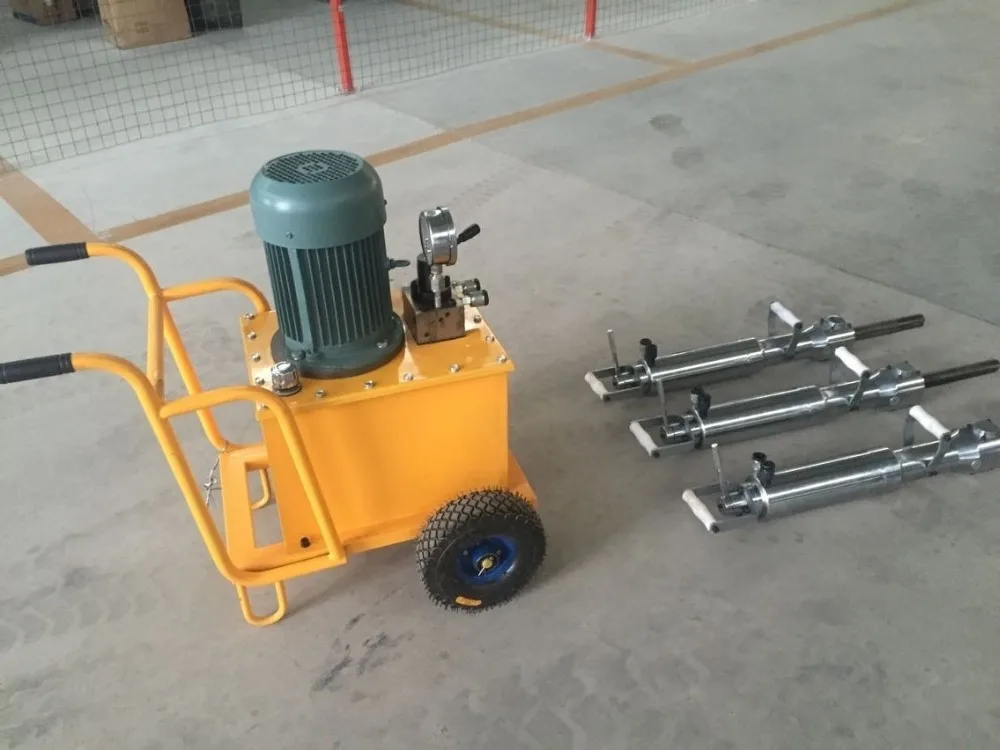

Electric engine power

Electric engine power with rock splitter gun

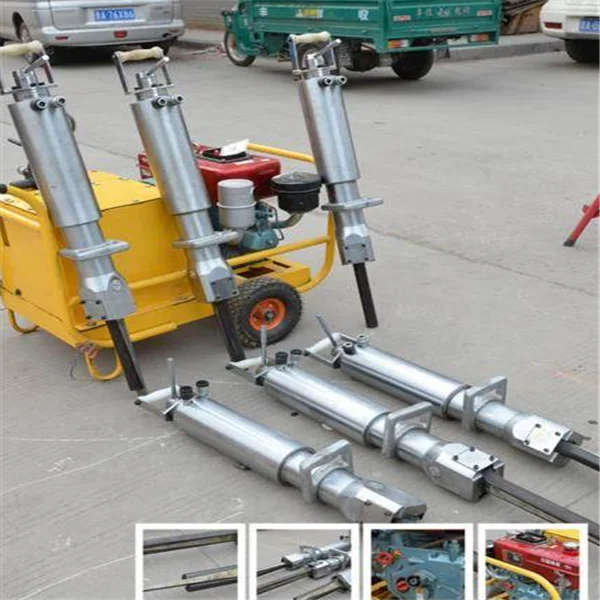

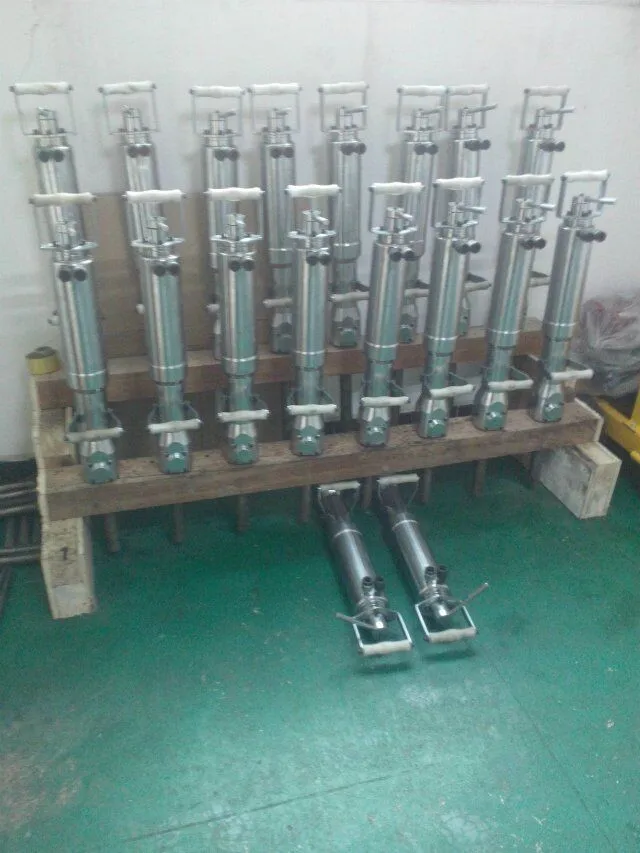

Rock splitter gun

different size rock splitter gun
